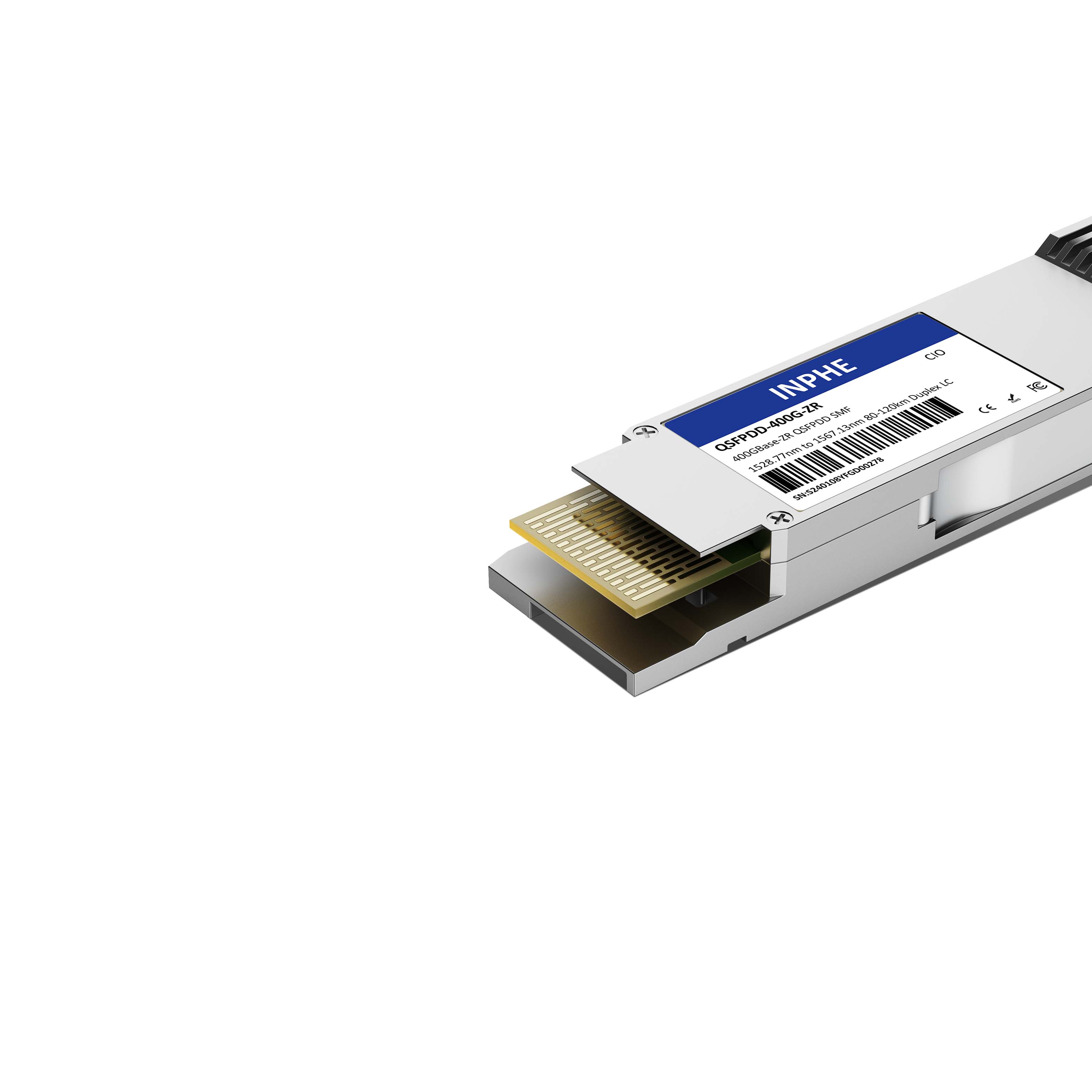

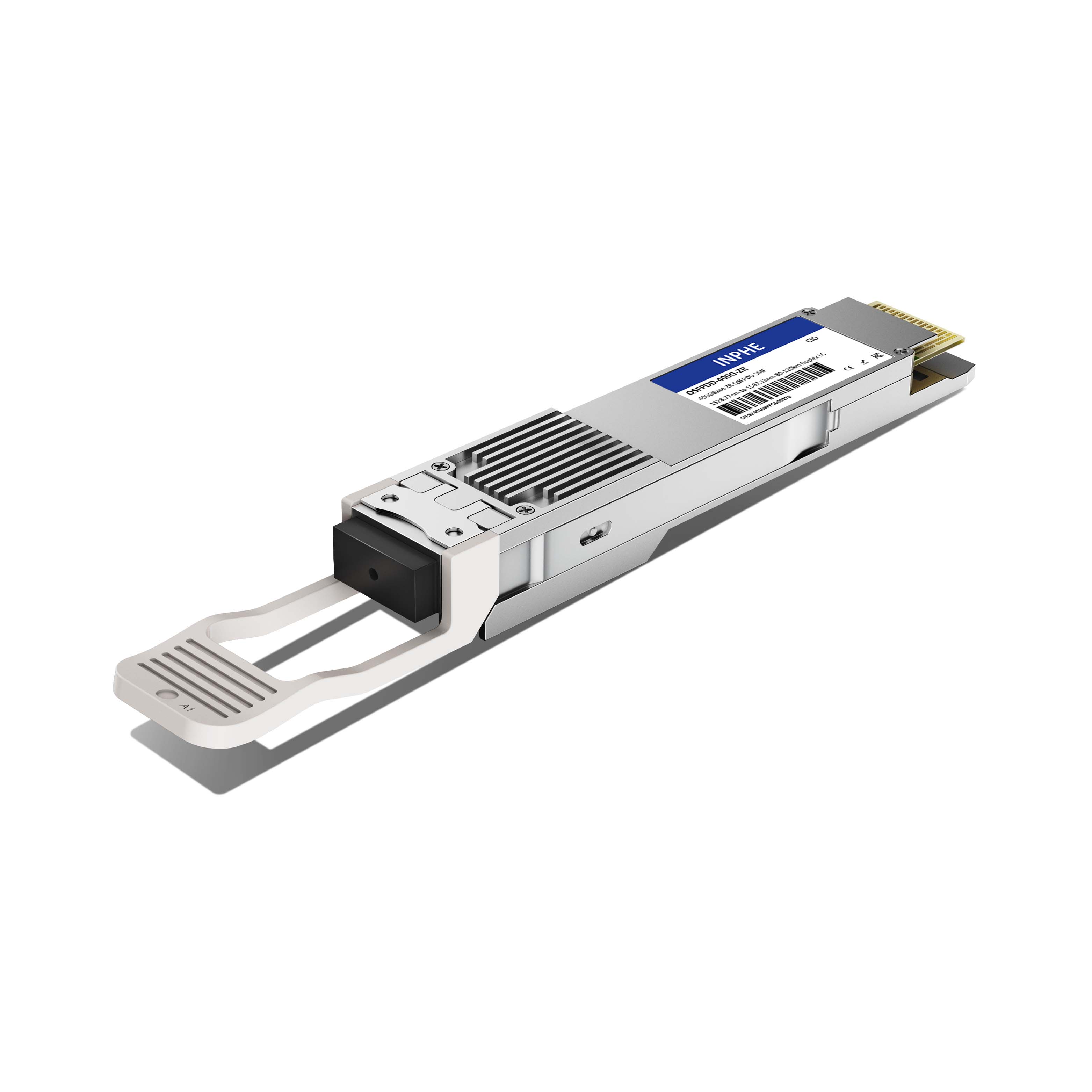

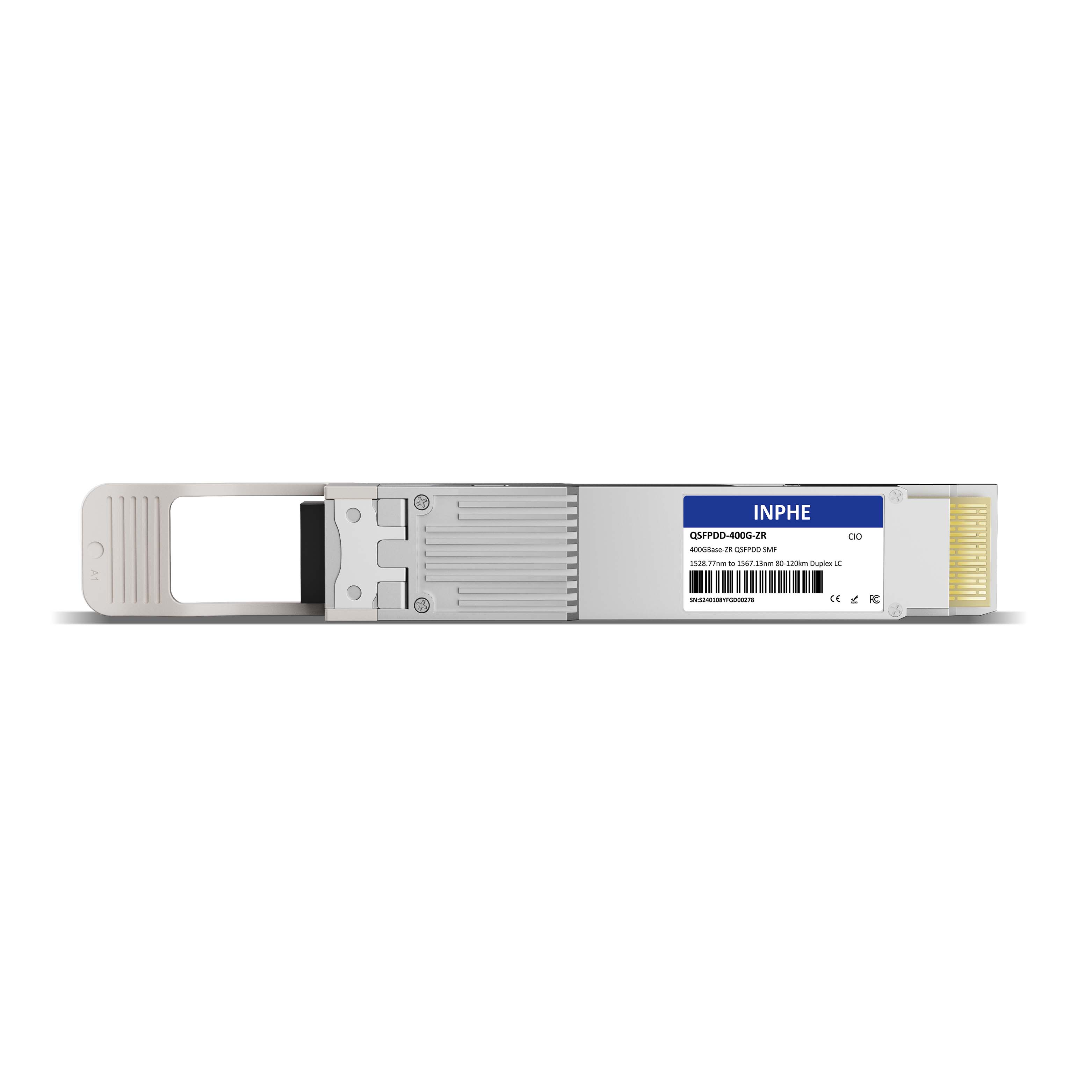

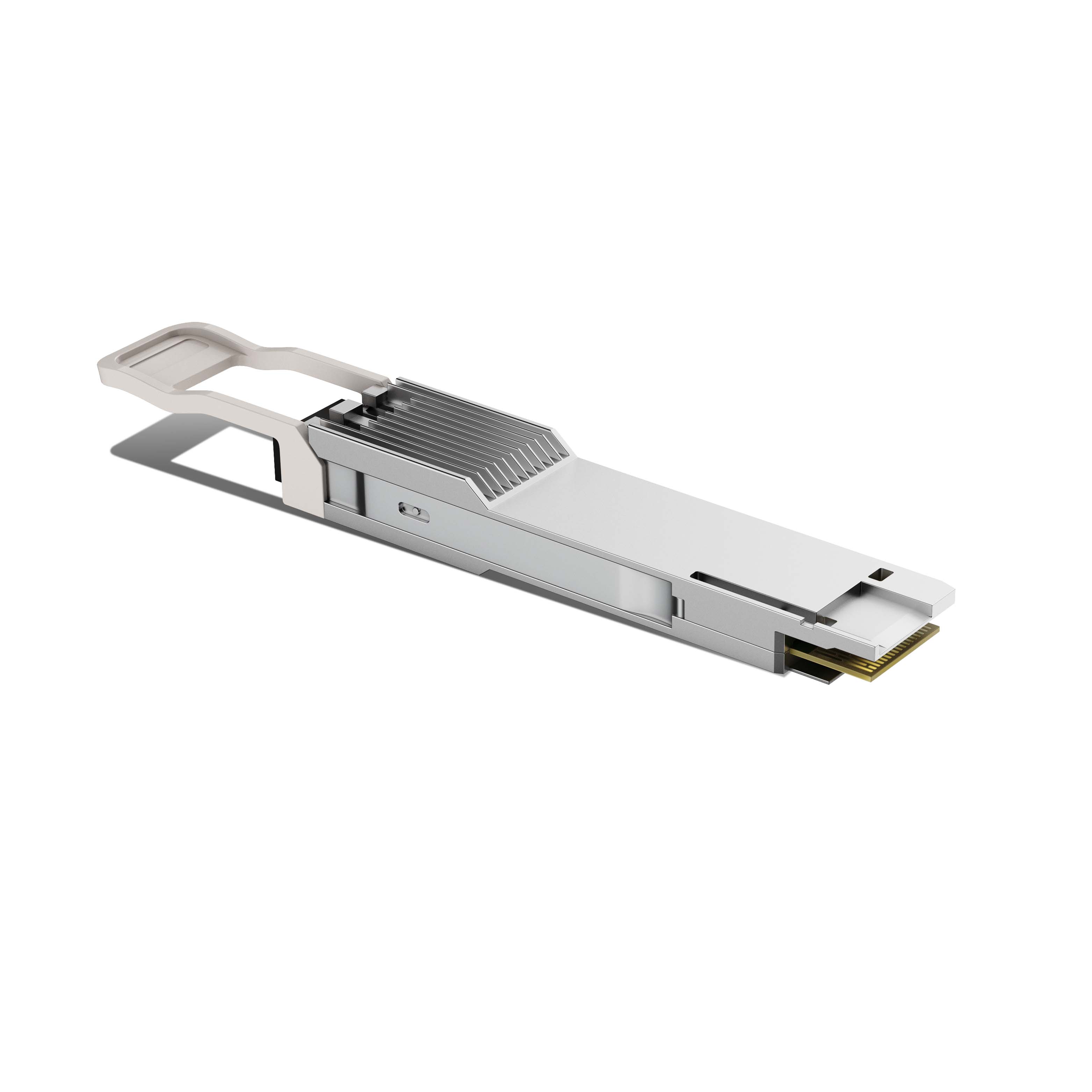

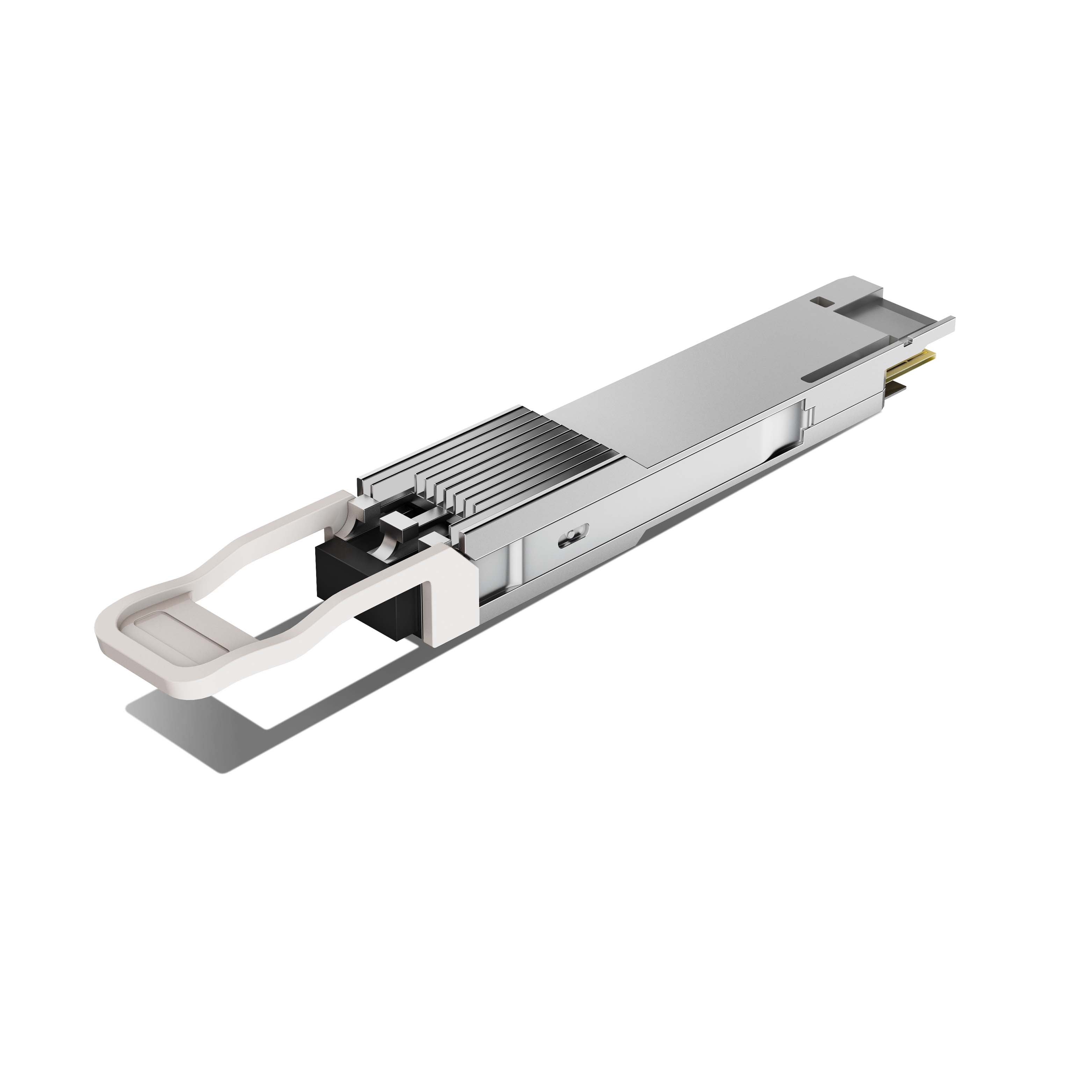

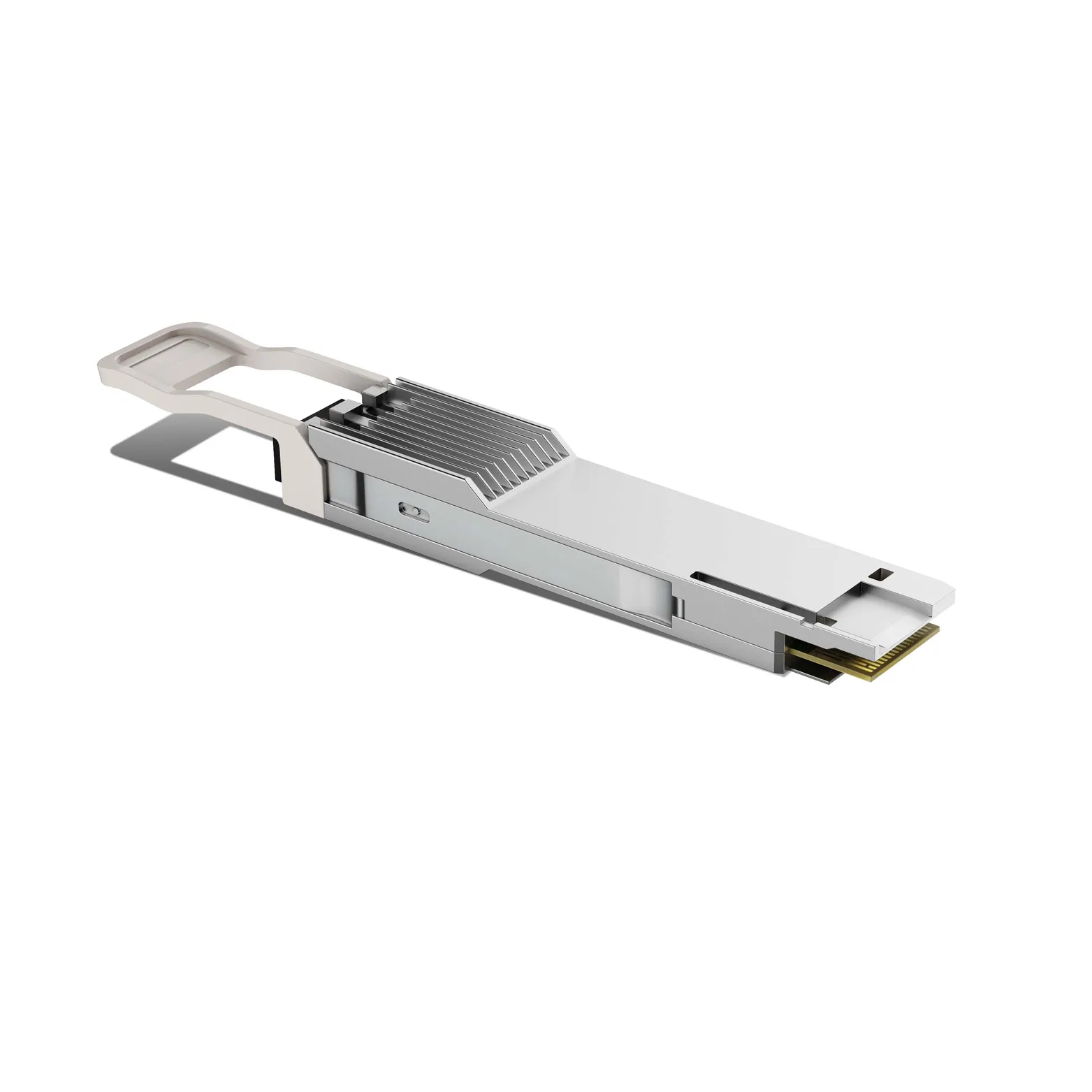

Huawei 02313FHD QSFP-DD-400G-ZR Compatible QSFP-DD 400GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Huawei 02313FHD QSFP-DD-400G-ZR Compatible QSFP-DD 400GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709000804056
Price: 4999 USD
Availability: InStock

#709000804056

US$4,999.00

INPHE: 02313FHD

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

02313FHD

02313LHH

02313GSB

02314UJL Customized

QTY:

Specifications

The Huawei 02313FHD QSFP-DD-400G-ZR compatible QSFP-DD 400G-ZR is a Coherent DWDM Tunable Optics designed for high-capacity, long-distance transmission networks in data centers and telecom operators.

Featuring a EML transmitter and a Coherent receiver, and operating at a wavelength of DWDM Tunable (C13-C16; 1567.13nm to 1528.77nm), this Optics utilizes an Duplex LC connector to deliver 400G transmission.

Use C-FEC and 16QAM modulation techniques and exceptional reliability over link distances of up to 120km (OS2 SMF). With -8.0dBm Tx Power.

The operating mode and transmission distance of 400G-ZR:

1. ≤120km (DWDM amplified, noise limited links)
2. ≤40km (Single wavelength unamplified, loss limited links)
3. ≤120km (Single wavelength amplified, noise limited links)

The INPHE 400G-ZR uses Marvell 7nm DSP.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections
2. 400G DWDM Connections

Vendor Name	INPHE	Part Number	QDD-400G-ZR
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	120km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ -6.0dBm	Receiver Sensitivity	< -12.0dBm DWDM Amplified, < -20.0dBm Single wavelength unamplified
Protocols	IEEE Std 802.3™-2018, QSFP-DD MSA, CMIS 4.0, OIF-400ZR-01.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 years
