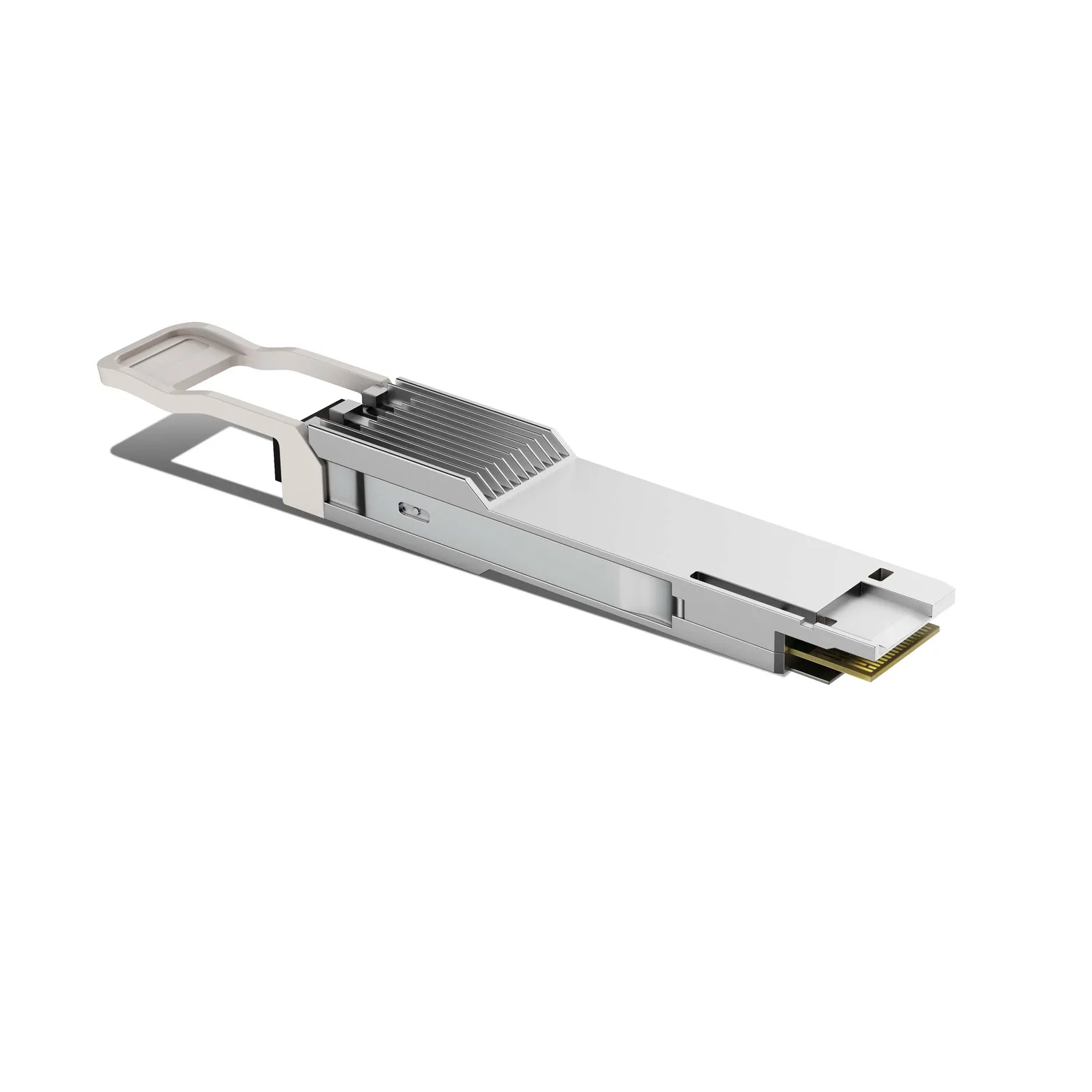

Edge Core ECPO-QDDZR400G Compatible QSFP-DD 400GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Edge Core ECPO-QDDZR400G Compatible QSFP-DD 400GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 709000801038
Price: 4299 USD
Availability: InStock

#709000801038

US$4,299.00

INPHE: ECPO-QDDZR400G

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

ECPO-QDDZR400G Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-400G-ZR
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	120km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ -6.0dBm	Receiver Sensitivity	< -12.0dBm DWDM Amplified, < -20.0dBm Single wavelength unamplified
Protocols	IEEE Std 802.3™-2018, QSFP-DD MSA, CMIS 4.0, OIF-400ZR-01.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
