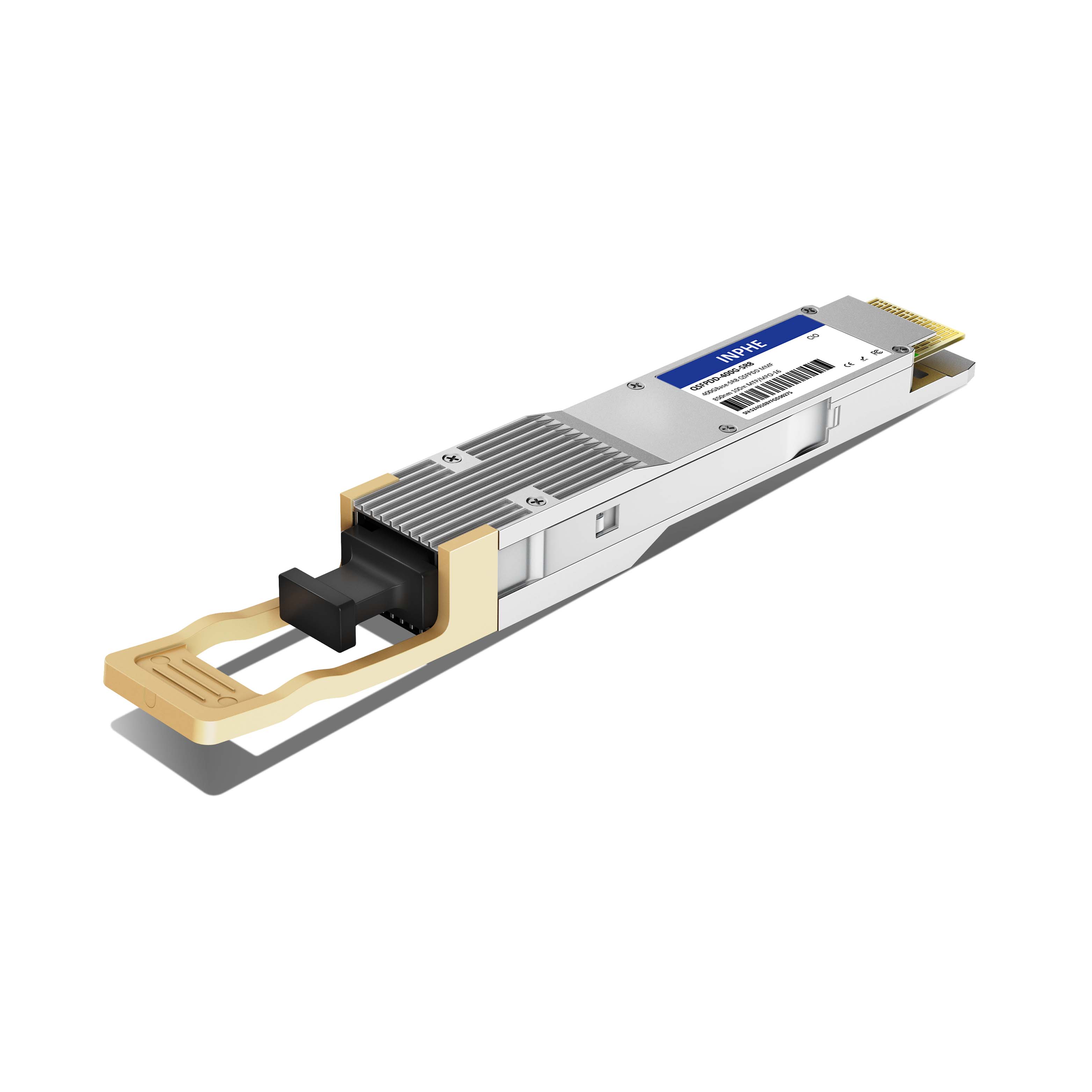

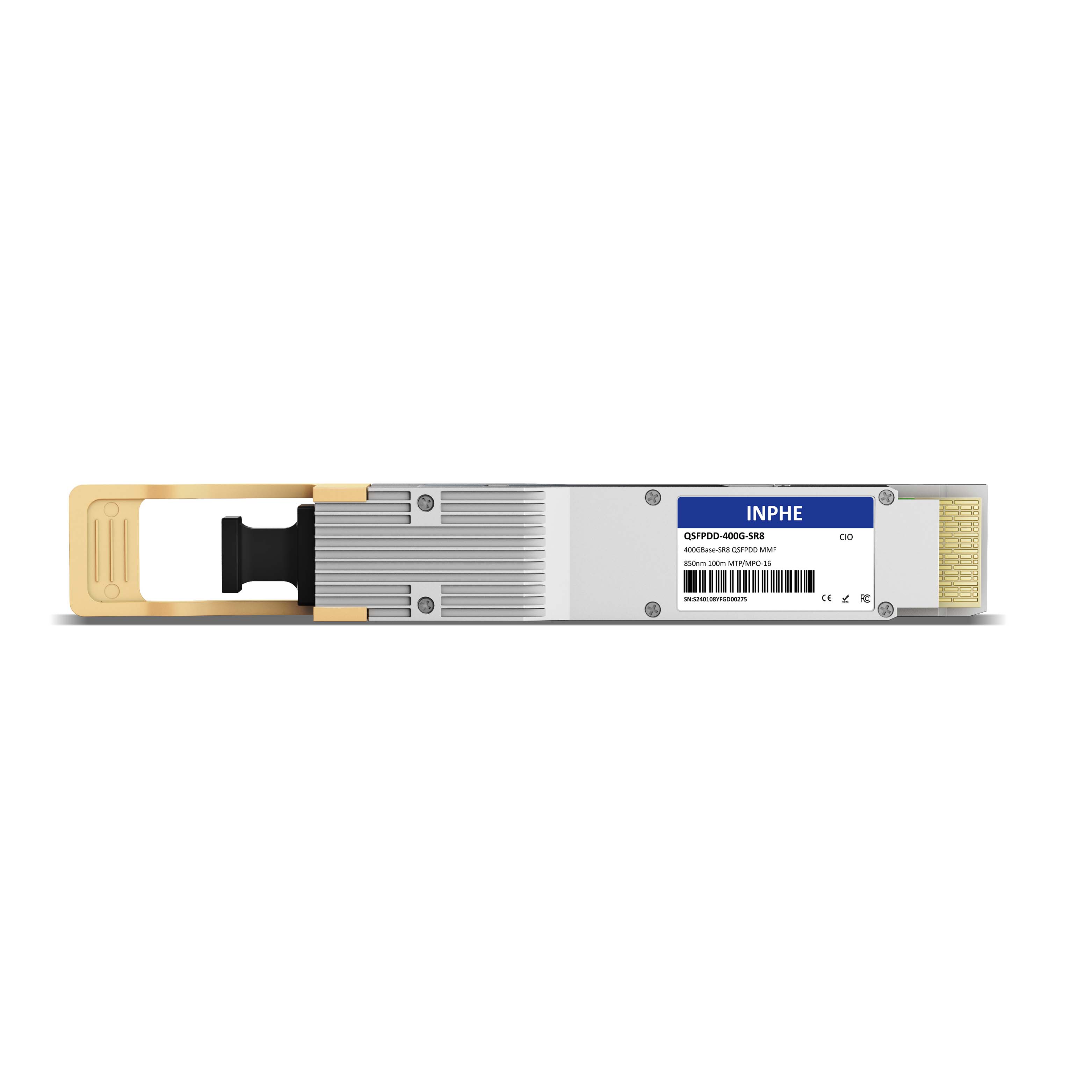

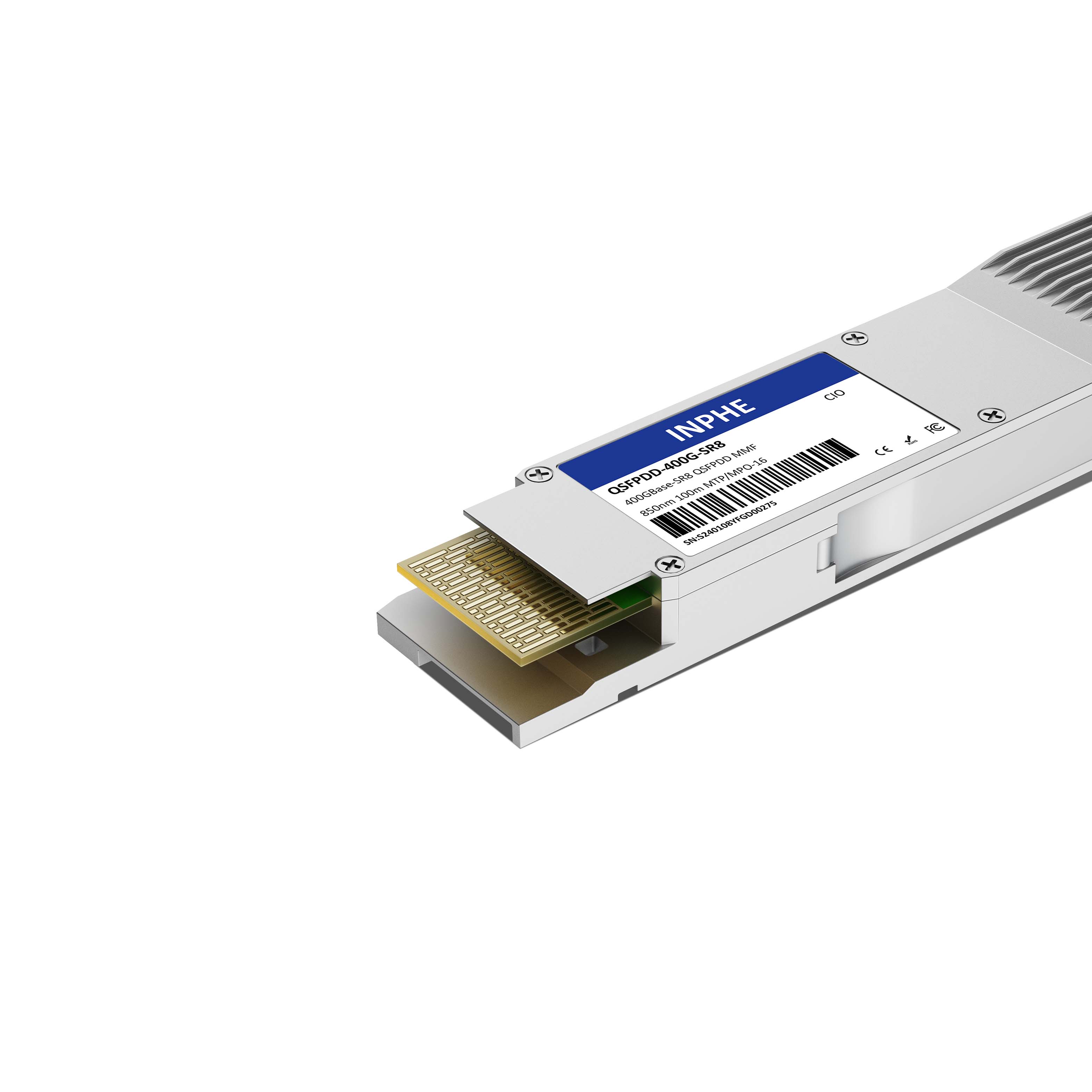

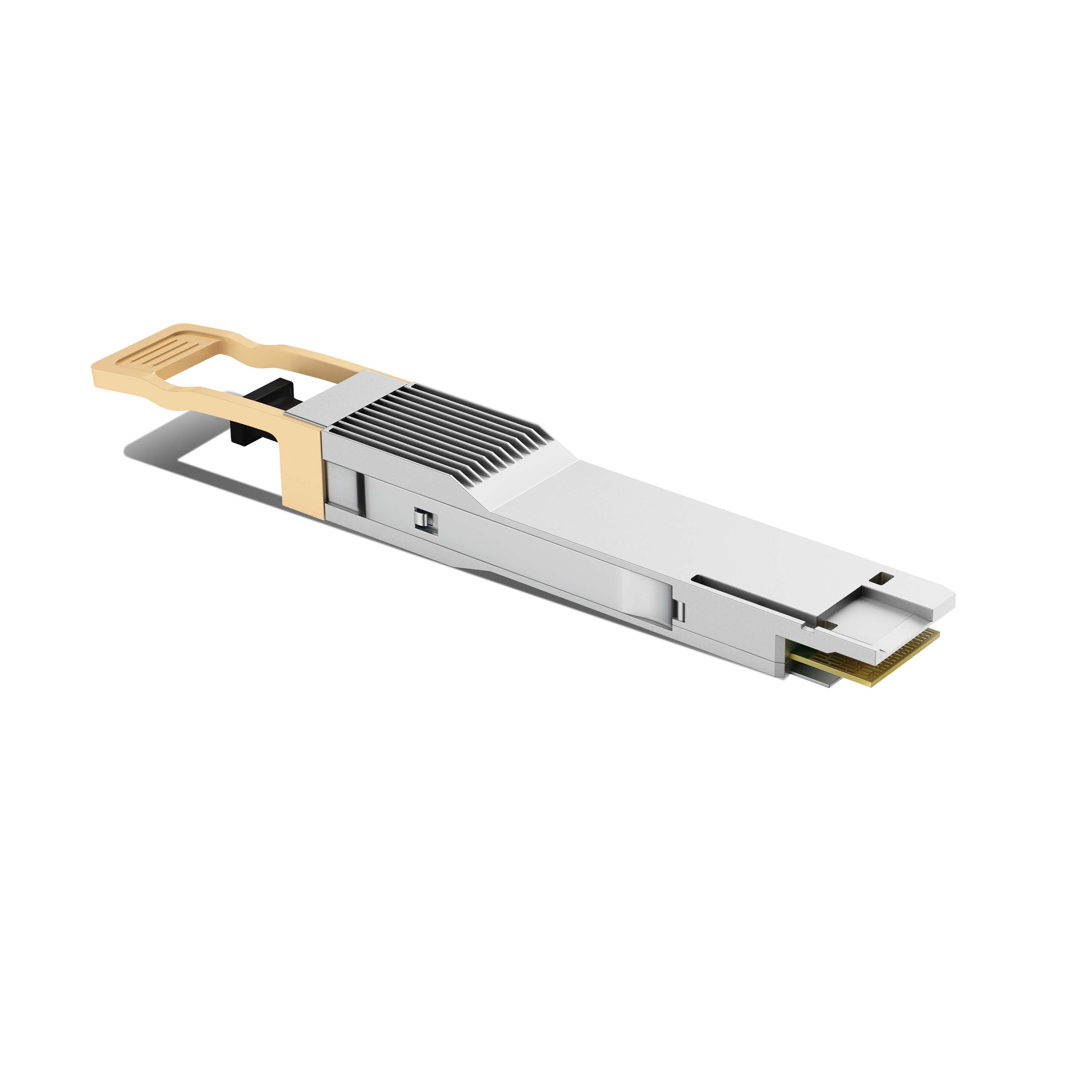

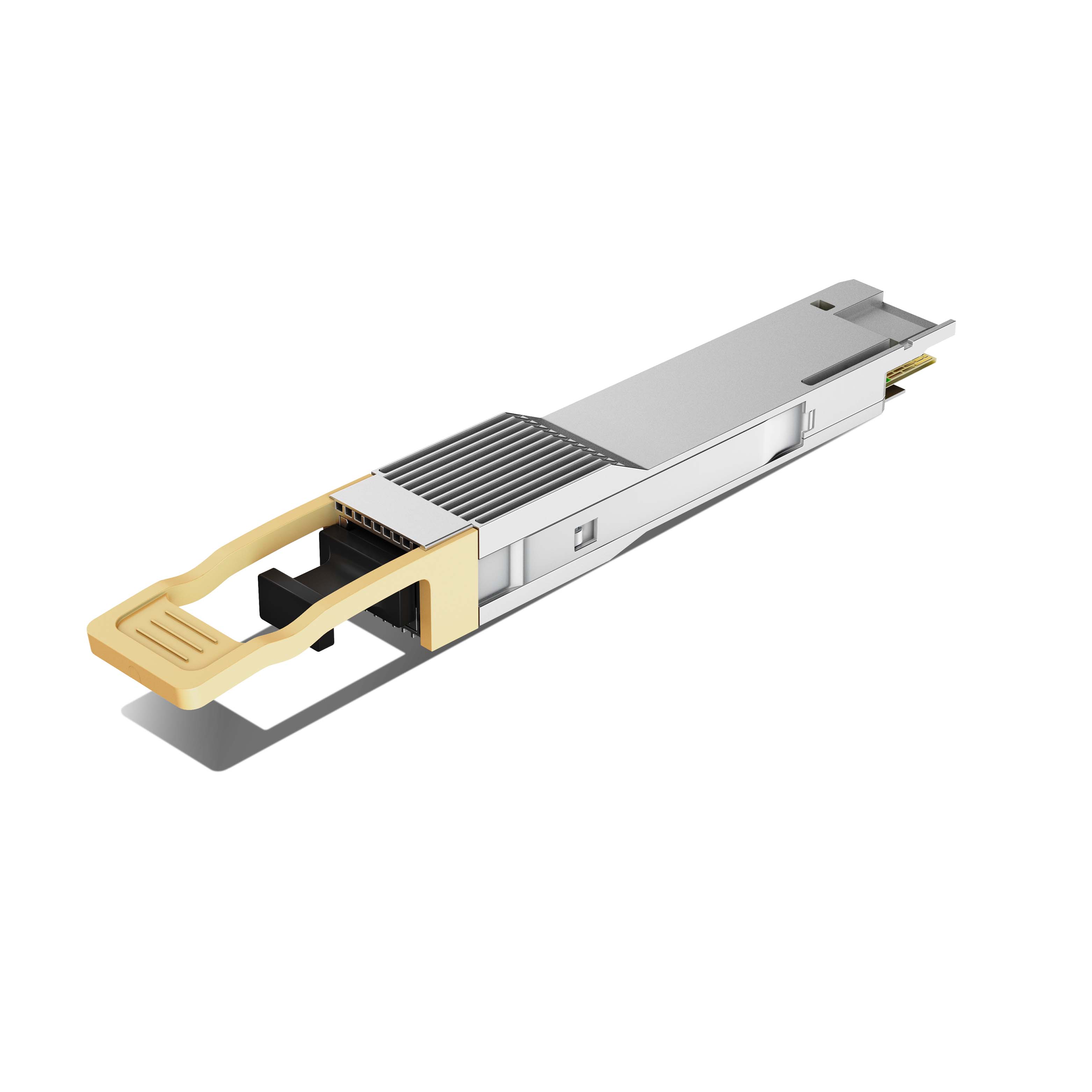

NVIDIA (Mellanox) T-DQ8FNS-N00-M Compatible QSFP-DD 400GBASE SR8 850nm 100m MMF MPO/MTP-16 With Dual CDR DDM/DOM Optics Transceiver

Name: NVIDIA (Mellanox) T-DQ8FNS-N00-M Compatible QSFP-DD 400GBASE SR8 850nm 100m MMF MPO/MTP-16 With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 709000003138
Price: 129 USD
Availability: InStock

#709000003138

US$129.00

INPHE: T-DQ8FNS-N00-M

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

T-DQ8FNS-N00-M

T-DQ8FNS-N00

MMA1U00-WS Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-400G-SR8
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	OM4 100m / OM3 70m
Connector	MTP/MPO 16	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-6.5 ~ +4.0dBm	Receiver Sensitivity	< -6.5dBm
Protocols	IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
