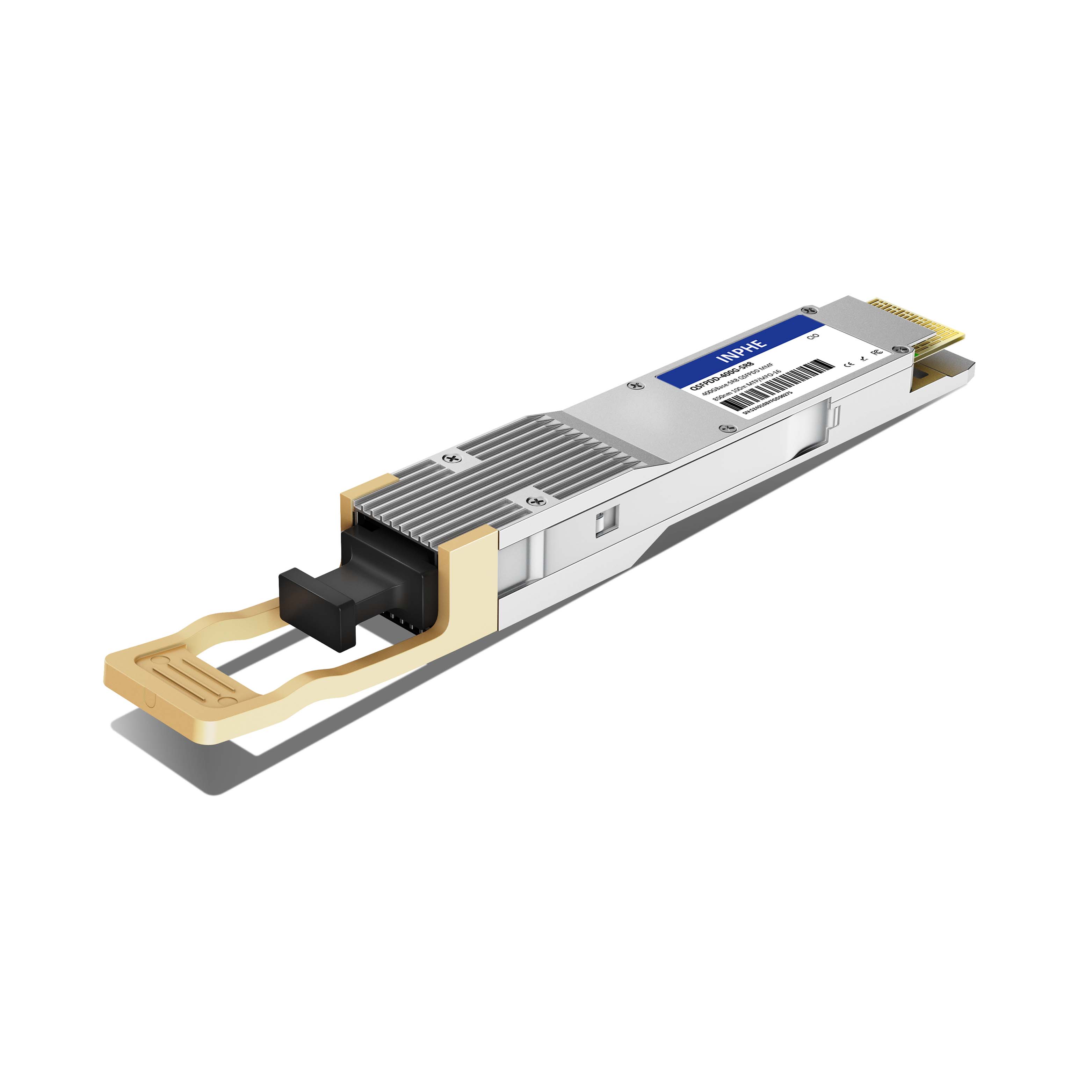

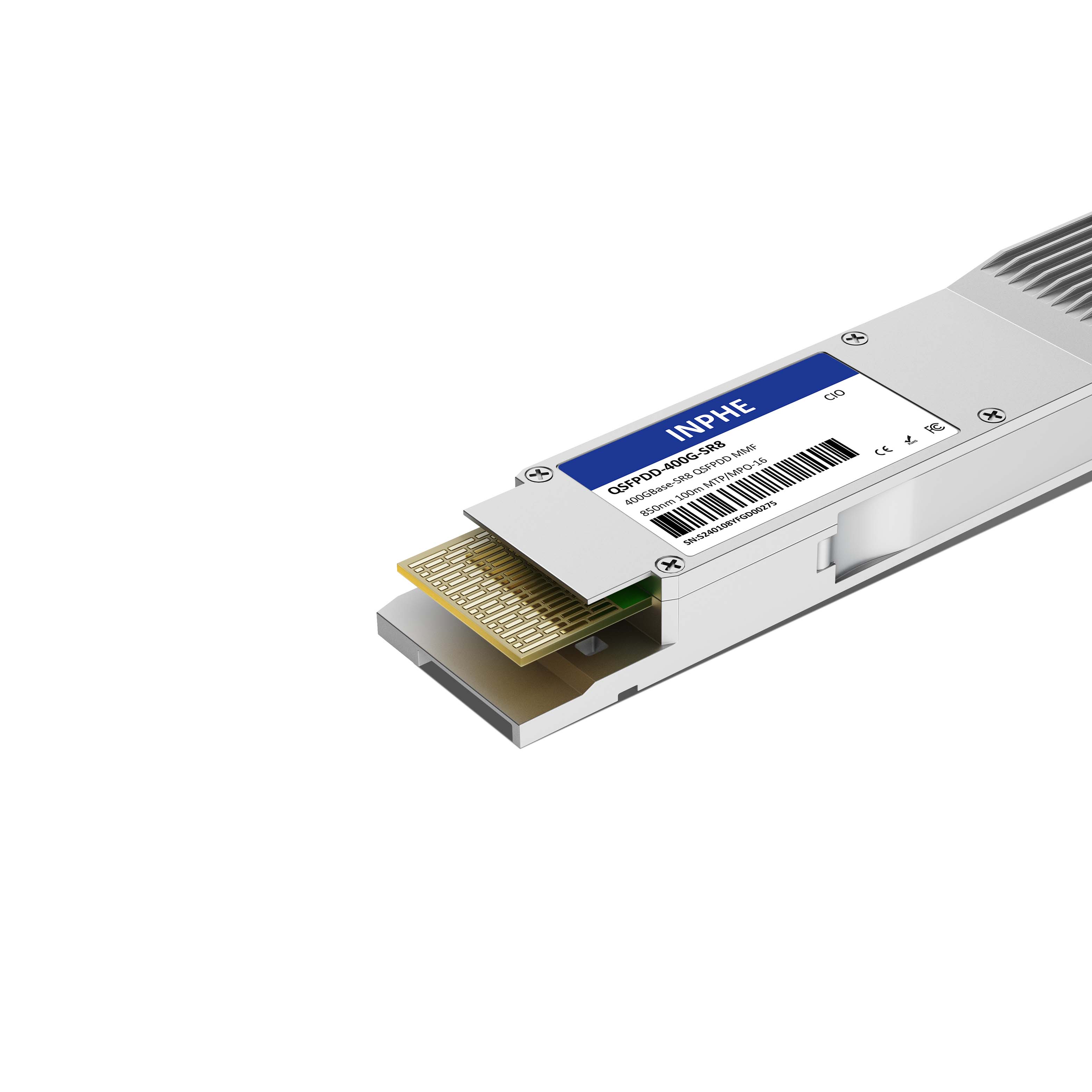

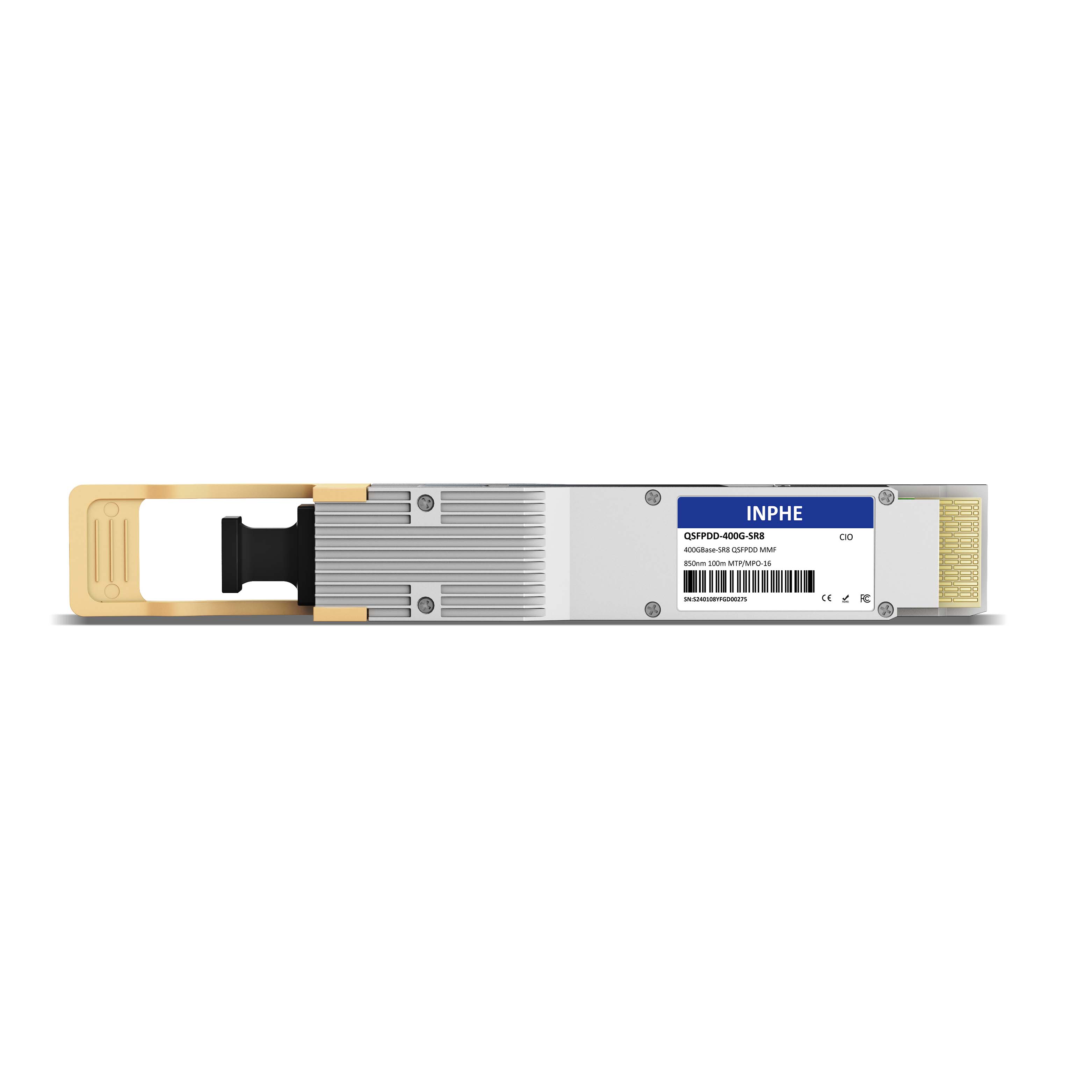

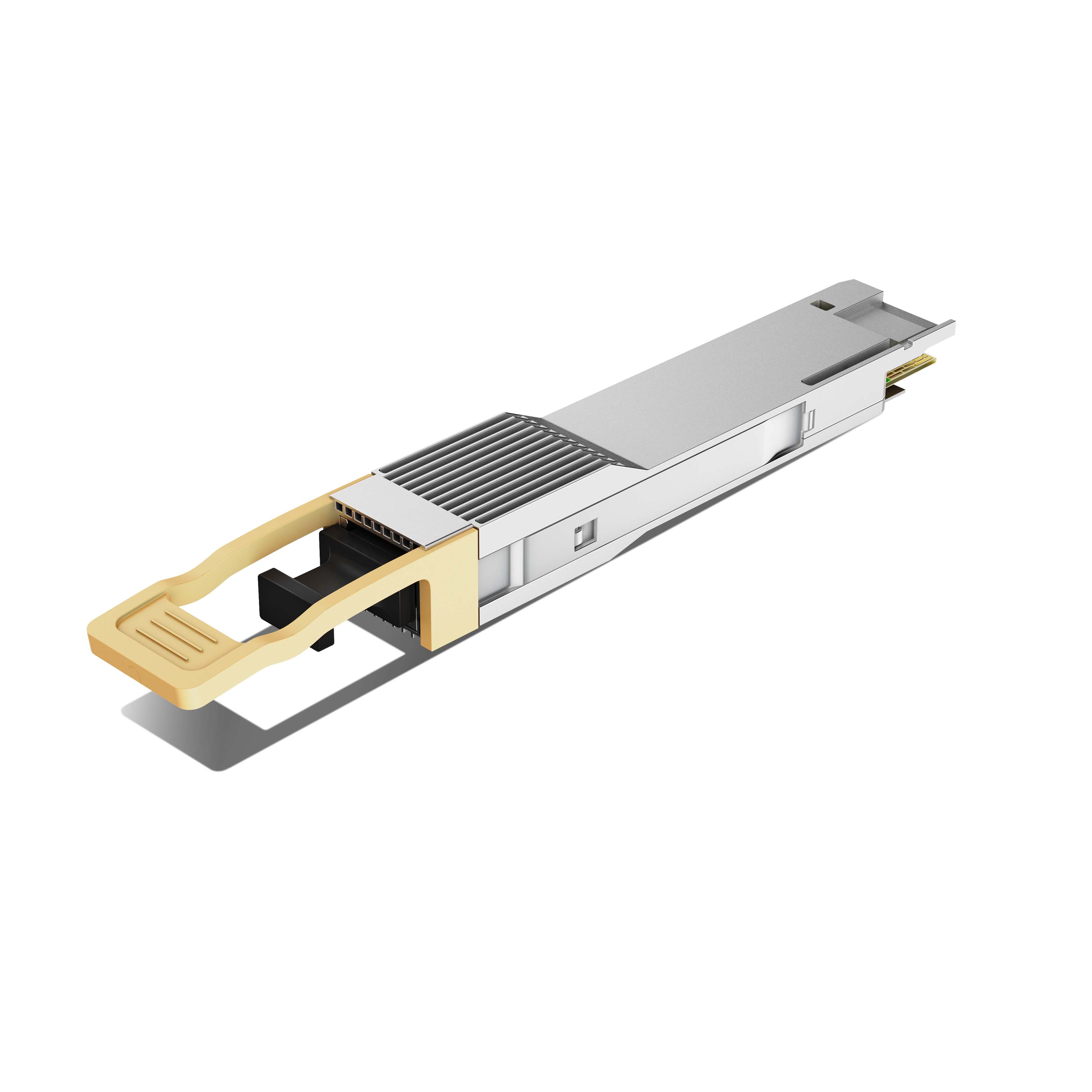

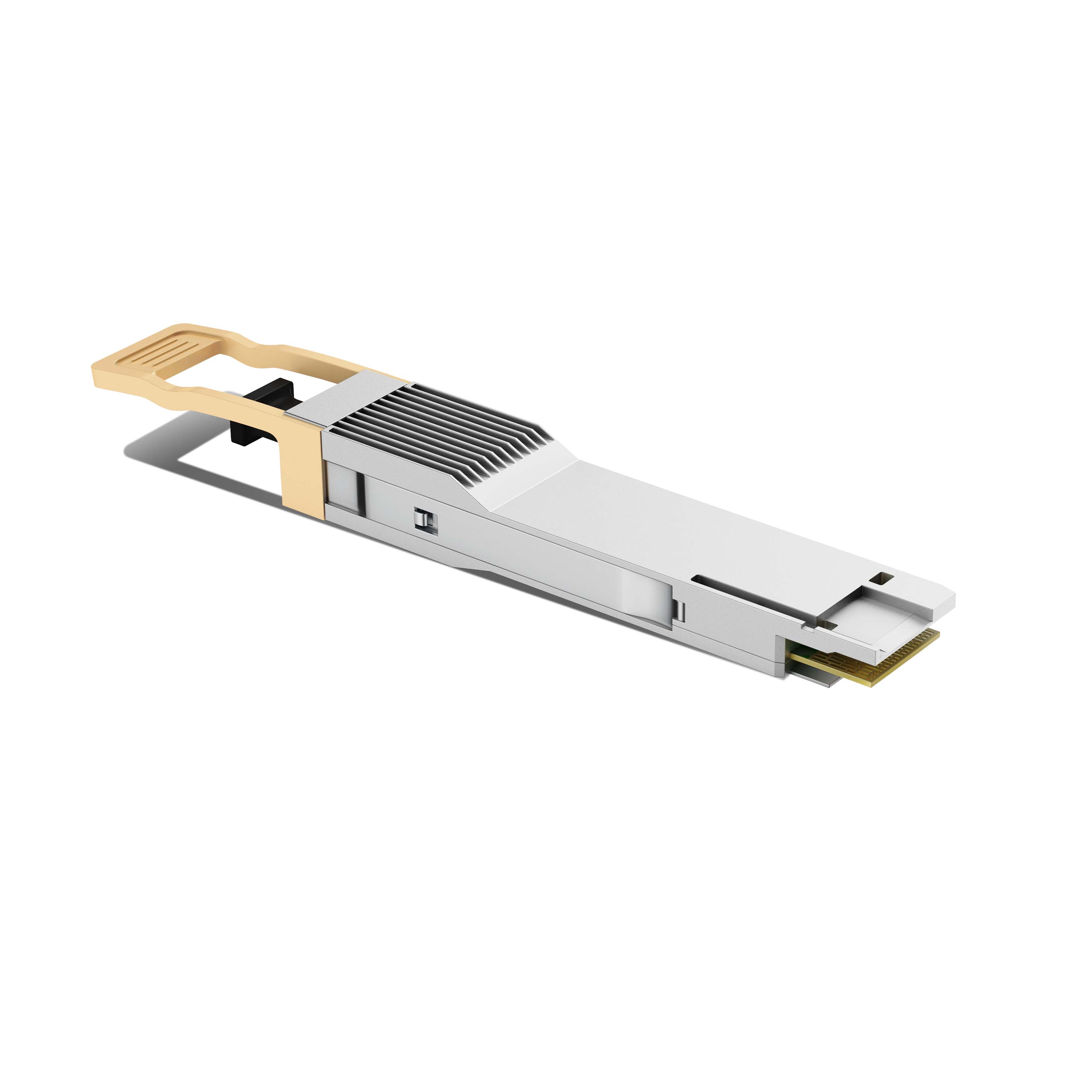

Juniper 740-114928 QDD-400G-SR8 Compatible QSFP-DD 400GBASE SR8 850nm 100m MMF MPO/MTP-16 DDM/DOM Optics Transceiver

Name: Juniper 740-114928 QDD-400G-SR8 Compatible QSFP-DD 400GBASE SR8 850nm 100m MMF MPO/MTP-16 DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709000001063
Price: 159 USD
Availability: InStock

#709000001063

US$159.00

INPHE: QSFPDD-400G-SR8

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

QDD-400G-SR8 Customized

QTY:

Specifications

The Juniper 740-114928 QDD-400G-SR8 compatible QSFP-DD 400G-SR8 Optics is specifically designed for 400G Ethernet multimode links.

Featuring a VCSEL transmitter and a PIN receiver, and operating at a wavelength of 8x850nm, this Optics utilizes an MTP/MPO-16 multimode connector to deliver high-speed 400G transmission and exceptional reliability over link distances of up to 100m (OM4 MMF). It is an ideal choice for short-distance, high-speed transmission applications within data centers and enterprise networks.

The INPHE 400G-SR8 uses DSP, which significantly improves performance compared to CDR technology.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections
2. 2x200G SR4 Breakout Connections
3. 8x50G SR Breakout Connections

Vendor Name	INPHE	Part Number	QDD-400G-SR8
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	OM4 100m / OM3 70m
Connector	MTP/MPO 16	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-6.5 ~ +4.0dBm	Receiver Sensitivity	< -6.5dBm
Protocols	IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
