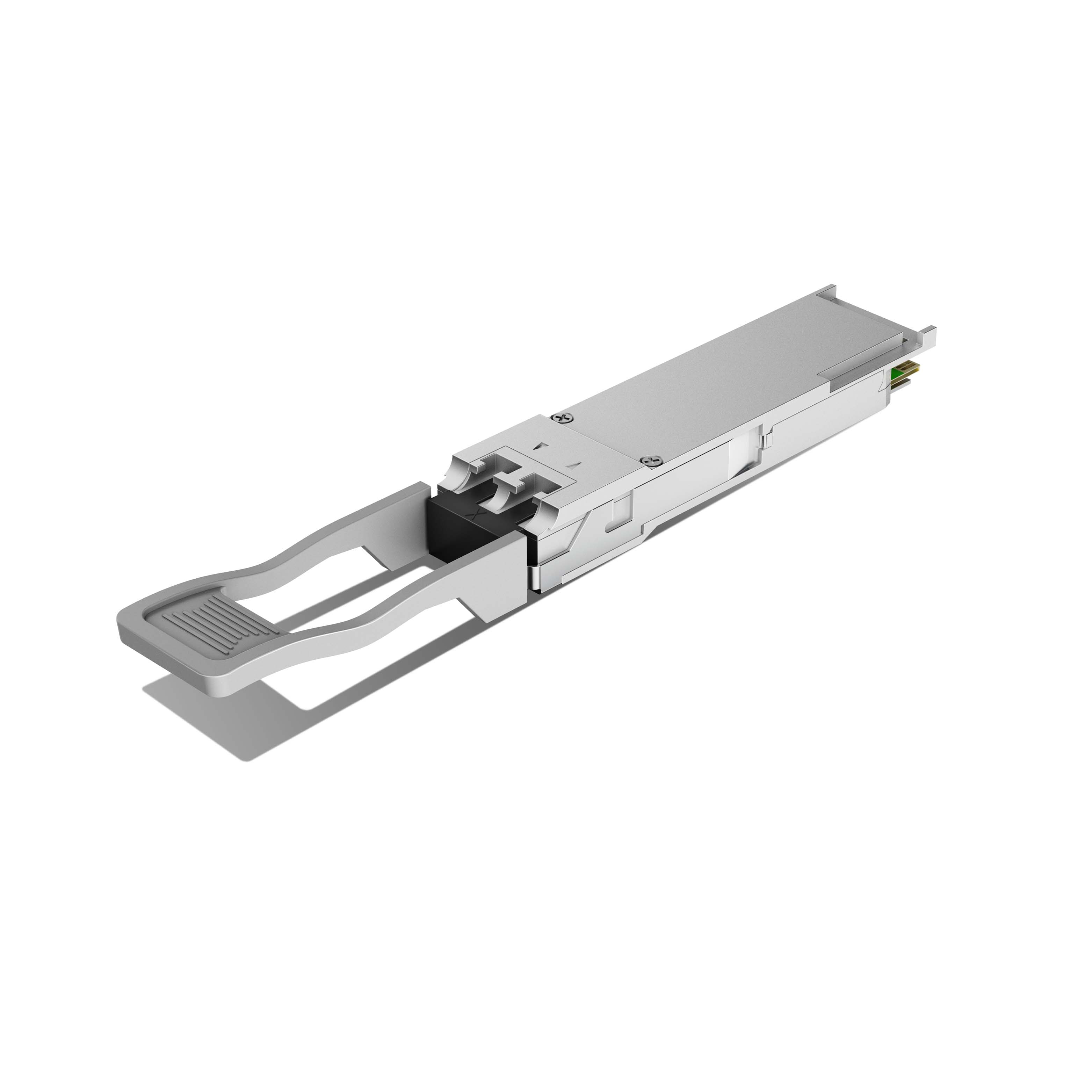

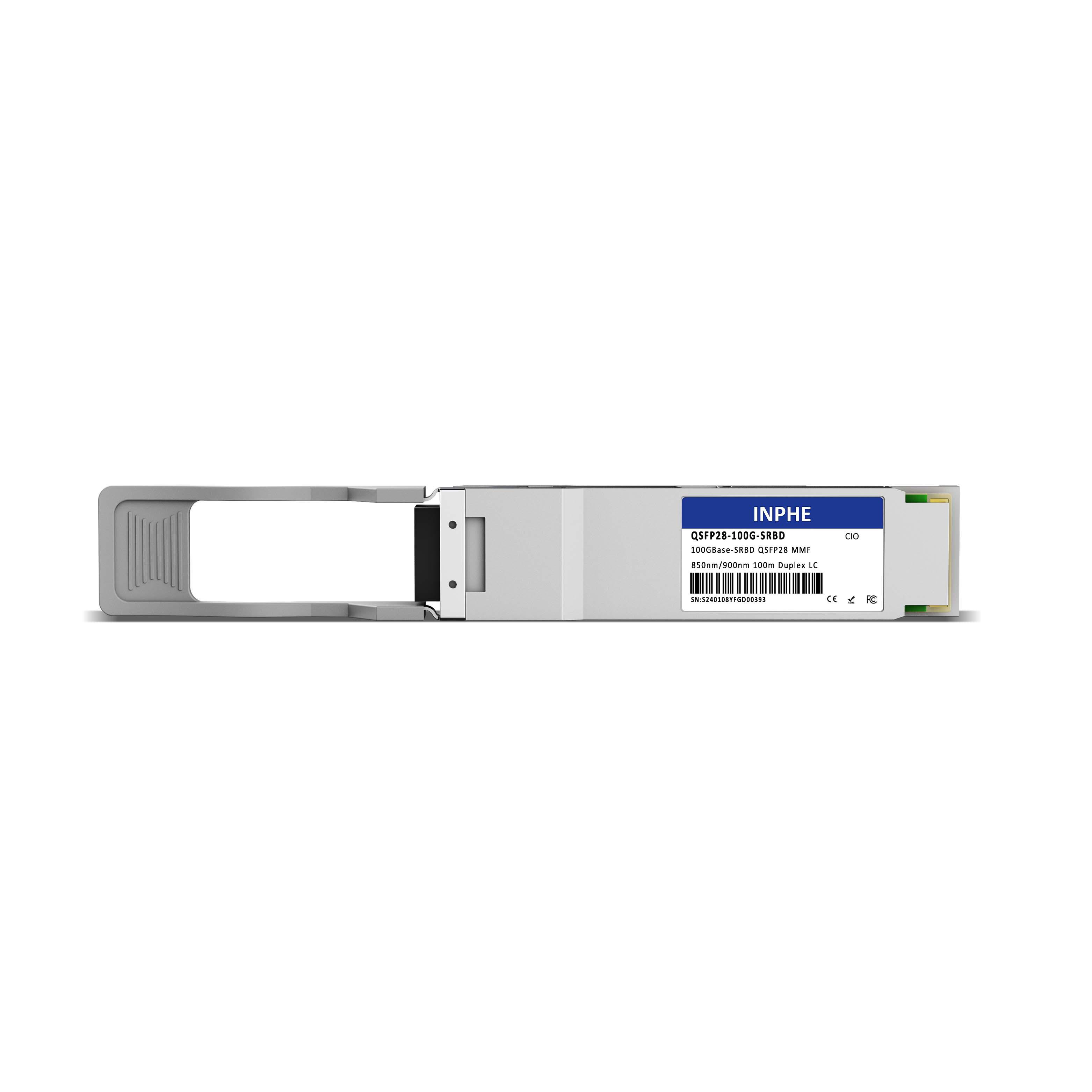

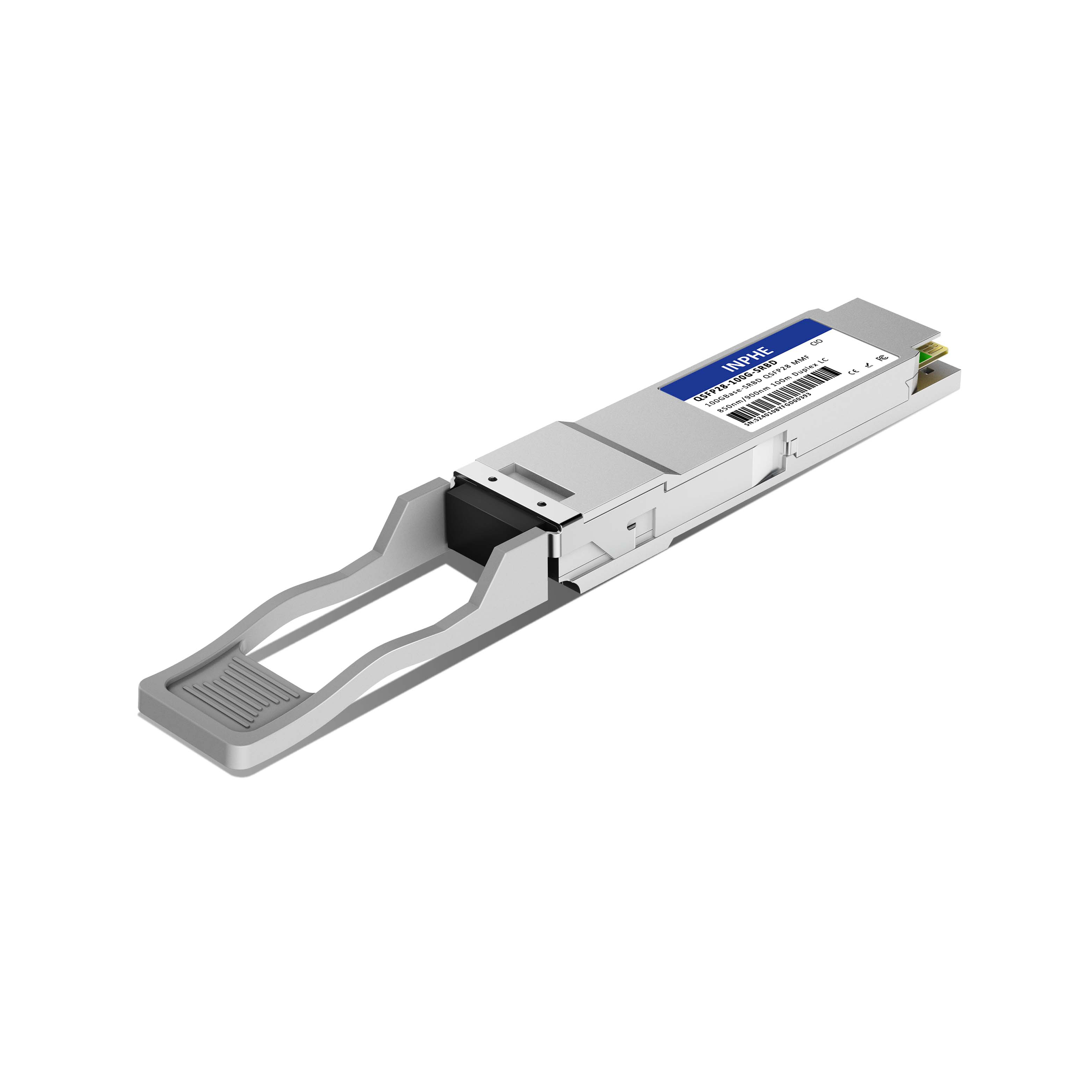

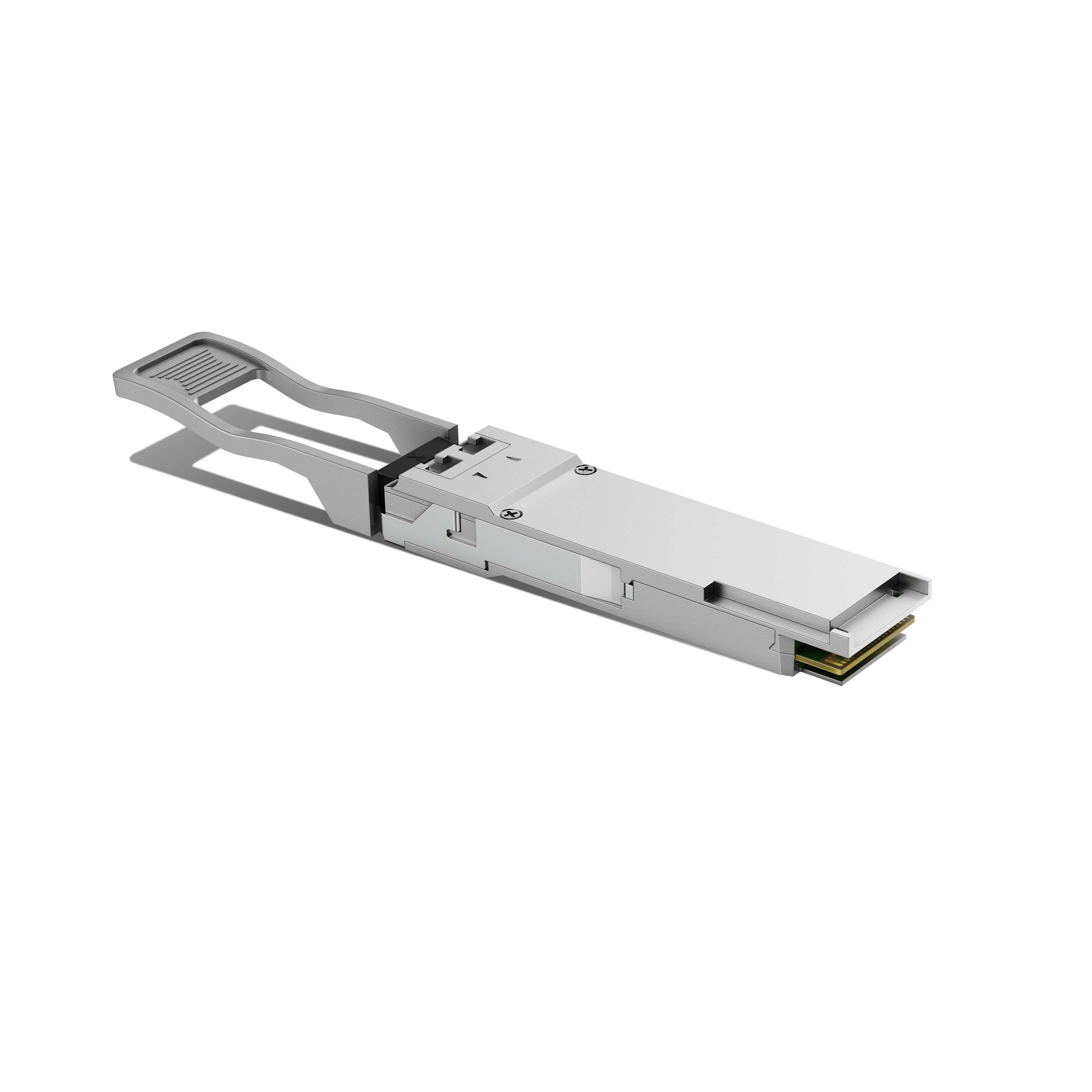

Arista QSFP-100G-SRBD XVR-10168-20 Compatible QSFP28 100GBASE SRBD (SR1.2 BiDi) 850/910nm 100m MMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Arista QSFP-100G-SRBD XVR-10168-20 Compatible QSFP28 100GBASE SRBD (SR1.2 BiDi) 850/910nm 100m MMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707000301013
Price: 239 USD
Availability: InStock

#707000301013

US$239.00

INPHE: QSFP-100G-SRBD

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

QSFP-100G-SRBD Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-SRBD
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	850/900nm	Max Distance	OM4 100m / OM3 70m
Connector	Duplex LC	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-6.0 ~ +4.0dBm	Receiver Sensitivity	< -7.9dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
