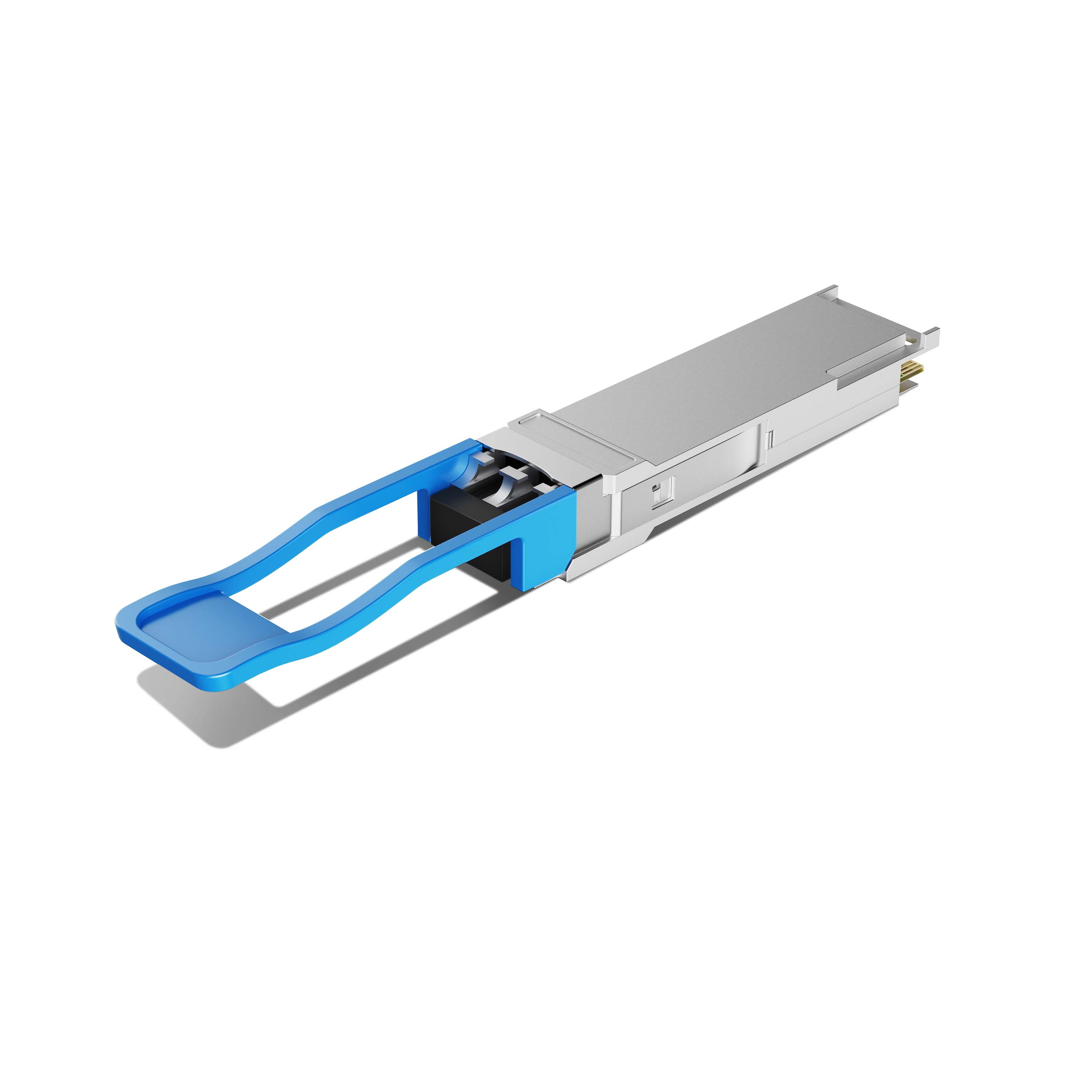

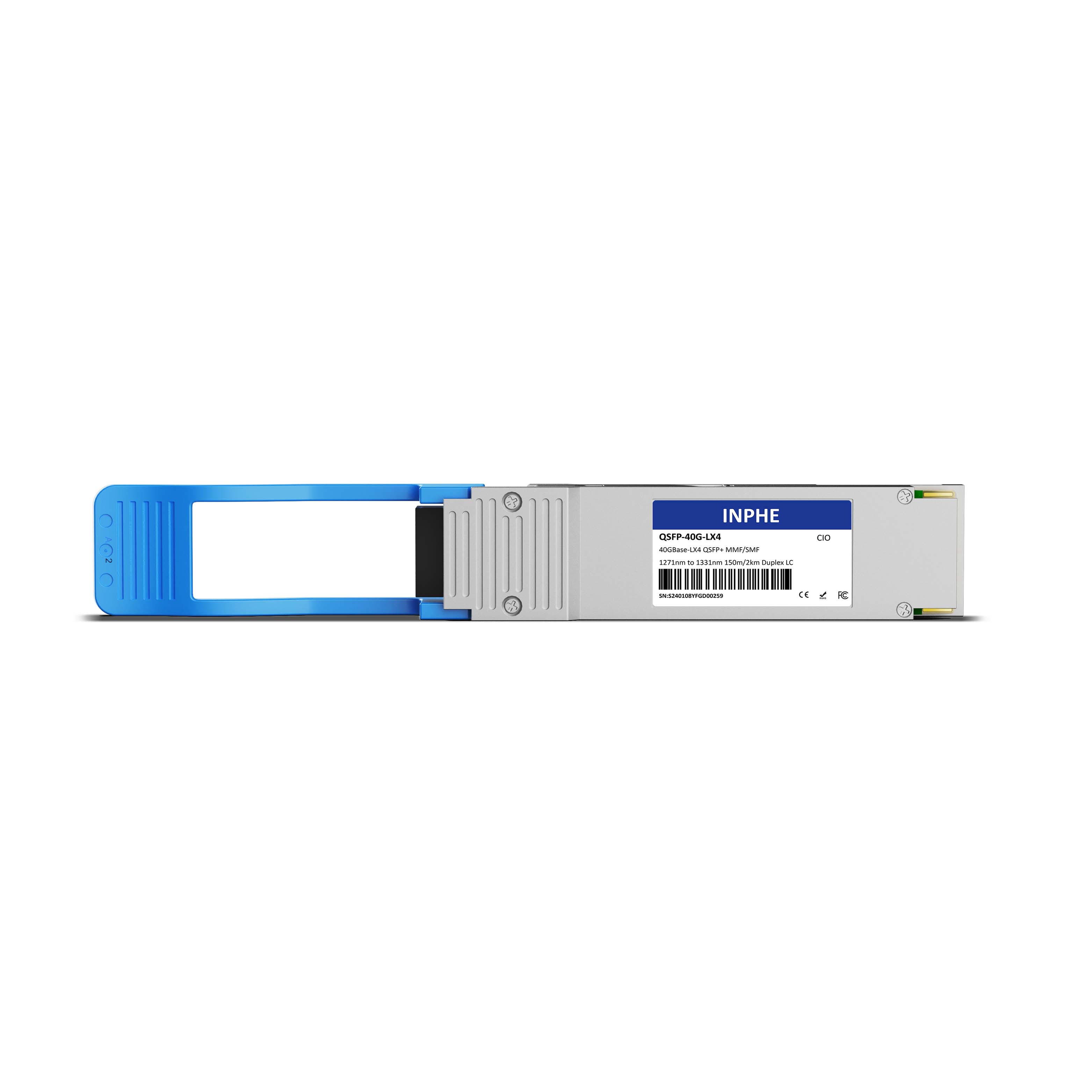

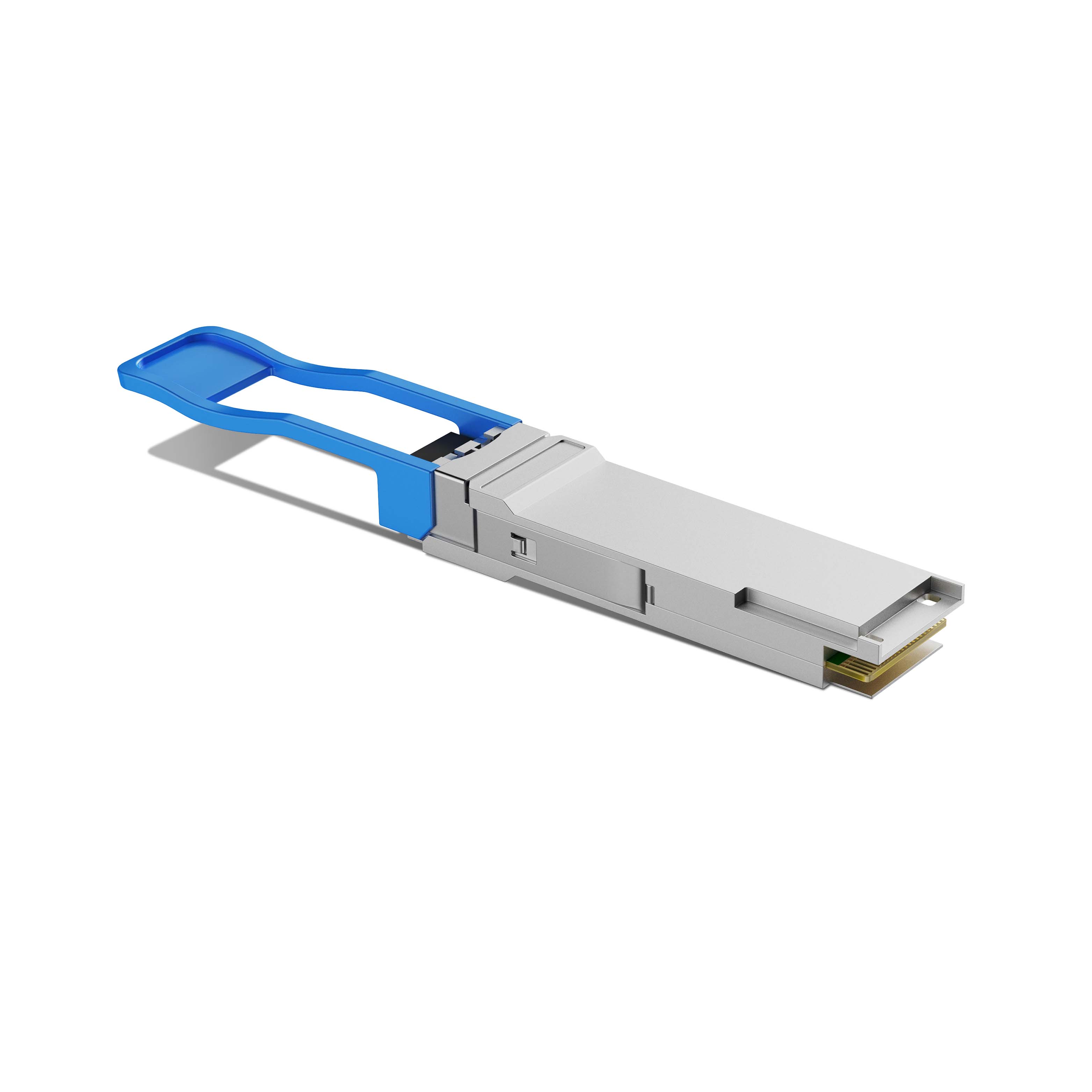

Huawei 02313NUG QSFP-40G-LX4-MM Compatible QSFP+ 40G LX4 1271/1291/1311/1331nm 150m/2km SMF/MMF Duplex LC DDM/DOM Optics Transceiver

Name: Huawei 02313NUG QSFP-40G-LX4-MM Compatible QSFP+ 40G LX4 1271/1291/1311/1331nm 150m/2km SMF/MMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 706000502056
Price: 199 USD
Availability: InStock

#706000502056

US$199.00

INPHE: 02313NUG

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell FS.COM Flexoptix Extreme Fortinet More +

Compatible Models:

02313NUG

02311HNP Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-LX4
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	MMF 150m, SMF 2km
Connector	Duplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	MMF -7.0 ~ 3.5dBm, SMF -10.0 ~ 2.3dBm	Receiver Sensitivity	MMF <-10.5dBm, SMF <-11.5dBm
Protocols	40G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
