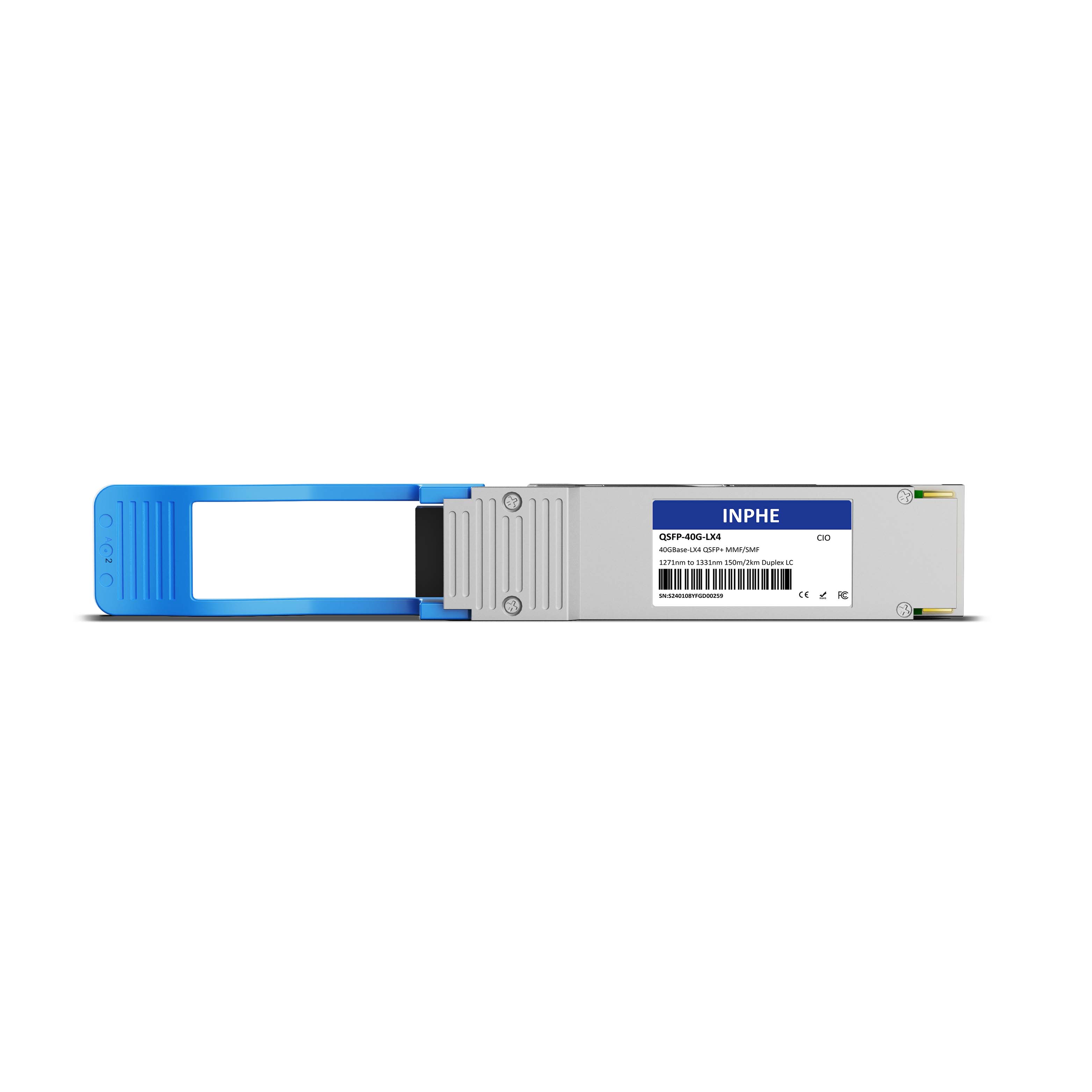

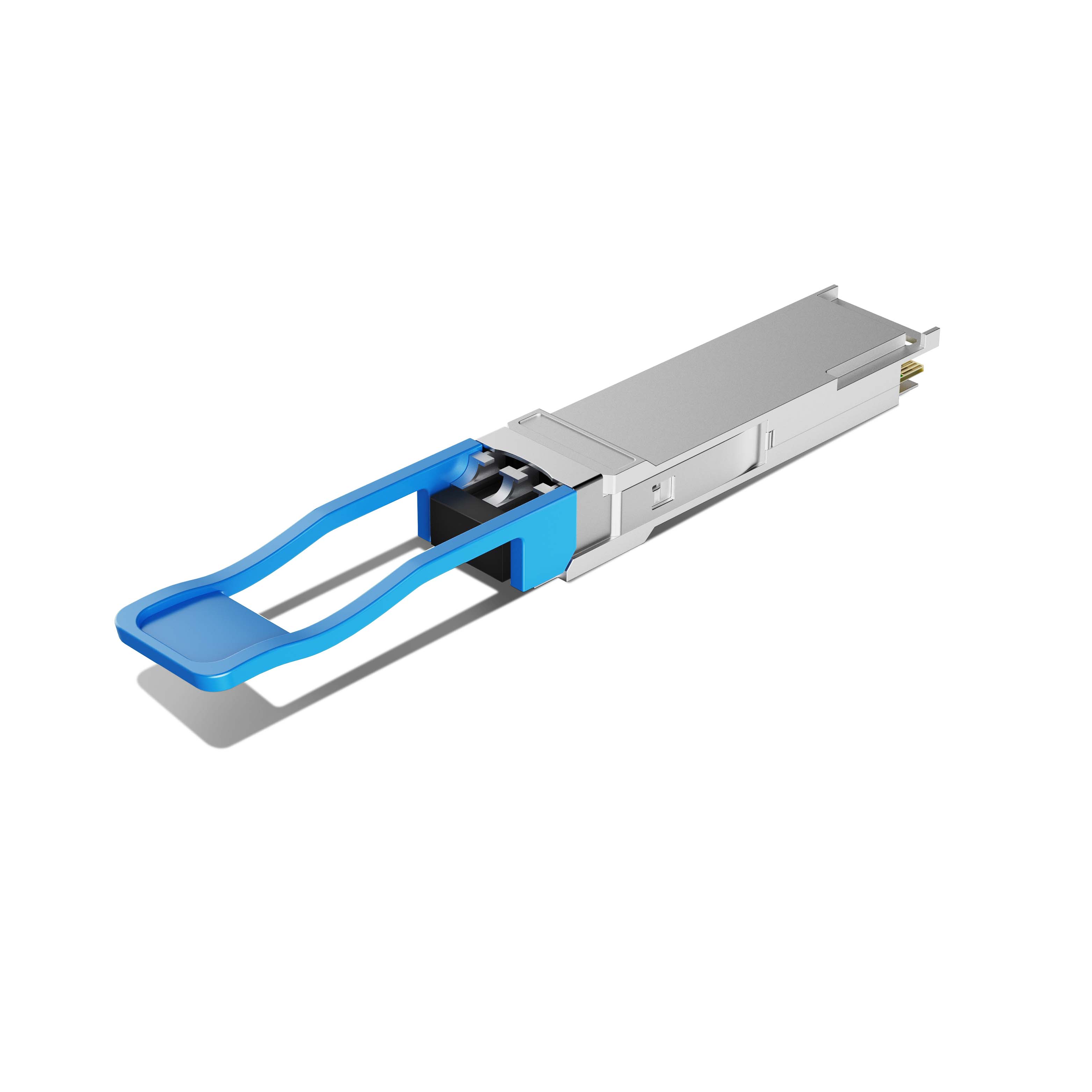

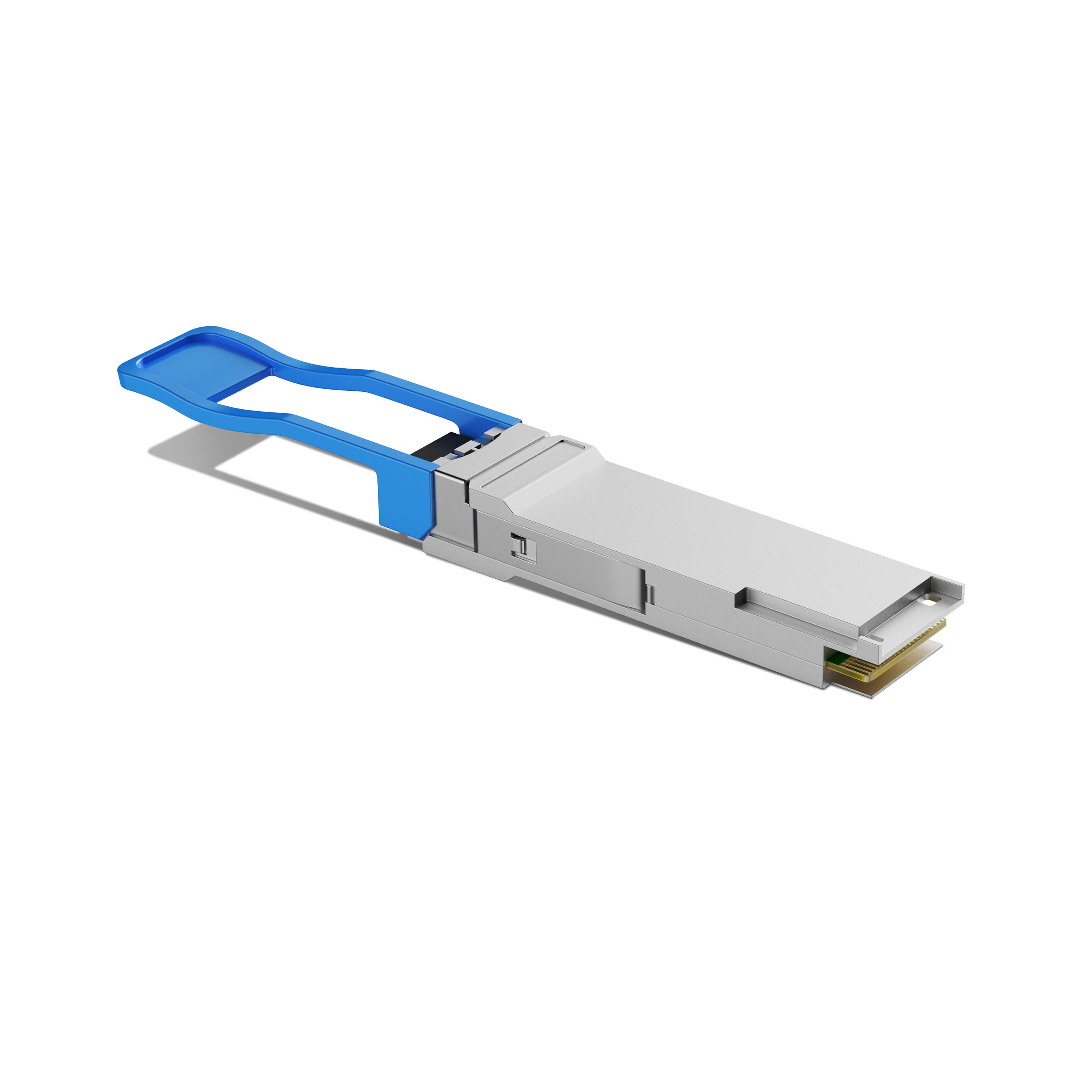

Brocade 40G-QSFP-LM4 Compatible QSFP+ 40G LX4 1271nm to 1331nm 150m/2km SMF/MMF Duplex LC DDM/DOM Optics Transceiver

Name: Brocade 40G-QSFP-LM4 Compatible QSFP+ 40G LX4 1271nm to 1331nm 150m/2km SMF/MMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 706000501020
Price: 119 USD
Availability: InStock

#706000501020

US$119.00

INPHE: 40G-QSFP-LM4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell FS.COM Flexoptix Extreme Fortinet More +

Compatible Models:

40G-QSFP-LM4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-LX4
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	MMF 150m, SMF 2km
Connector	Duplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	MMF -7.0 ~ 3.5dBm, SMF -10.0 ~ 2.3dBm	Receiver Sensitivity	MMF <-10.5dBm, SMF <-11.5dBm
Protocols	40G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
