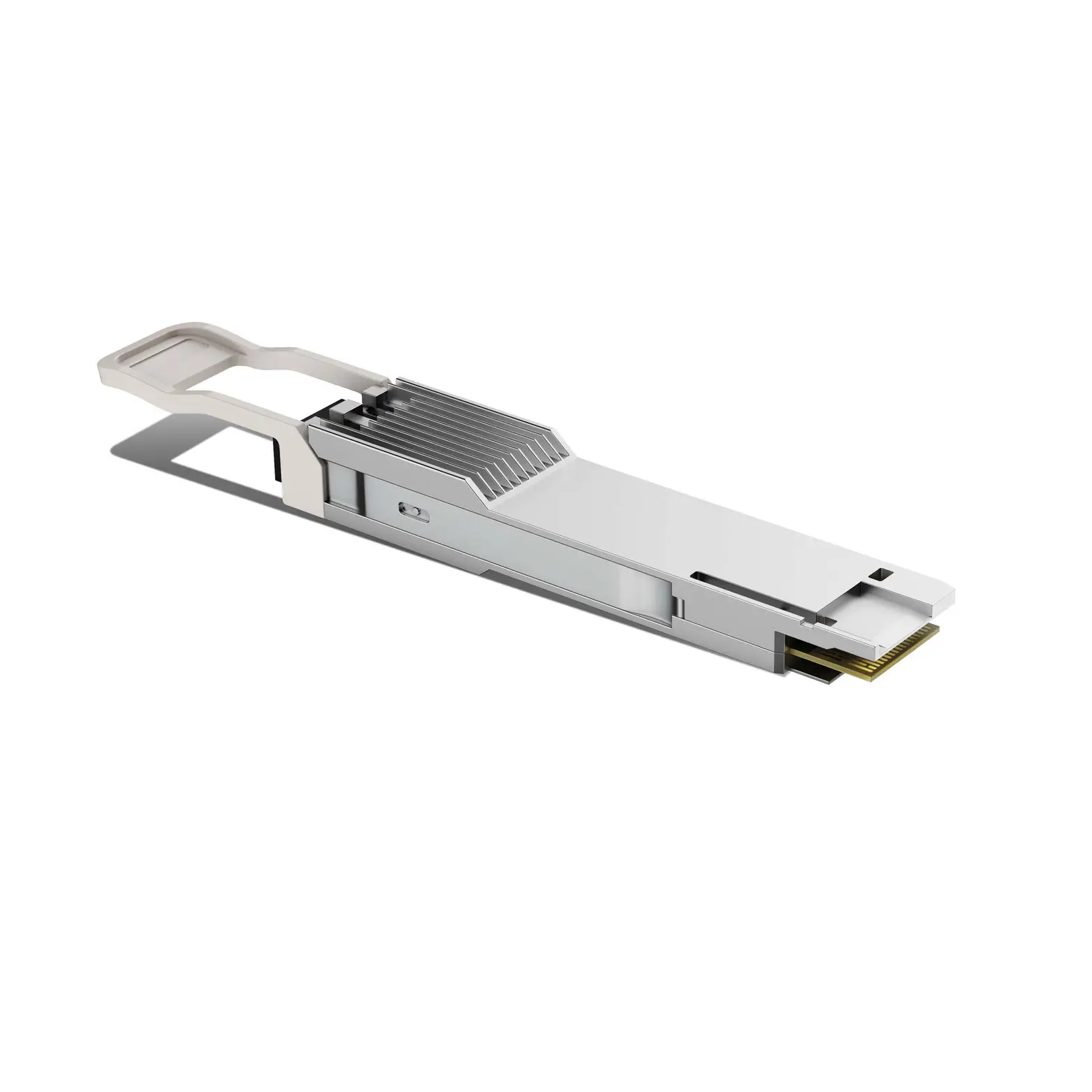

Juniper JCO800-QDD-ZR-M-HP 740-179331 Compatible QSFP-DD800 800GBASE ZR+ High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 480km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Juniper JCO800-QDD-ZR-M-HP 740-179331 Compatible QSFP-DD800 800GBASE ZR+ High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 480km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710010001063
Price: 11999 USD
Availability: InStock

#710010001063

US$11,999.00

INPHE: JCO800-QDD-ZR-M-HP

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

JCO800-QDD-ZR-M-HP Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-ZR+HP
Form Factor	QSFP-DD800	Max Data Rate	800Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	480km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ +1.0dBm	Receiver Sensitivity	< -9.0dBm DWDM Amplified, < -19.0dBm Single wavelength unamplified
Protocols	800G Ethernet, MSA	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 years
