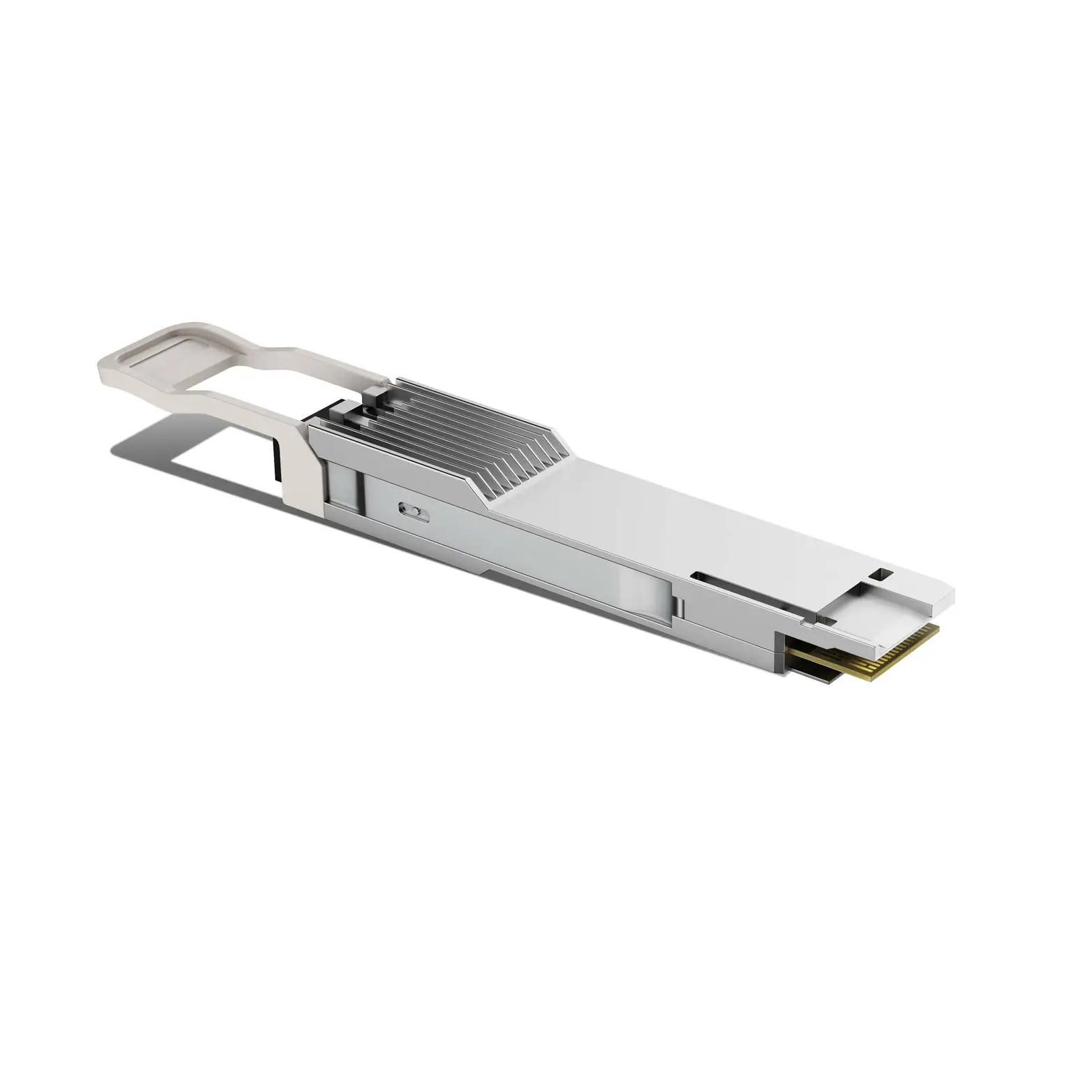

Cisco DP08QSDD-ZRB-A1 Compatible QSFP-DD800 800GBASE ZR+ Coherent (DCO) DWDM Tunable CH13-CH61 480km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Cisco DP08QSDD-ZRB-A1 Compatible QSFP-DD800 800GBASE ZR+ Coherent (DCO) DWDM Tunable CH13-CH61 480km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710009901028
Price: 10999 USD
Availability: InStock

#710009901028

US$10,999.00

INPHE: DP08QSDD-ZRB-A1

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

DP08QSDD-ZRB-A1 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-ZR+
Form Factor	QSFP-DD800	Max Data Rate	800Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	480km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ -6.0dBm	Receiver Sensitivity	< -9.0dBm DWDM Amplified, < -19.0dBm Single wavelength unamplified
Protocols	800G Ethernet, MSA	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 years
