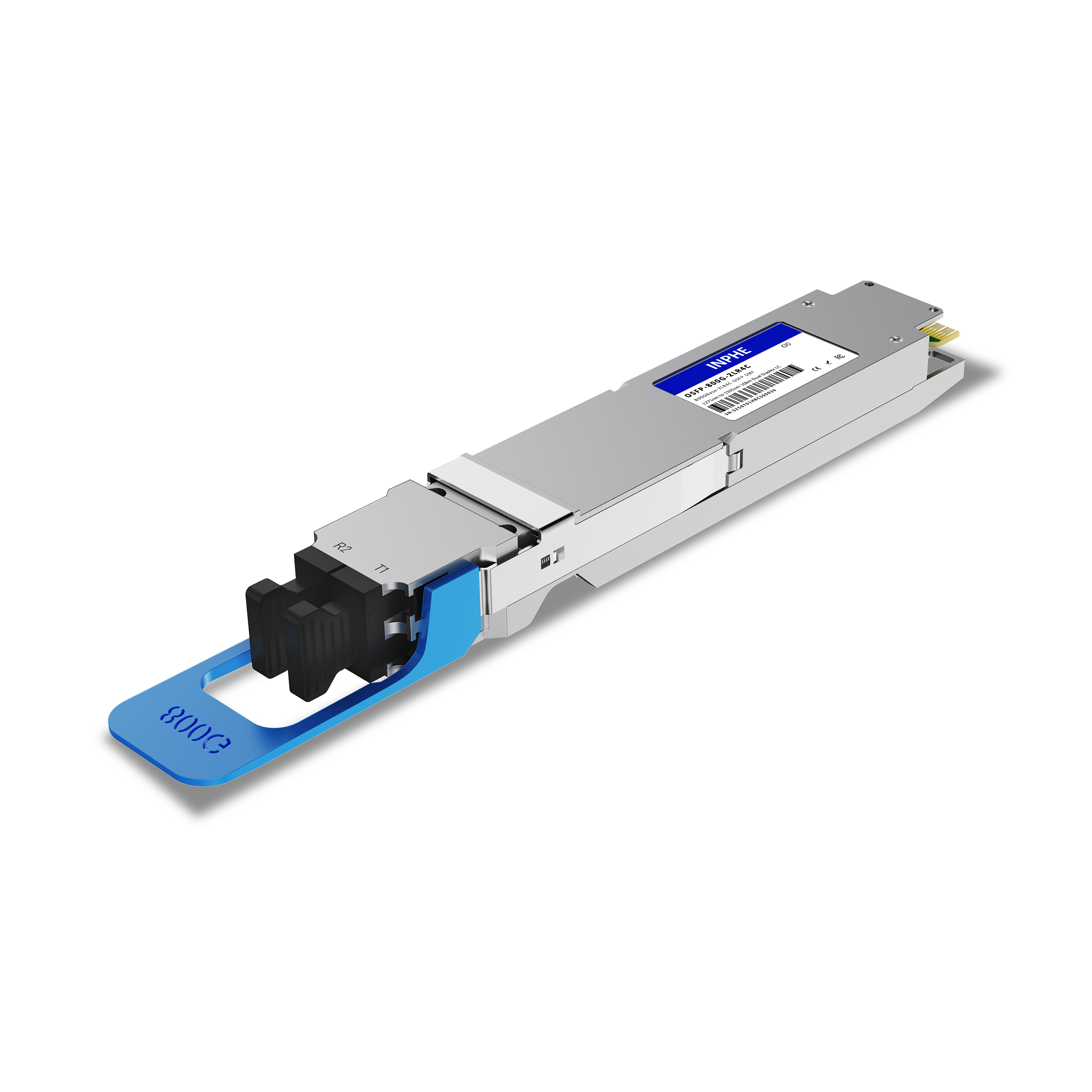

Juniper OSFP-2X400G-LR4-P 740-174937 Compatible OSFP 800GBASE 2xLR4 1271/1291/1311/1331nm 10km SMF Dual Duplex LC DDM/DOM Optics Transceiver, Support 2x400G LR4, Closed Finned Top

Name: Juniper OSFP-2X400G-LR4-P 740-174937 Compatible OSFP 800GBASE 2xLR4 1271/1291/1311/1331nm 10km SMF Dual Duplex LC DDM/DOM Optics Transceiver, Support 2x400G LR4, Closed Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710008501063
Price: 1599 USD
Availability: InStock

#710008501063

US$1,599.00

INPHE: OSFP-2X400G-LR4-P

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

OSFP-2X400G-LR4-P Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-2LR4C
Form Factor	OSFP Closed Finned Top	Max Data Rate	850Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	10km
Connector	Dual Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.7 ~ +5.1dBm	Receiver Sensitivity	< -6.8dBm
Protocols	OSFP MSA HW Rev 4.1, CMIS Rev 5.0, MSA- 2x400G-LR4-10, IEEE P802.3ck D3.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
