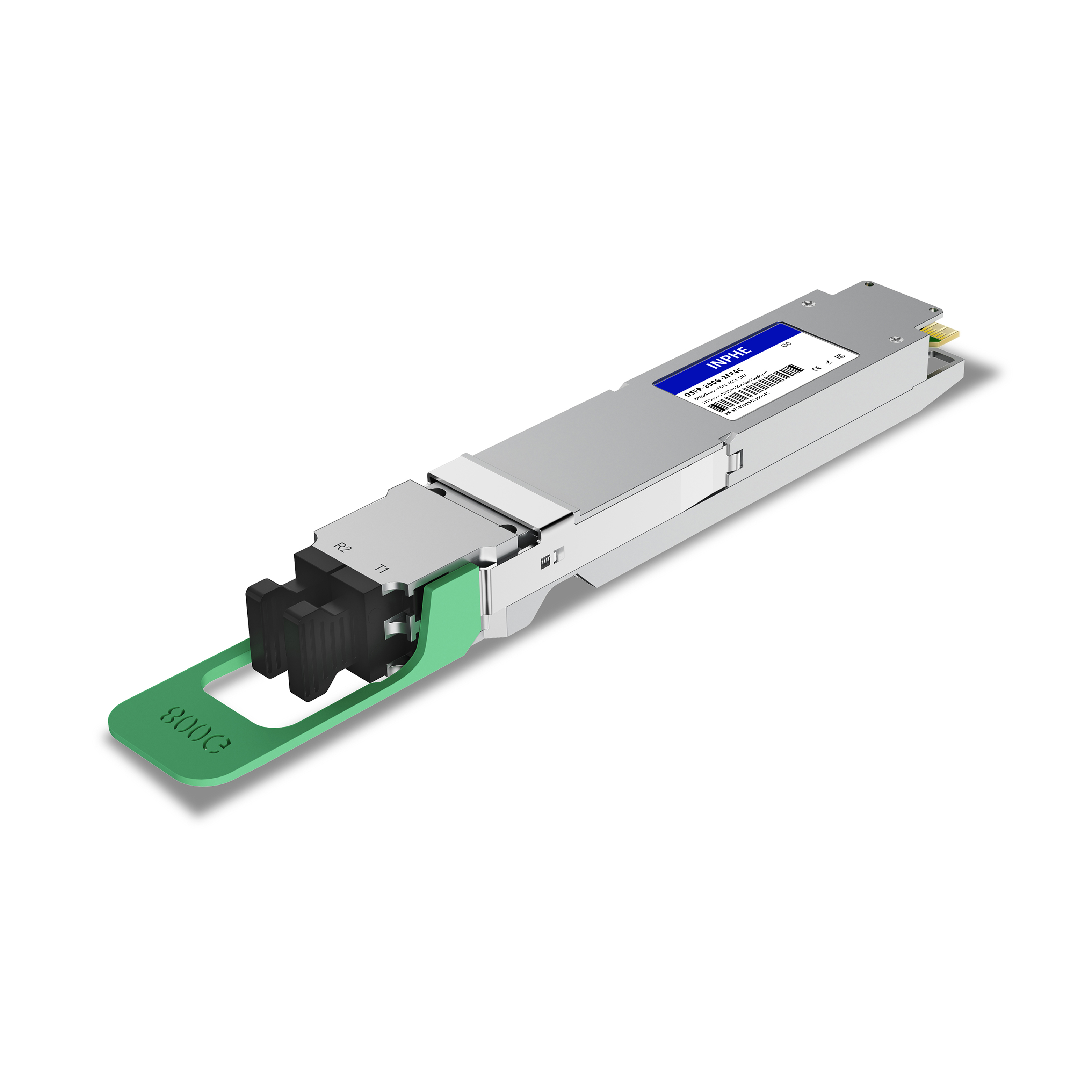

Juniper OSFP-2X400G-FR4-P 740-174935 Compatible OSFP 800GBASE 2xFR4 1271/1291/1311/1331nm 2km SMF Dual Duplex LC DDM/DOM Optics Transceiver, Support 2x400G FR4, Closed Finned Top

Name: Juniper OSFP-2X400G-FR4-P 740-174935 Compatible OSFP 800GBASE 2xFR4 1271/1291/1311/1331nm 2km SMF Dual Duplex LC DDM/DOM Optics Transceiver, Support 2x400G FR4, Closed Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710007601063
Price: 1199 USD
Availability: InStock

#710007601063

US$1,199.00

INPHE: OSFP-2X400G-FR4-P

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

OSFP-2X400G-FR4-P Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-2FR4C
Form Factor	OSFP Closed Finned Top	Max Data Rate	850Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	2km
Connector	Dual Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-3.2 ~ +4.4dBm	Receiver Sensitivity	< -4.6dBm
Protocols	OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
