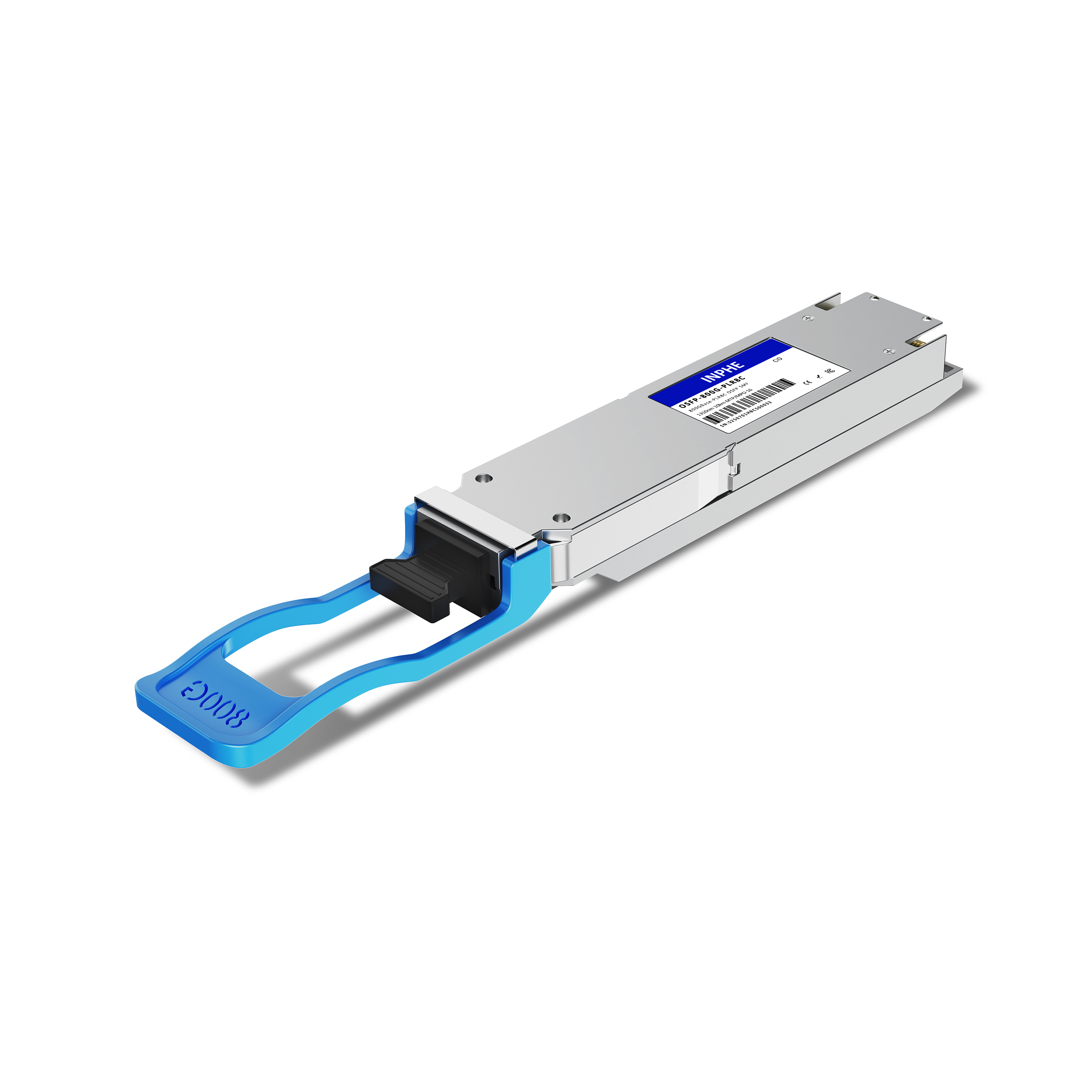

Cisco Compatible OSFP 800GBASE PLR8 1310nm 10km SMF MPO/MTP-16 With Dual CDR DDM/DOM Optics Transceiver, Support 8x100G LR1, Closed Finned Top

Name: Cisco Compatible OSFP 800GBASE PLR8 1310nm 10km SMF MPO/MTP-16 With Dual CDR DDM/DOM Optics Transceiver, Support 8x100G LR1, Closed Finned Top
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 710007001028
Price: 2199 USD
Availability: InStock

#710007001028

US$2,199.00

INPHE: OSFP-800G-PLR8C

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

OSFP-800G-PLR8C Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-PLR8C
Form Factor	OSFP Closed Finned Top	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO 16 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.9 ~ +4.8dBm	Receiver Sensitivity	< -6.1dBm
Protocols	OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
