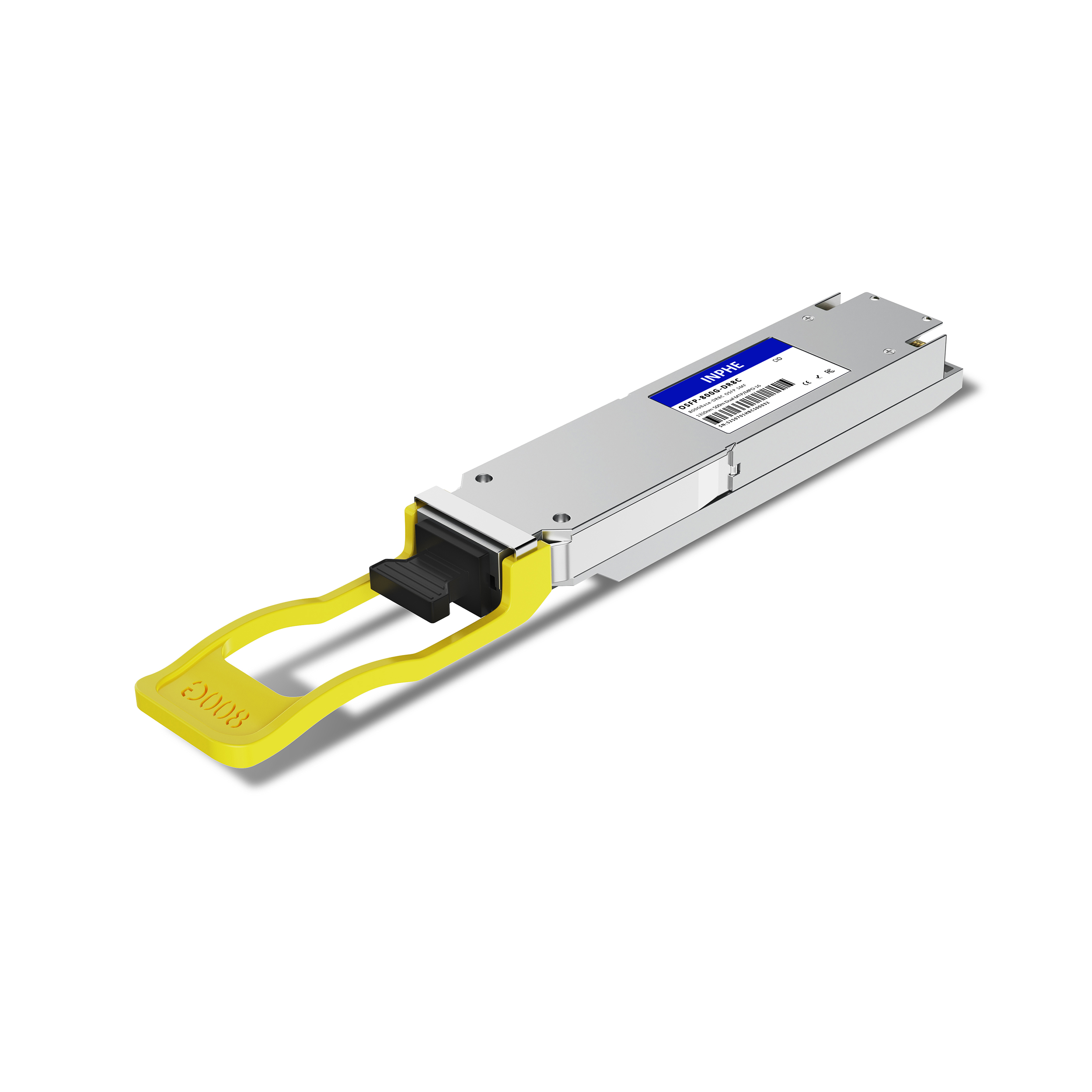

Cisco OSFP-800G-DR8P Compatible OSFP 800GBASE DR8 1310nm 500m SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G DR1, Closed Finned Top

Name: Cisco OSFP-800G-DR8P Compatible OSFP 800GBASE DR8 1310nm 500m SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G DR1, Closed Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710005201028
Price: 1299 USD
Availability: InStock

#710005201028

US$1,299.00

INPHE: OSFP-800G-DR8P

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

OSFP-800G-DR8P Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-DR8C
Form Factor	OSFP Closed Finned Top	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	2km
Connector	MTP/MPO 16 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
