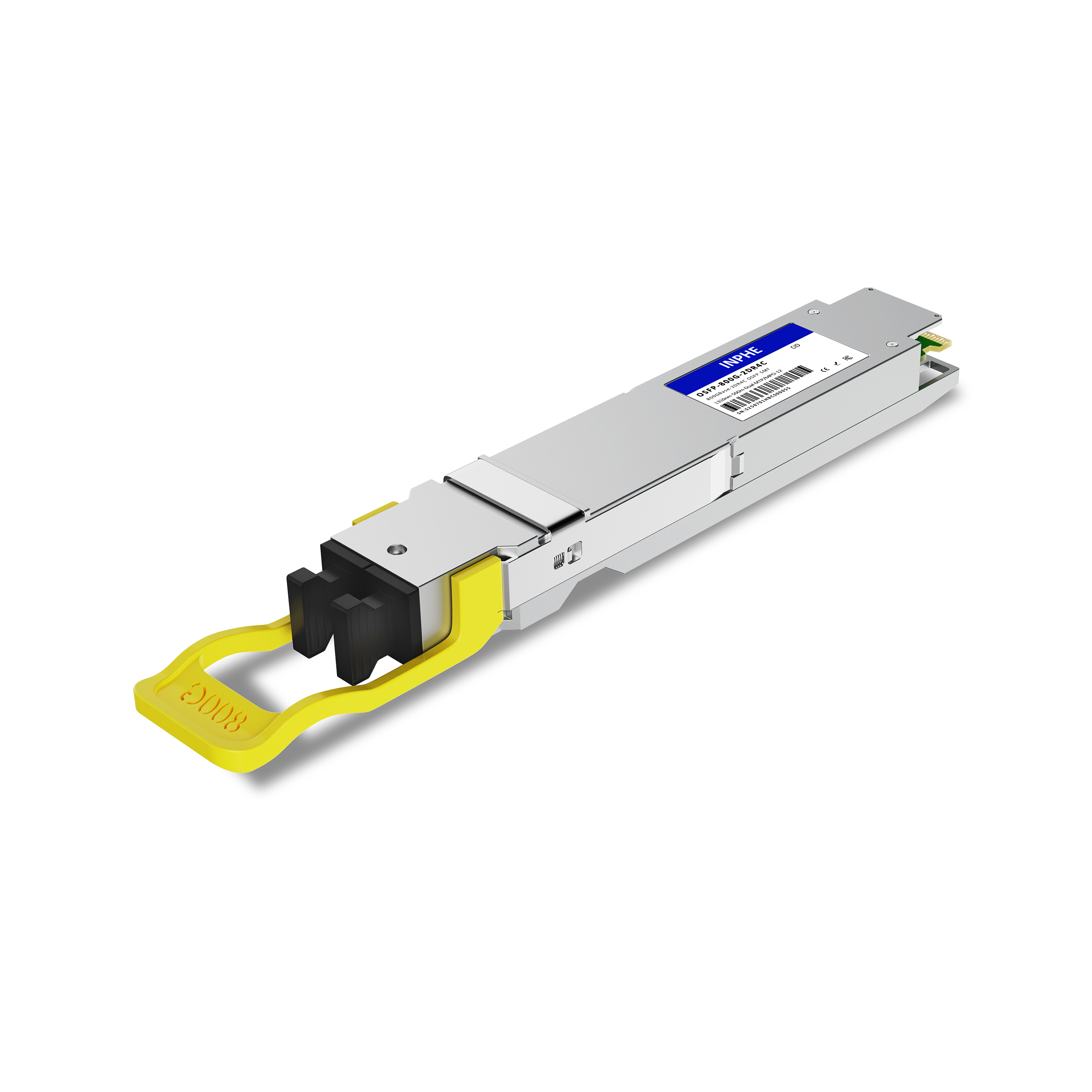

Cisco OSFP-800G-DR8 Compatible OSFP 800GBASE 2xDR4 1310nm 500m SMF Dual MPO/MTP-12 DDM/DOM Optics Transceiver, Support 2x400G DR4, Closed Finned Top

Name: Cisco OSFP-800G-DR8 Compatible OSFP 800GBASE 2xDR4 1310nm 500m SMF Dual MPO/MTP-12 DDM/DOM Optics Transceiver, Support 2x400G DR4, Closed Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710004901028
Price: 999 USD
Availability: InStock

#710004901028

US$999.00

INPHE: OSFP-800G-DR8

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

OSFP-800G-DR8 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-2DR4C
Form Factor	OSFP Closed Finned Top	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	500m
Connector	Dual MTP/MPO 12 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
