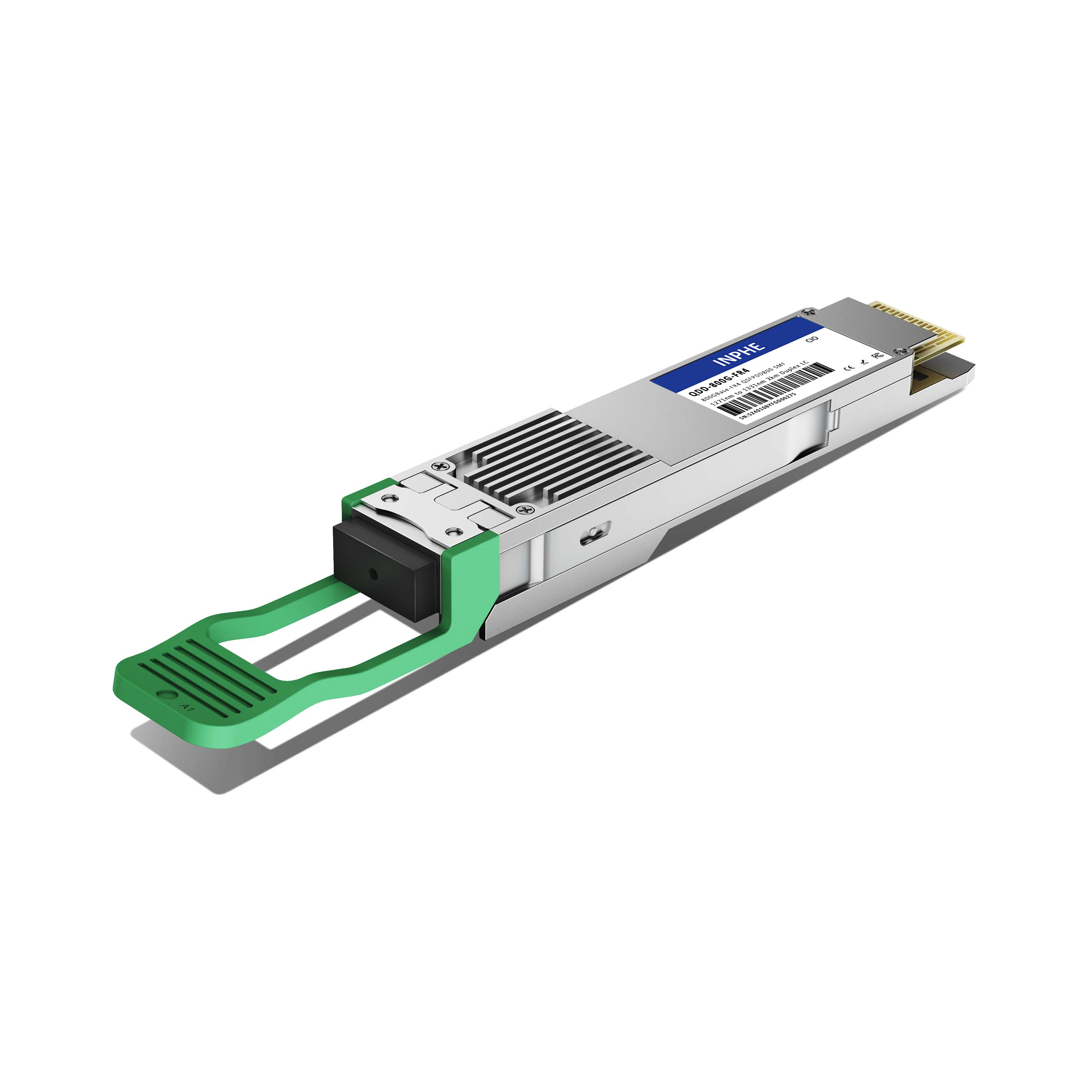

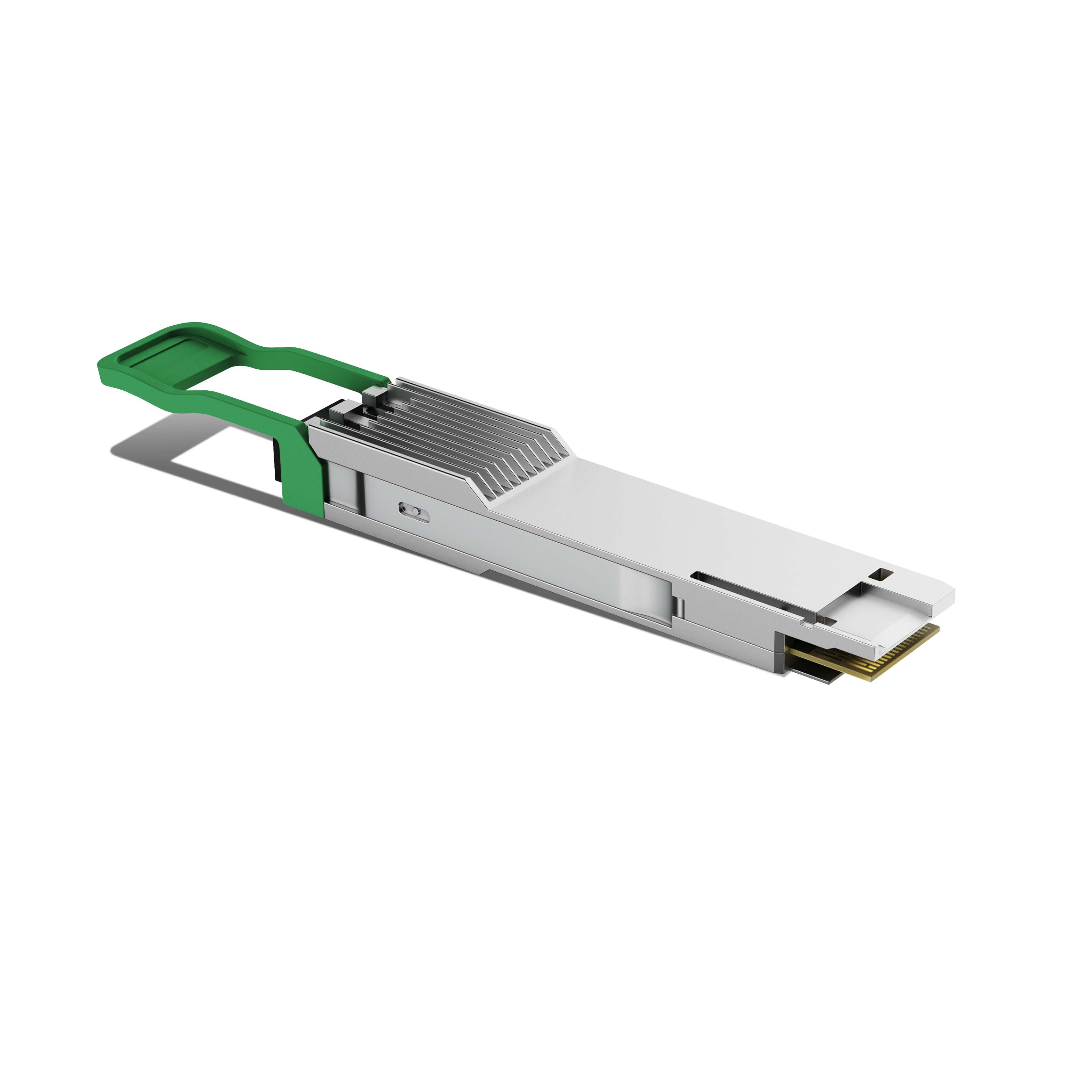

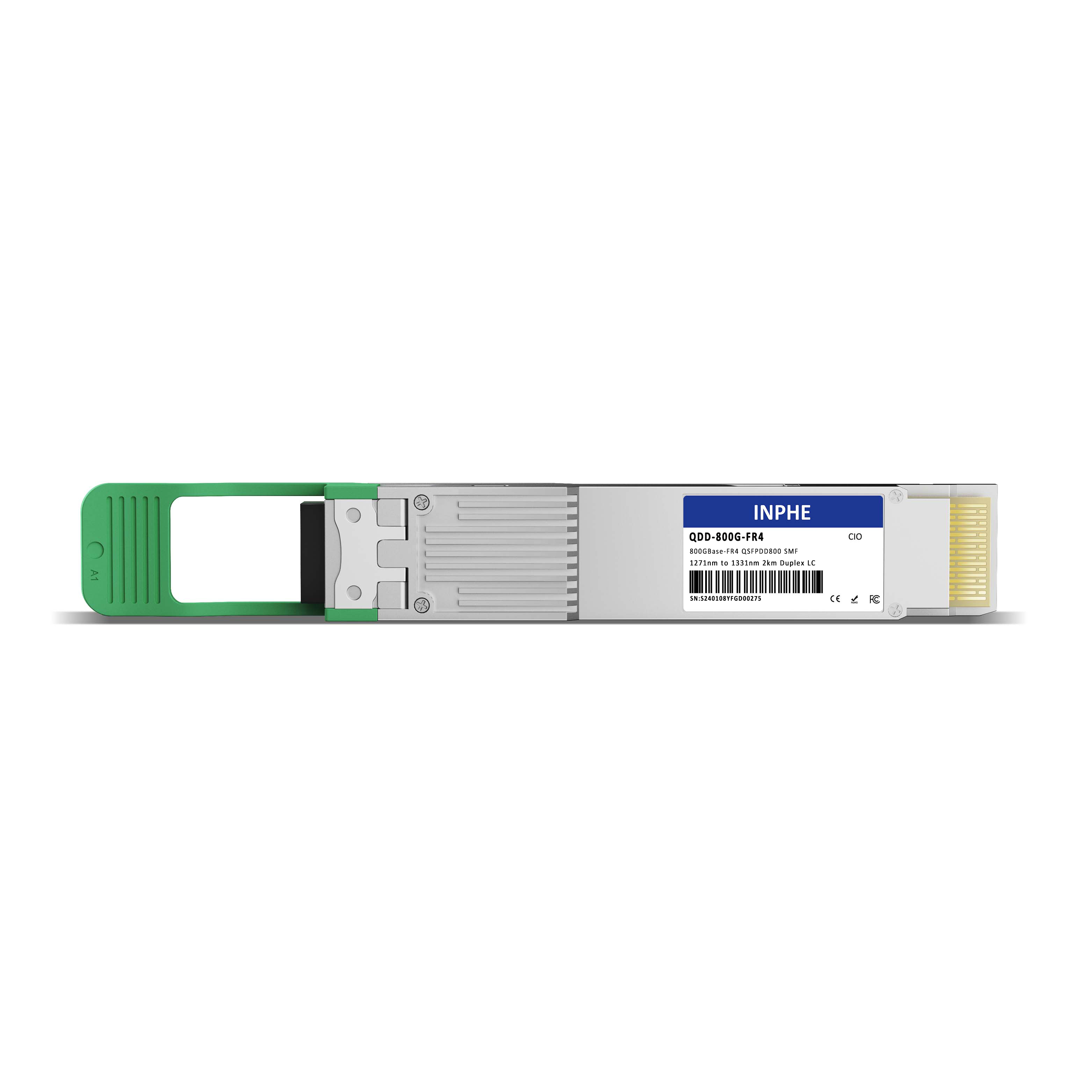

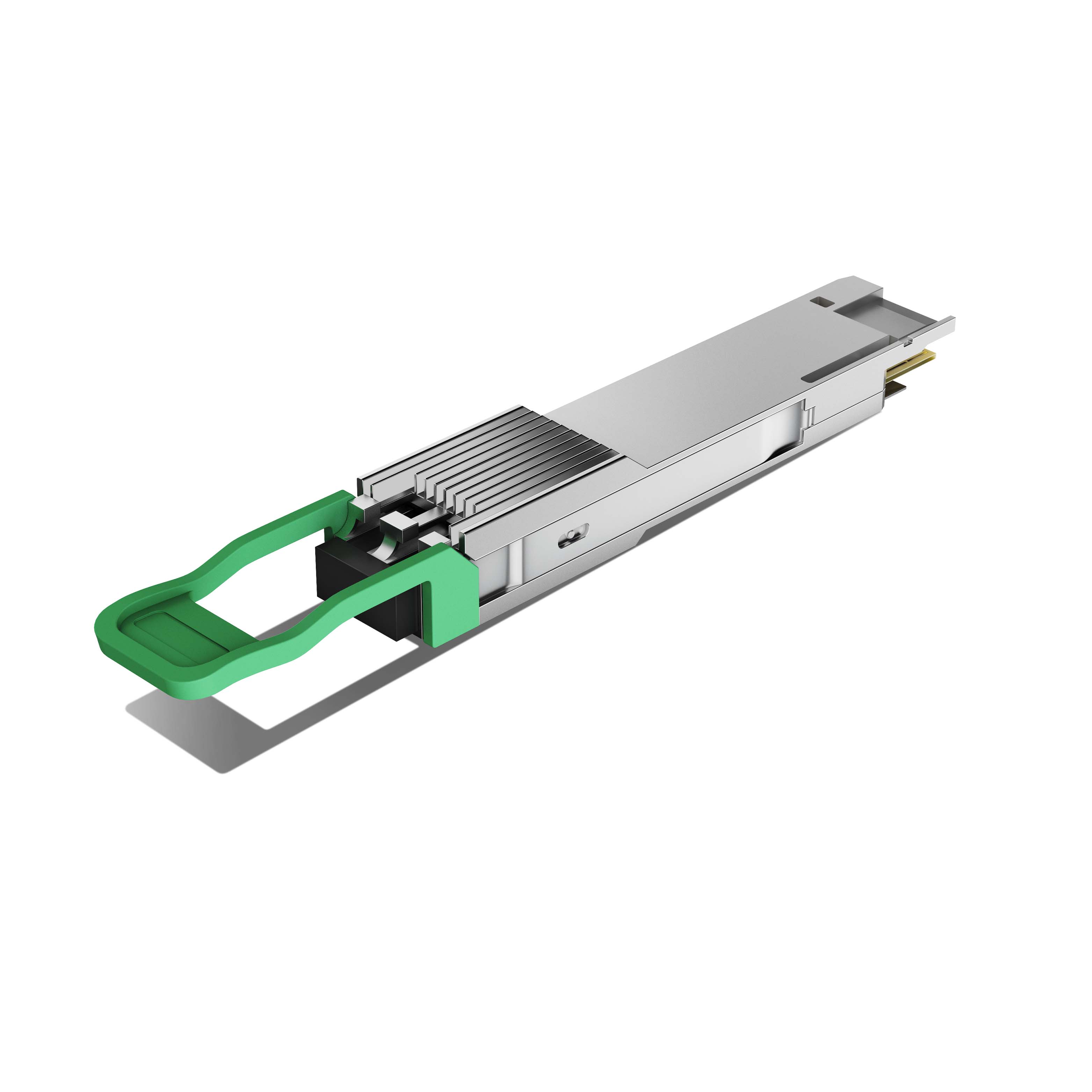

Cisco QSFP-DD800 800GBASE FR4 1271/1291/1311/1331nm 2km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Cisco QSFP-DD800 800GBASE FR4 1271/1291/1311/1331nm 2km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 710002801028
Price: 2999 USD
Availability: InStock

#710002801028

US$2,999.00

INPHE: QDD-800G-FR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

QDD-800G-FR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-FR4
Form Factor	QSFP-DD800	Max Data Rate	850Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	2km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-3.2 ~ +4.4dBm	Receiver Sensitivity	< -4.6dBm
Protocols	IEEE 802.3cu-2021, IEEE 802.3ck-2022, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
