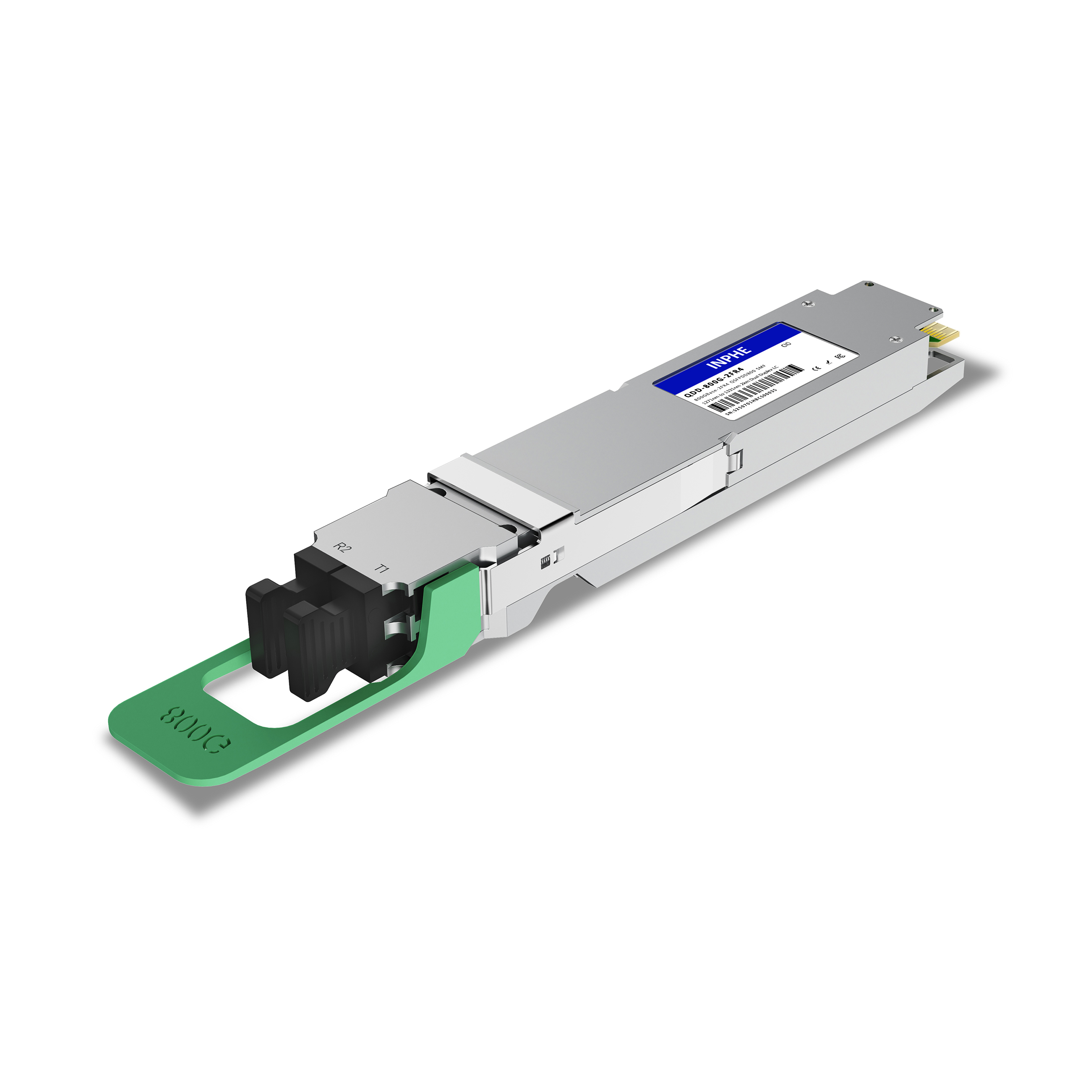

Juniper QDD-2X400G-FR4-P 740-170960 Compatible QSFP-DD800 800GBASE 2xFR4 1271/1291/1311/1331nm 2km SMF Dual Duplex LC DDM/DOM Optics Transceiver, Support 2x400G FR4

Name: Juniper QDD-2X400G-FR4-P 740-170960 Compatible QSFP-DD800 800GBASE 2xFR4 1271/1291/1311/1331nm 2km SMF Dual Duplex LC DDM/DOM Optics Transceiver, Support 2x400G FR4
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710002601063
Price: 1399 USD
Availability: InStock

#710002601063

US$1,399.00

INPHE: QDD-2X400G-FR4-P

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

QDD-2X400G-FR4-P Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-2FR4
Form Factor	QSFP-DD800	Max Data Rate	850Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	2km
Connector	Dual Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-3.2 ~ +4.4dBm	Receiver Sensitivity	< -4.6dBm
Protocols	IEEE 802.3cu-2021, IEEE 802.3ck-2022, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
