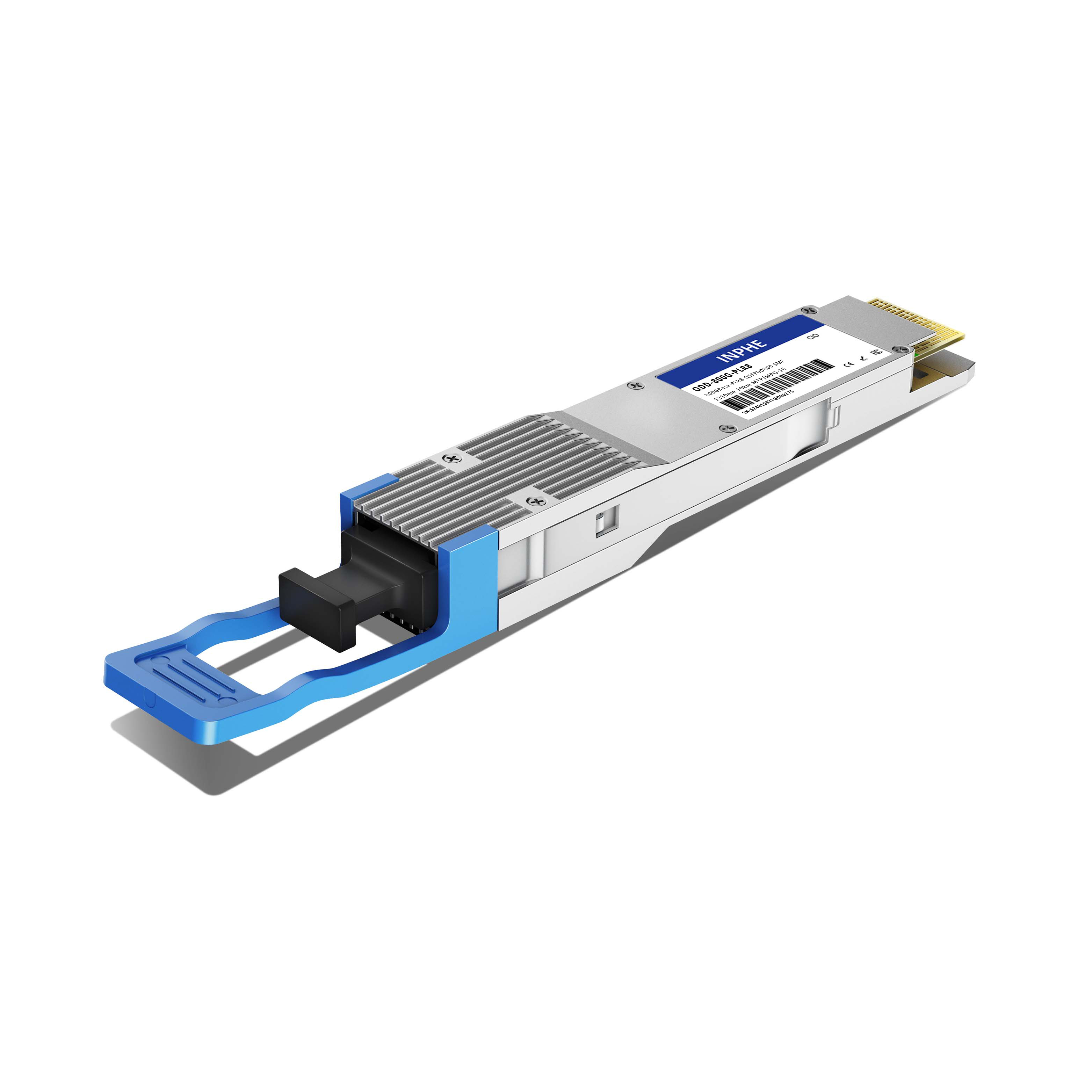

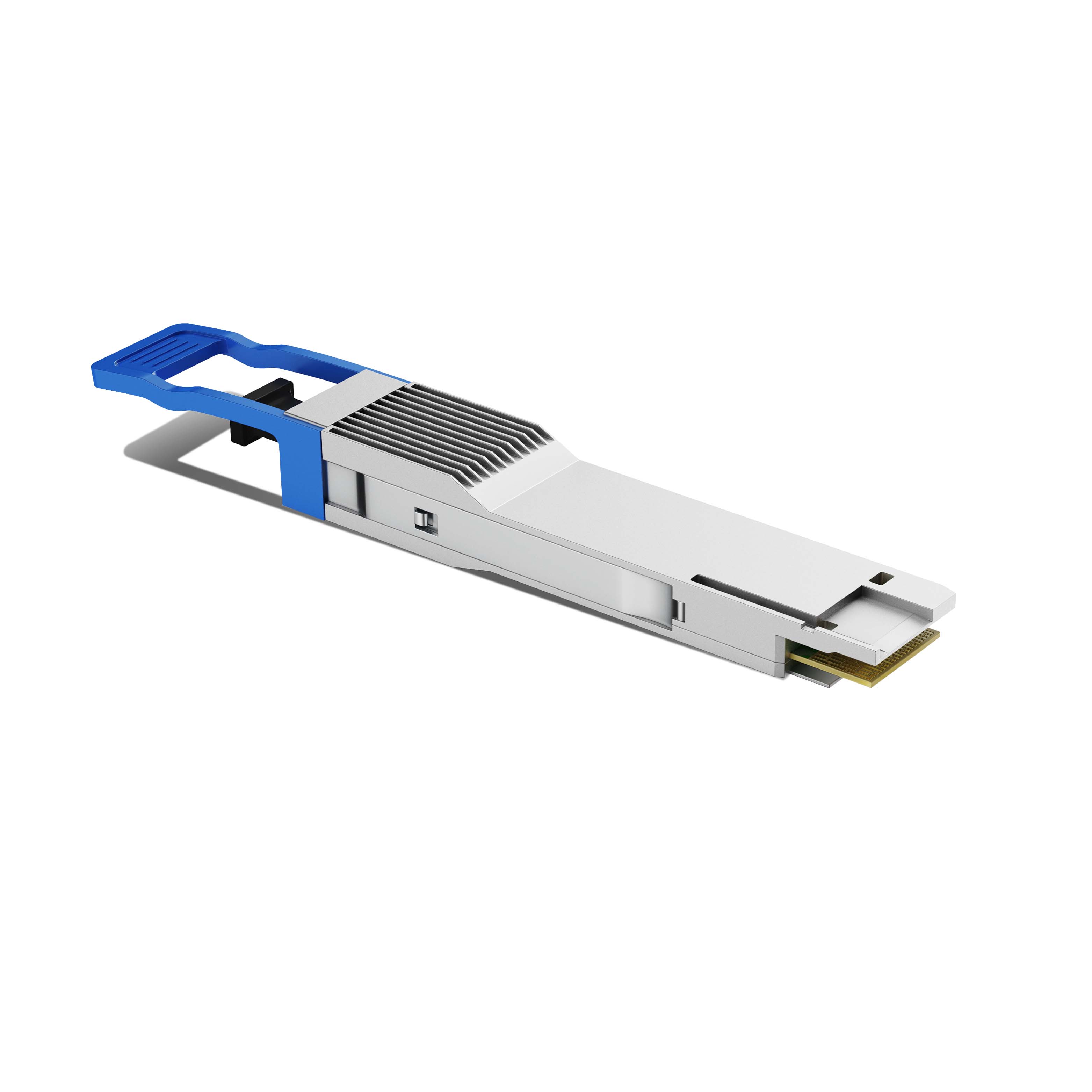

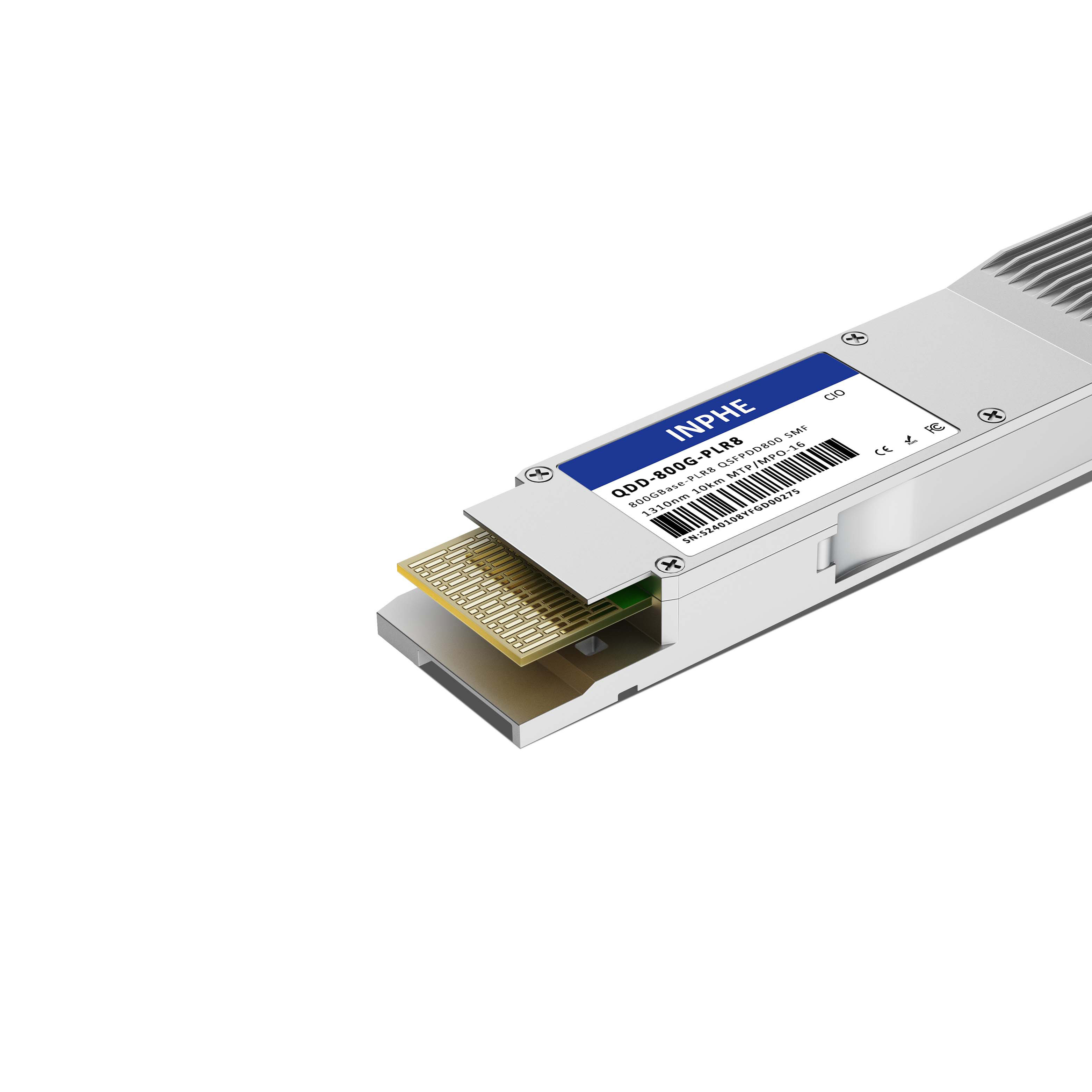

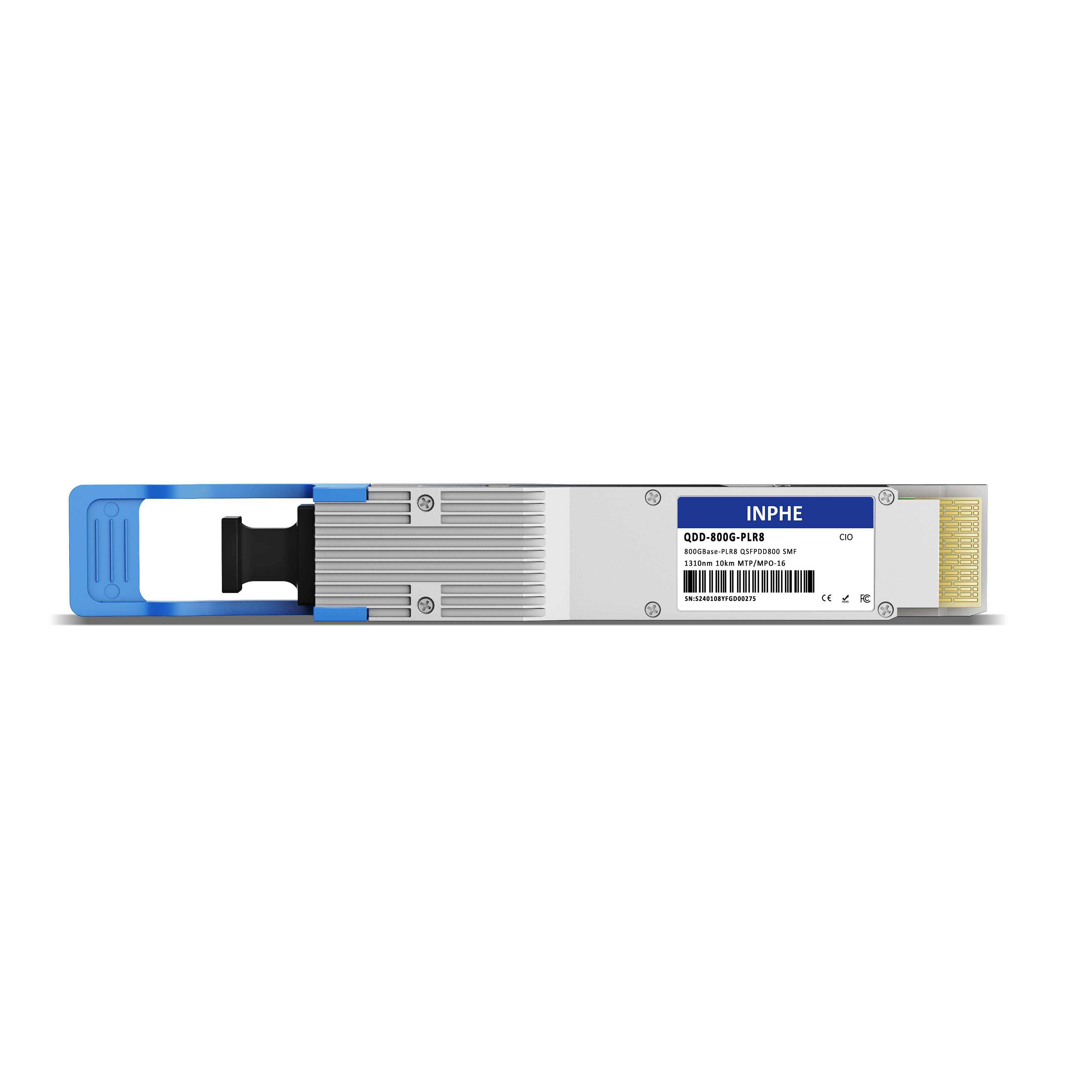

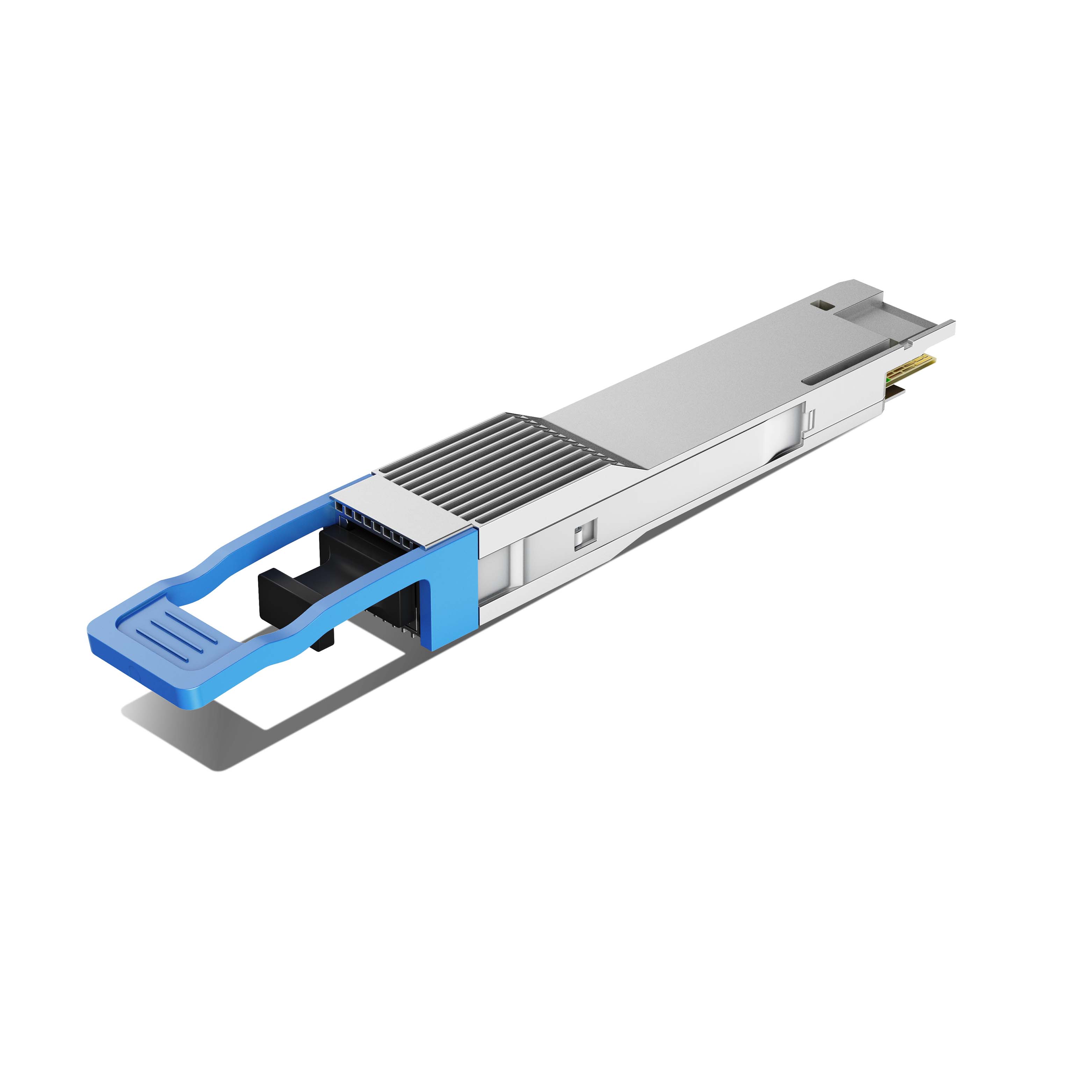

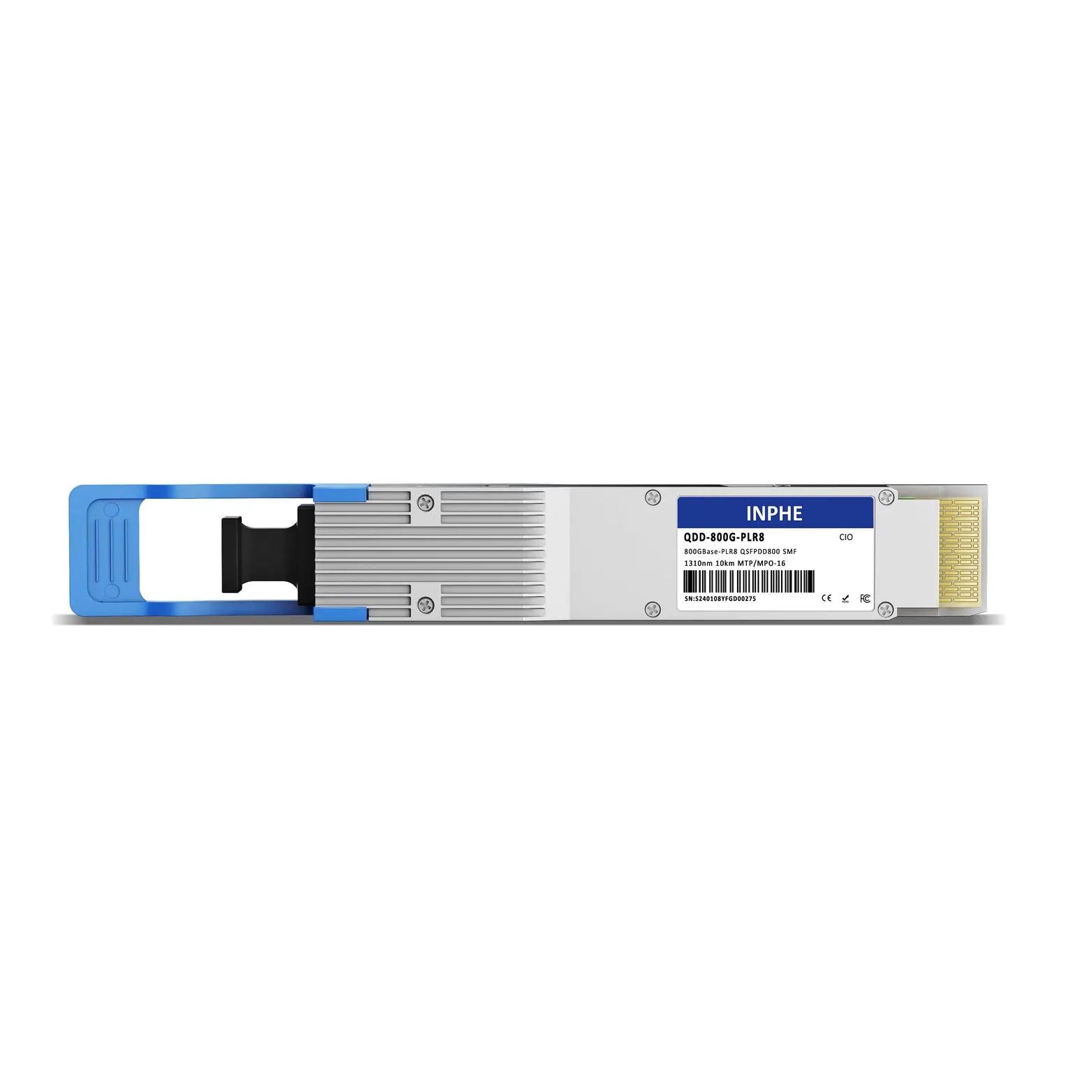

Arista QDD-800G-2PLR4 Compatible QSFP-DD800 800GBASE PLR8 1310nm 10km SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G LR1

Name: Arista QDD-800G-2PLR4 Compatible QSFP-DD800 800GBASE PLR8 1310nm 10km SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G LR1
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710002401013
Price: 2199 USD
Availability: InStock

#710002401013

US$2,199.00

INPHE: QDD-800G-2PLR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

QDD-800G-2PLR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-PLR8
Form Factor	QSFP-DD800	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO 16 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.9 ~ +4.8dBm	Receiver Sensitivity	< -6.1dBm
Protocols	QSFP-DD MSA HW Rev 7.0, CMIS Rev 5.0, IEEE802.3cu-2021, IEEE802.3ck-2022	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
