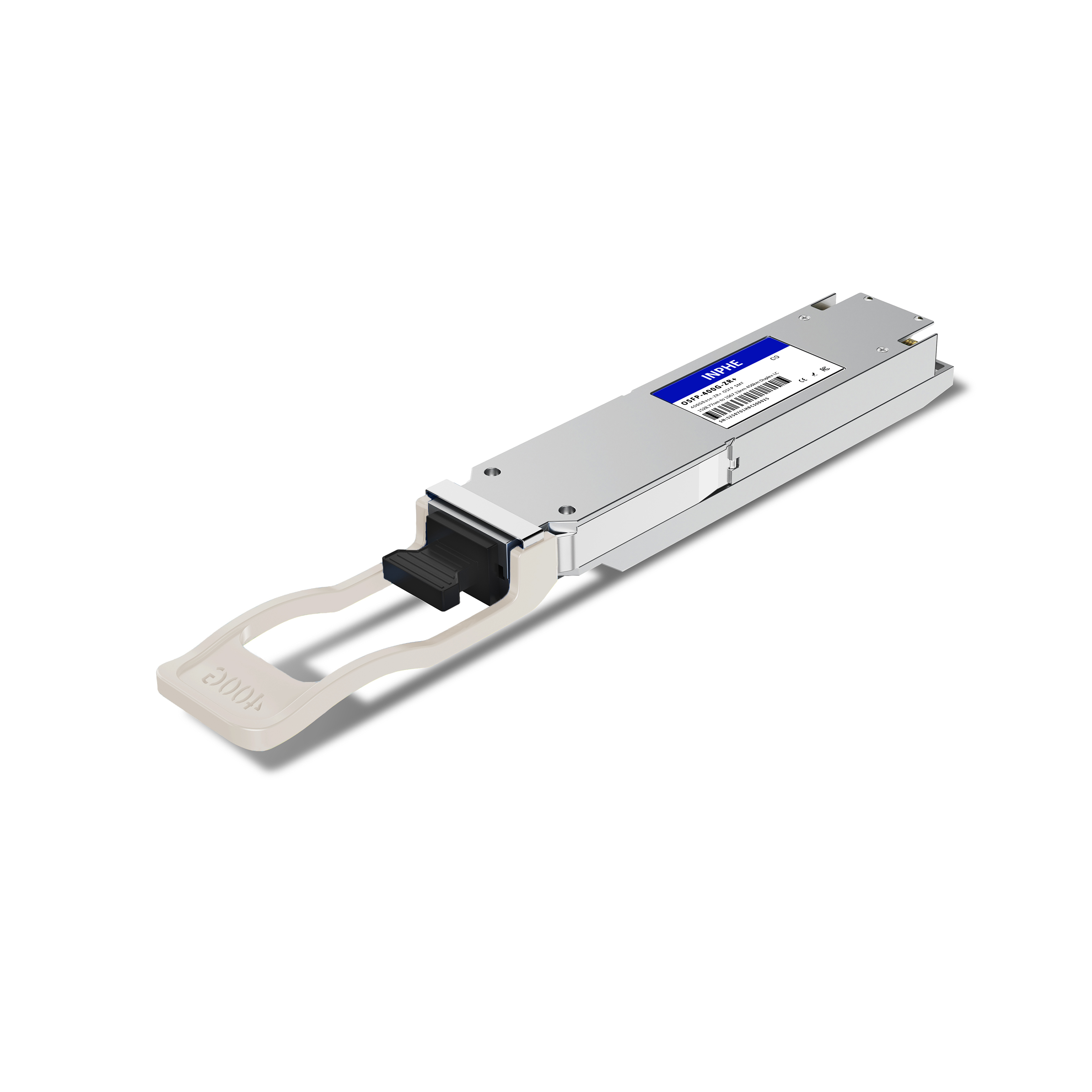

Cisco Compatible OSFP 400GBASE ZR+ Coherent (DCO) DWDM Tunable CH13-CH61 450km SMF Duplex LC DDM/DOM Optics Transceiver, Finned Top

The Cisco compatible OSFP 400G-ZR+ is a Coherent DWDM Tunable Optics designed for high-capacity, long-distance transmission networks in data centers and telecom operators.

Featuring a EML transmitter and a Coherent receiver, and operating at a wavelength of DWDM Tunable (C13-C16; 1567.13nm to 1528.77nm), this Optics utilizes an Duplex LC connector to deliver 400G transmission.

Use O-FEC and 16QAM modulation techniques and exceptional reliability over link distances of up to 450km (OS2 SMF). With -8.0dBm Tx Power.

The operating mode and transmission distance of 400G-ZR+:

1. ≤450km (DWDM amplified, noise limited links)
2. ≤40km (Single wavelength unamplified, loss limited links)
3. ≤450km (Single wavelength amplified, noise limited links)

The INPHE 400G-ZR+ uses Marvell 7nm DSP error correction technology.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections
2. 400G DWDM Connections
