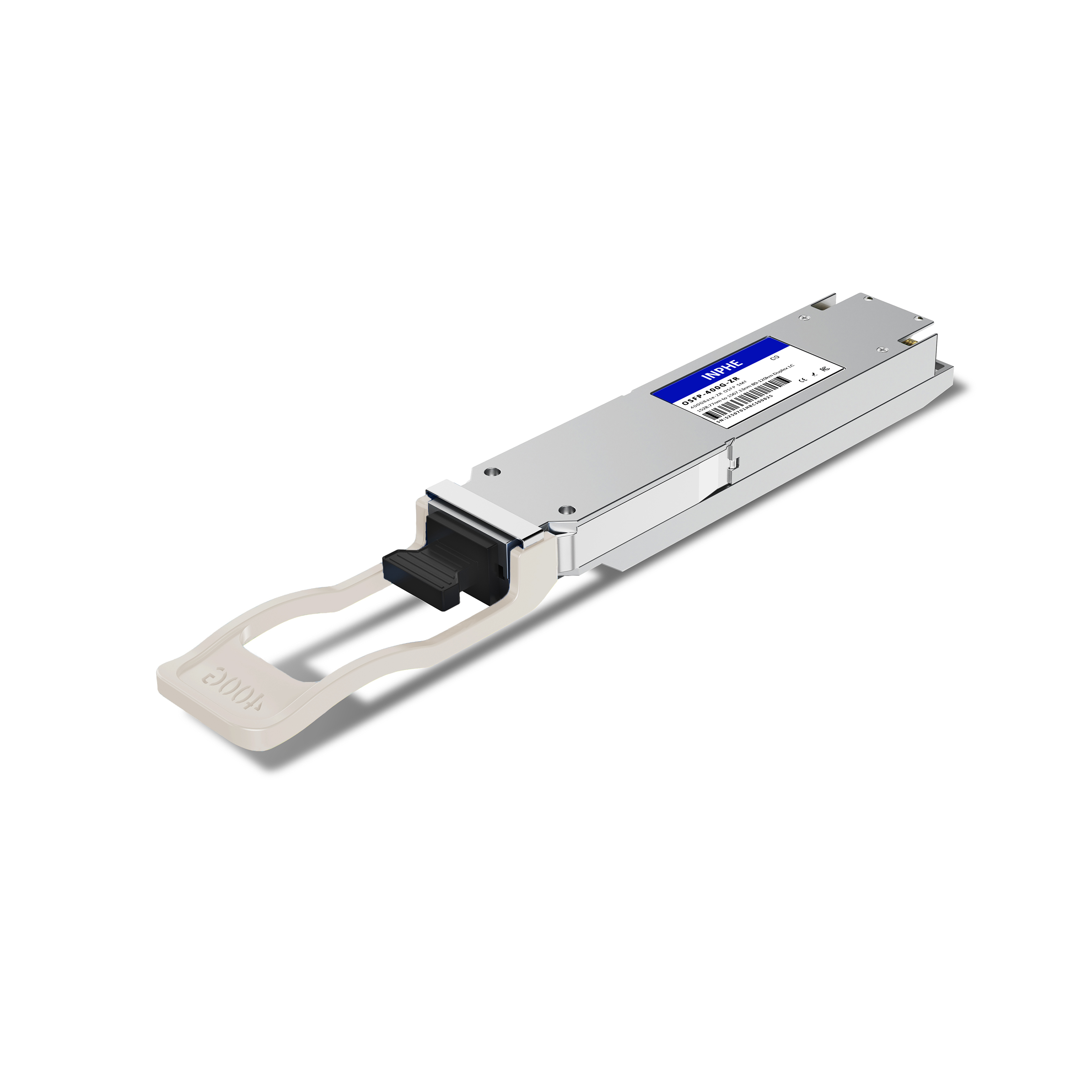

Cisco Compatible OSFP 400GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver, Finned Top

Name: Cisco Compatible OSFP 400GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver, Finned Top
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 709004701028
Price: 5199 USD
Availability: InStock

#709004701028

US$5,199.00

INPHE: OSFP-400G-ZR

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

OSFP-400G-ZR Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-400G-ZR
Form Factor	OSFP Finned Top	Max Data Rate	425Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	120km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ -6.0dBm	Receiver Sensitivity	< -12.0dBm DWDM Amplified, < -20.0dBm Single wavelength unamplified
Protocols	IEEE Std 802.3™-2018, OSFP MSA, CMIS 4.0, OIF-400ZR-01.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
