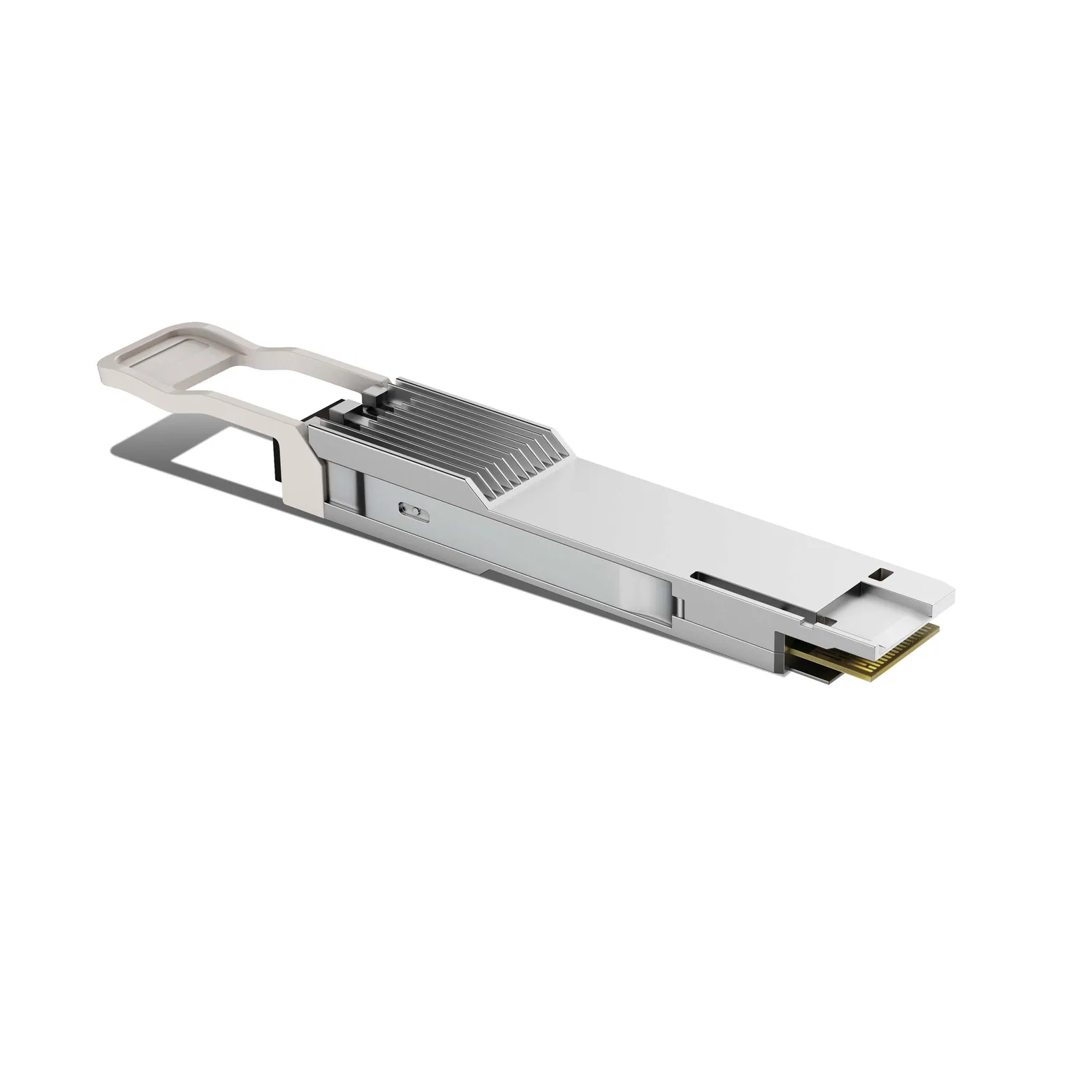

Cisco QDD-400G-ZR-S Compatible QSFP-DD 400GBASE ZR High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Cisco QDD-400G-ZR-S Compatible QSFP-DD 400GBASE ZR High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 709004601028
Price: 4899 USD
Availability: InStock

#709004601028

US$4,899.00

INPHE: QDD-400G-ZR-S

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

QDD-400G-ZR-S Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-400G-ZRHP
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	120km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ +1.0dBm DWDM Amplified, +3.0 ~ +4.0dBm Single wavelength unamplified	Receiver Sensitivity	< -12.0dBm DWDM Amplified, < -20.0dBm Single wavelength unamplified
Protocols	IEEE Std 802.3™-2018, QSFP-DD MSA, CMIS 4.0, OIF-400ZR-01.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
