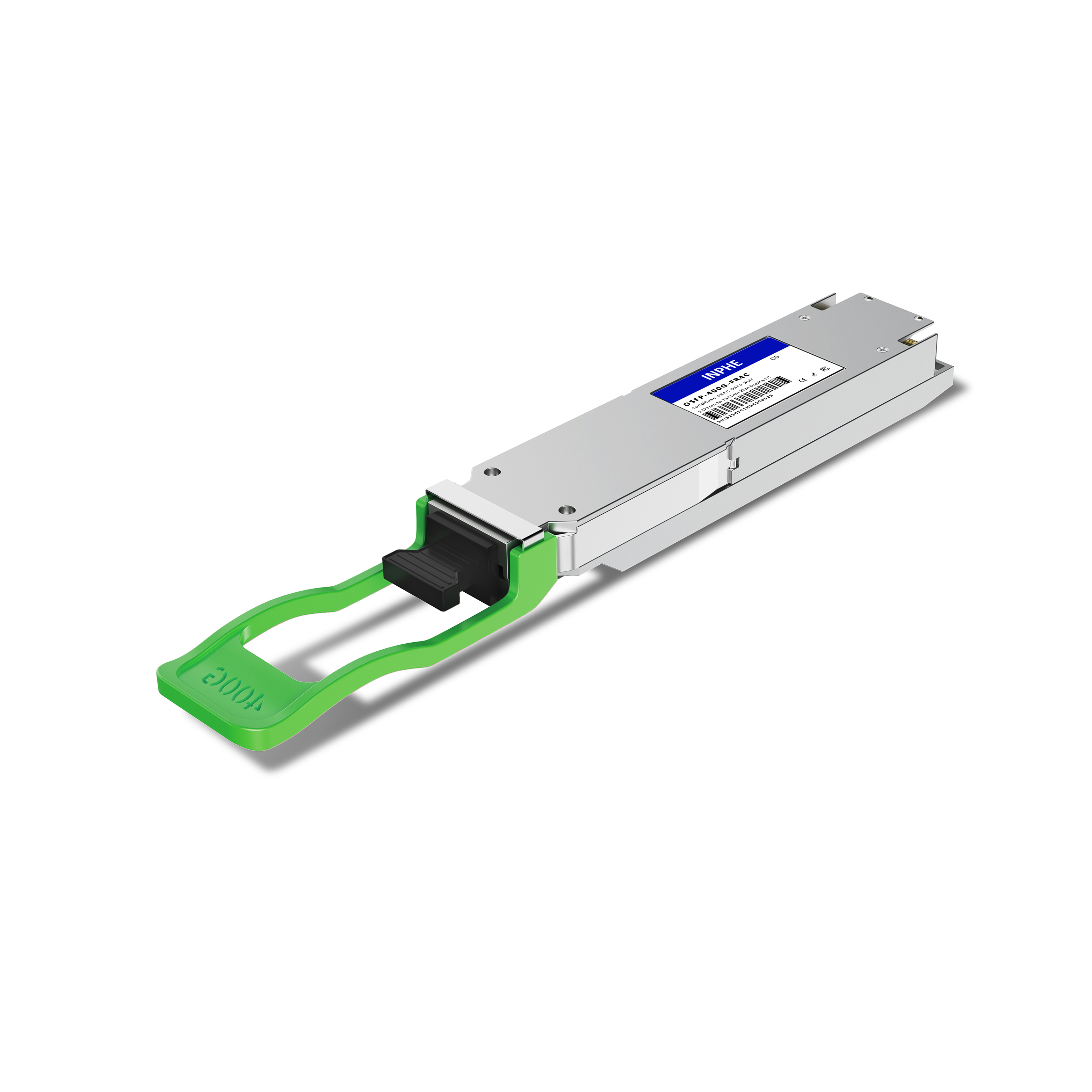

Arista OSFP-400G-FR4 XVR-10210-40 Compatible OSFP 400GBASE FR4 1271/1291/1311/1331nm 2km SMF Duplex LC DDM/DOM Optics Transceiver, Closed Finned Top

Name: Arista OSFP-400G-FR4 XVR-10210-40 Compatible OSFP 400GBASE FR4 1271/1291/1311/1331nm 2km SMF Duplex LC DDM/DOM Optics Transceiver, Closed Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709004101013
Price: 899 USD
Availability: InStock

#709004101013

US$899.00

INPHE: OSFP-400G-FR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Arista

Compatible Models:

OSFP-400G-FR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-400G-FR4C
Form Factor	OSFP Closed Finned Top	Max Data Rate	425Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	2km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-3.2 ~ +4.4dBm	Receiver Sensitivity	< -4.6dBm
Protocols	OSFP MSA 5.1,CMIS 4.0,IEEE 802.3cu,IEEE 802.3bs	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
