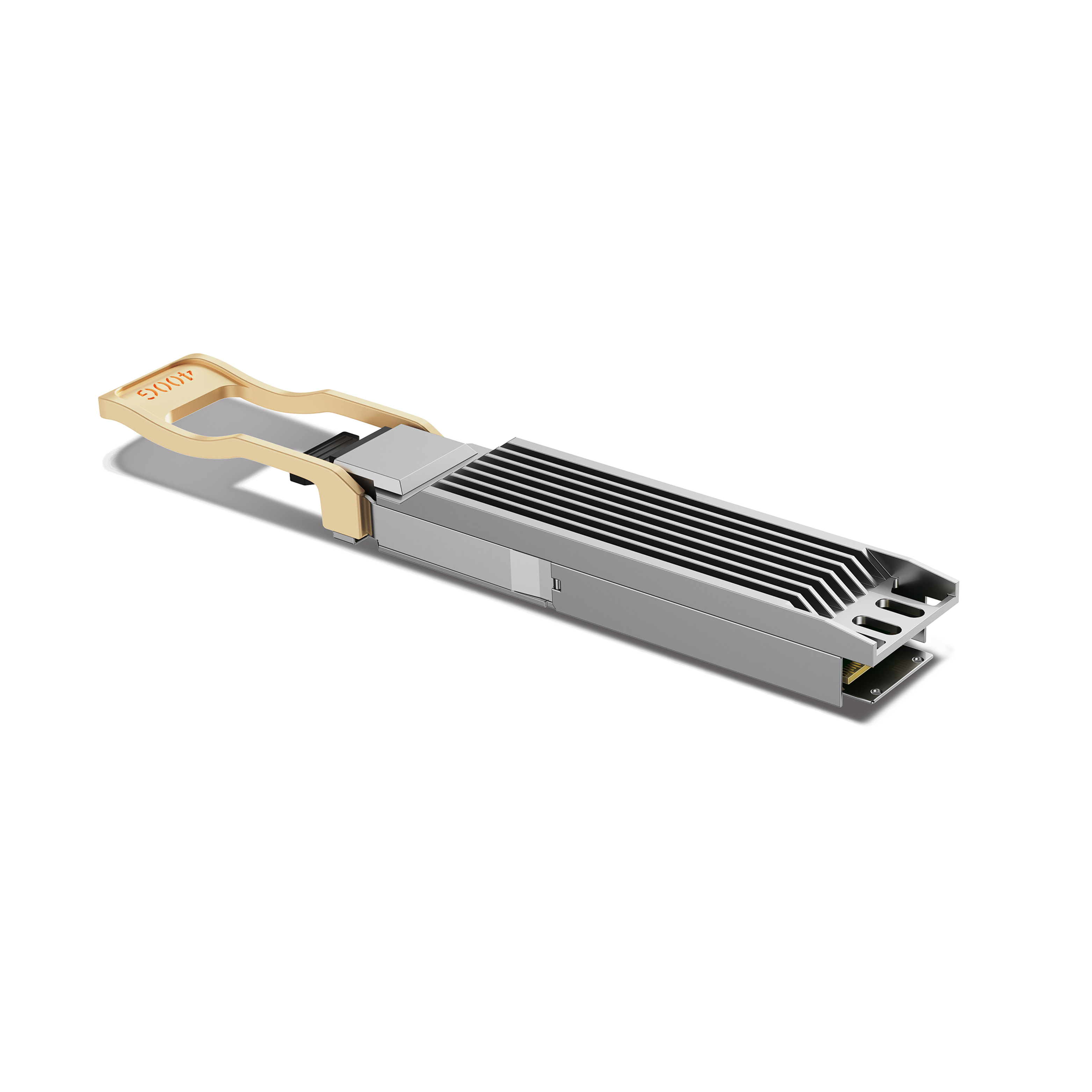

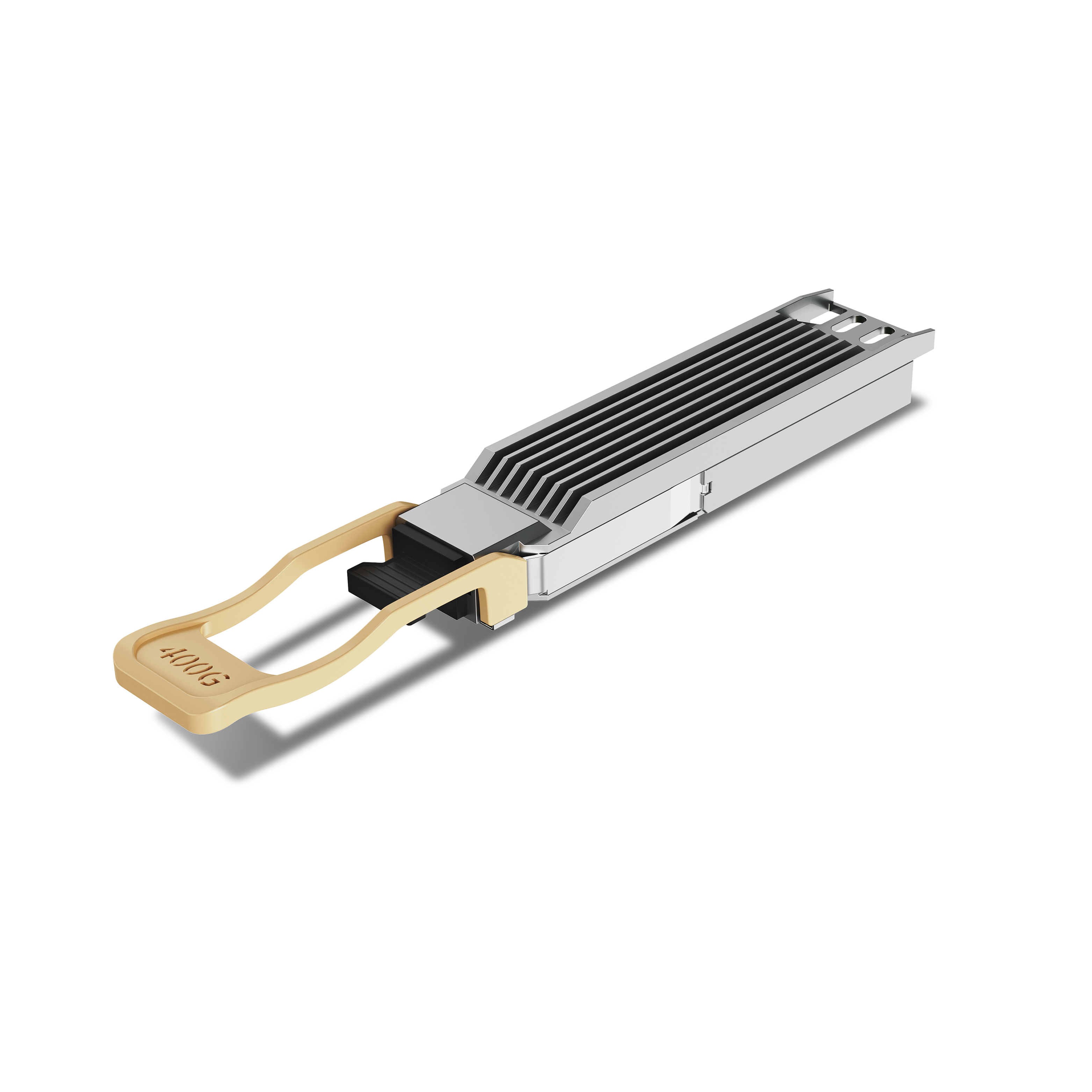

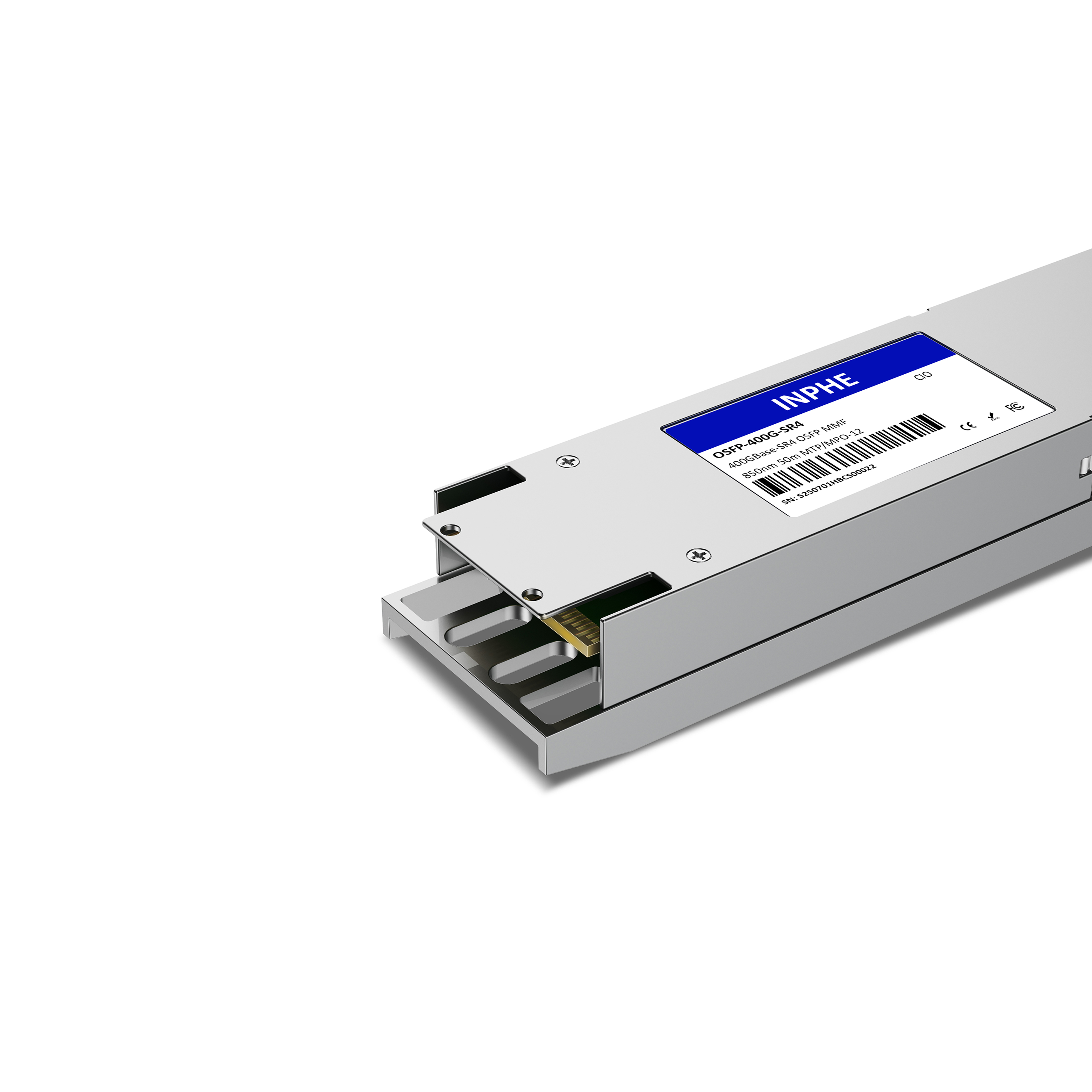

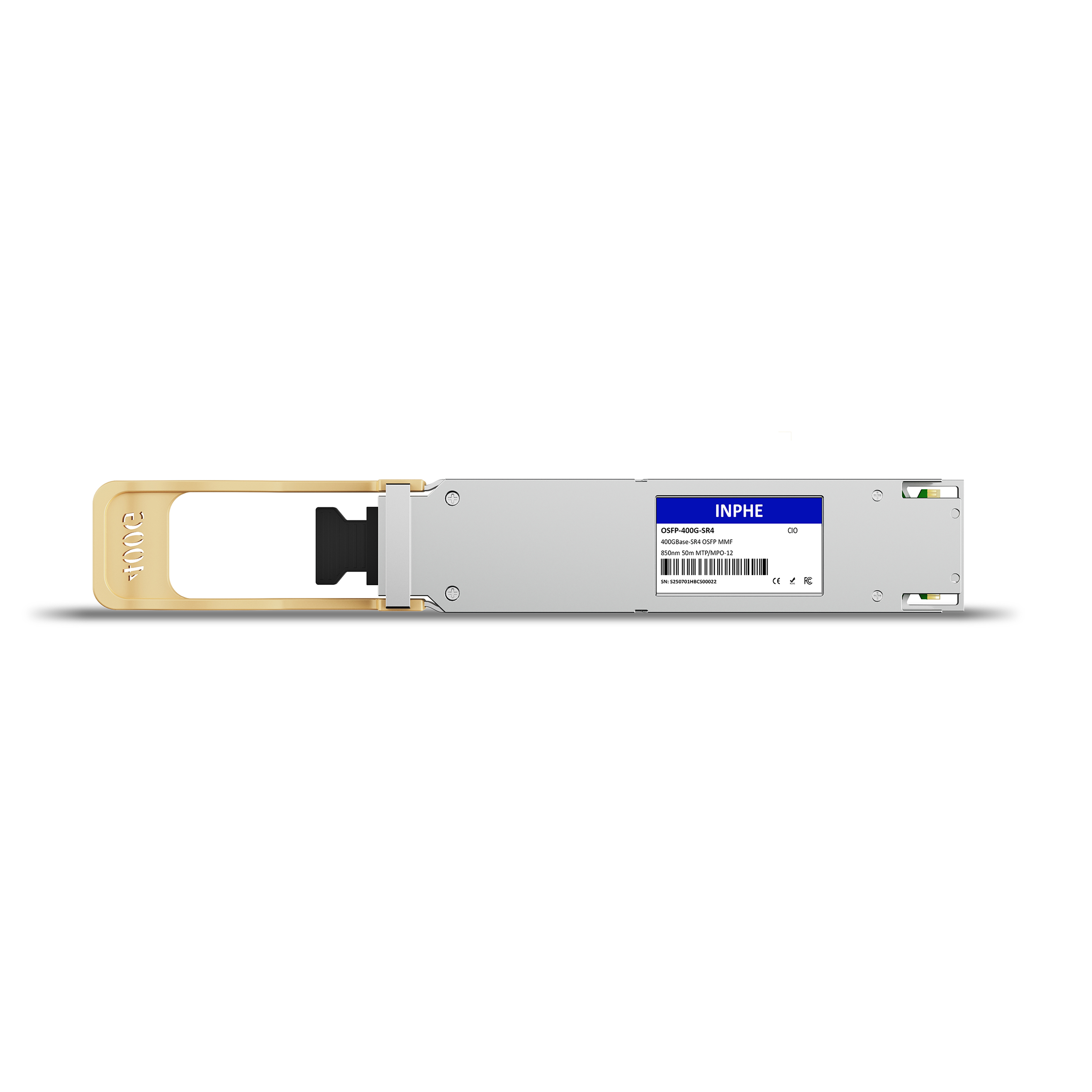

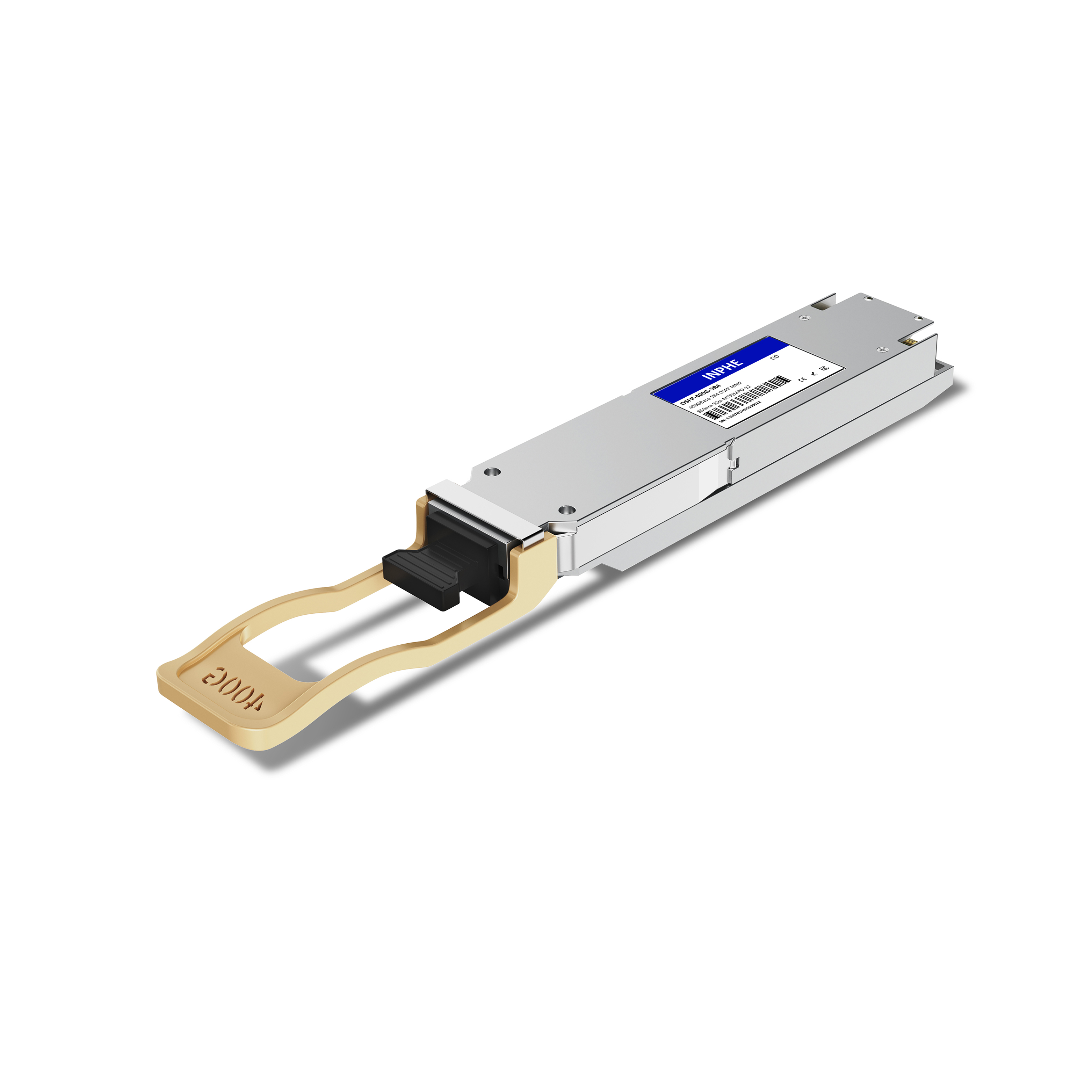

Arista OSFP-400G-VSR4 Compatible OSFP 400GBASE SR4(VR4) 850nm 50m MMF MPO/MTP-12 DDM/DOM Optics Transceiver, Finned Top

Name: Arista OSFP-400G-VSR4 Compatible OSFP 400GBASE SR4(VR4) 850nm 50m MMF MPO/MTP-12 DDM/DOM Optics Transceiver, Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709002701013
Price: 599 USD
Availability: InStock

#709002701013

US$599.00

INPHE: OSFP-400G-VSR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Arista

Compatible Models:

OSFP-400G-VSR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-400G-VR4F
Form Factor	OSFP Finned Top	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	OM4 50m / OM3 30m
Connector	MTP/MPO 12 APC	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-4.6 ~ +4.0dBm	Receiver Sensitivity	< -4.4dBm
Protocols	CMIS 5.2, IEEE 802.3bs-400GAUI-8, OSFP MSA, IEEE 802.3 db-400GBASE-VR4	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
