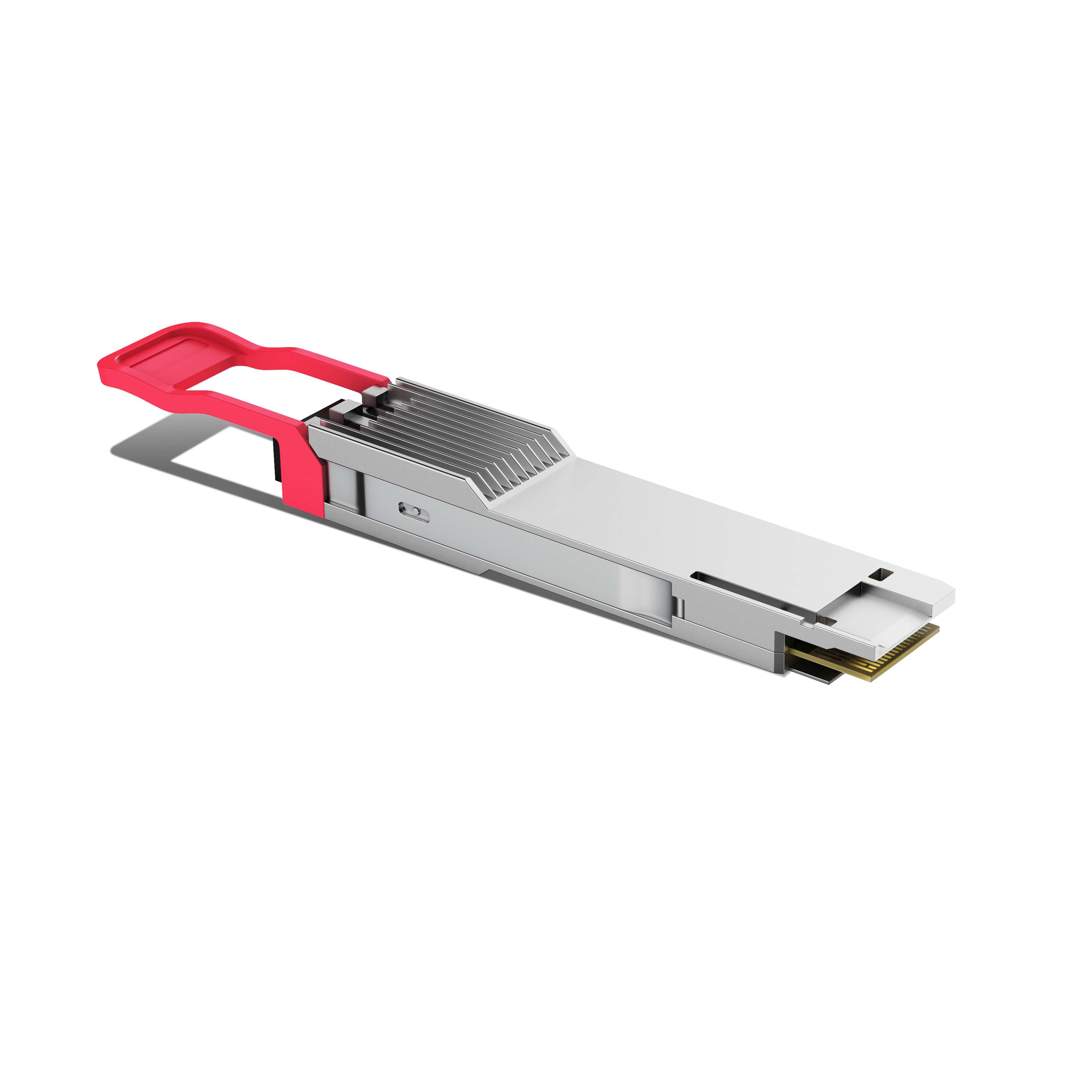

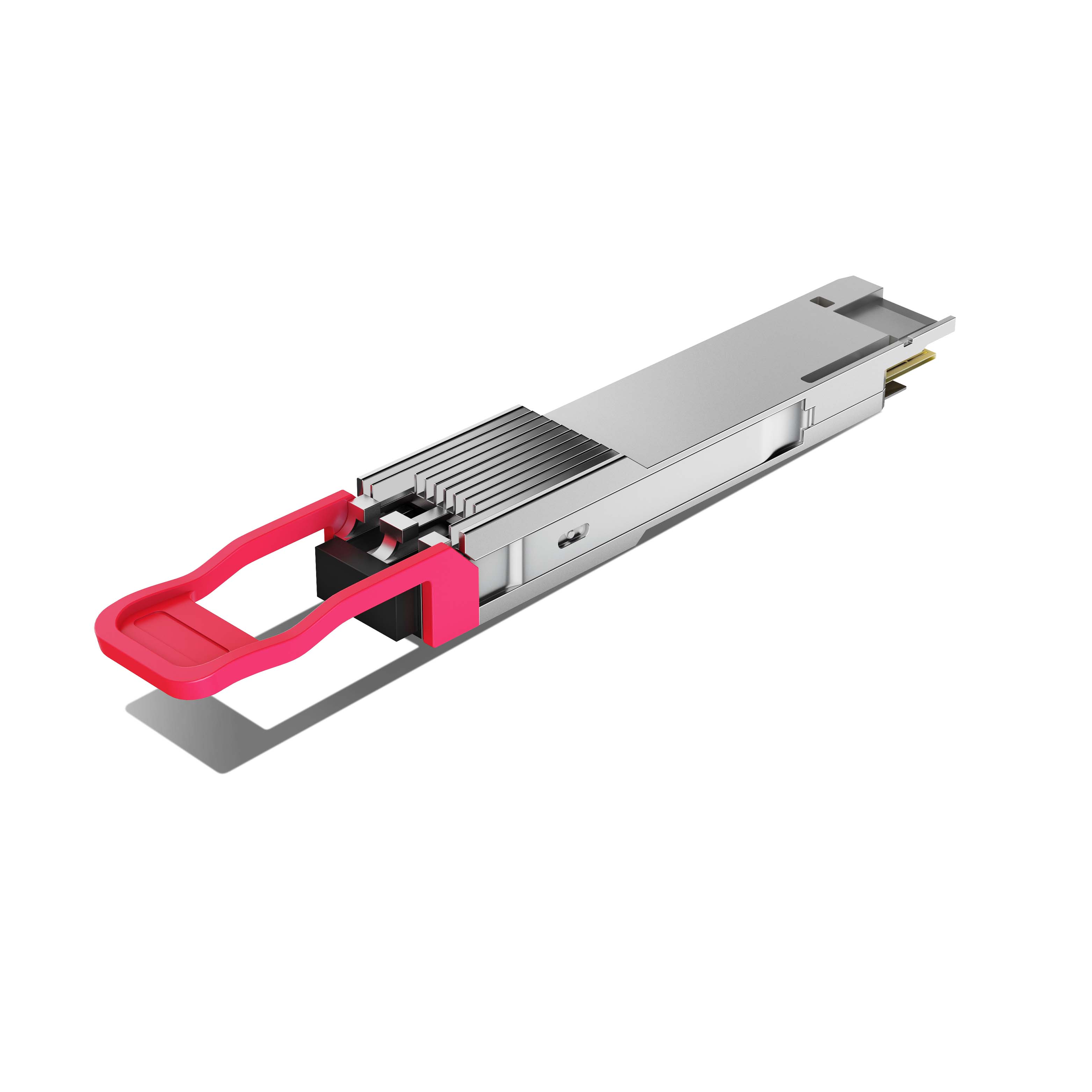

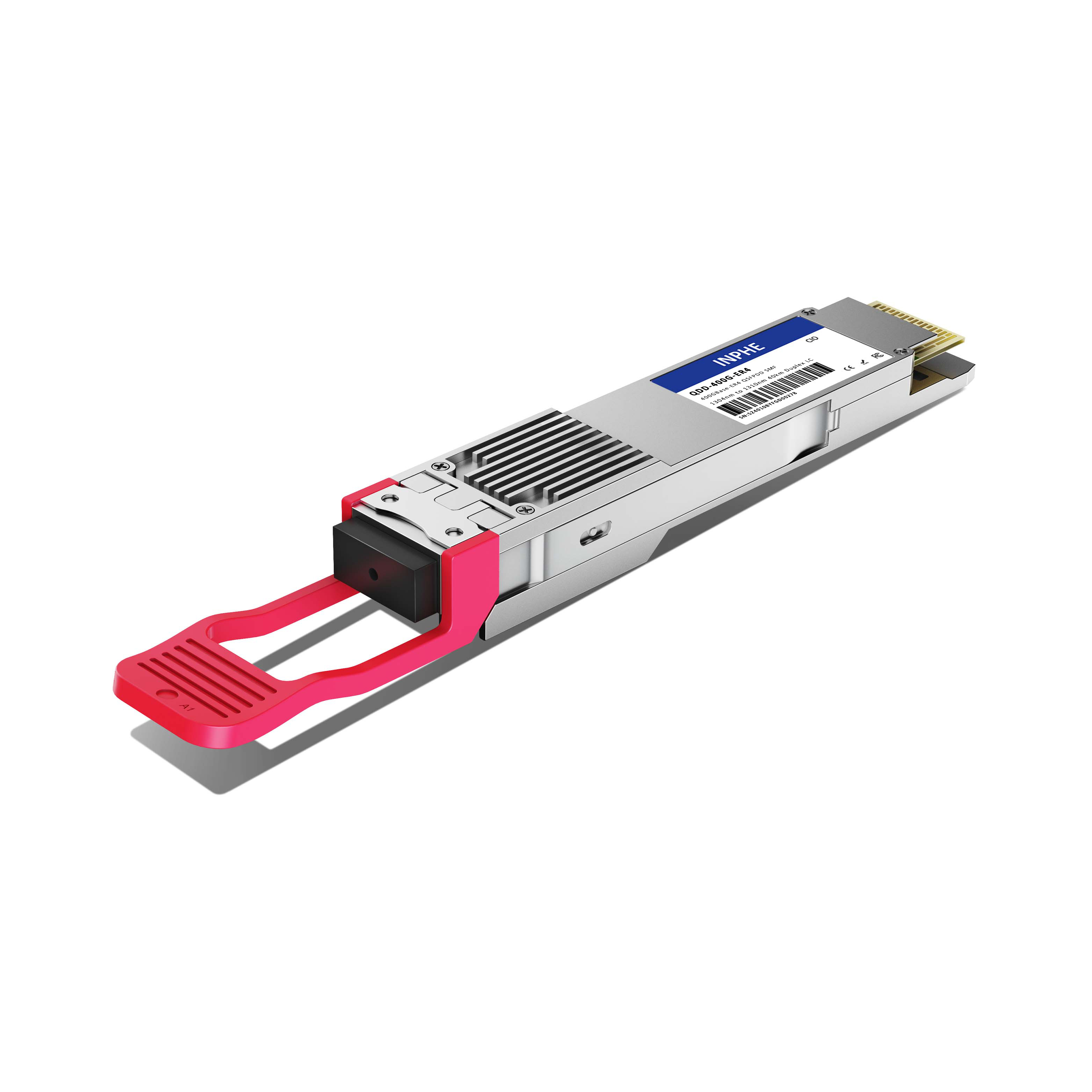

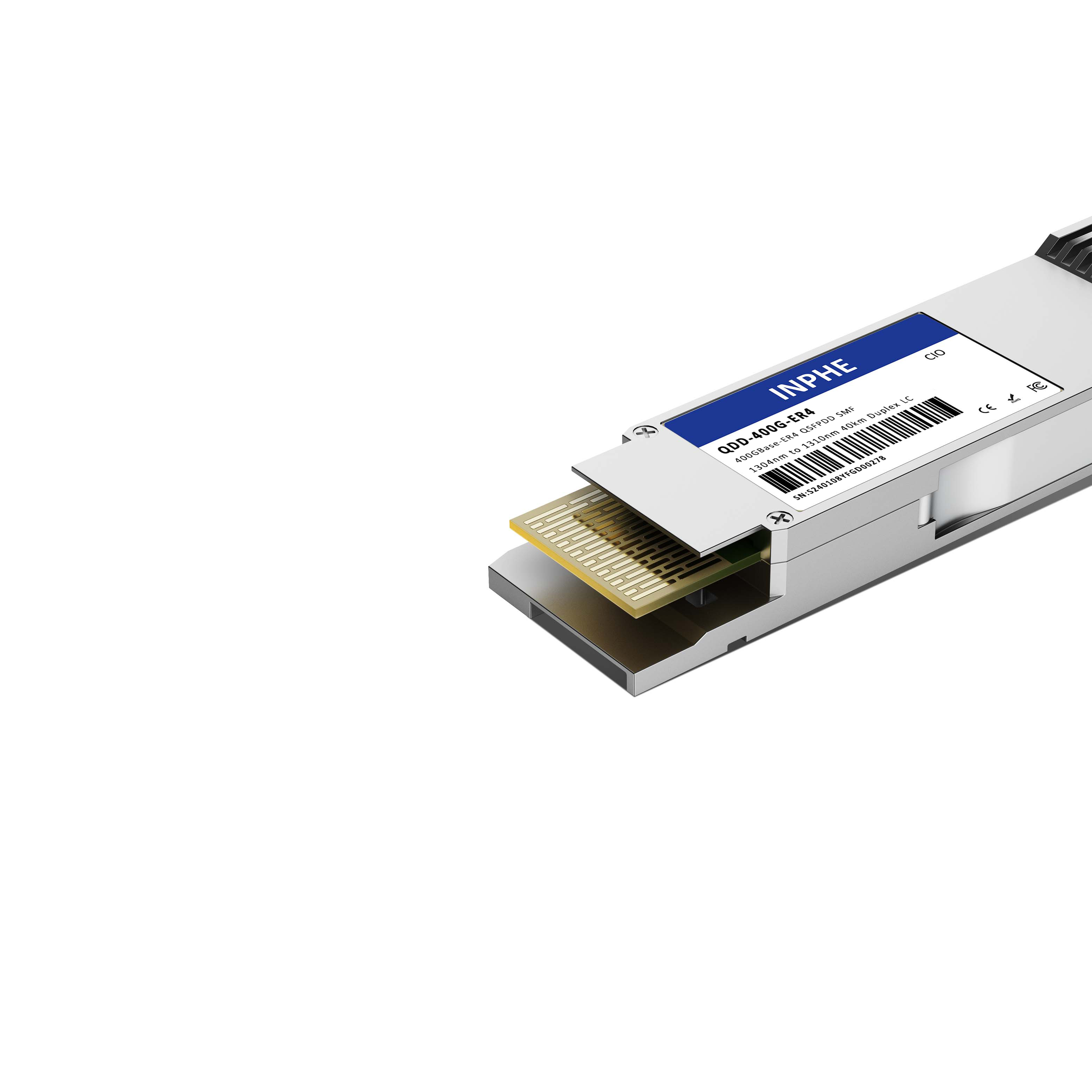

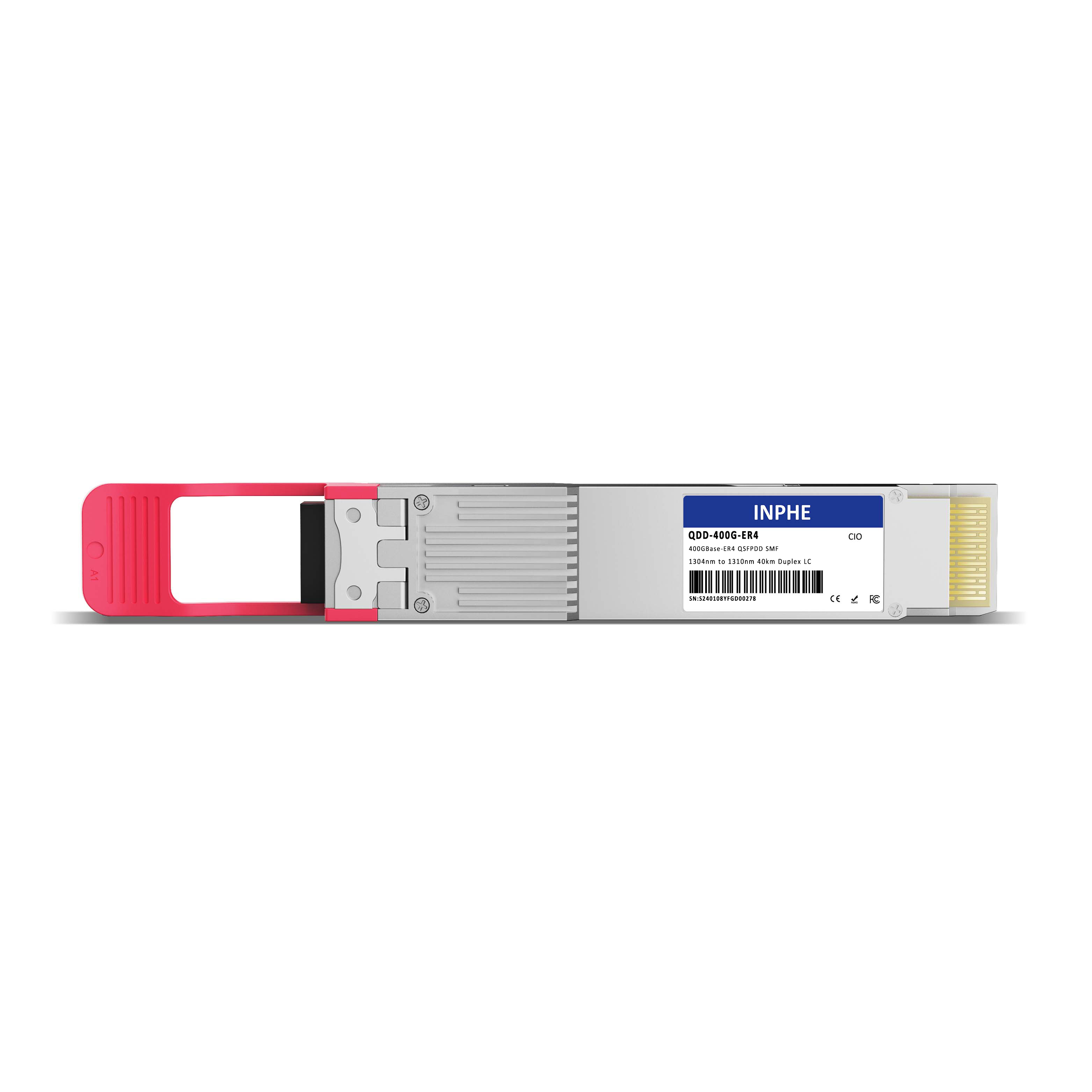

Huawei Compatible QSFP-DD 400G ER4 1304nm to 1310nm 40km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Huawei Compatible QSFP-DD 400G ER4 1304nm to 1310nm 40km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709002201056
Price: 3599 USD
Availability: InStock

#709002201056

US$3,599.00

INPHE: QDD-400G-ER4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

QDD-400G-ER4 Customized

QTY:

Specifications

The Huawei compatible QSFP-DD 400G-ER4 Optics is designed for long-distance single-mode connections in data centers and telecom.

Featuring a EML transmitter and a SOA+PIN receiver, and operating at a wavelength of LAN WDM8 (1304nm/1306nm/1308nm/1310 nm), this Optics utilizes an Duplex LC connector to deliver 400G transmission and exceptional reliability over link distances of up to 40km (OS2 SMF). It is an ideal choice for long-distance, high-speed transmission applications within data centers and enterprise networks.

The INPHE 400G-ER4 uses 7nm DSP.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections

Note:
The 400G-ER4 employs 4-wavelength technology and cannot be connected to the 400G-ER8.

Vendor Name	INPHE	Part Number	QDD-400G-ER4
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1304, 1306, 1308, 1310nm	Max Distance	40km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	SOA+PIN
Transmitter Power	+1.5 ~ +7.1dBm	Receiver Sensitivity	< -16.2dBm
Protocols	QSFP-DD MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
