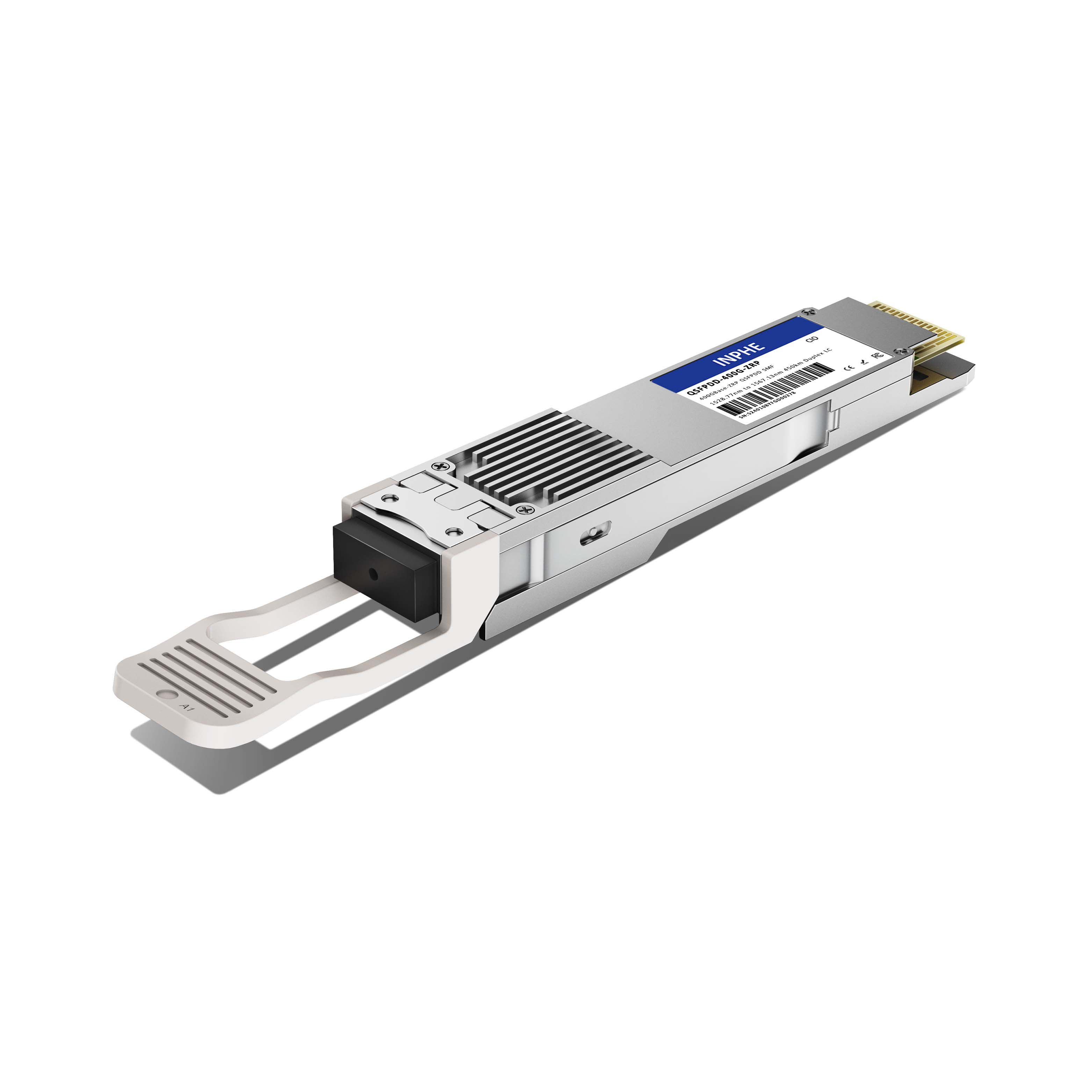

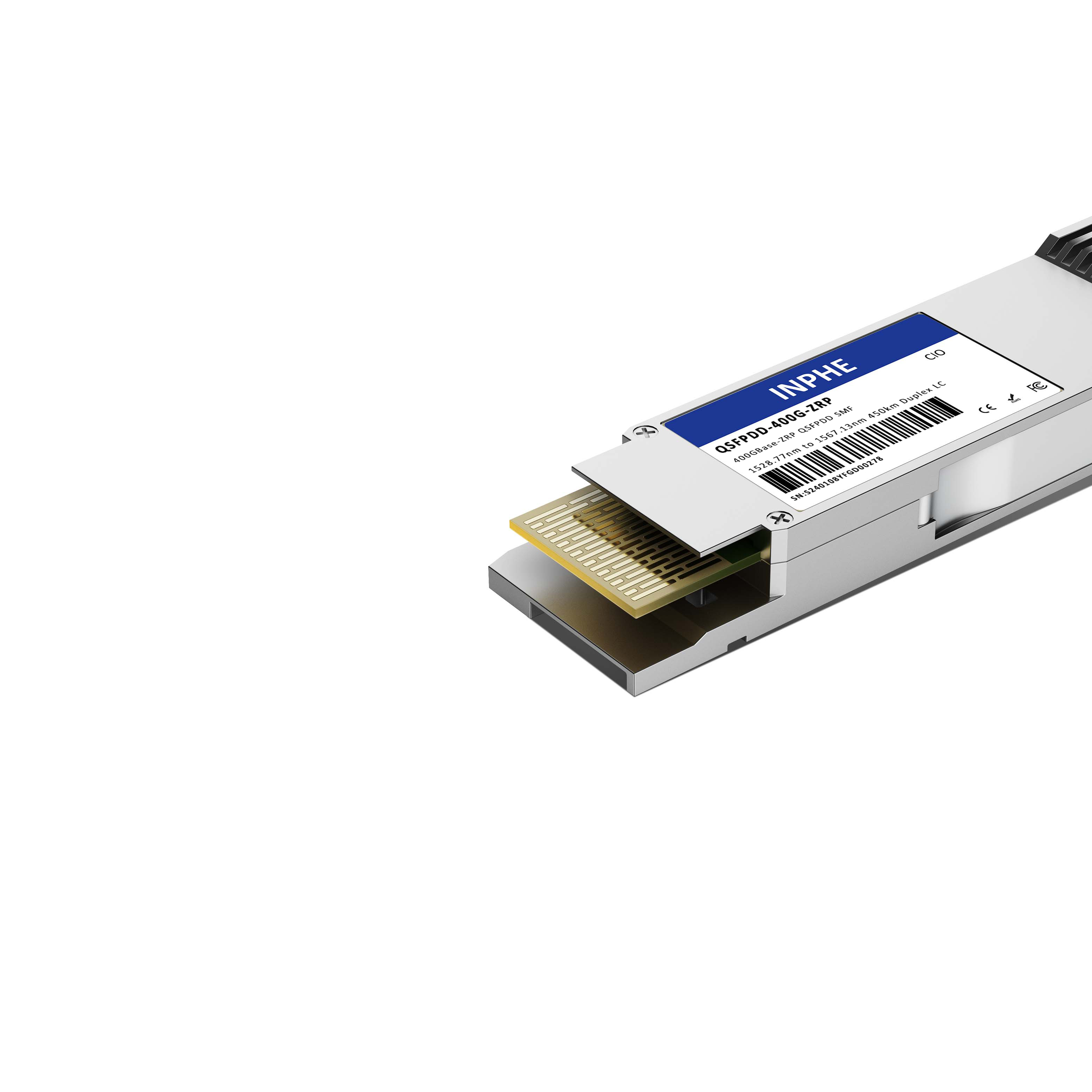

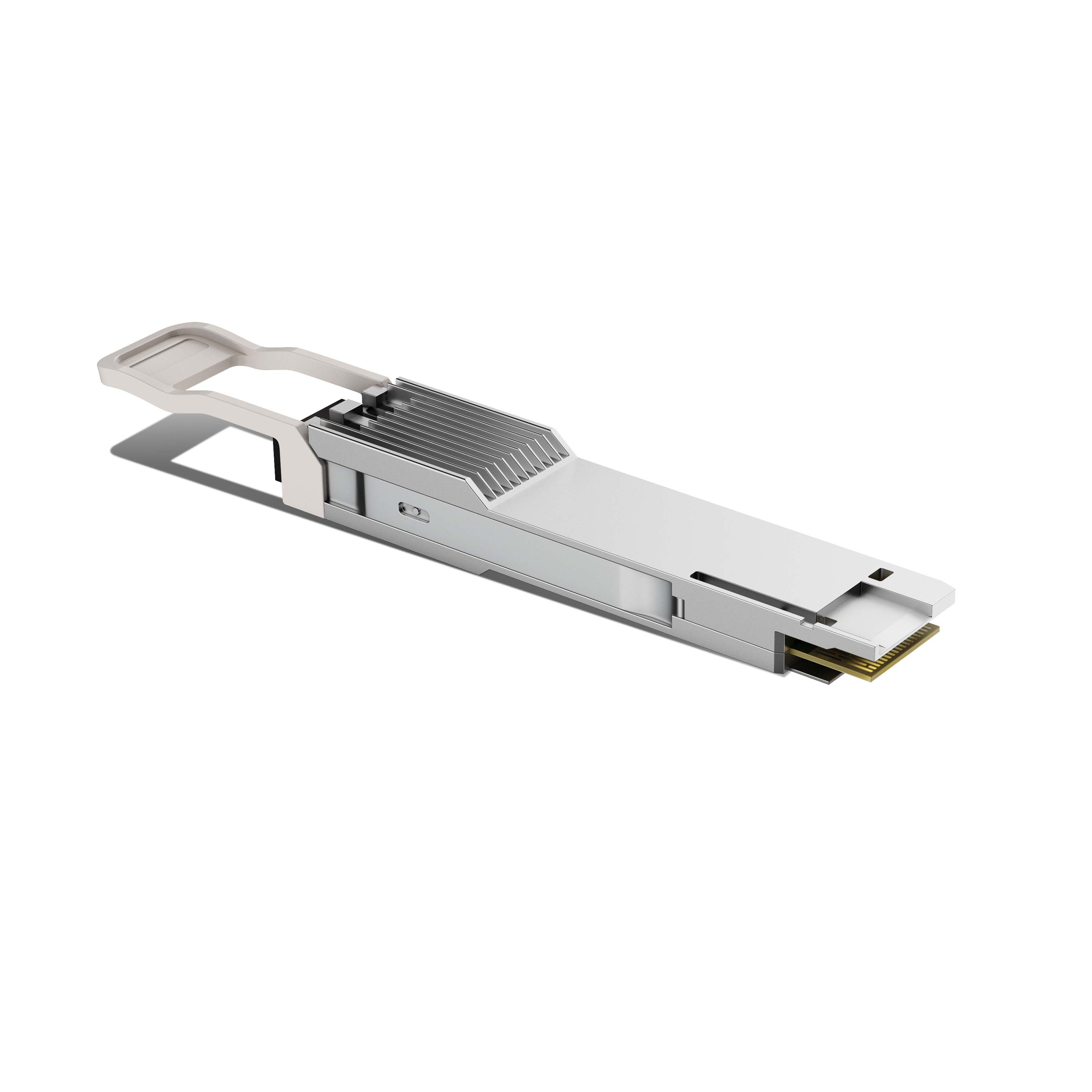

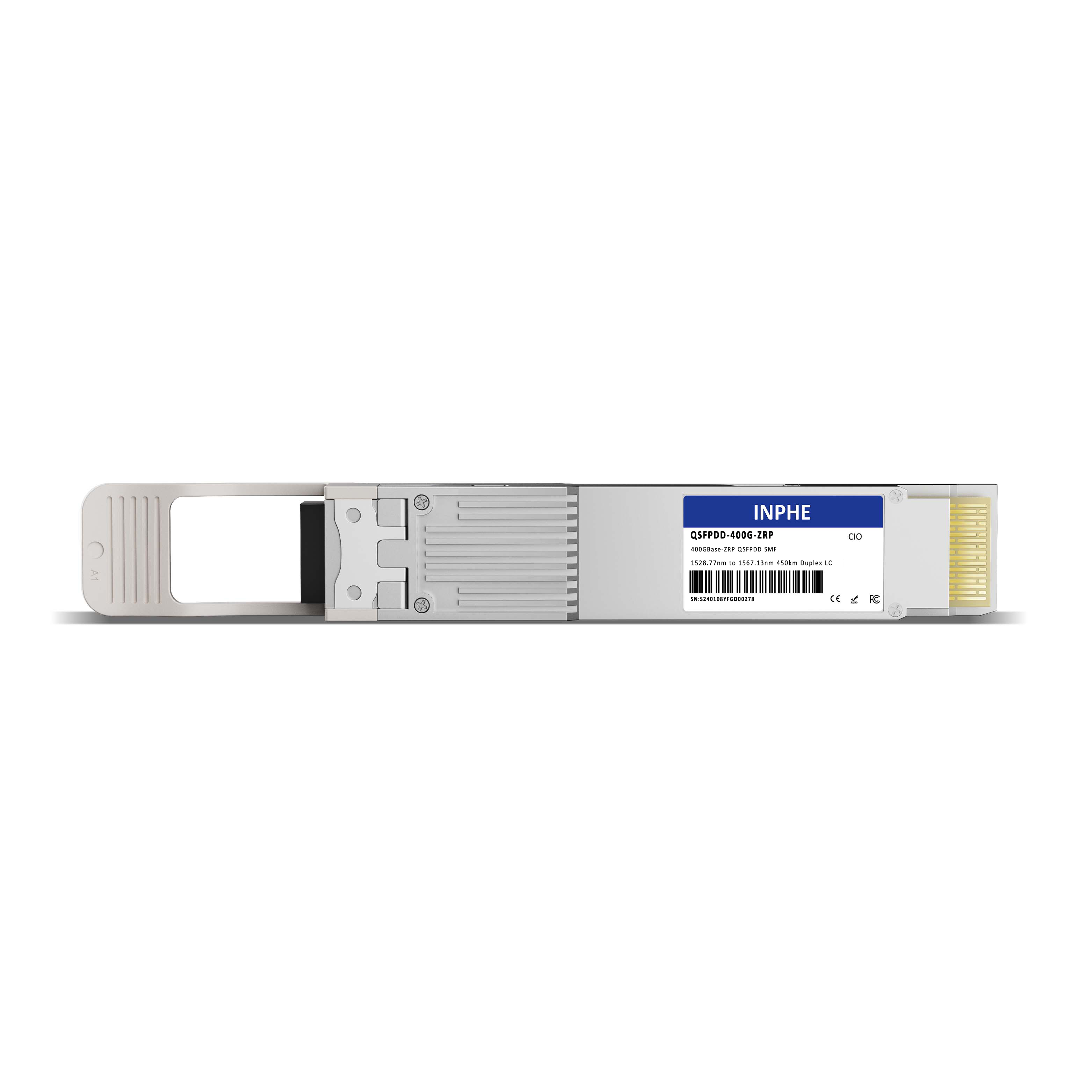

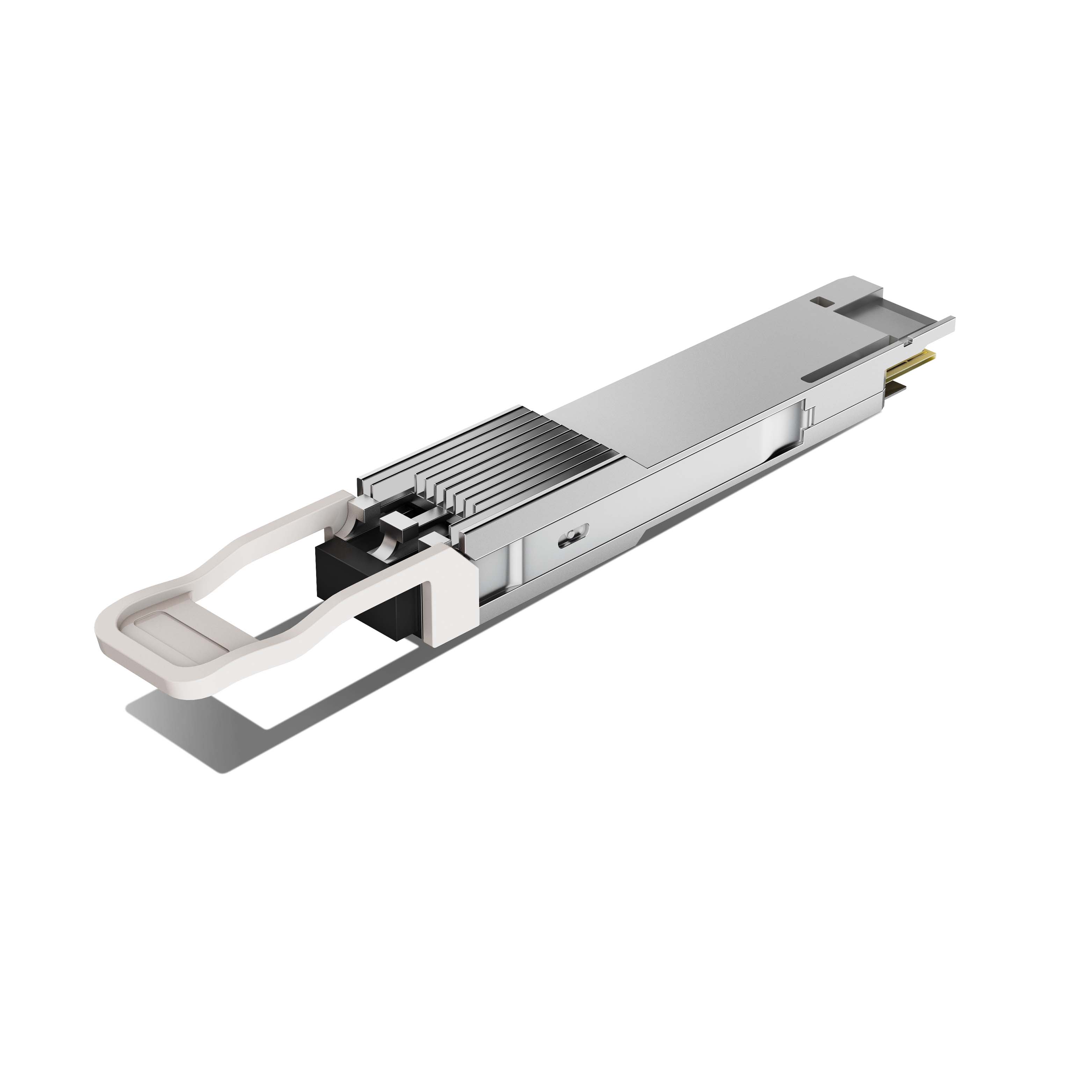

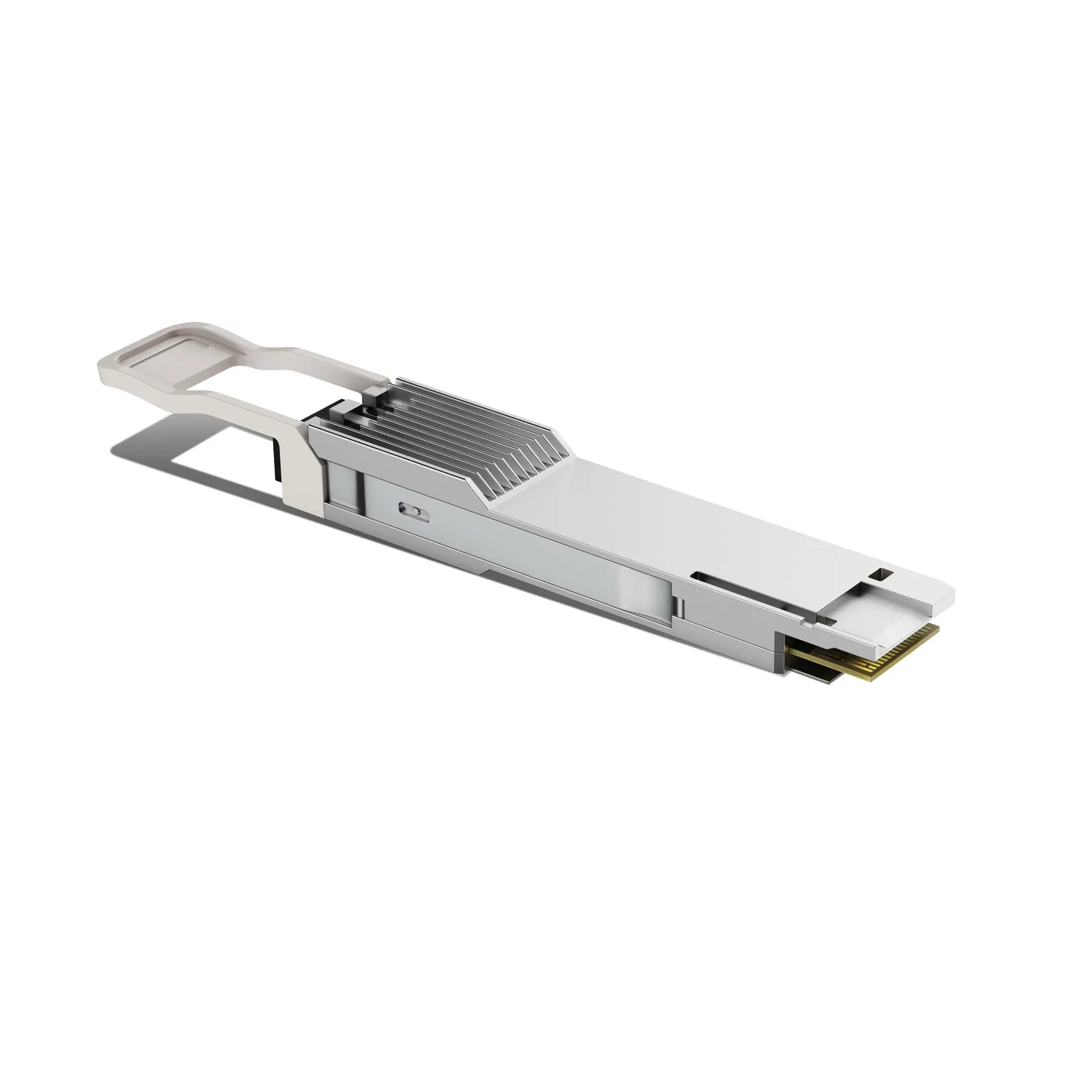

Nokia 3HE16565AA Compatible QSFP-DD 400GBASE ZR+ Coherent (DCO) DWDM Tunable CH13-CH61 450km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Nokia 3HE16565AA Compatible QSFP-DD 400GBASE ZR+ Coherent (DCO) DWDM Tunable CH13-CH61 450km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 709001801007
Price: 4799 USD
Availability: InStock

#709001801007

US$4,799.00

INPHE: 3HE16565AA

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

3HE16565AA Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-400G-ZR+
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	450km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ -6.0dBm	Receiver Sensitivity	< -12.0dBm DWDM Amplified, < -22.0dBm Single wavelength unamplified
Protocols	Open ZR+ MSA 2.0, OIF-400ZR-02.0, OIF-CMIS-05.2, OIF-C-CMIS-01.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
