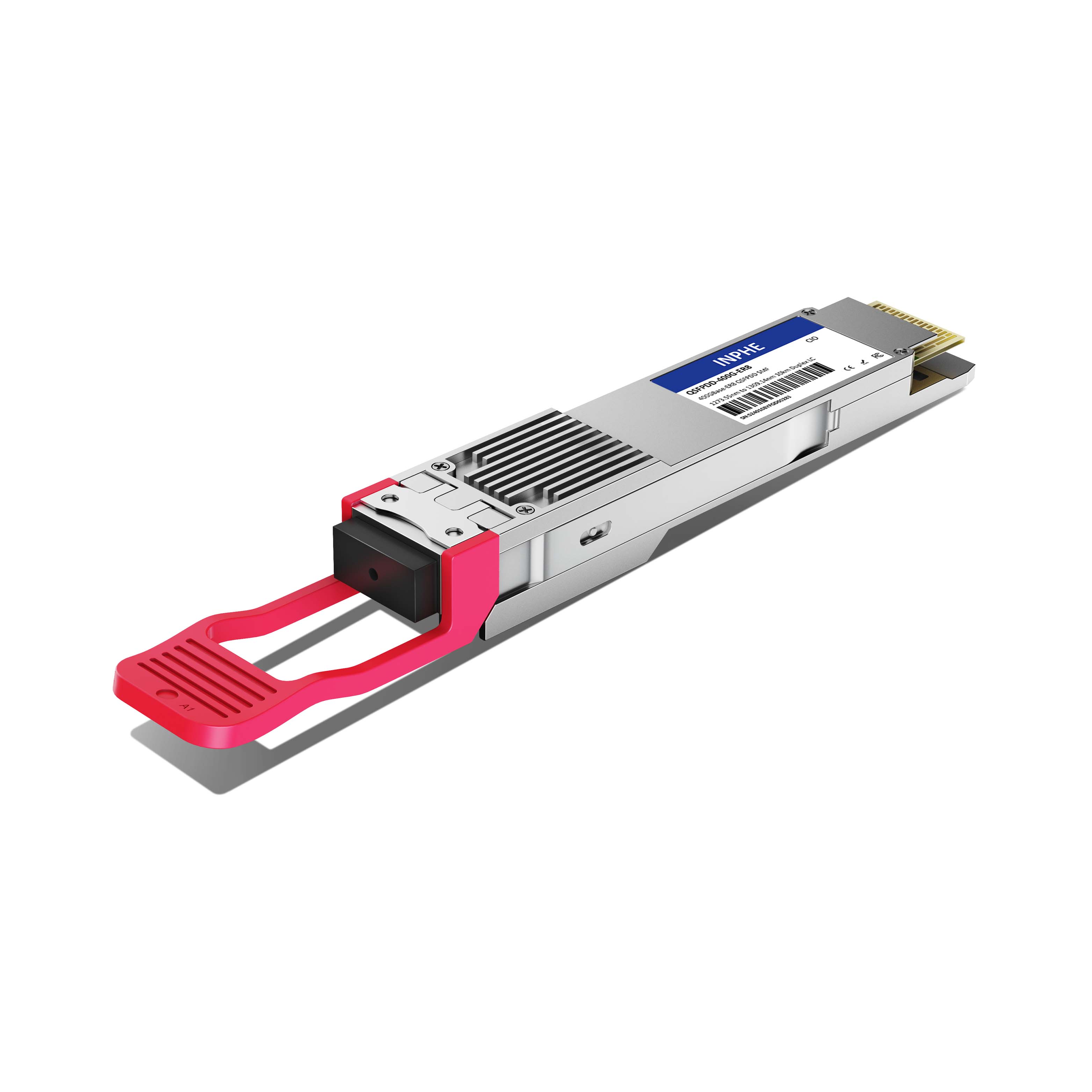

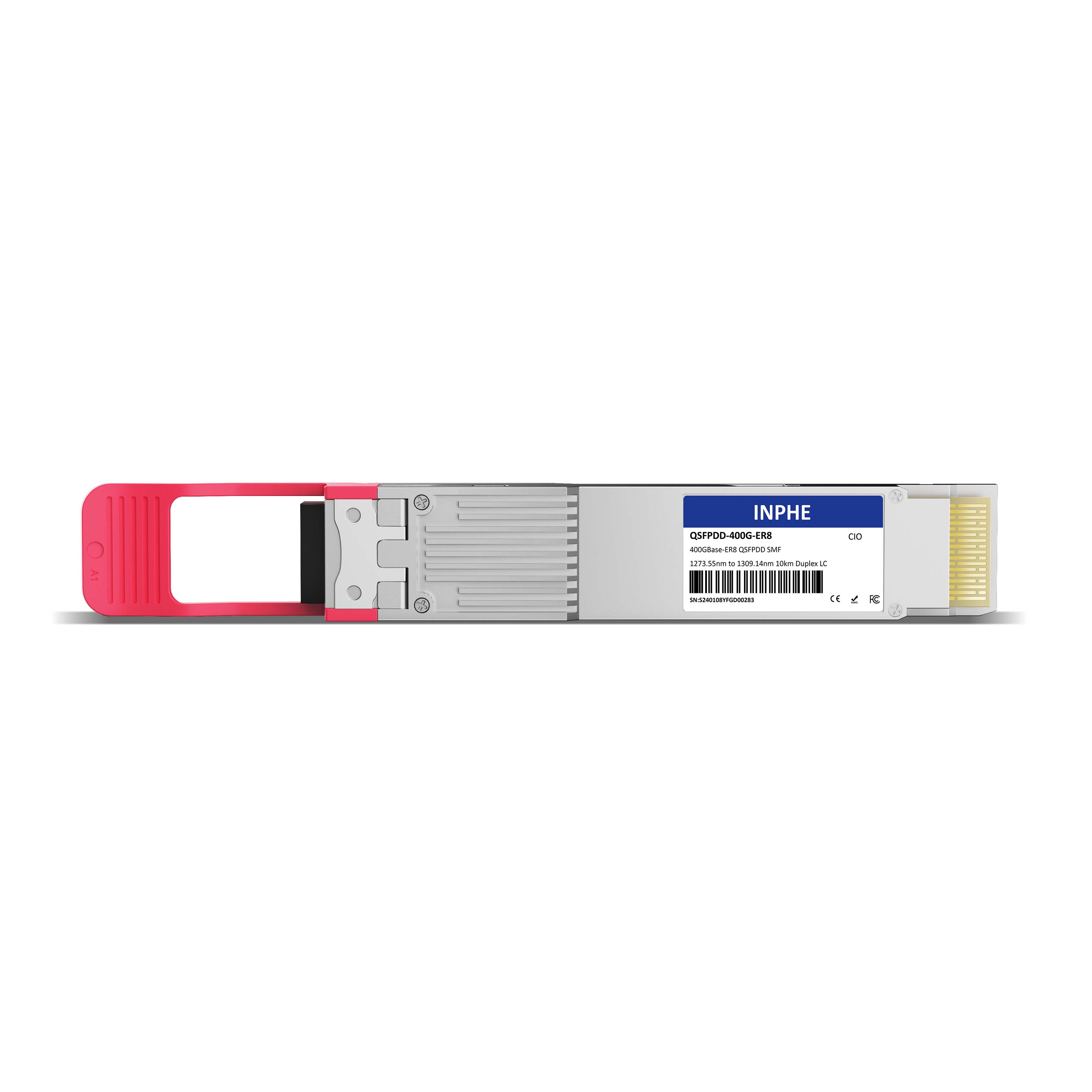

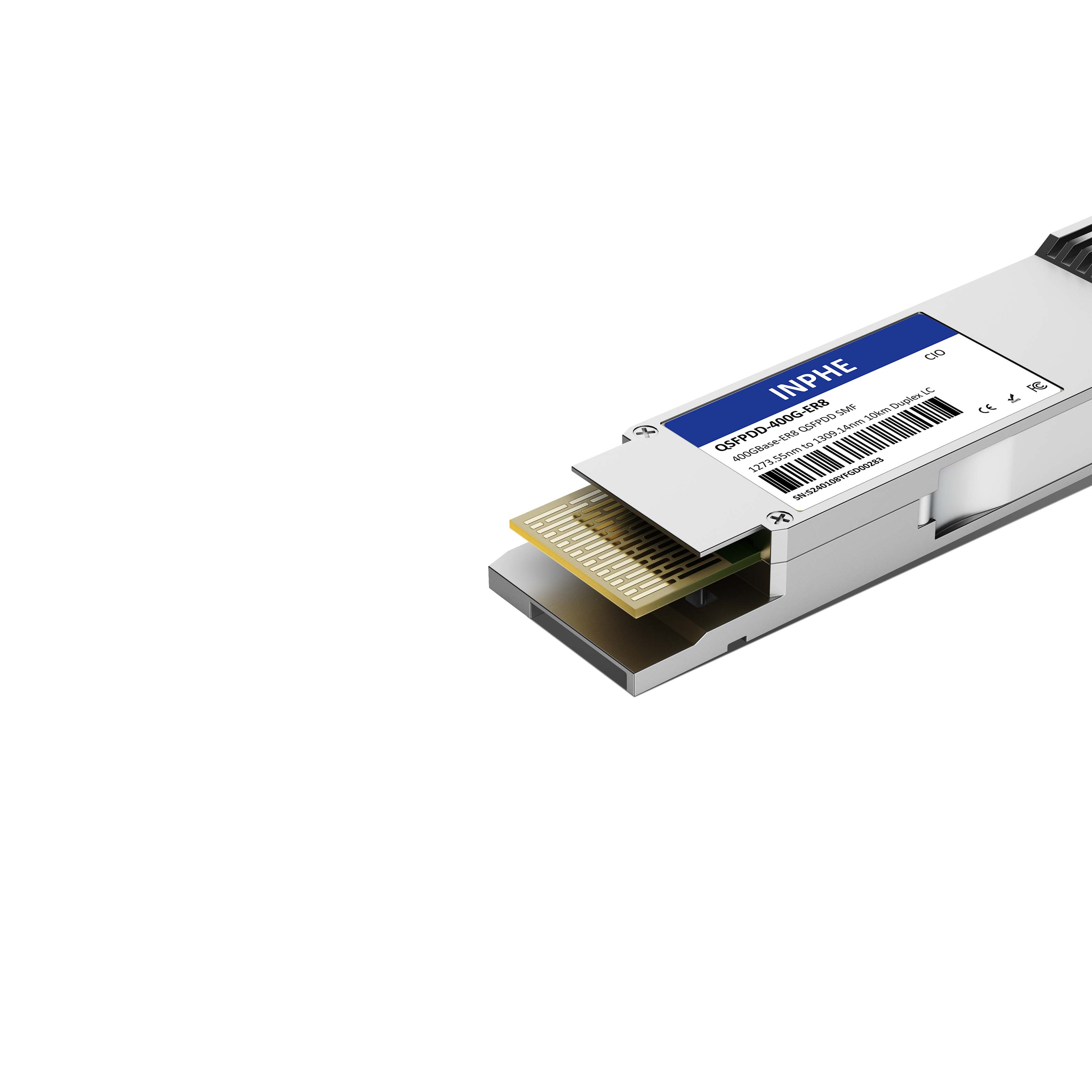

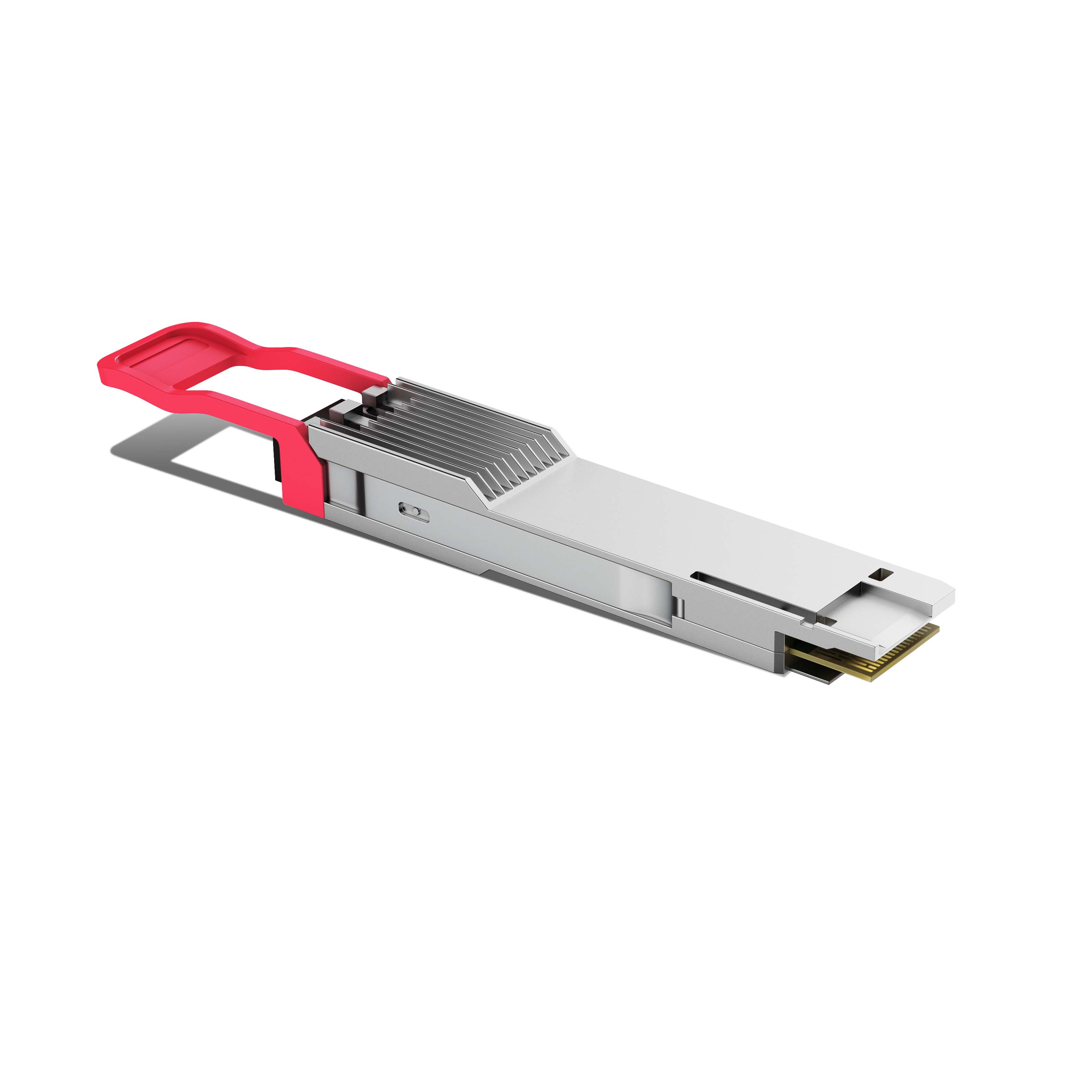

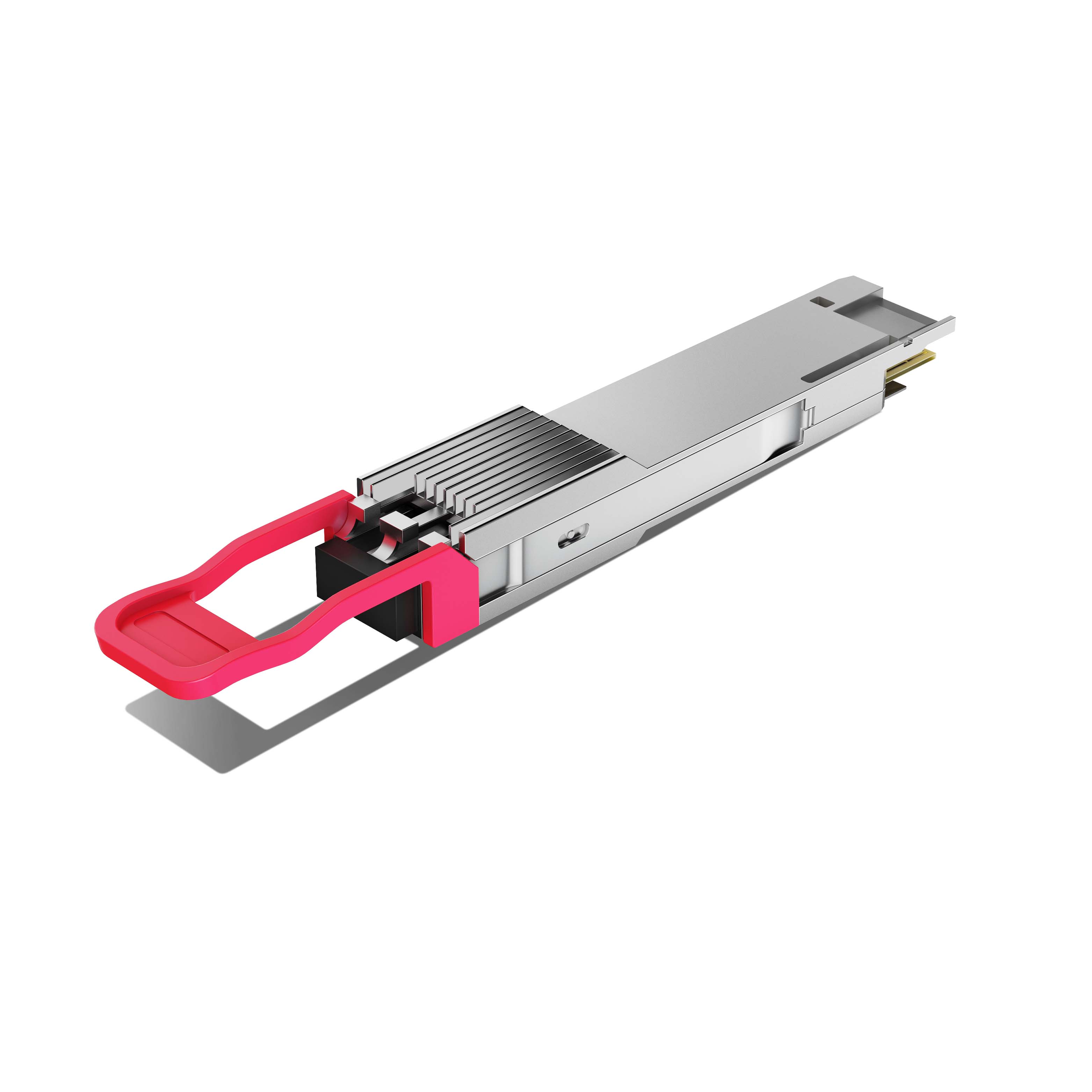

Arista Compatible QSFP-DD 400GBASE ER8 1273/1277/1282/1286/1295/1300/1304/1309nm 40km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Arista Compatible QSFP-DD 400GBASE ER8 1273/1277/1282/1286/1295/1300/1304/1309nm 40km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709000701013
Price: 3599 USD
Availability: InStock

#709000701013

US$3,599.00

INPHE: QDD-400G-ER8

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

QDD-400G-ER8 Customized

QTY:

Specifications

The Arista compatible QSFP-DD 400G-ER8 Optics is designed for long-distance single-mode connections in data centers and telecom.

Featuring a EML transmitter and a PIN receiver, and operating at a wavelength of LAN WDM8 (1273.54 nm/1277.89 nm/1282.26 nm/1286.66 nm/1295.56 nm/1300.05 nm/1304.58 nm/1309.14 nm), this Optics utilizes an Duplex LC connector to deliver 400G transmission and exceptional reliability over link distances of up to 40km (OS2 SMF). It is an ideal choice for long-distance, high-speed transmission applications within data centers and enterprise networks.

The INPHE 400G-ER8 uses 7nm DSP.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections

Note:
The 400G-ER8 employs 8-wavelength technology and cannot be connected to the 400G-ER4.

Vendor Name	INPHE	Part Number	QDD-400G-ER8
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1273.54, 1277.89, 1282.26, 1286.66, 1295.56, 1300.05, 1304.58, 1309.14nm	Max Distance	40km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	APD
Transmitter Power	-0.6 ~ +5.6dBm	Receiver Sensitivity	< -16.1dBm
Protocols	QSFP-DD MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
