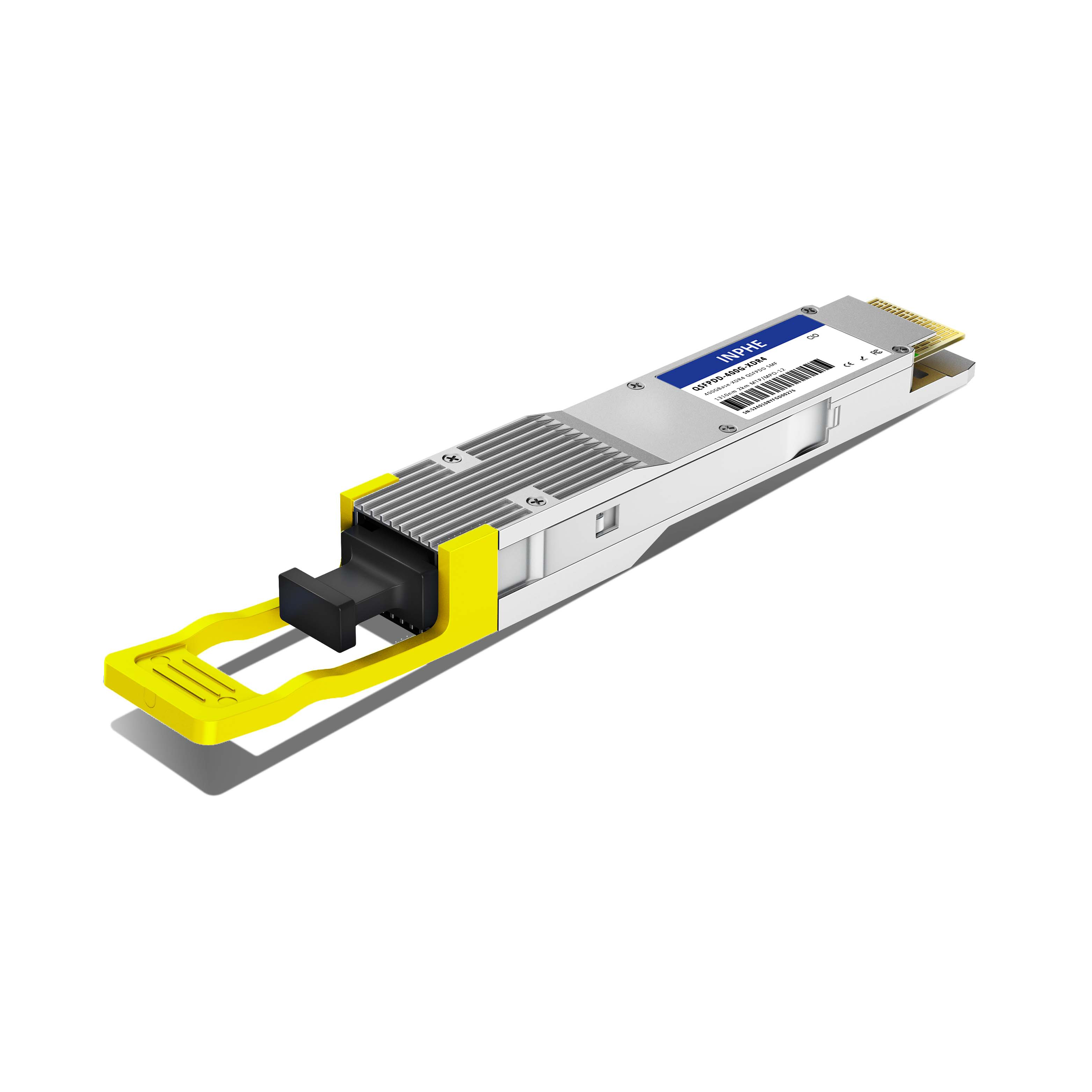

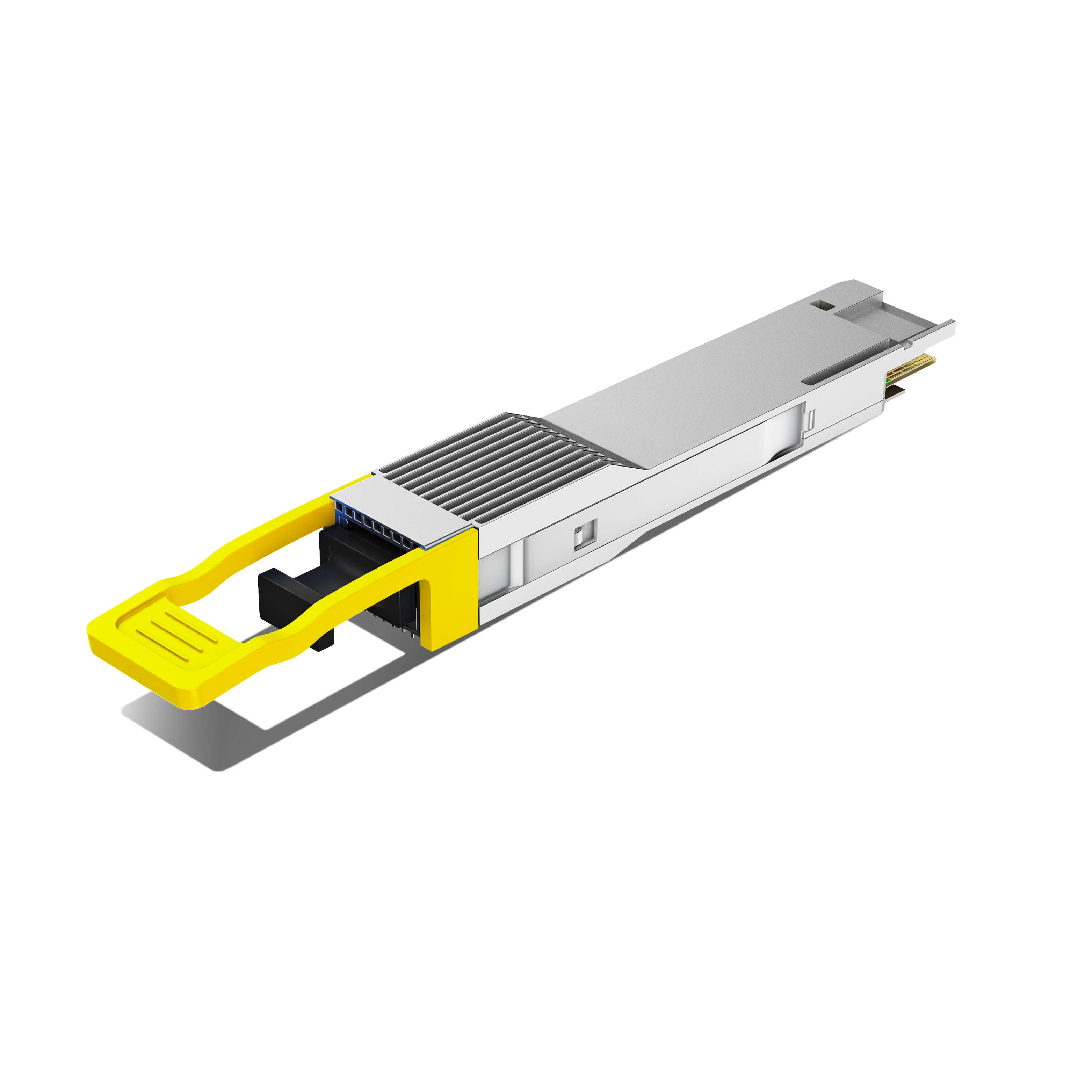

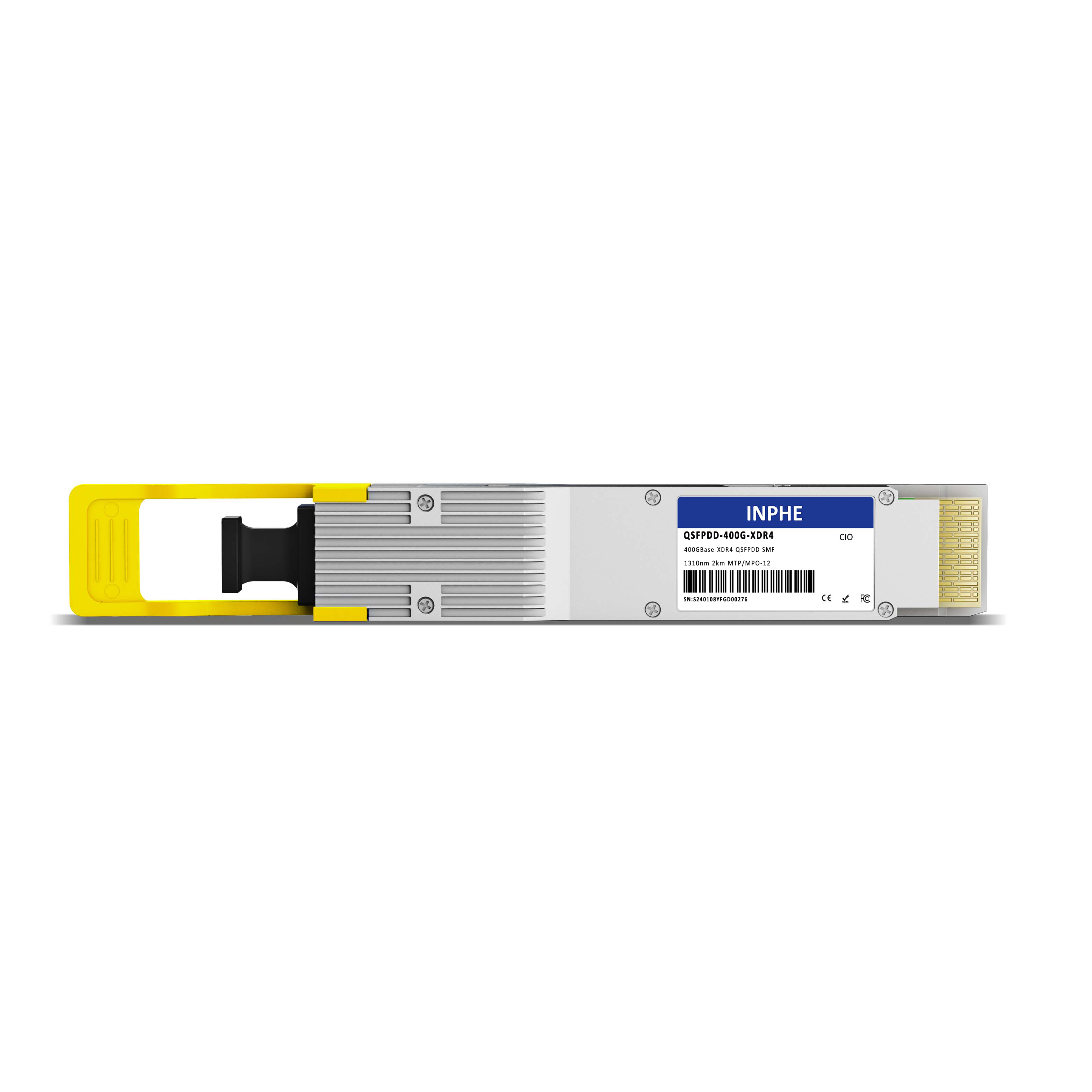

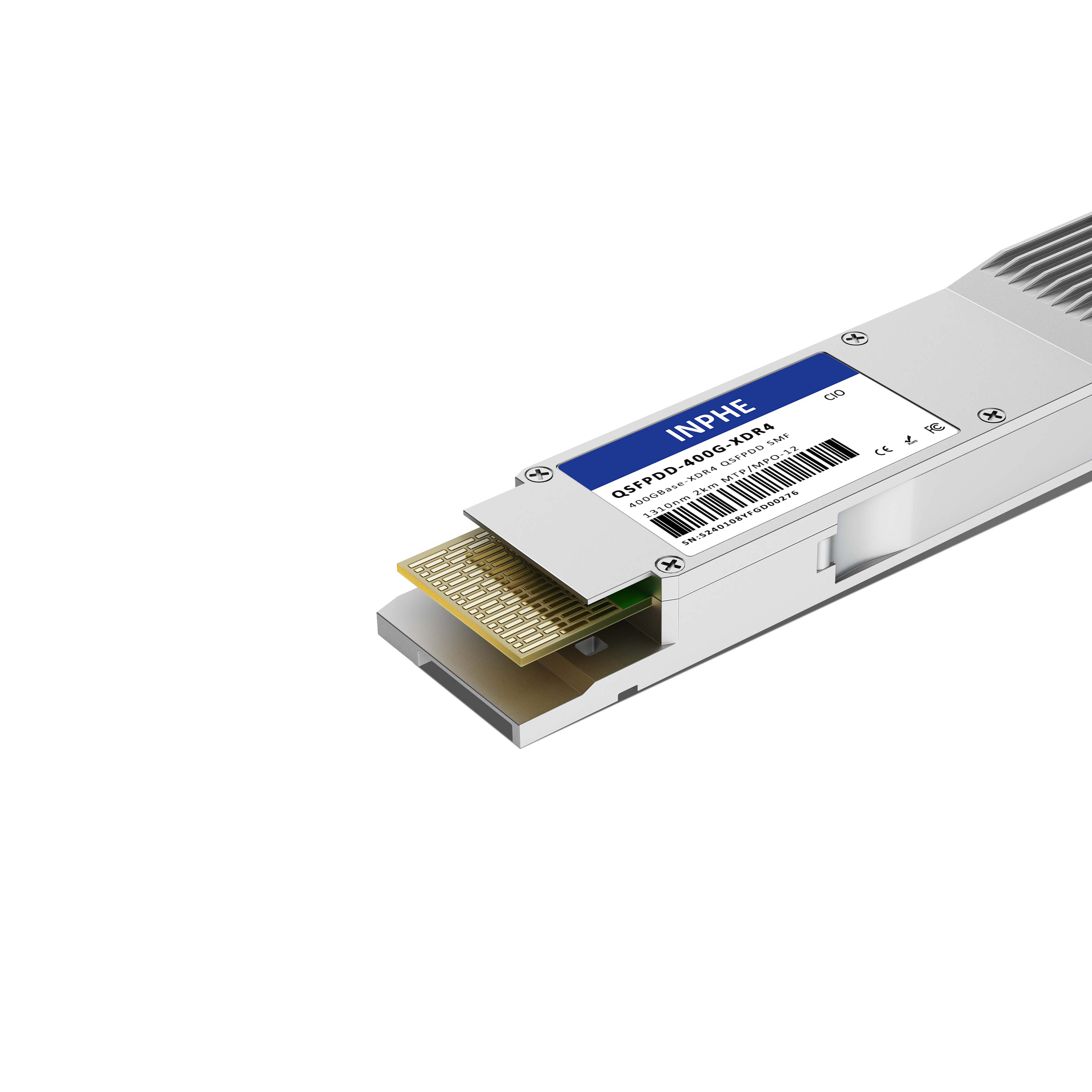

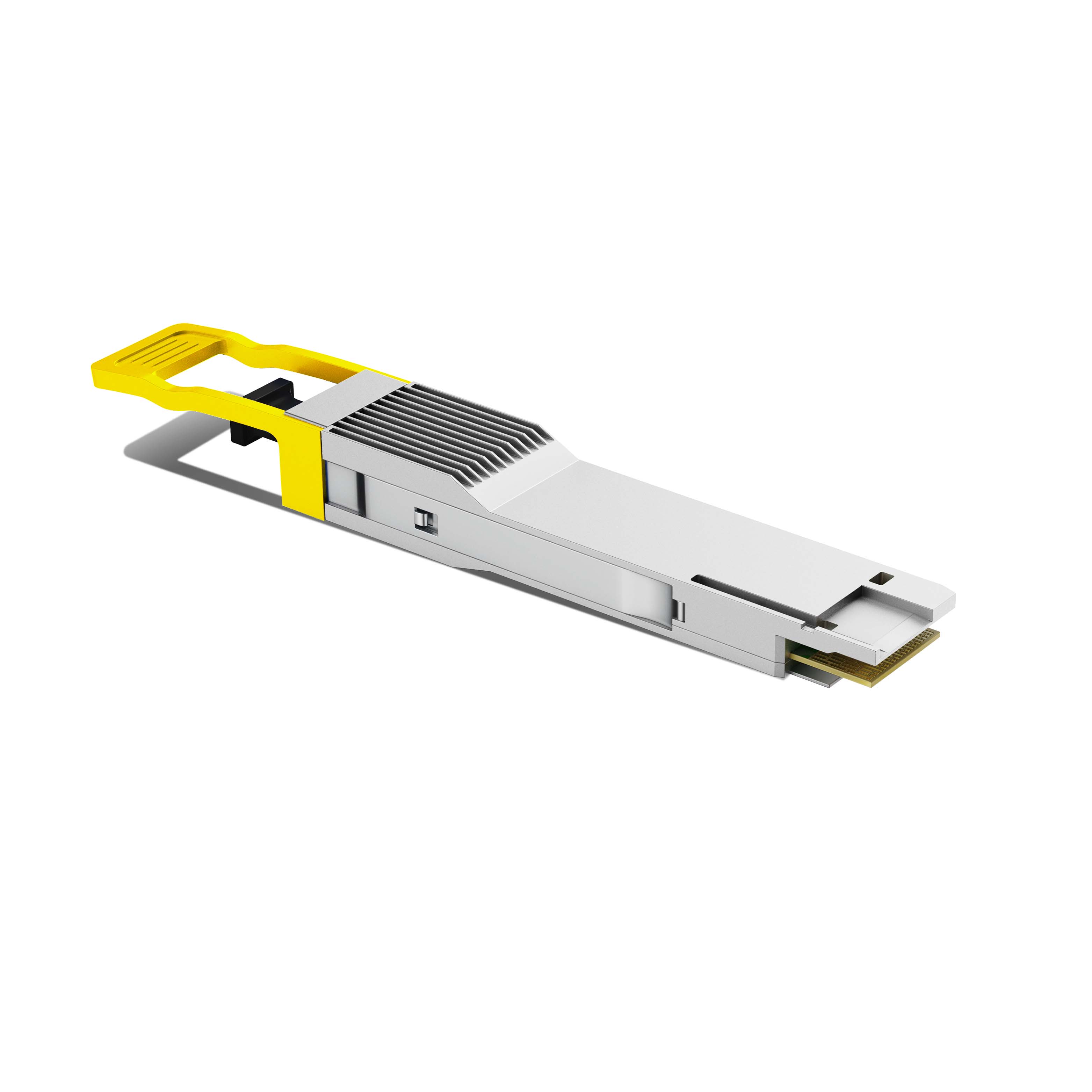

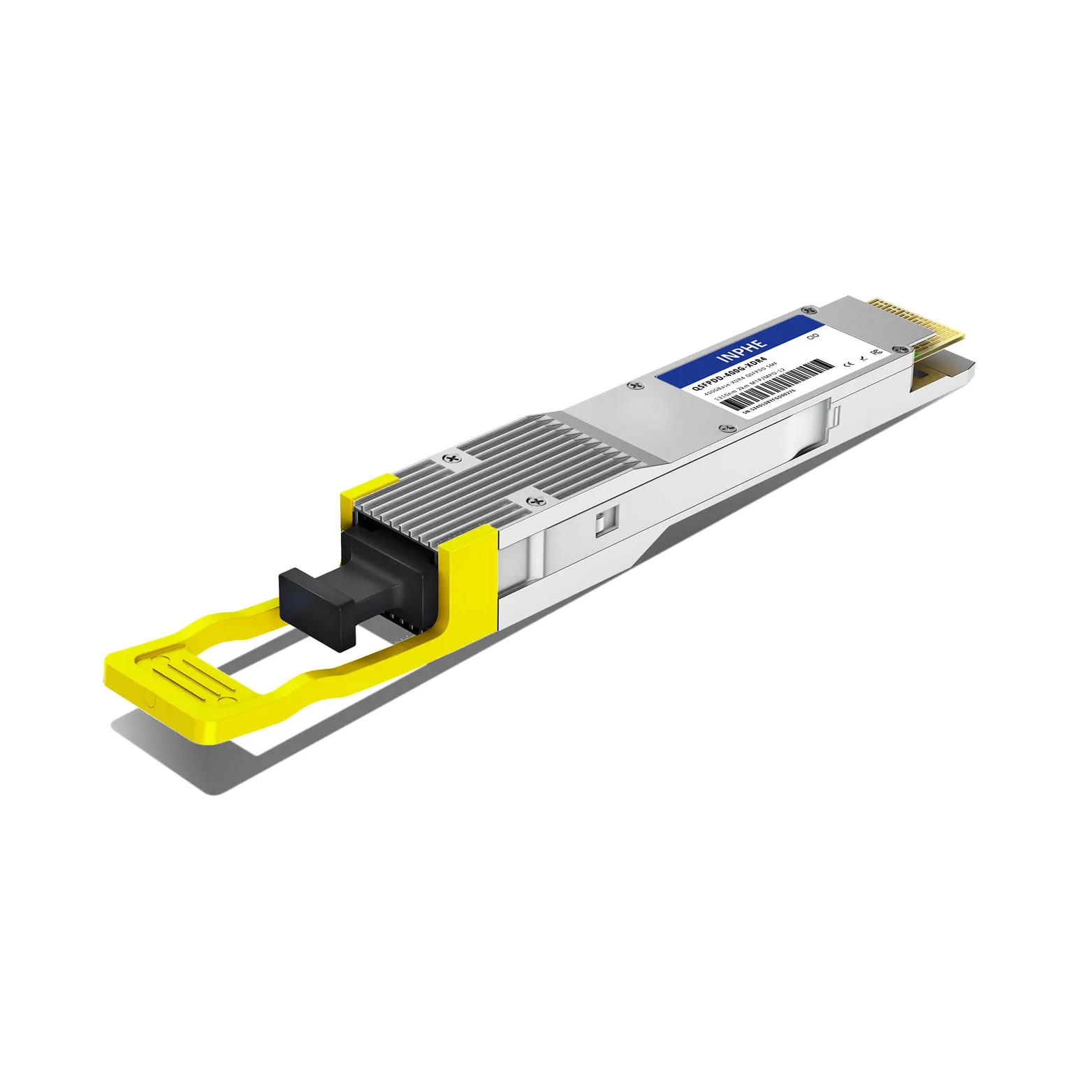

NVIDIA (Mellanox) MMS1V00-WM Compatible QSFP-DD 400GBASE XDR4 1310nm 2km SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G FR1

Name: NVIDIA (Mellanox) MMS1V00-WM Compatible QSFP-DD 400GBASE XDR4 1310nm 2km SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G FR1
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709000201138
Price: 549 USD
Availability: InStock

#709000201138

US$549.00

INPHE: MMS1V00-WM

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

MMS1V00-WM Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-400G-XDR4
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	2km
Connector	MTP/MPO 12	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -4.2dBm
Protocols	IEEE 802.3bs, QSFP-DD MSA	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years

$0.00 ~~$0.00~~

$0.00

Please choose options.Back to top

$0.00 ~~$0.00~~

Sign In

NVIDIA (Mellanox) MMS1V00-WM Compatible QSFP-DD 400GBASE XDR4 1310nm 2km SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G FR1
