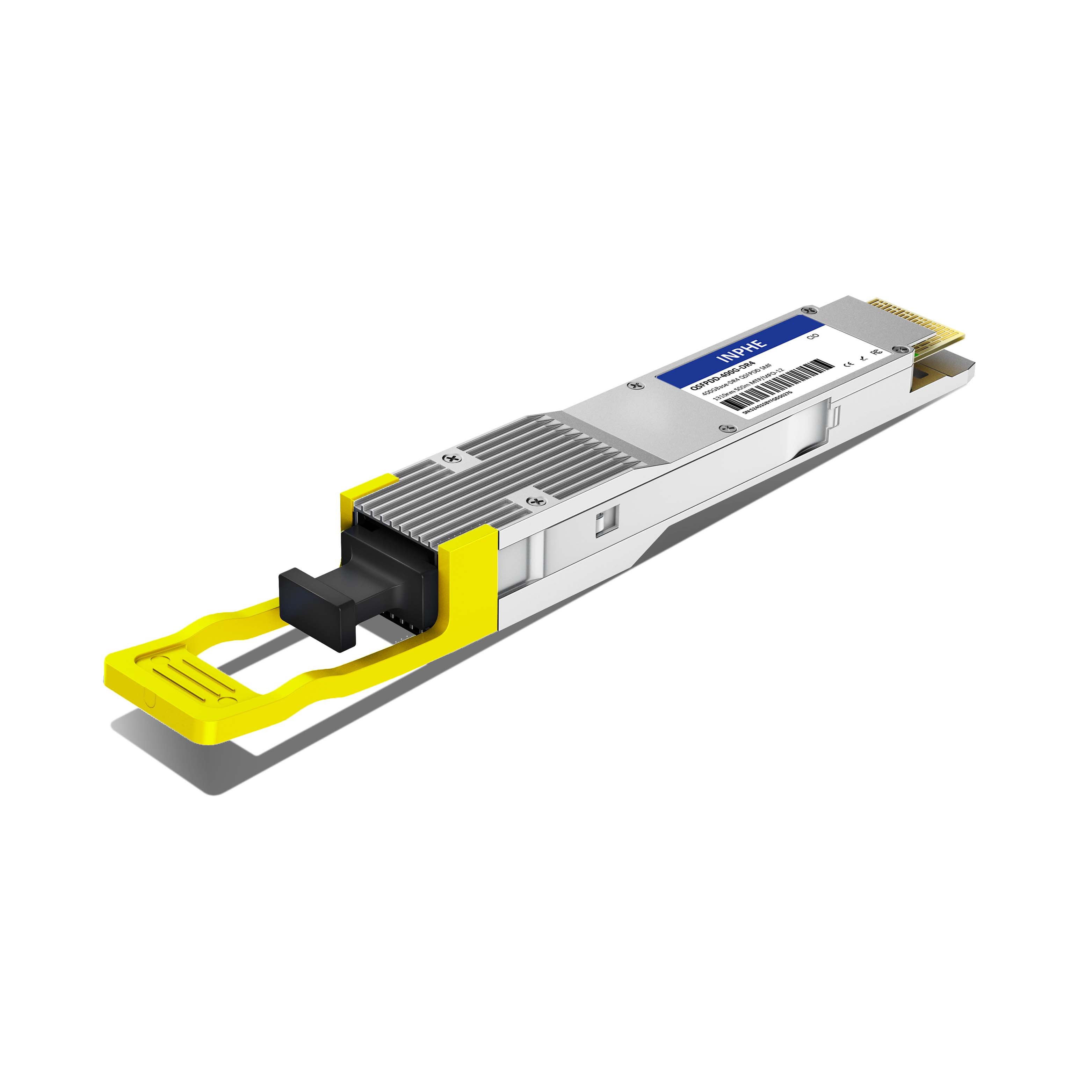

HPE (Aruba) S3N93A Compatible QSFP-DD 400GBASE DR4 1310nm 500m SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G DR1

Name: HPE (Aruba) S3N93A Compatible QSFP-DD 400GBASE DR4 1310nm 500m SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G DR1
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709000101016
Price: 399 USD
Availability: InStock

#709000101016

US$399.00

INPHE: S3N93A

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

S3N93A Customized

QTY:

Specifications

The HPE (Aruba) S3N93A compatible QSFP-DD 400G-DR4 Optics is designed for short-distance single-mode connections in data centers.

Featuring a EML transmitter and a PIN receiver, and operating at a wavelength of 4x1310nm, this Optics utilizes an MTP/MPO-12 singlemode connector to deliver high-speed 400G transmission and exceptional reliability over link distances of up to 500m (OS2 SMF). It is an ideal choice for short-distance, high-speed transmission applications within data centers and enterprise networks.

The INPHE 400G-DR4 uses Marvell 7nm DSP.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections
2. 4x100G DR1 Breakout Connections

Vendor Name	INPHE	Part Number	QDD-400G-DR4
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Connector	MTP/MPO 12	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	IEEE 802.3bs, QSFP-DD MSA	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
