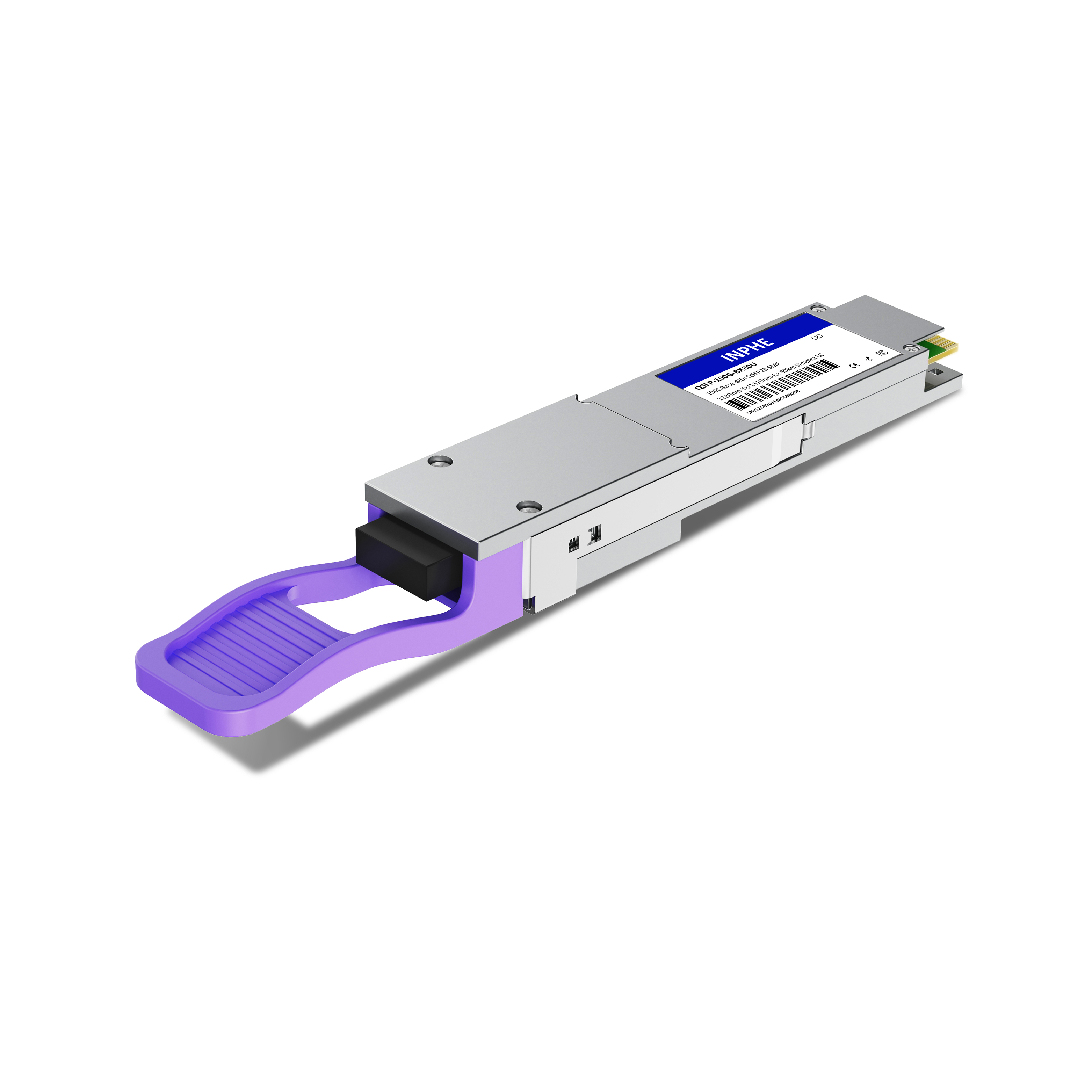

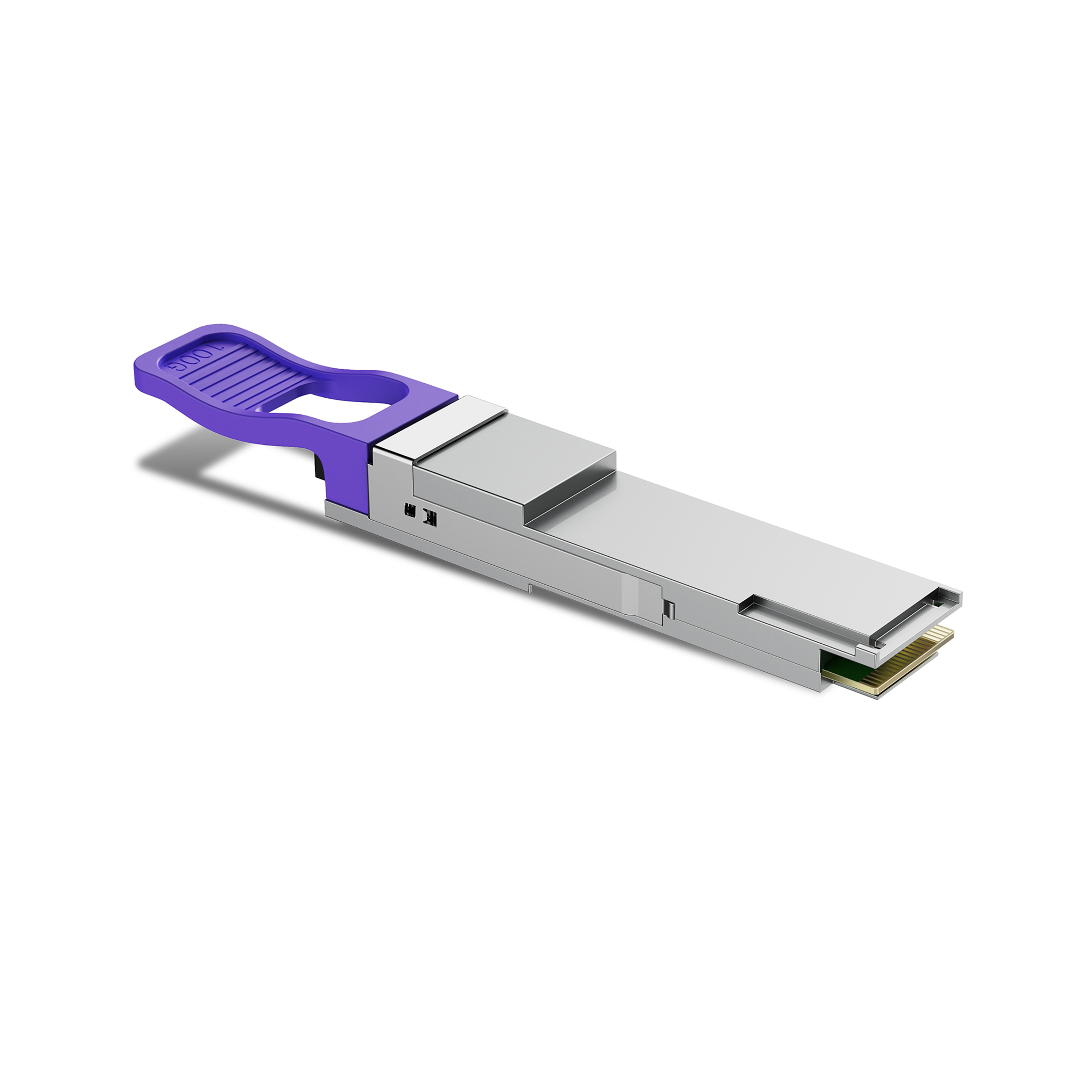

Juniper QSFP-100G-ZRBD-U Compatible QSFP28 100G BiDi 1273.55nm-Tx/1309.14nm-Rx 80km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Juniper QSFP-100G-ZRBD-U Compatible QSFP28 100G BiDi 1273.55nm-Tx/1309.14nm-Rx 80km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7070148163
Price: 1599 USD
Availability: InStock

#7070148163

US$1,599.00

INPHE: QSFP28-100G-BX80U

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

QSFP-100G-ZRBD-U Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-BX80U
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1273.54, 1277.89, 1282.26, 1286.66nm-Tx 1295.56, 1300.05, 1304.58, 1309.14nm-Rx	Max Distance	80km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	SOA+PIN
Transmitter Power	+2.0 ~ +7.0dBm	Receiver Sensitivity	< -28.0dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
