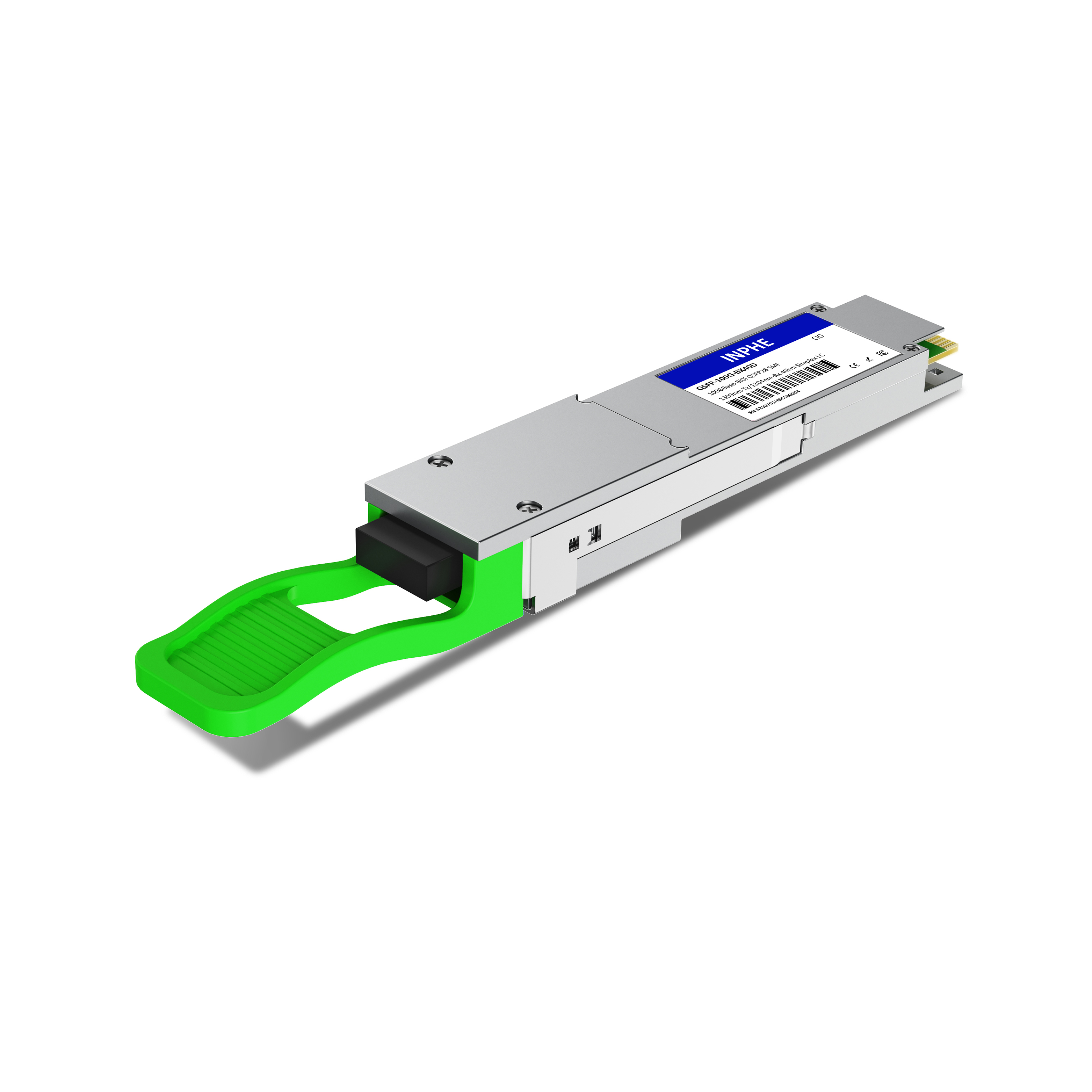

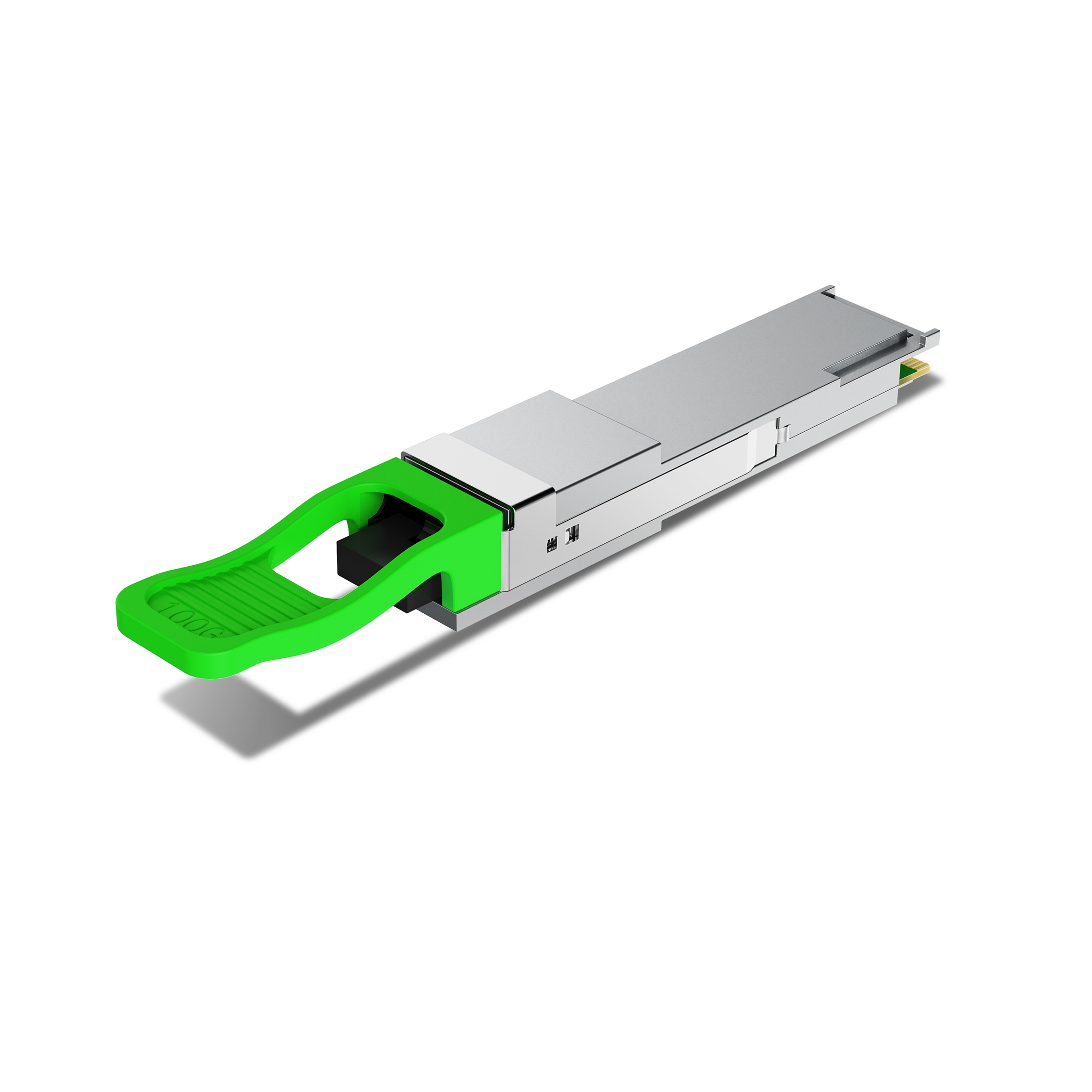

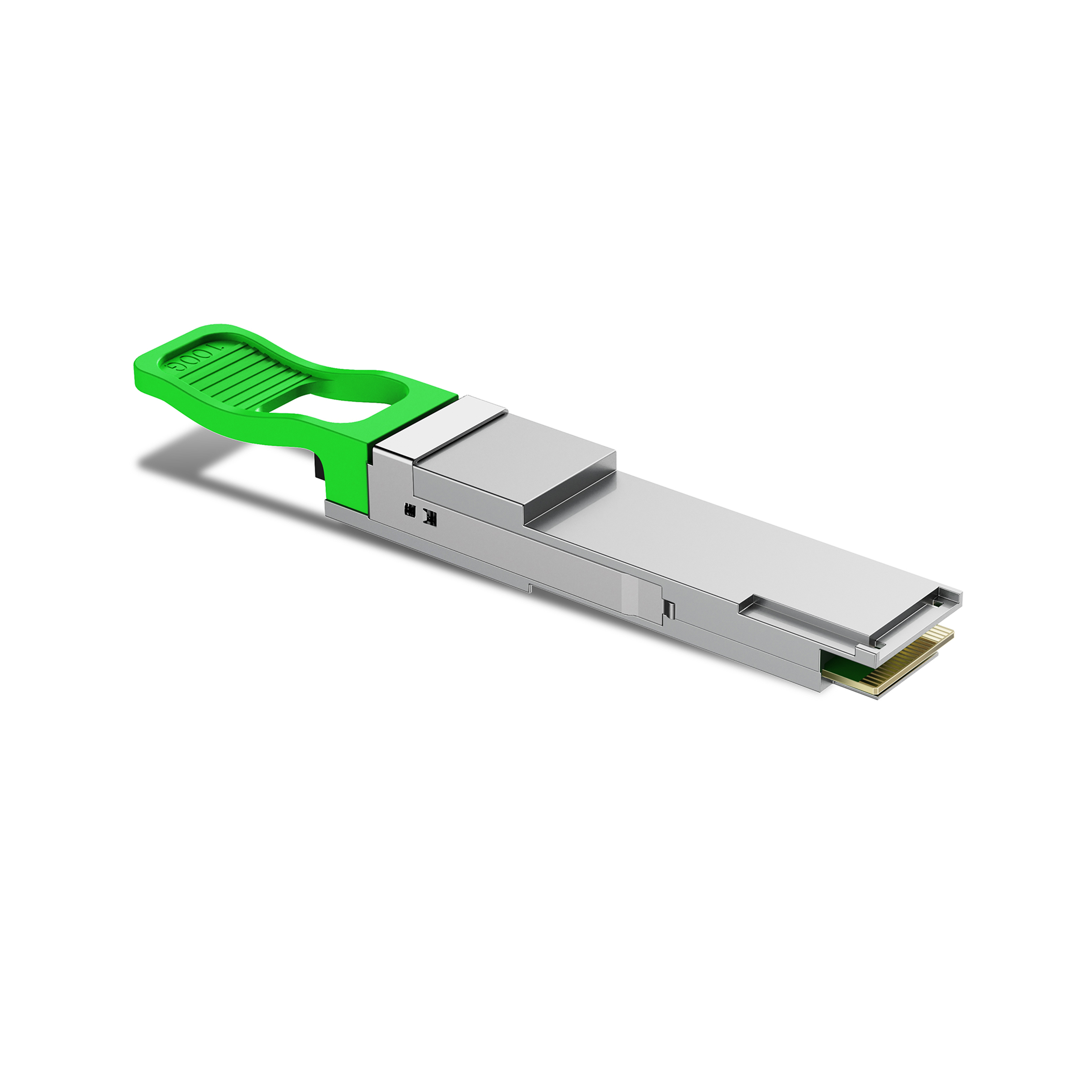

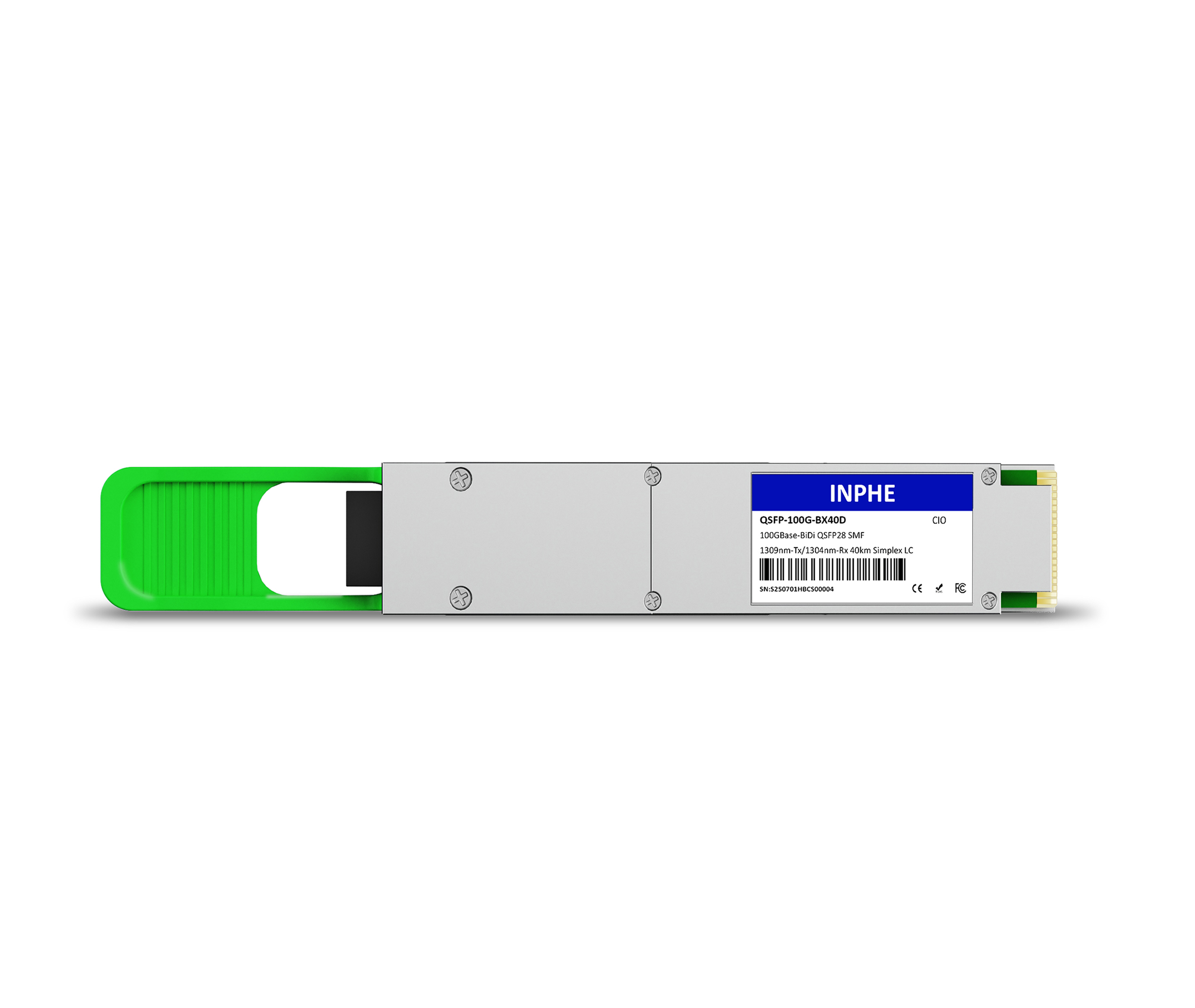

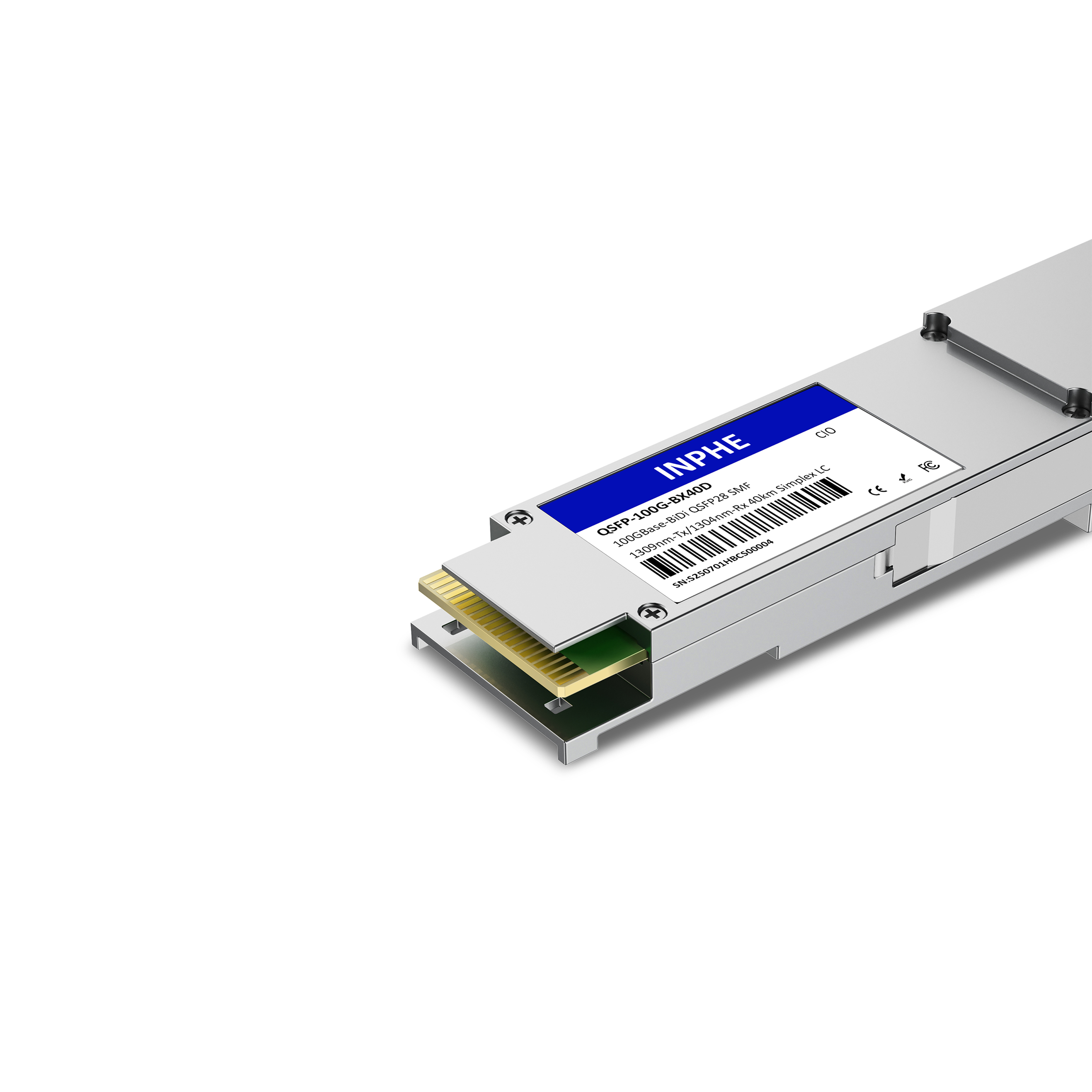

Juniper 740-173677 QSFP-100G-ERBD-D Compatible QSFP28 100G BiDi 1309.14nm-Tx/1304.58nm-Rx 40km SMF Simplex LC DDM/DOM Optics Transceiver

Name: Juniper 740-173677 QSFP-100G-ERBD-D Compatible QSFP28 100G BiDi 1309.14nm-Tx/1304.58nm-Rx 40km SMF Simplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707003902063
Price: 799 USD
Availability: InStock

#707003902063

US$799.00

INPHE: QSFP28-100G-BX40D

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Nokia Huawei HPE (Aruba) Extreme FS.COM Flexoptix Precision Coherent (Finisar) More +

Compatible Models:

QSFP-100G-ERBD-D

QSFP-100G-BX40D Customized

QTY:

Specifications

The Juniper 740-173677 QSFP-100G-ERBD-D compatible QSFP28 100G-BX40D Optics is specifically designed for long-distance (40km) single-mode singe-fiber links.

The Tx of INPHE's 100G-BX40D uses EML (External Modulation Laser); the Rx uses PIN. While ensuring excellent performance, it also guarantees high stability.

Operating at a wavelength of Tx 1309.14nm/Rx 1304.58nm and employing a Singe LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 40km (OS2 SMF fiber).

100G ER1 BiDi 40km optics utilize a single strand of single-mode fiber, enabling users to achieve double the bandwidth while utilizing the same quantity of dark fiber. This helps telecommunications operators(ISP) and data center users realize significant savings on dark fiber costs and simplifies cabling infrastructure.

It supports DDM/DOM (Digital Optical Monitoring).

Vendor Name	INPHE	Part Number	QSFP-100G-BX40D
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	1309.14nm-Tx/1304.58nm-Rx	Max Distance	40km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	APD
Transmitter Power	+1.7 ~ +7.1dBm	Receiver Sensitivity	< -13.8dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
