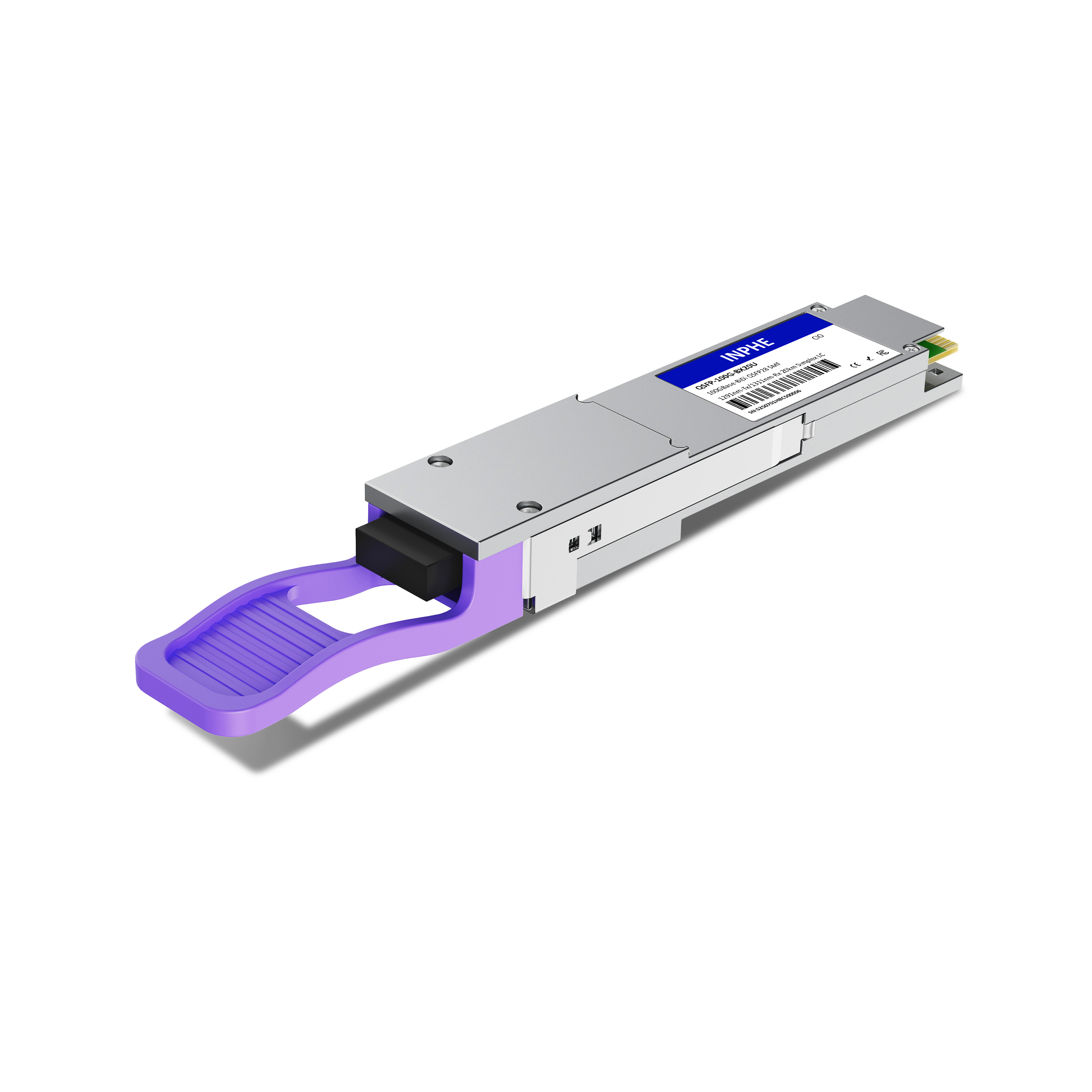

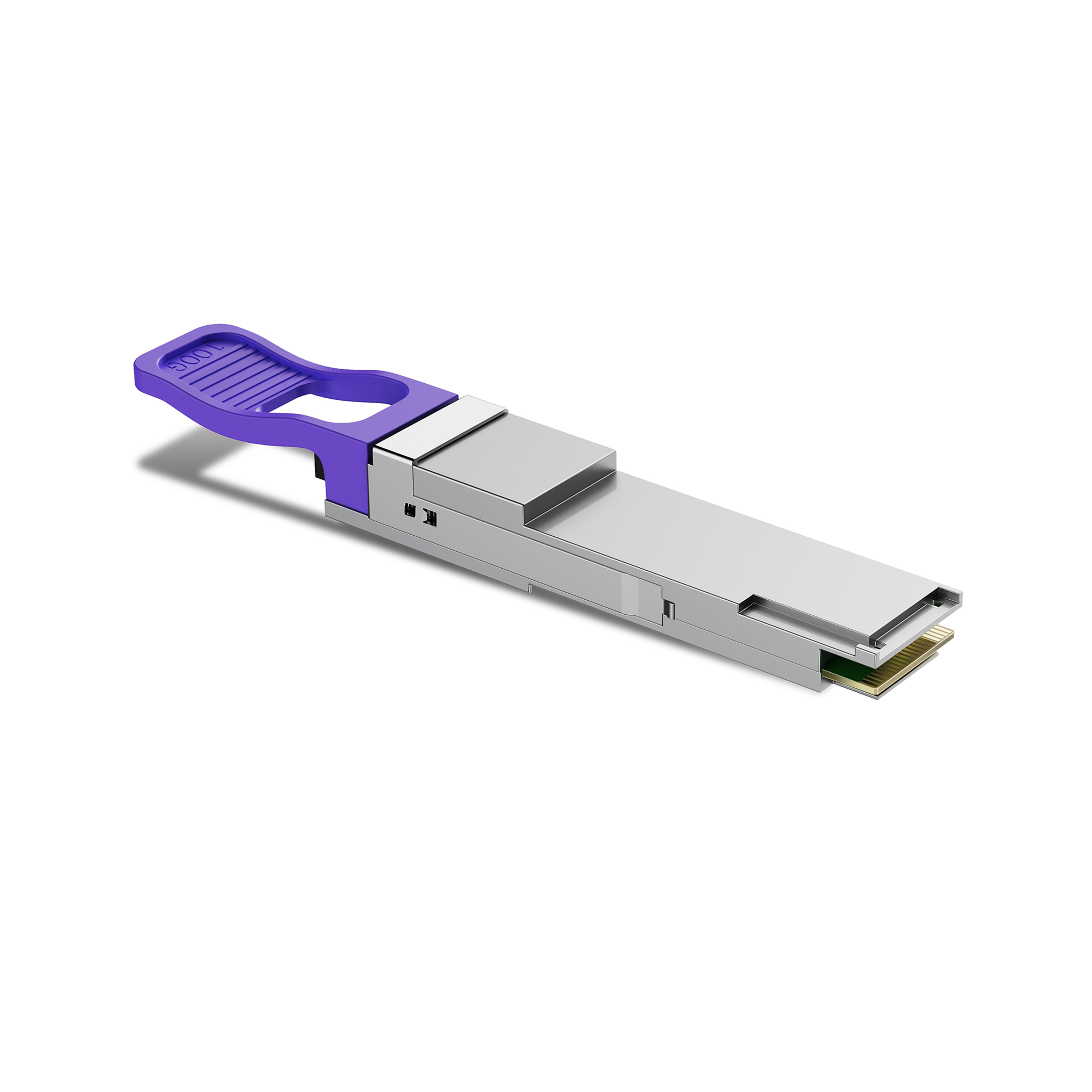

Juniper QSFP-100G-LR20BD-U Compatible QSFP28 100G BiDi 1291nm-Tx/1311nm-Rx 20km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Juniper QSFP-100G-LR20BD-U Compatible QSFP28 100G BiDi 1291nm-Tx/1311nm-Rx 20km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7070034163
Price: 329 USD
Availability: InStock

#7070034163

US$329.00

INPHE: QSFP28-100G-BX20U

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

QSFP-100G-LR20BD-U Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-BX20U
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	1291nm-Tx/1311nm-Rx	Max Distance	20km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-0.2 ~ +6.6dBm	Receiver Sensitivity	< -7.6dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
