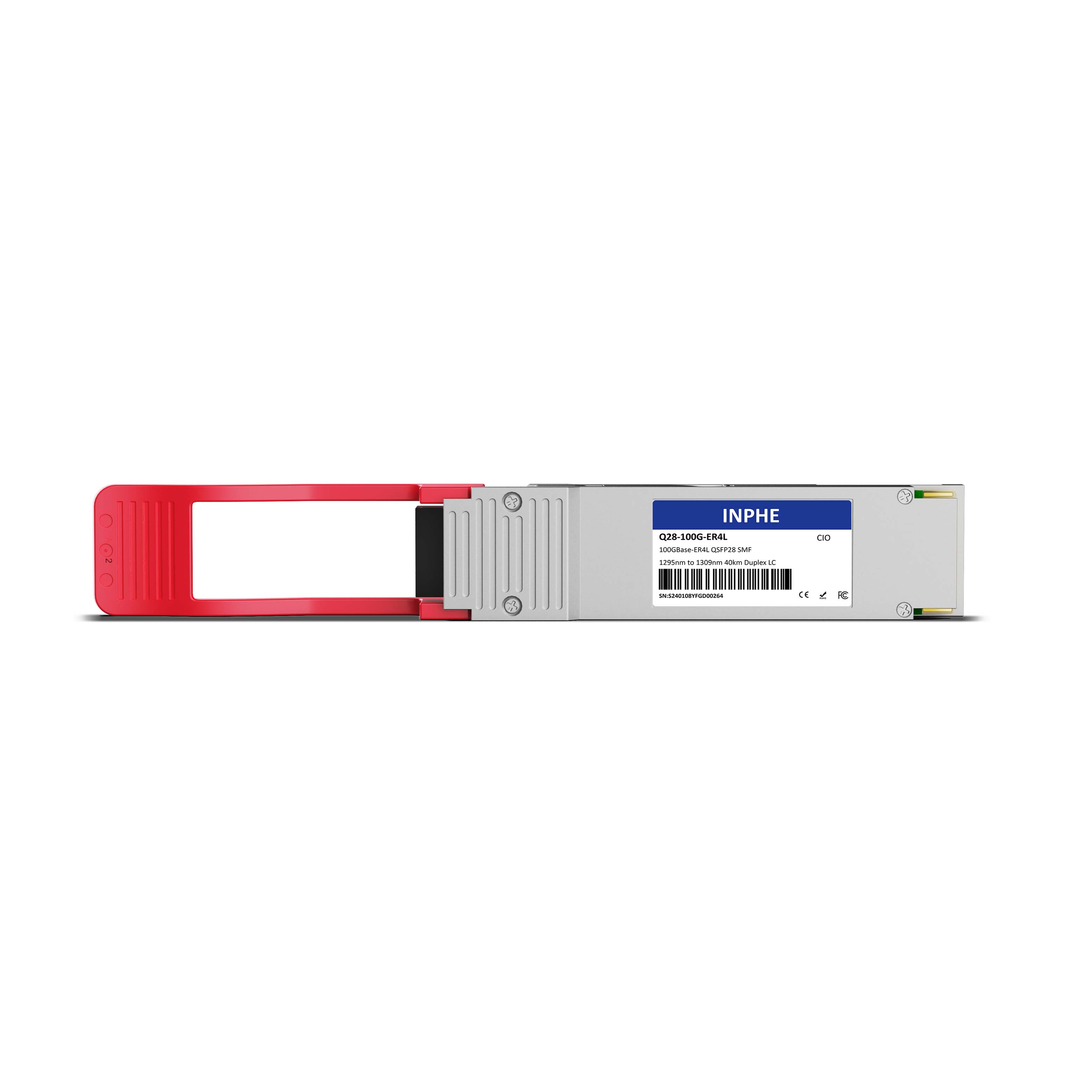

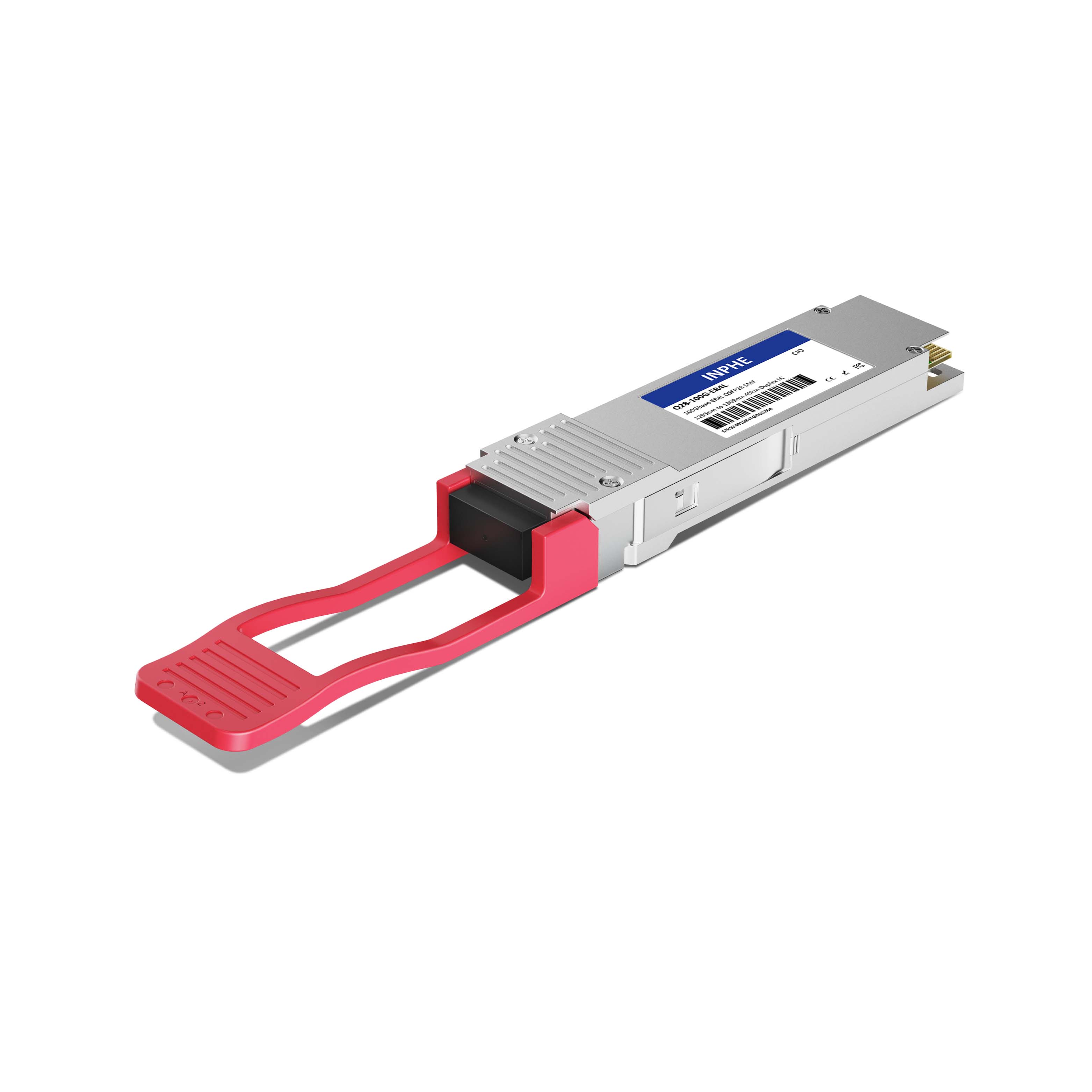

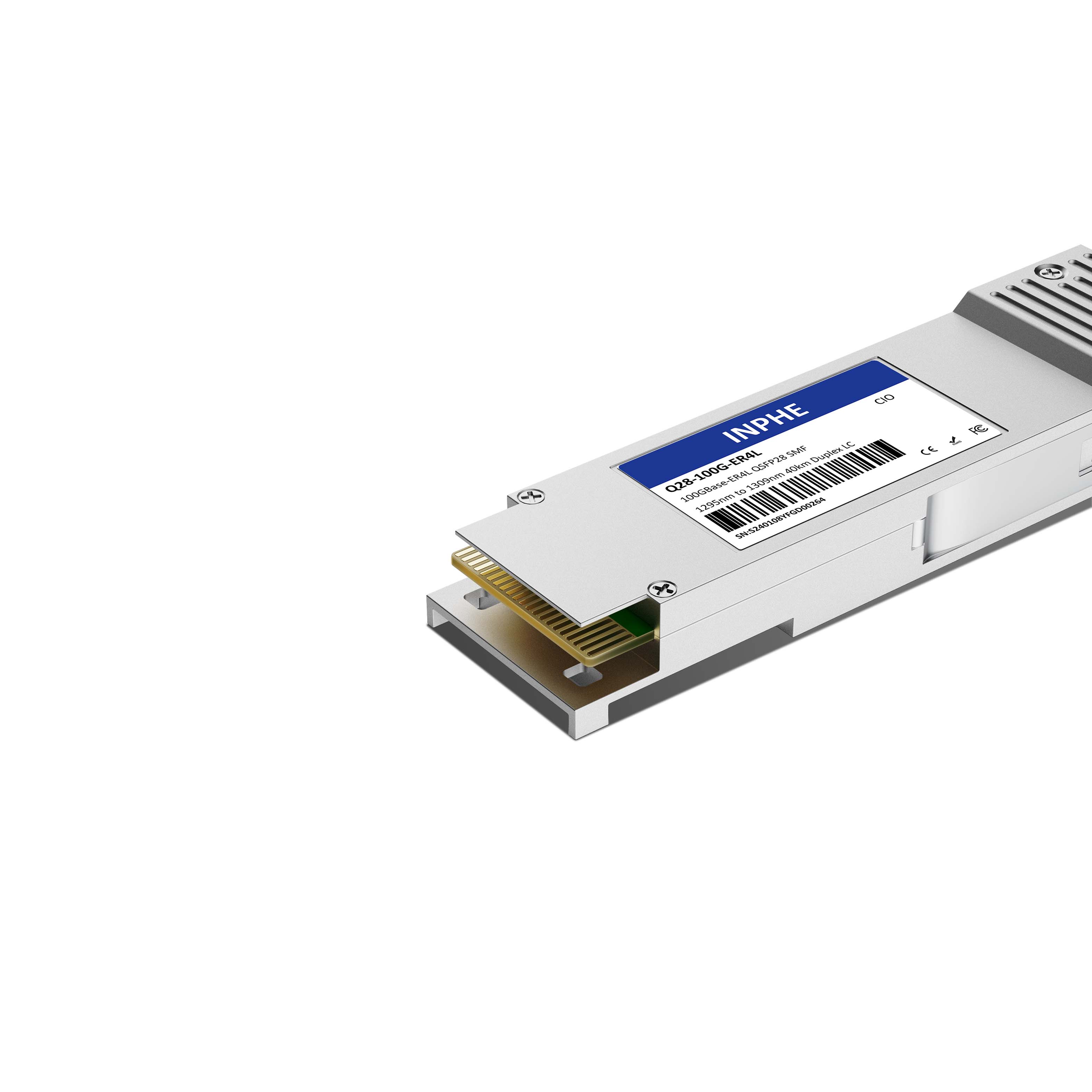

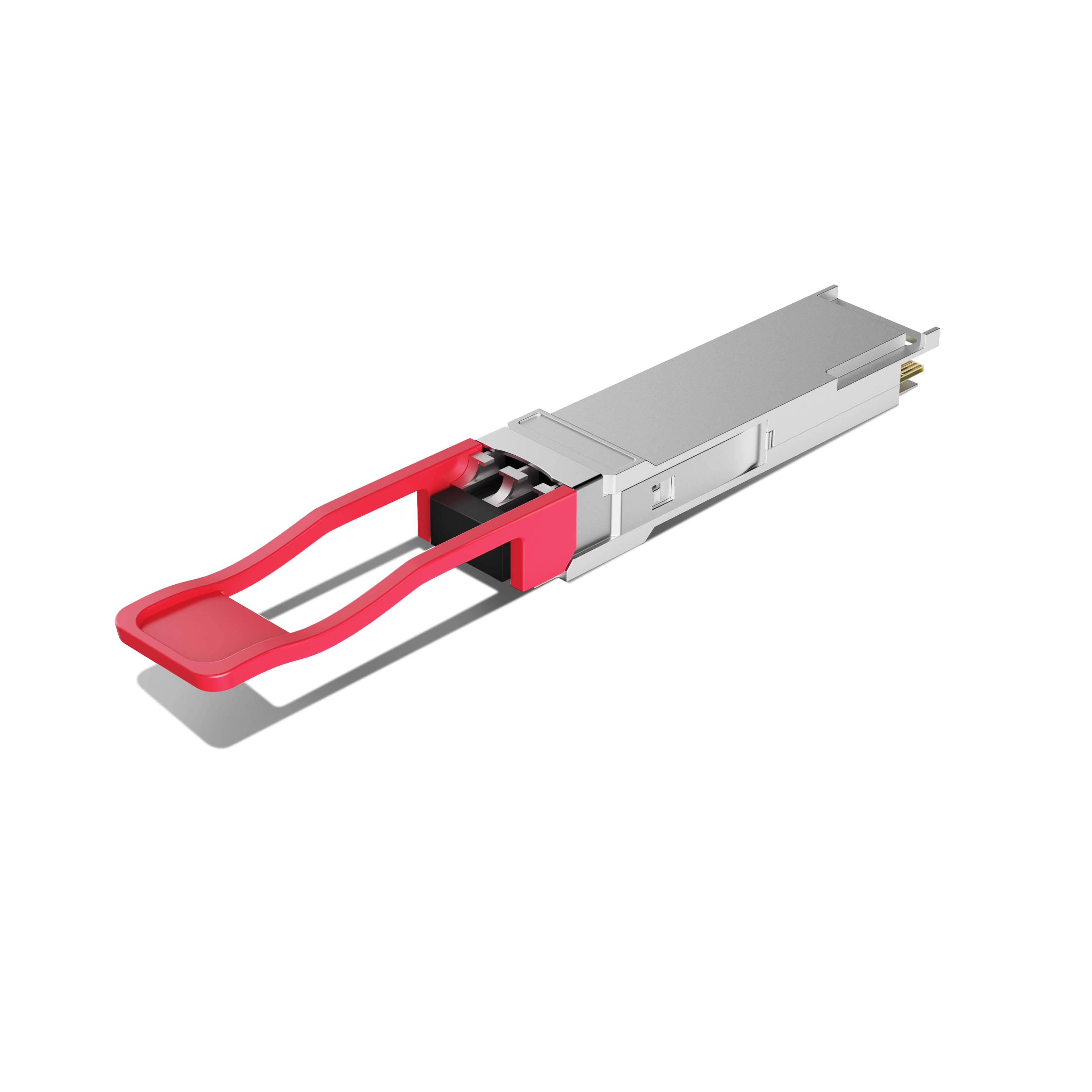

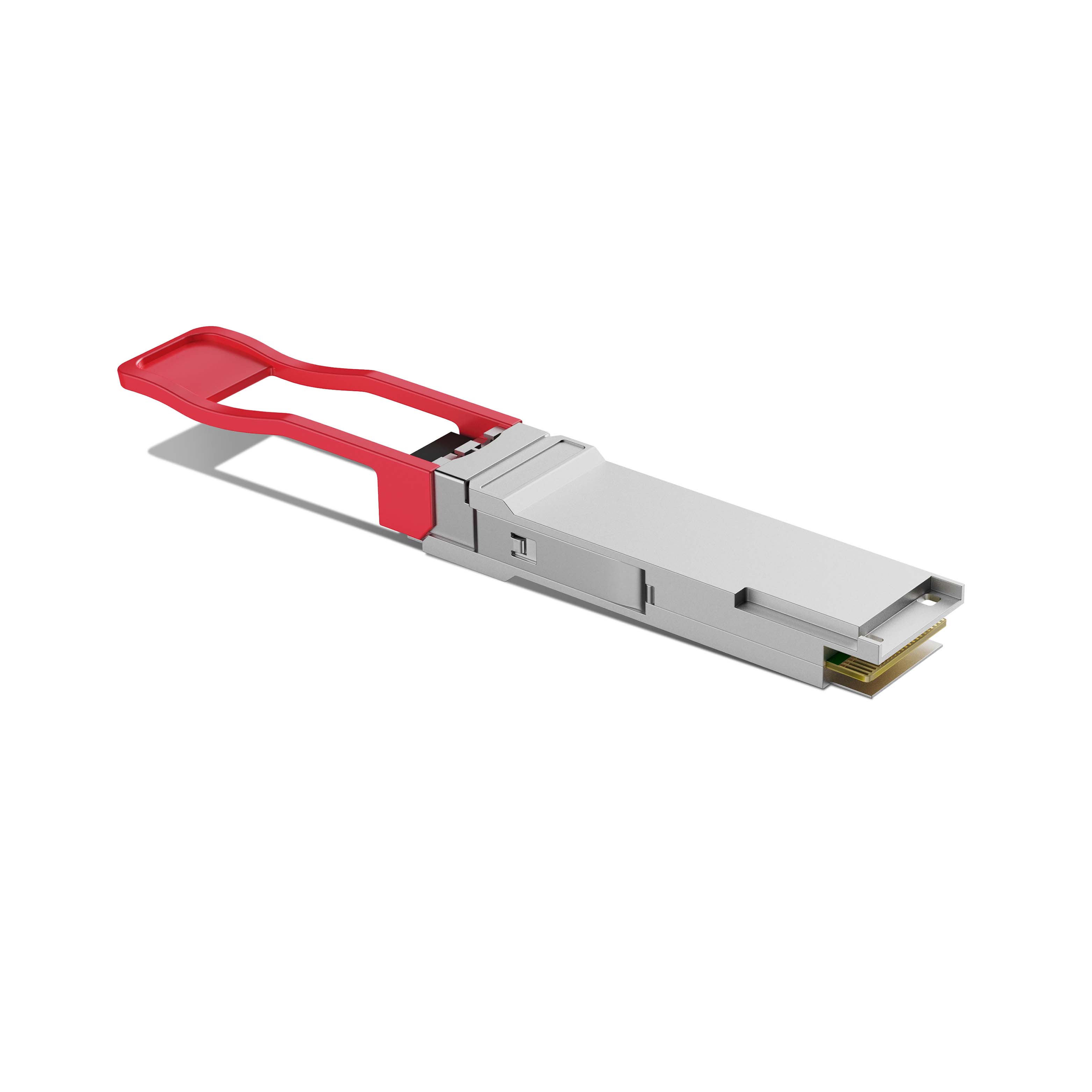

Juniper 740-093290 QSFP-100G-4WDM40 Compatible QSFP28 100GBASE ER4L 1295/1300/1304/1309nm 40km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Juniper 740-093290 QSFP-100G-4WDM40 Compatible QSFP28 100GBASE ER4L 1295/1300/1304/1309nm 40km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707002603063
Price: 799 USD
Availability: InStock

#707002603063

US$799.00

INPHE: QSFP-100G-ER4L

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Nokia Huawei FS.COM Flexoptix Precision Coherent (Finisar) Dell HPE (Aruba) More +

Compatible Models:

QSFP-100G-ER4L

QSFP-100G-4WDM40-I

QSFP-100G-4WDM40 Customized

QTY:

Specifications

The Juniper 740-093290 QSFP-100G-4WDM40 compatible QSFP28 100G-ER4 Lite Optics is specifically designed for long-distance (40km) single-mode links.

The Tx of INPHE's 100G-ER4 Lite uses EML (External Modulation Laser) and Box packaging; the Rx uses APD (Avalanche Photon Diode) and Box packaging. While ensuring excellent performance, it also guarantees high stability.

Operating at a wavelength of 1310nm (LAN WDM4, 1295.56 nm/1300.05 nm/1304.58 nm/1309.14 nm) and employing a Duplex LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 40km (OS2 SMF fiber).

The reliable Tx/Rx BOX package not only meets the needs of conventional scenarios such as data centers and campus networks, but also meets the demanding environments of telecom operators.

It supports DDM/DOM (Digital Optical Monitoring).

Note: A full 40km distance requires FEC (Forward Error Correction) to be enabled on both the switch and router.

Vendor Name	INPHE	Part Number	QSFP-100G-ER4L
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56/1300.05/1304.58/1309.14nm	Max Distance	With FEC 40km, Without FEC 30km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	APD
Transmitter Power	-2.5 ~ +6.5dBm	Receiver Sensitivity	< -14.6dBm BER@1E-12, < -18.5dBm BER@5E-5
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
