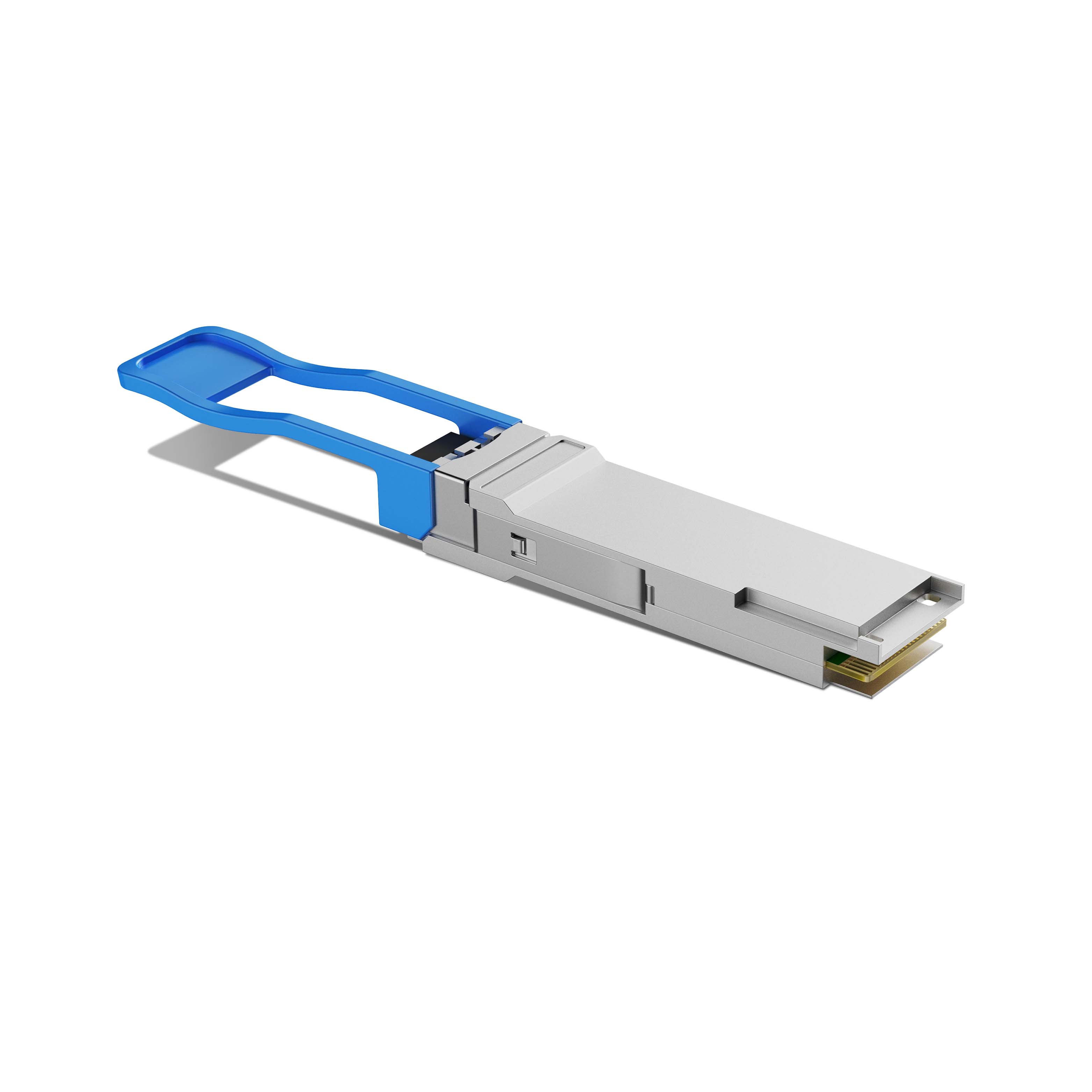

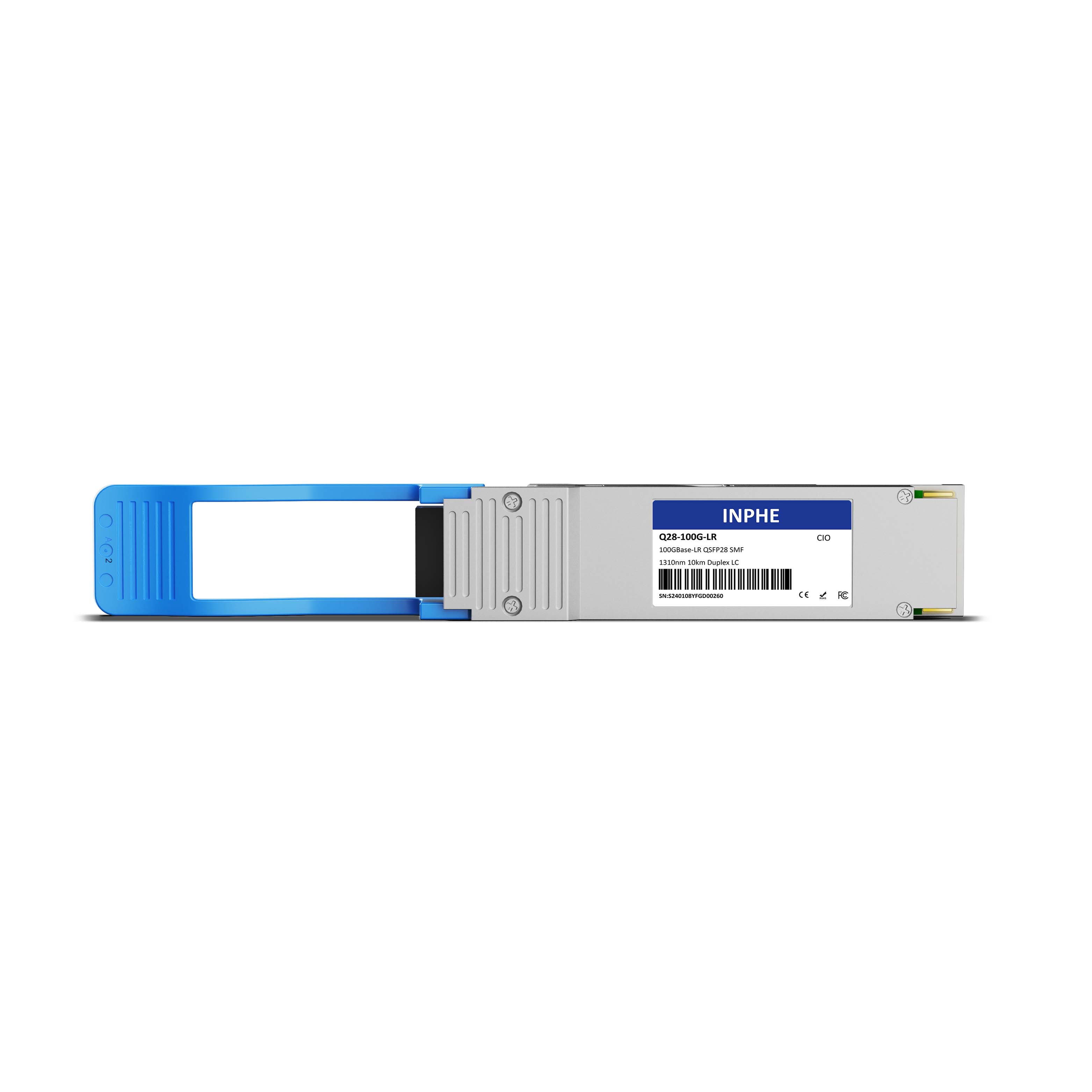

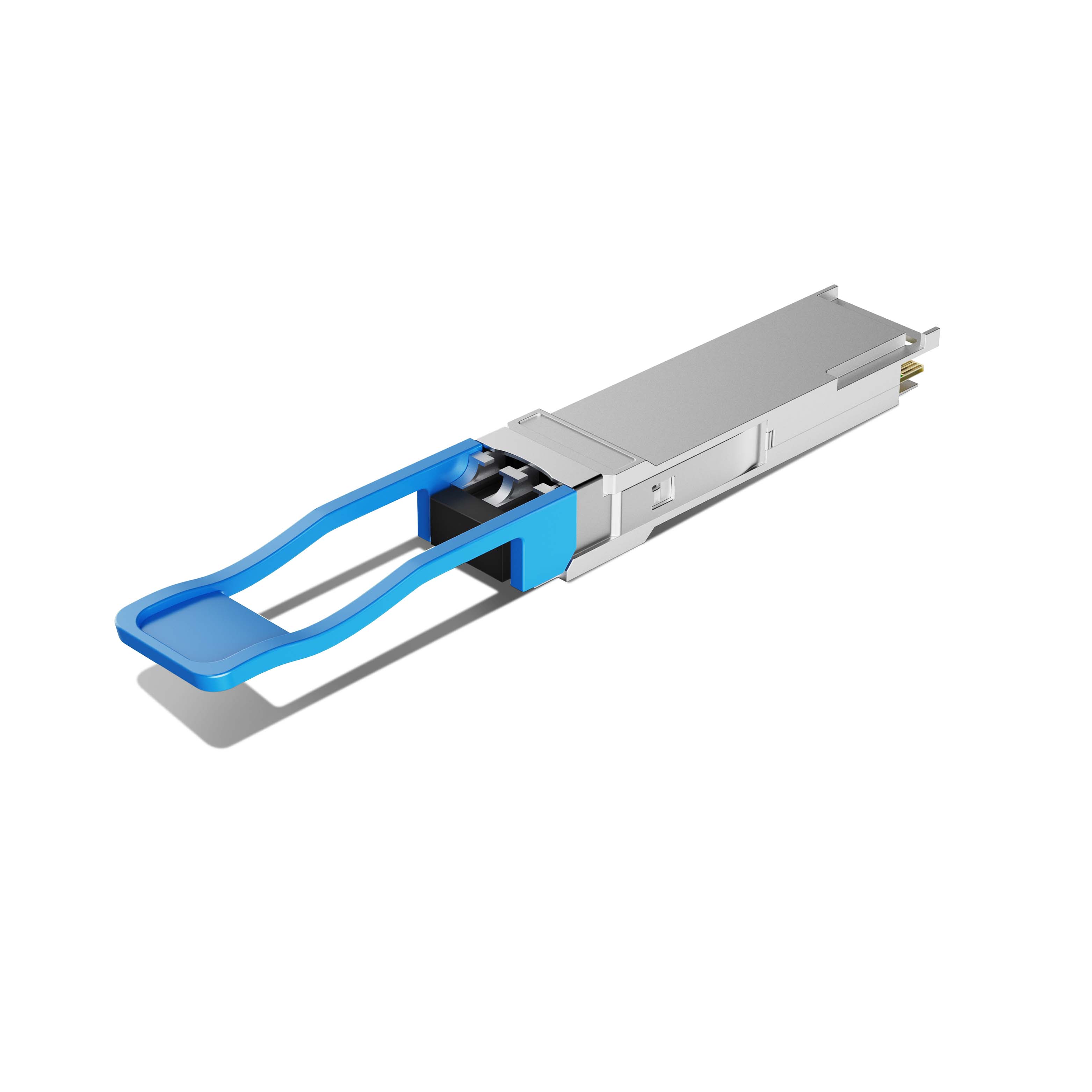

Huawei QSFP-100G-LR1(02314LBY) Compatible QSFP28 100GBASE LR1 1310nm 10km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Huawei QSFP-100G-LR1(02314LBY) Compatible QSFP28 100GBASE LR1 1310nm 10km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707001803056
Price: 159 USD
Availability: InStock

#707001803056

US$159.00

INPHE: 02314LBY

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

34062613

QSFP28-100GB-LR-HW

02314LBY

02314GYE

02314GYT Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-LR1
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.4 ~ +4.5dBm	Receiver Sensitivity	< -6.1dBm
Protocols	100G Ethernet, MSA Compliant, 100GBASE-LR	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
