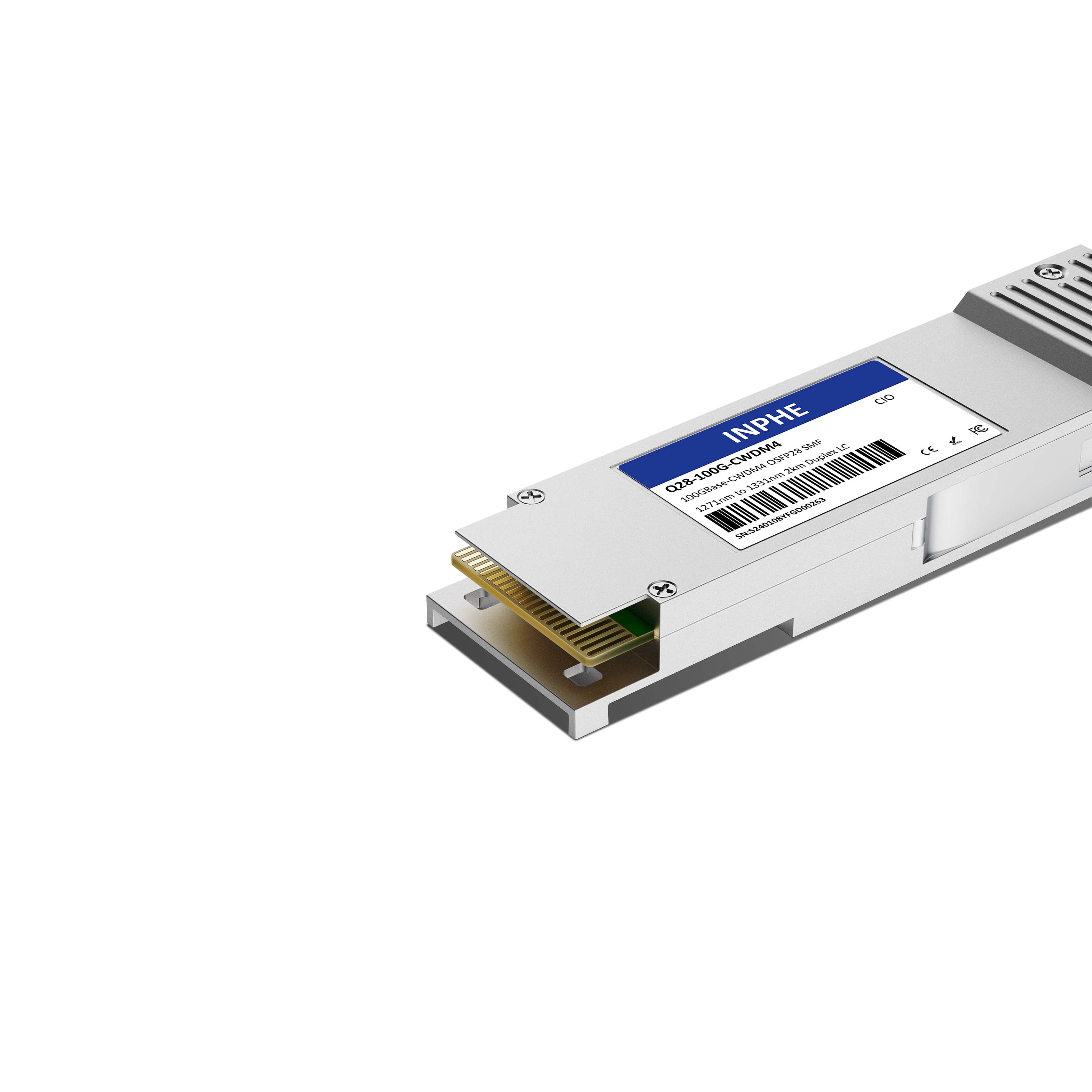

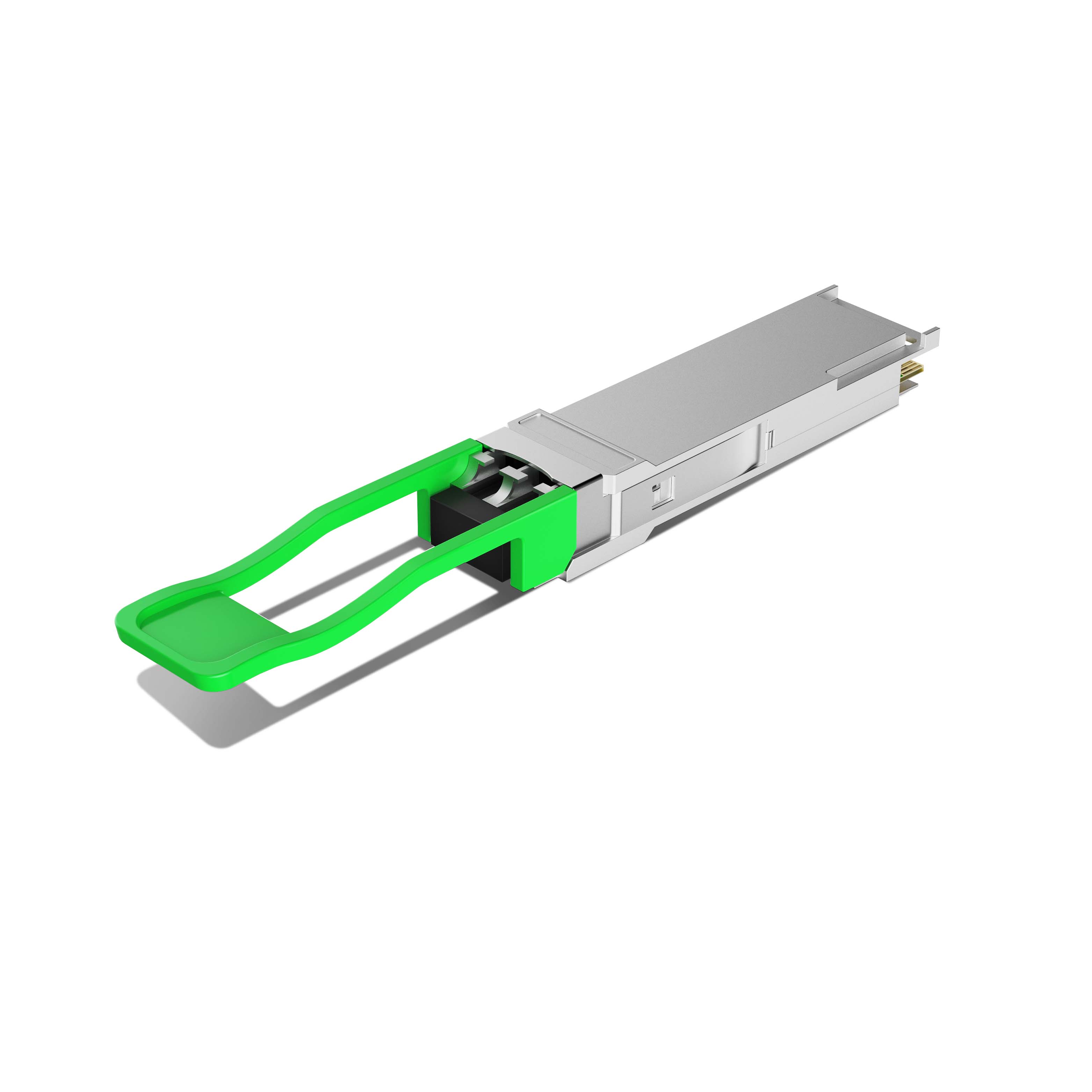

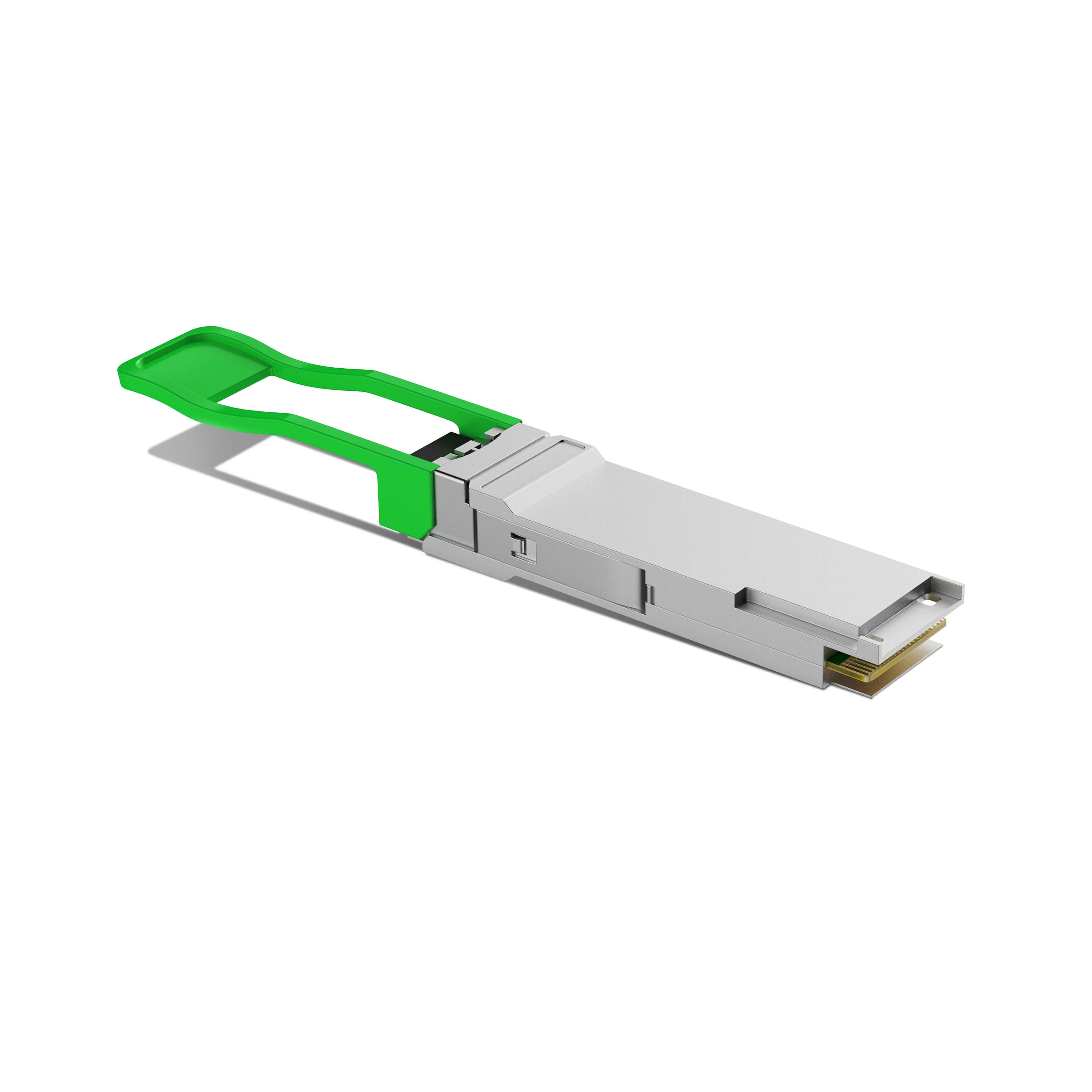

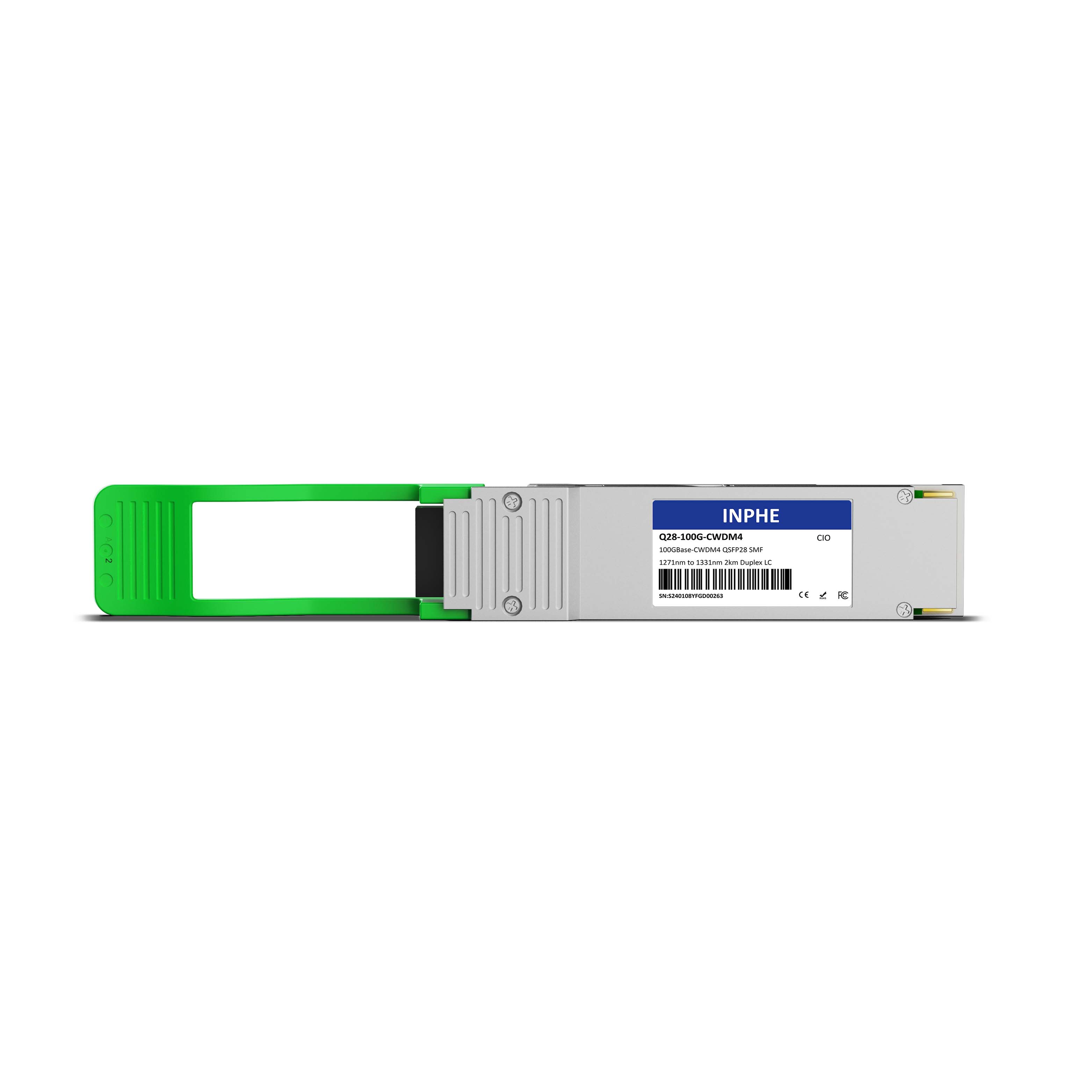

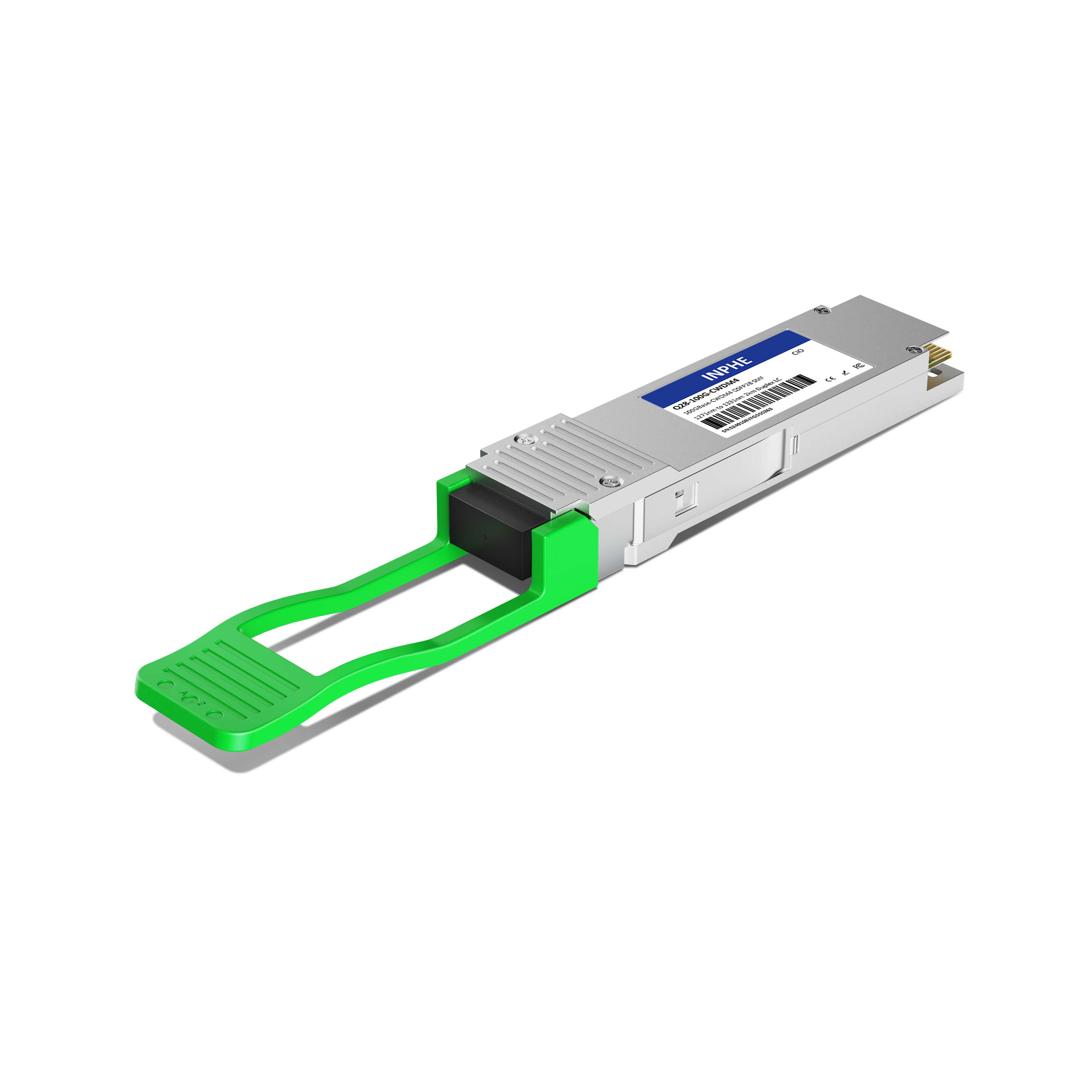

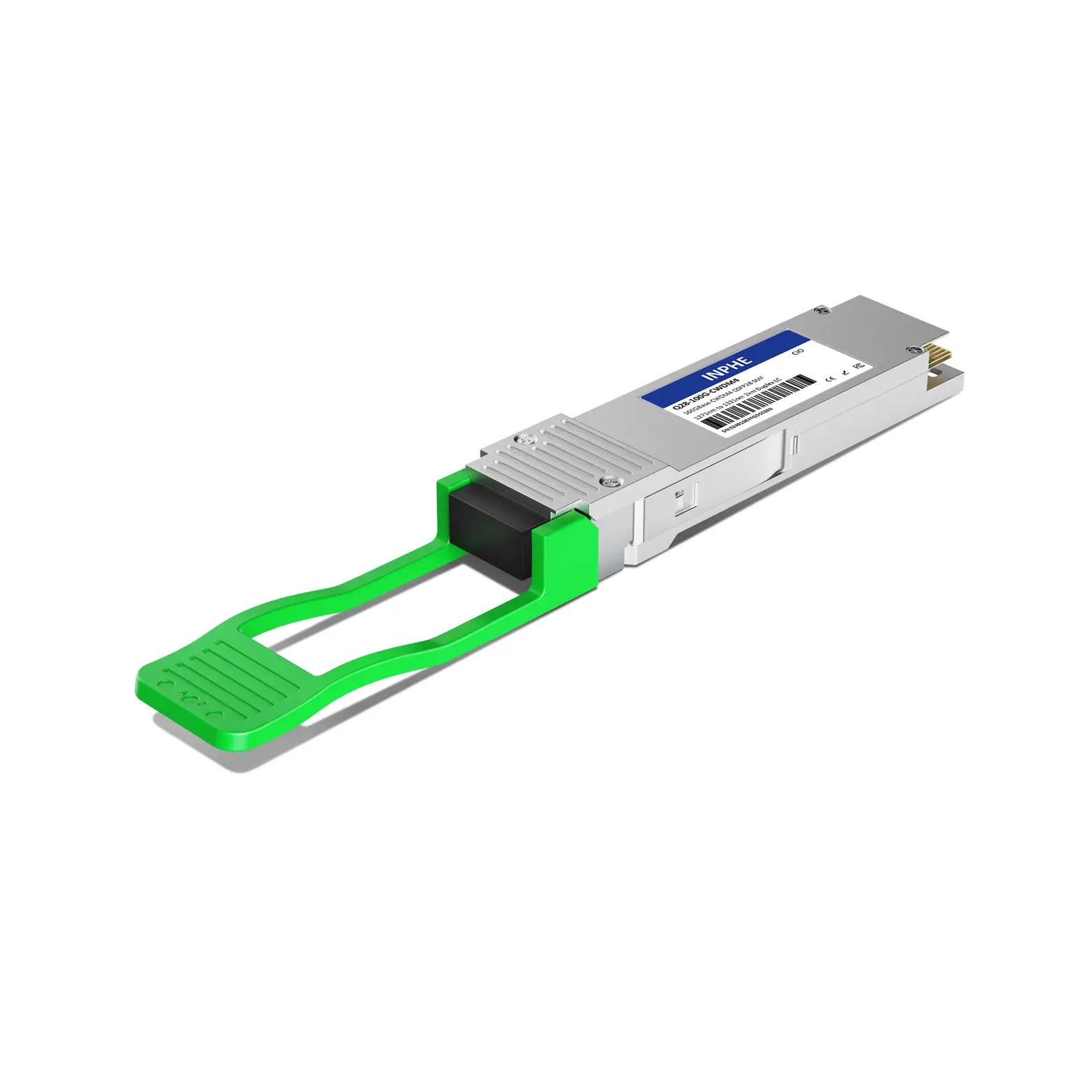

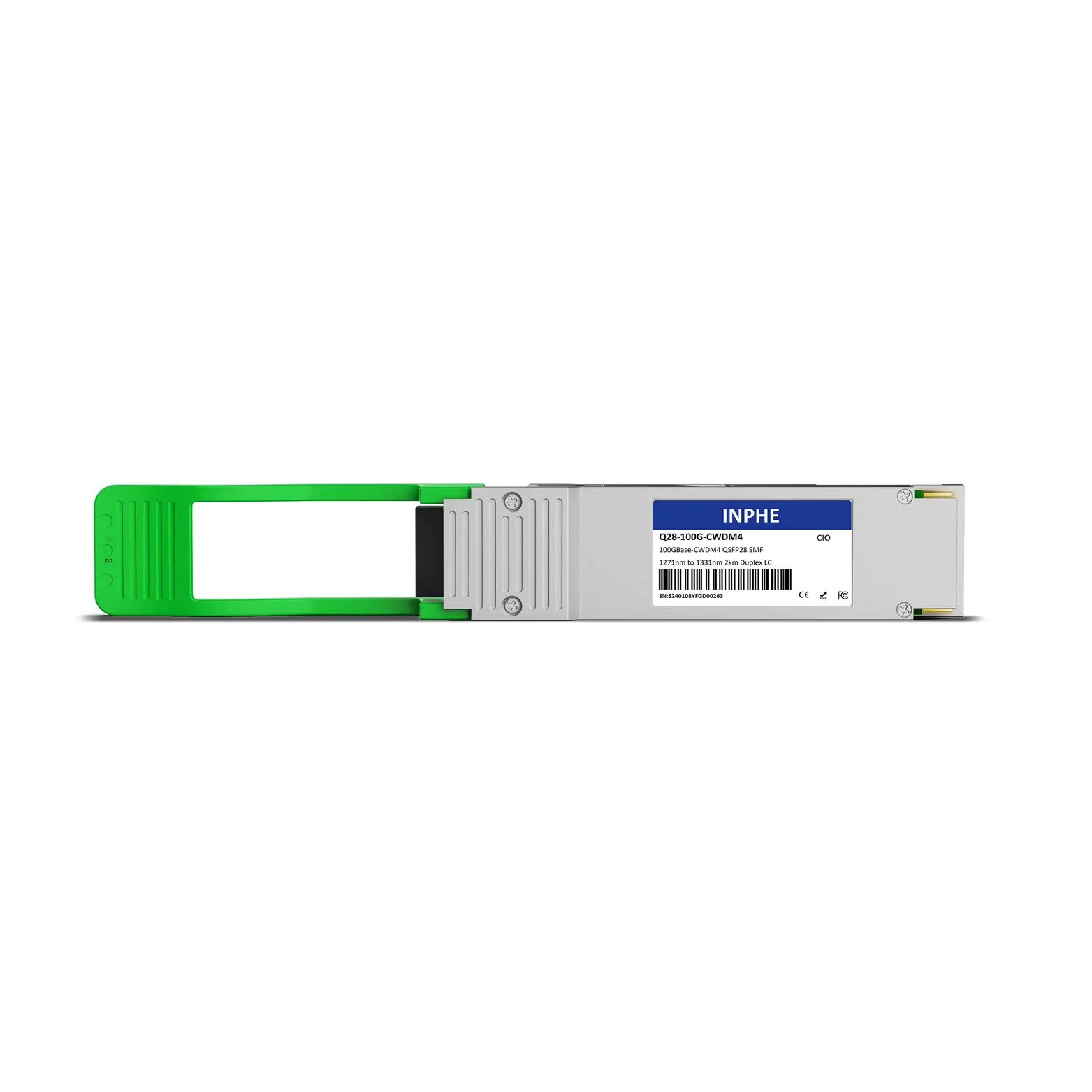

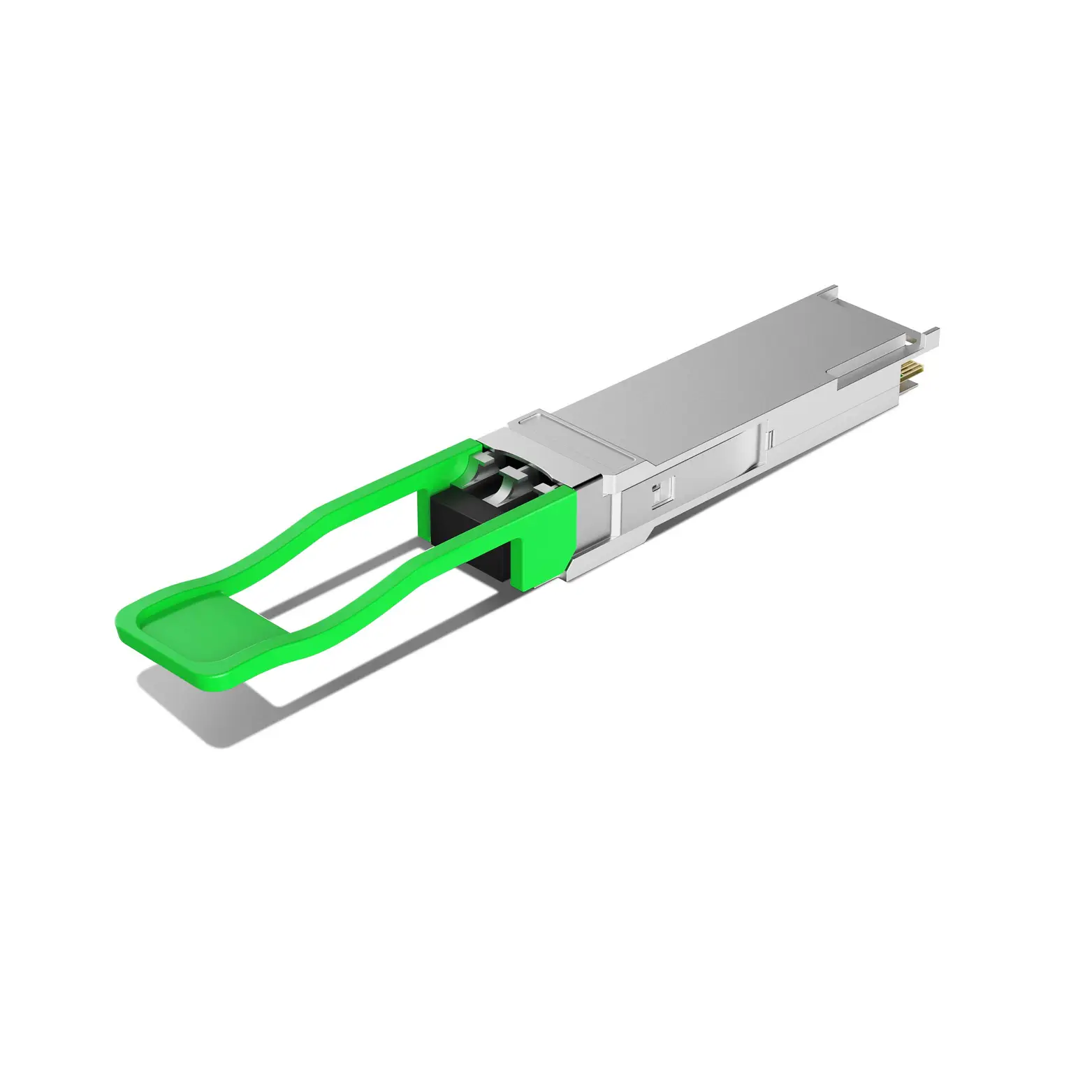

Huawei 02314LWE QSFP-100G-CWDM4 Compatible QSFP28 100GBASE CWDM4 1271/1291/1311/1331nm 2km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Huawei 02314LWE QSFP-100G-CWDM4 Compatible QSFP28 100GBASE CWDM4 1271/1291/1311/1331nm 2km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707001403056
Price: 119 USD
Availability: InStock

#707001403056

US$119.00

INPHE: 02314LWE QSFP-100G-CWDM4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

02311QDH

34061495

02314LWE QSFP-100G-CWDM4

02311MNN QSFP-100G-CWDM4

QSFP-100G-CWDM4-ISP Customized

QTY:

Specifications

The Huawei 02314LWE QSFP-100G-CWDM4 compatible QSFP28 100G-CWDM4 Optics is specifically designed for short-distance interconnects between data centers.

Featuring a DML transmitter and a PIN receiver, and operating at a wavelength of 1271/1291/1311/1331nm, this Optics utilizes an Duplex LC connector to deliver 100G transmission and exceptional reliability over link distances of up to 2km(OS2 SMF).

It supports both DDM/DOM (Digital Optical Monitoring).

The 100G-CWDM4 optics are primarily intended to support interconnects within a range of 2 km, offering a more cost-effective solution compared to the 100G-LR4.

Vendor Name	INPHE	Part Number	QSFP-100G-CWDM4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1271/1291/1311/1331nm	Max Distance	2km
Connector	Duplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-6.5 ~ +2.5dBm	Receiver Sensitivity	< -10.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
