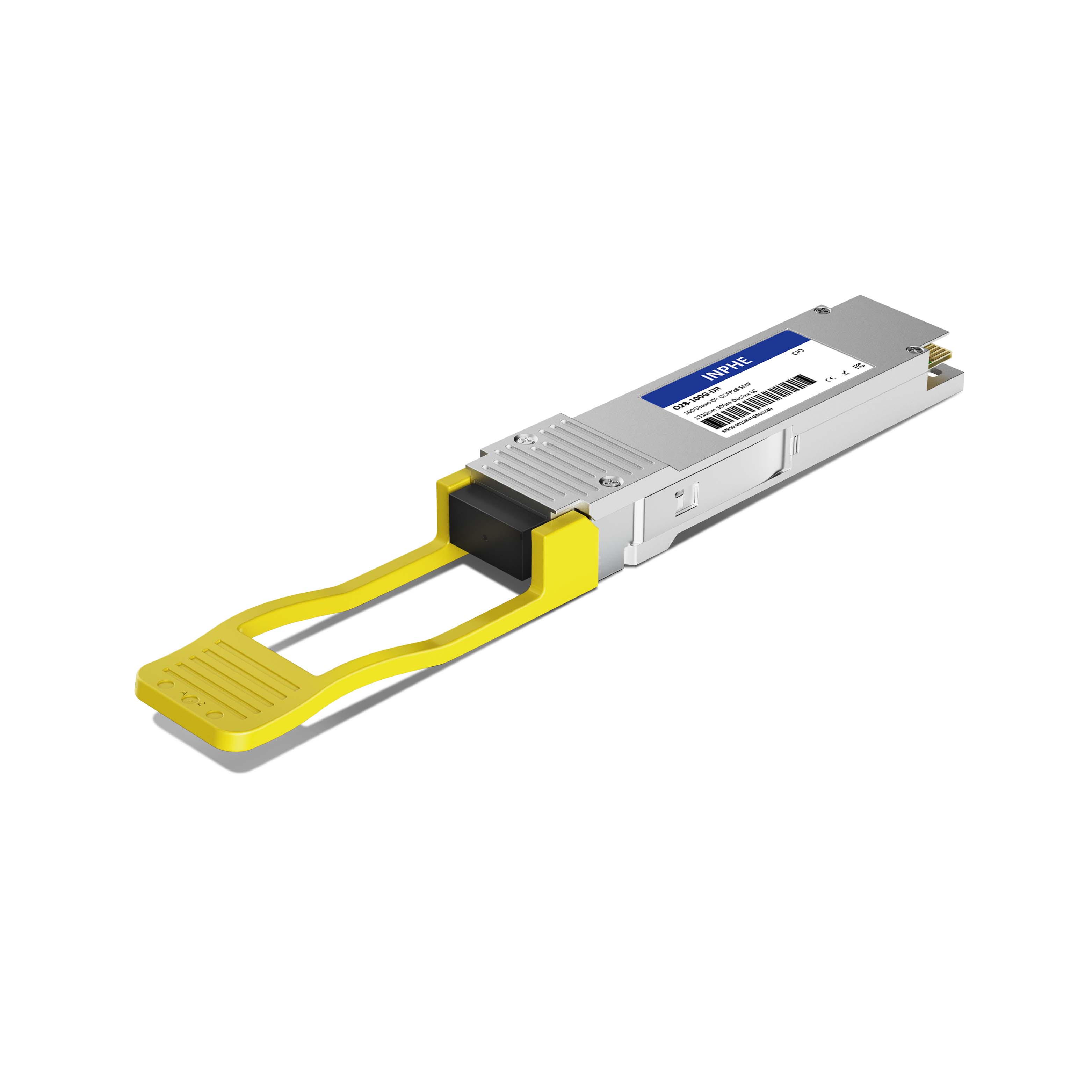

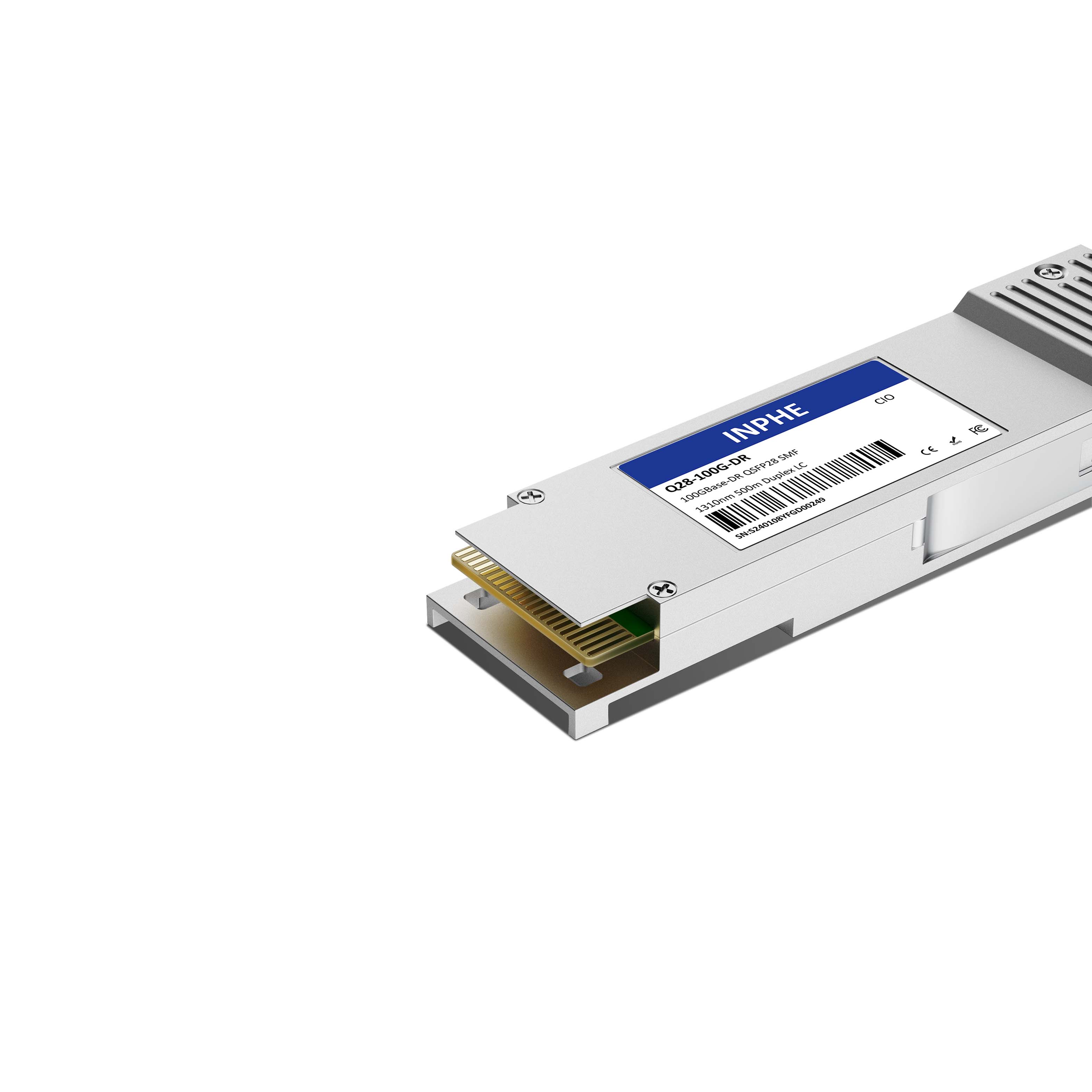

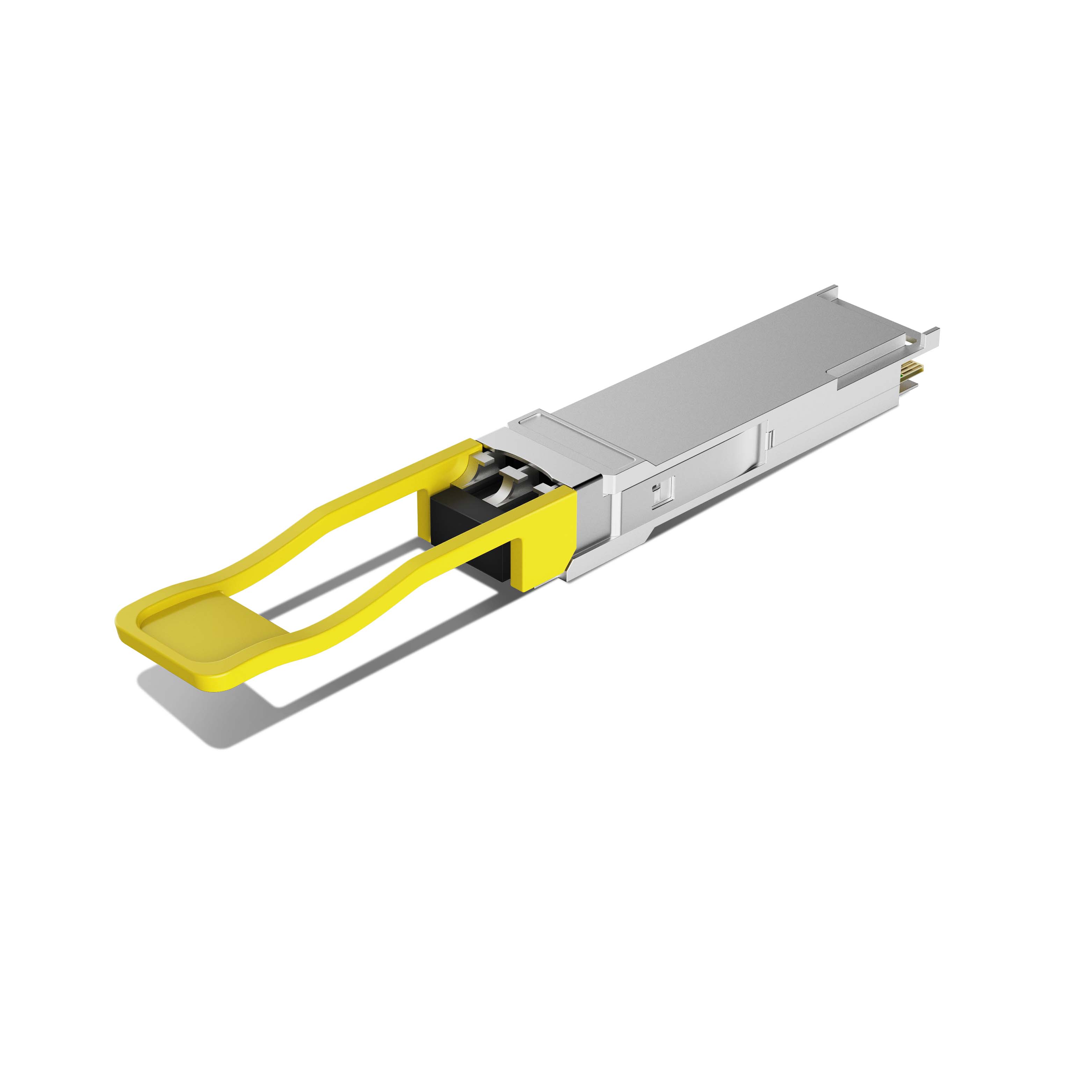

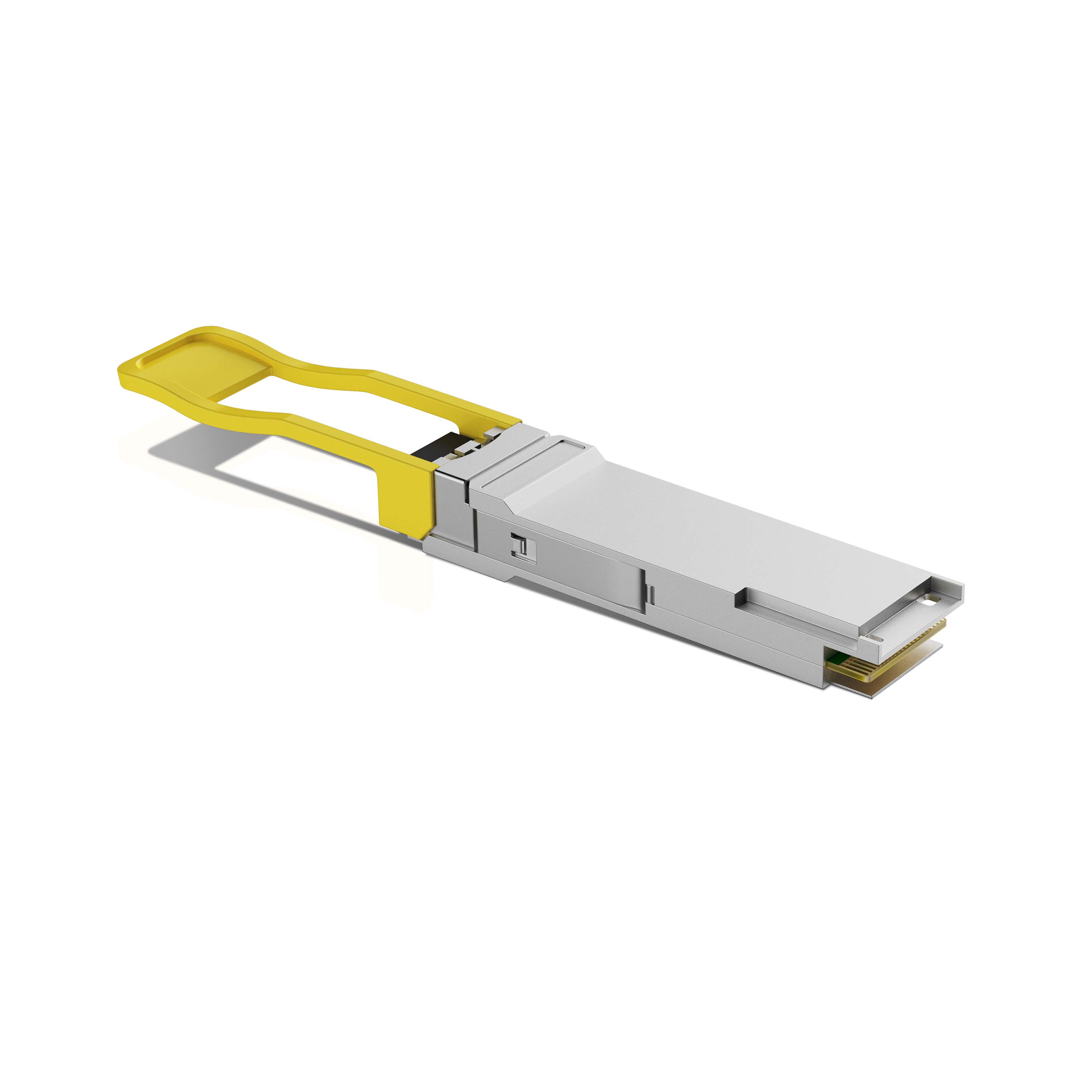

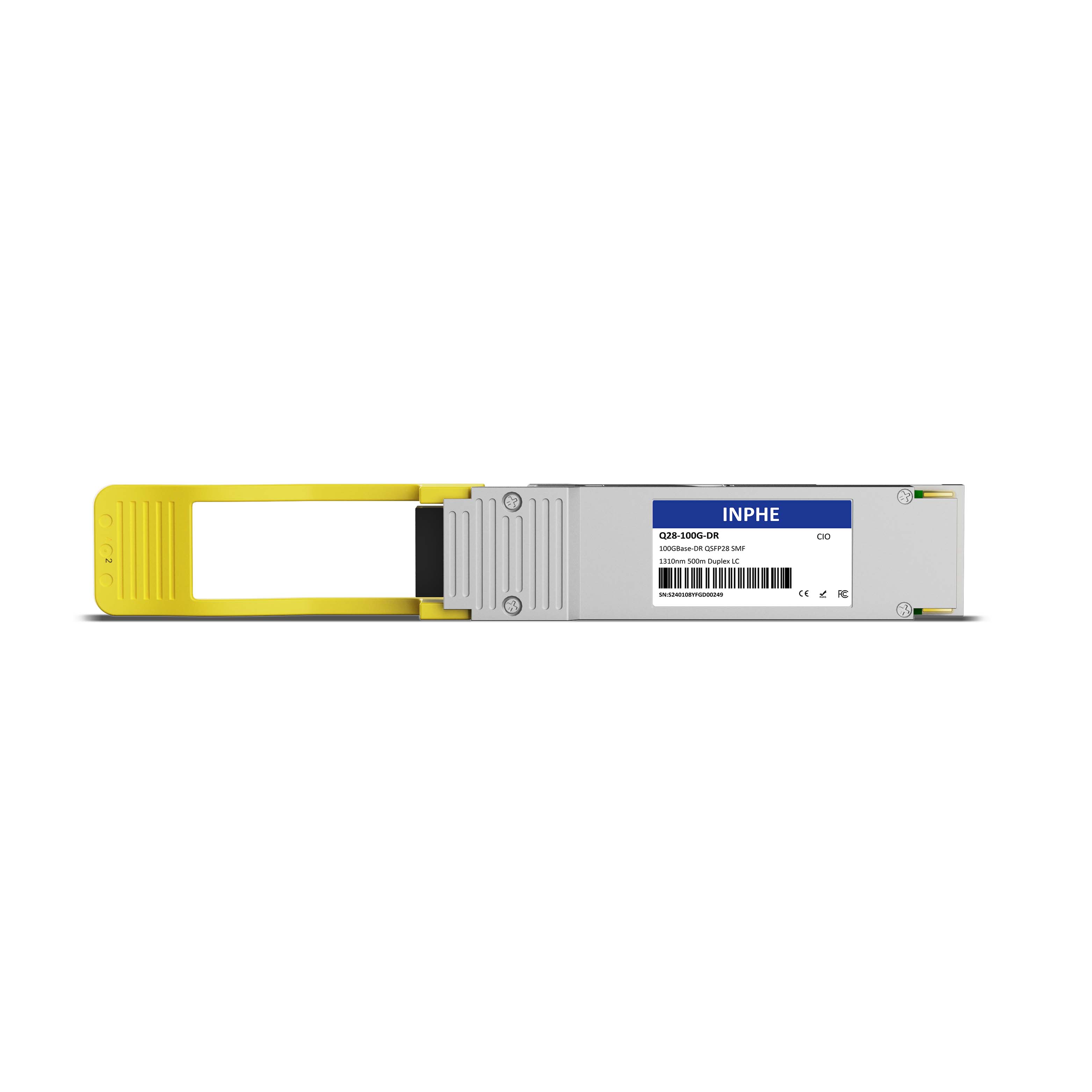

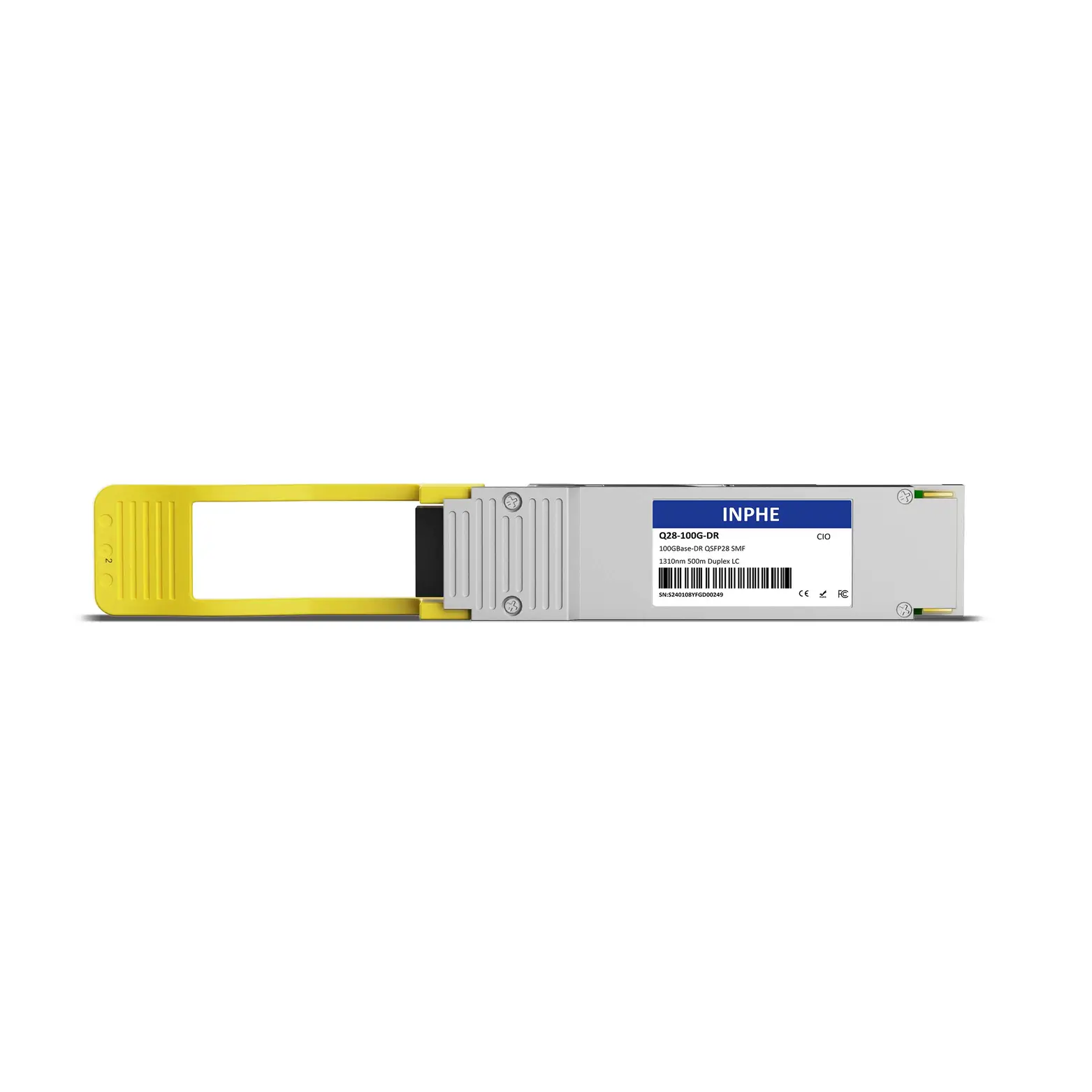

Cisco QSFP-100G-DR-S Compatible QSFP28 100GBASE DR1 1310nm 500m SMF Duplex LC DDM/DOM Optics Transceiver

Name: Cisco QSFP-100G-DR-S Compatible QSFP28 100GBASE DR1 1310nm 500m SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707000501028
Price: 179 USD
Availability: InStock

#707000501028

US$179.00

INPHE: QSFP-100G-DR1

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei FS.COM Flexoptix Precision Coherent (Finisar) Edge CorE More +

Compatible Models:

QSFP-100G-DR-S Customized

QTY:

Specifications

The Cisco QSFP-100G-DR-S compatible QSFP28 100G-DR1 Optics is specifically designed for short-distance (500m) single-mode links, making it ideal for short-range 100G interconnects in data centers, enterprise networks, and telecommunications carrier environments.

Features an EML transmitter and a PIN receiver, and is equipped with a high-performance Broadcom/Marvell DSP chip.

Operating at a wavelength of 1310nm (single-wavelength 100G 1310nm channel) and employing a Duplex LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 500m (using OS2 SMF fiber with FEC enabled).

It supports DDM/DOM (Digital Optical Monitoring).

Furthermore, thanks to the single-wavelength nature of the 100G-DR1 standard, it can be paired with a 400G-DR4 Optics to enable 4x100G DR1 Breakout applications, thereby significantly enhancing operational flexibility.

Vendor Name	INPHE	Part Number	QSFP-100G-DR1
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	500m
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	100G Ethernet, MSA Compliant, 100GBASE-DR	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
