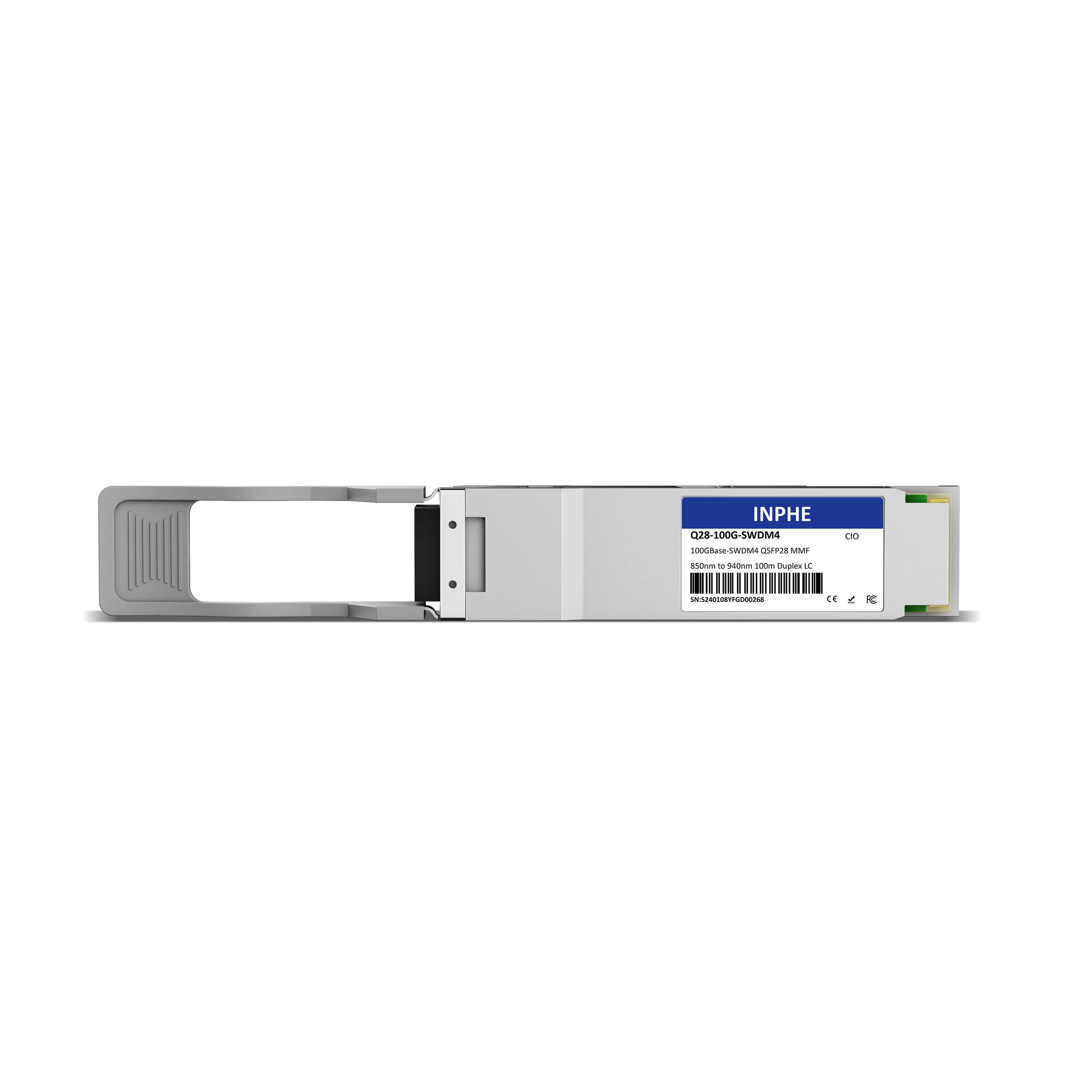

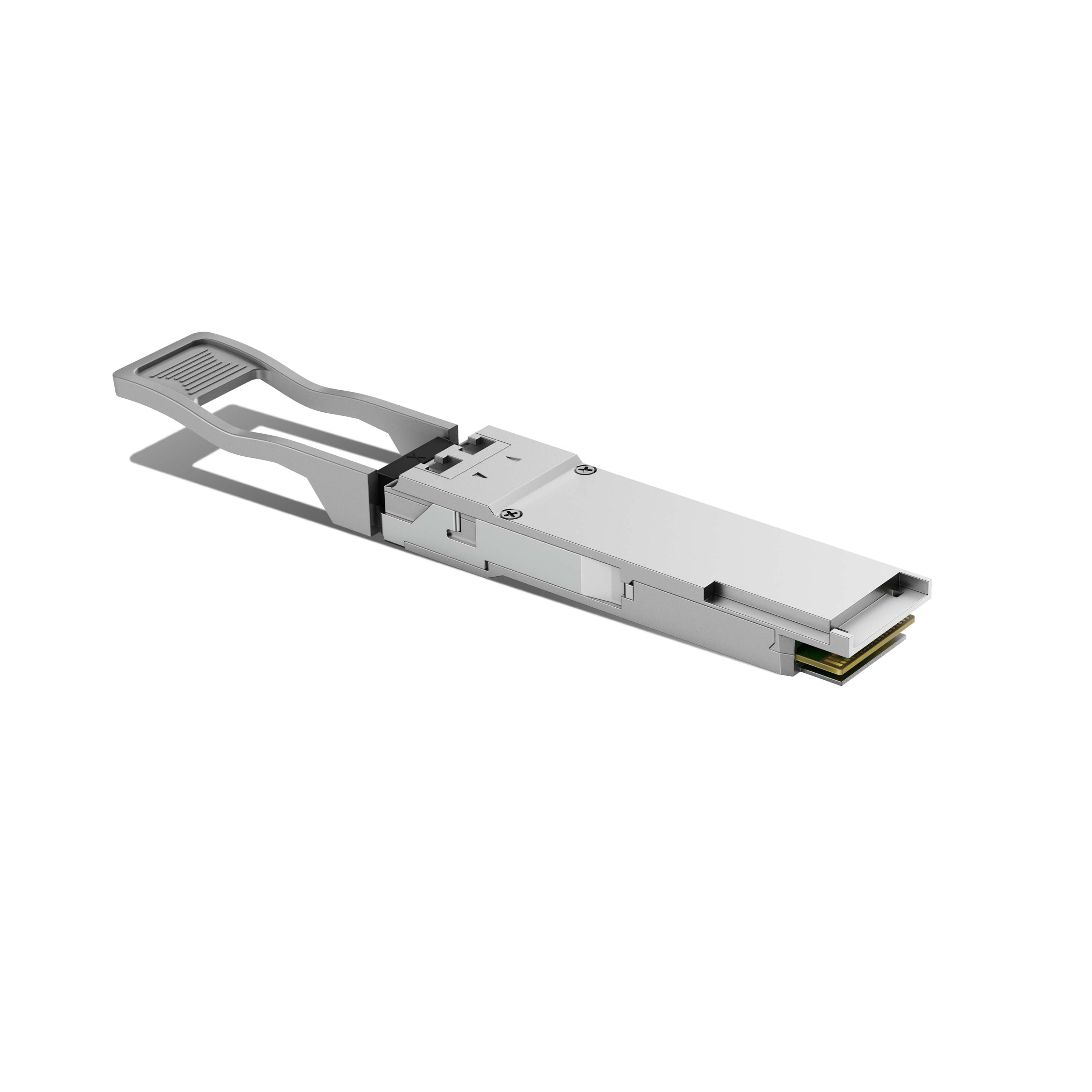

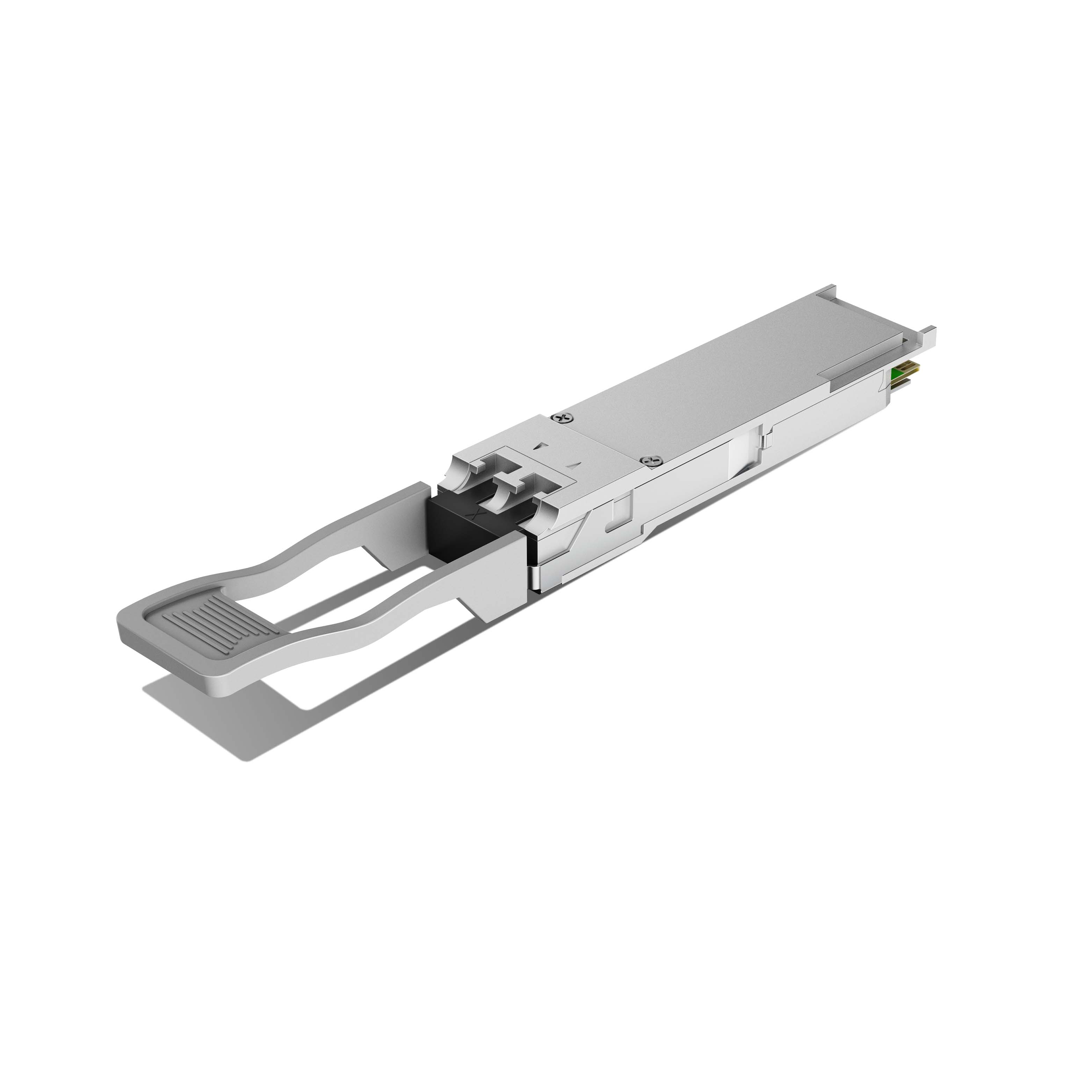

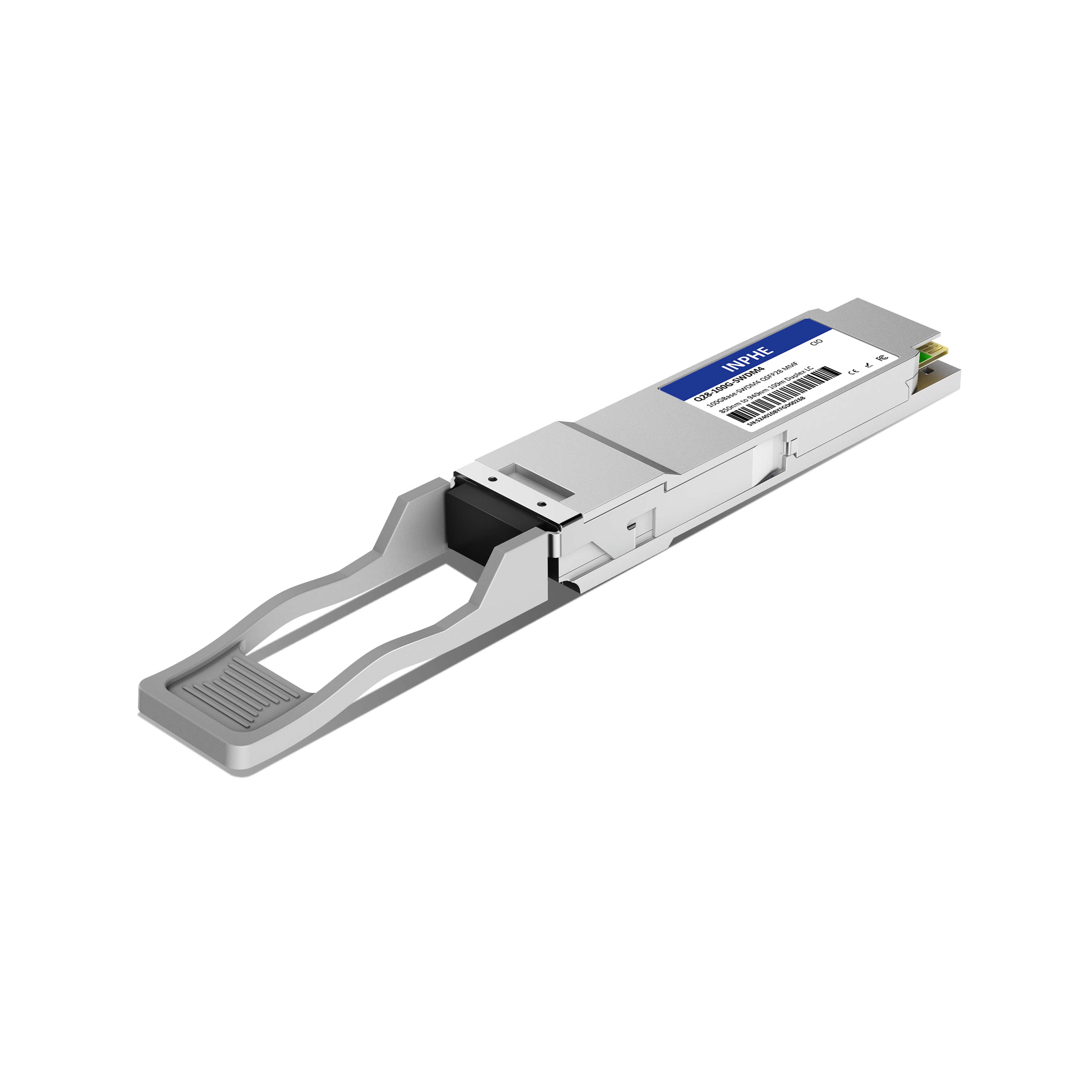

Cisco Compatible QSFP28 100GBASE SWDM4 850/880/910/940nm 100m MMF Duplex LC DDM/DOM Optics Transceiver

Name: Cisco Compatible QSFP28 100GBASE SWDM4 850/880/910/940nm 100m MMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707000401028
Price: 259 USD
Availability: InStock

#707000401028

US$259.00

INPHE: QSFP-100G-SWDM4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Huawei FS.COM Flexoptix Precision Coherent (Finisar) MikroTik Edge CorE UfiSpace More +

Compatible Models:

QSFP-100G-SWDM4 Customized

QTY:

Specifications

The Cisco compatible QSFP28 100G-SWDM4 Optics is specifically designed for 100G Ethernet multimode links within data centers and enterprise campuses.

Featuring a VCSEL transmitter and a PIN receiver, and operating center wavelengths are 850nm/880nm/910nm/940nm; WDM (Wavelength Division Multiplexing) technology is employed to multiplex these channels into a single 100G multimode signal, which is transmitted via a Duplex LC interface.

It supports DDM/DOM (Digital Optical Monitoring).

The primary function of the 100G-SWDM4 Optics is similar to that of the 100G-SRBD:

It is a multimode Optics featuring a Duplex LC interface.

When upgrading 10G or 25G multimode links to a 100G links, no recabling is necessary, thereby achieving significant savings in both time and labor costs.

Vendor Name	INPHE	Part Number	QSFP-100G-SWDM4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	850/880/910/940nm	Max Distance	OM4 100m / OM3 70m
Connector	Duplex LC	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-7.5 ~ +4.0dBm	Receiver Sensitivity	< -8.5dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
