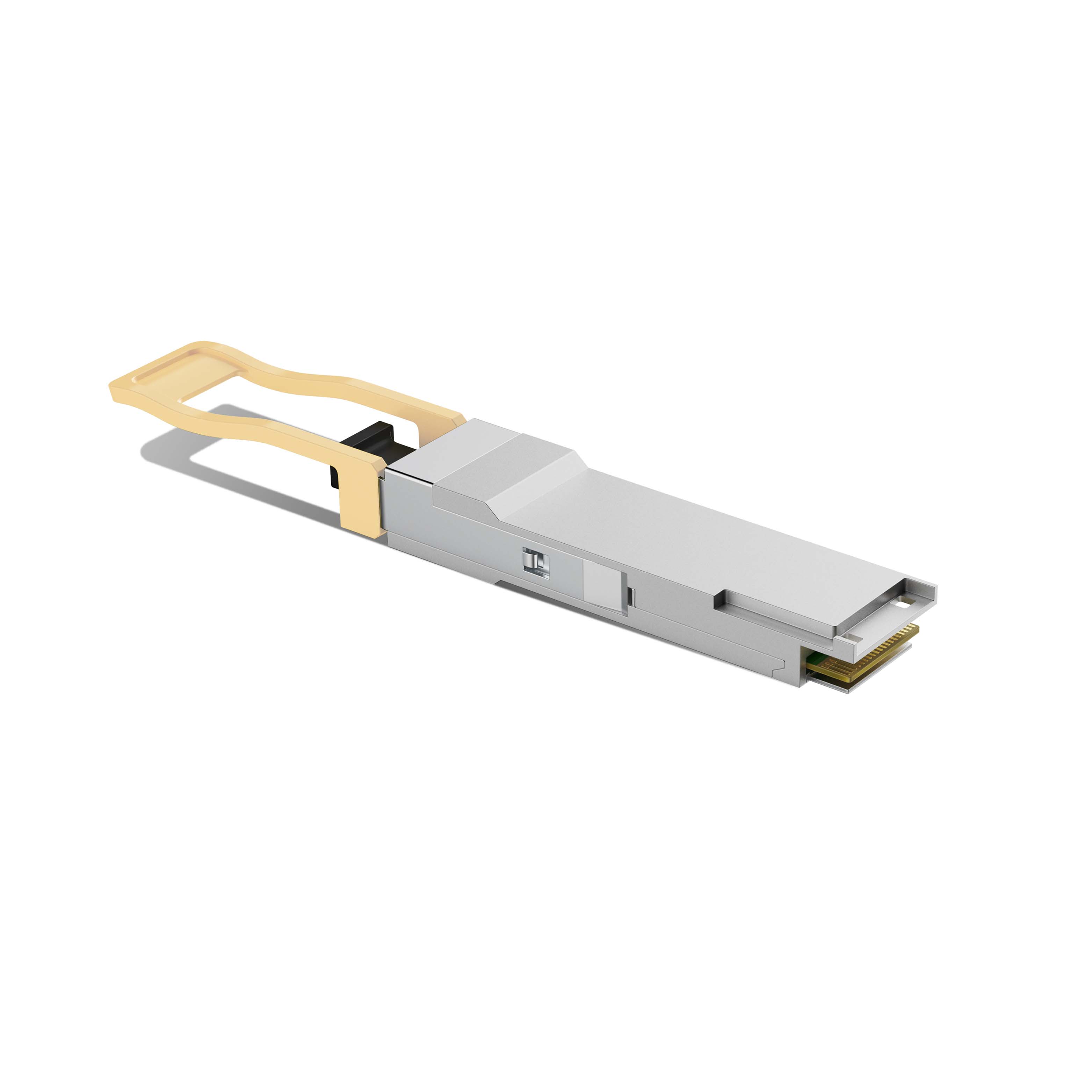

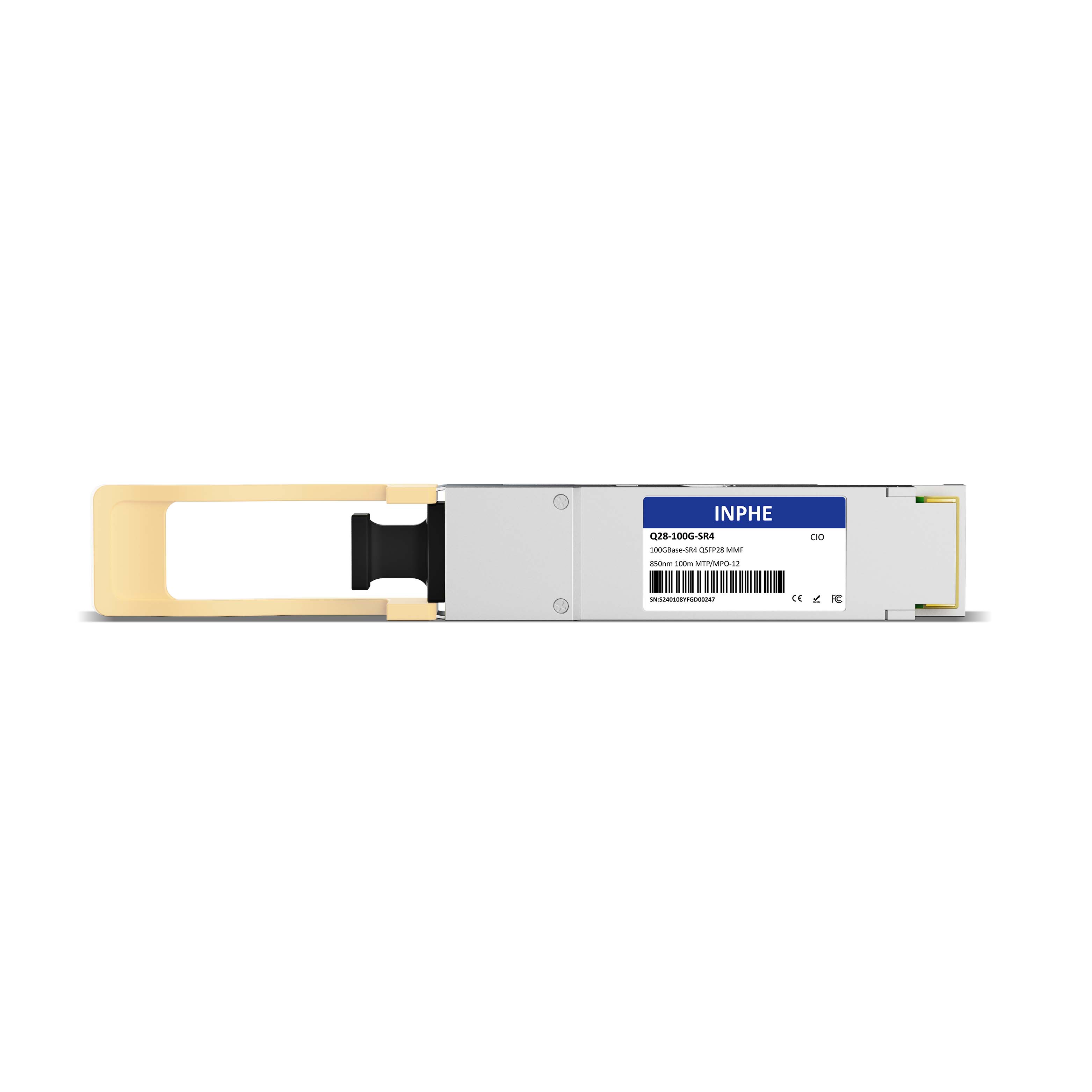

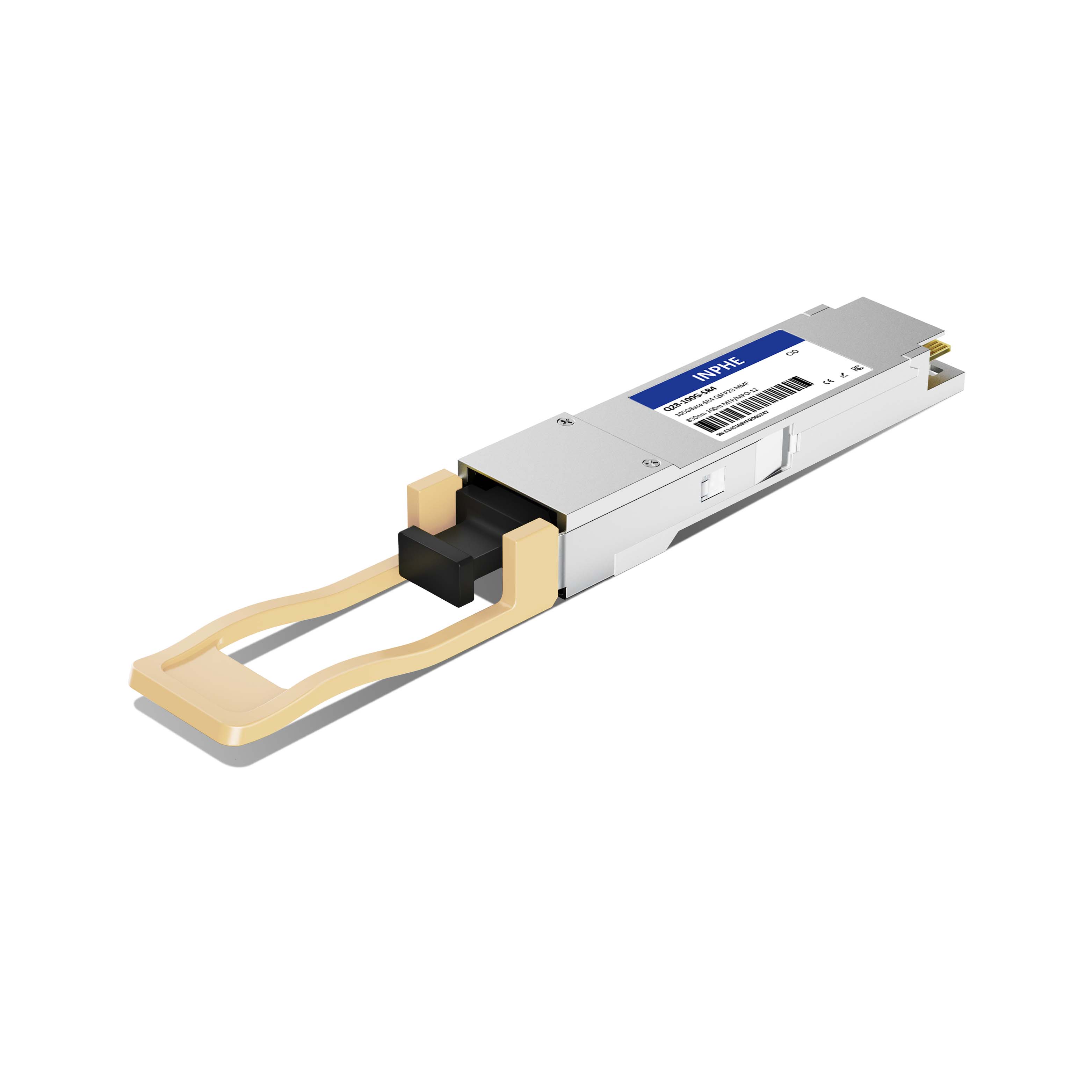

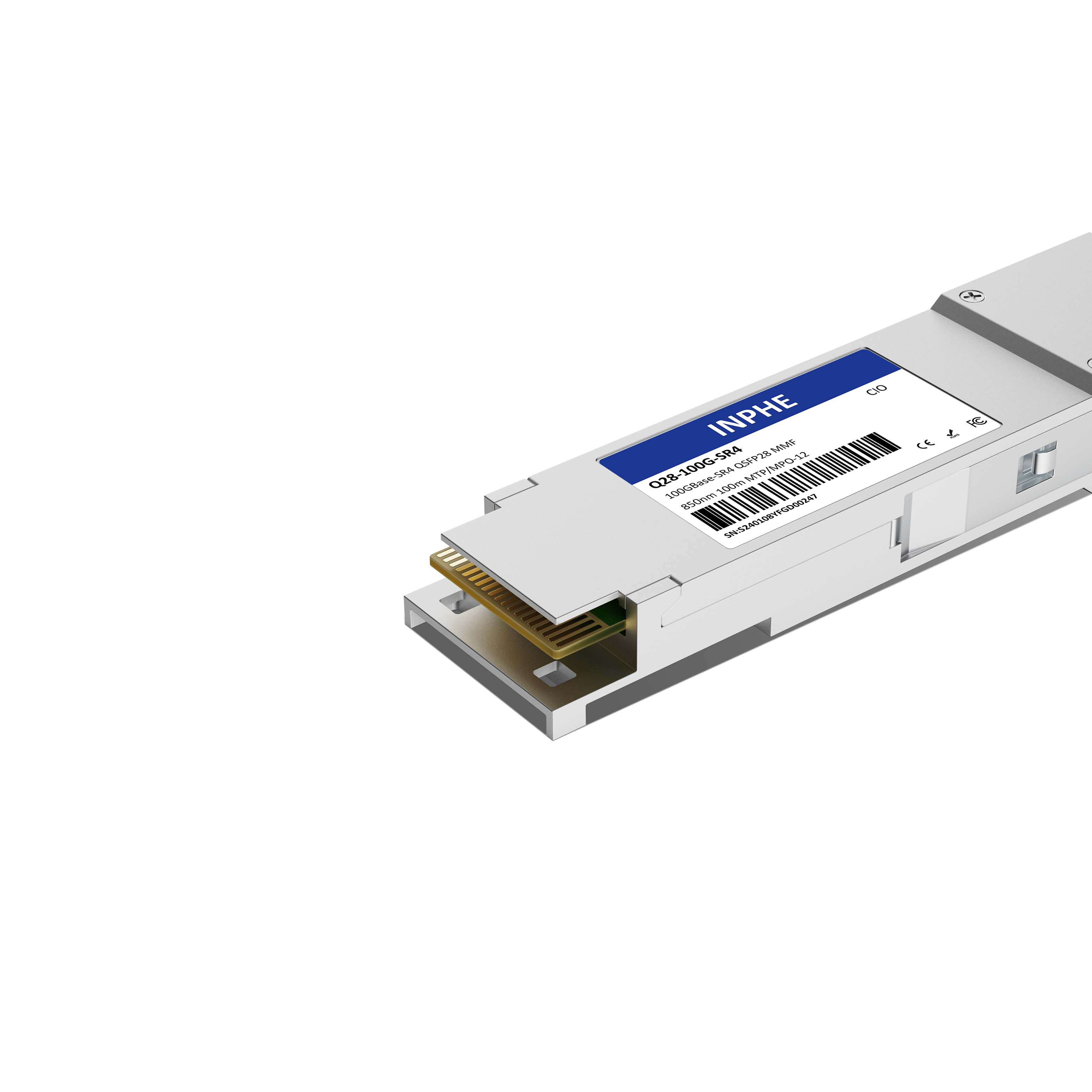

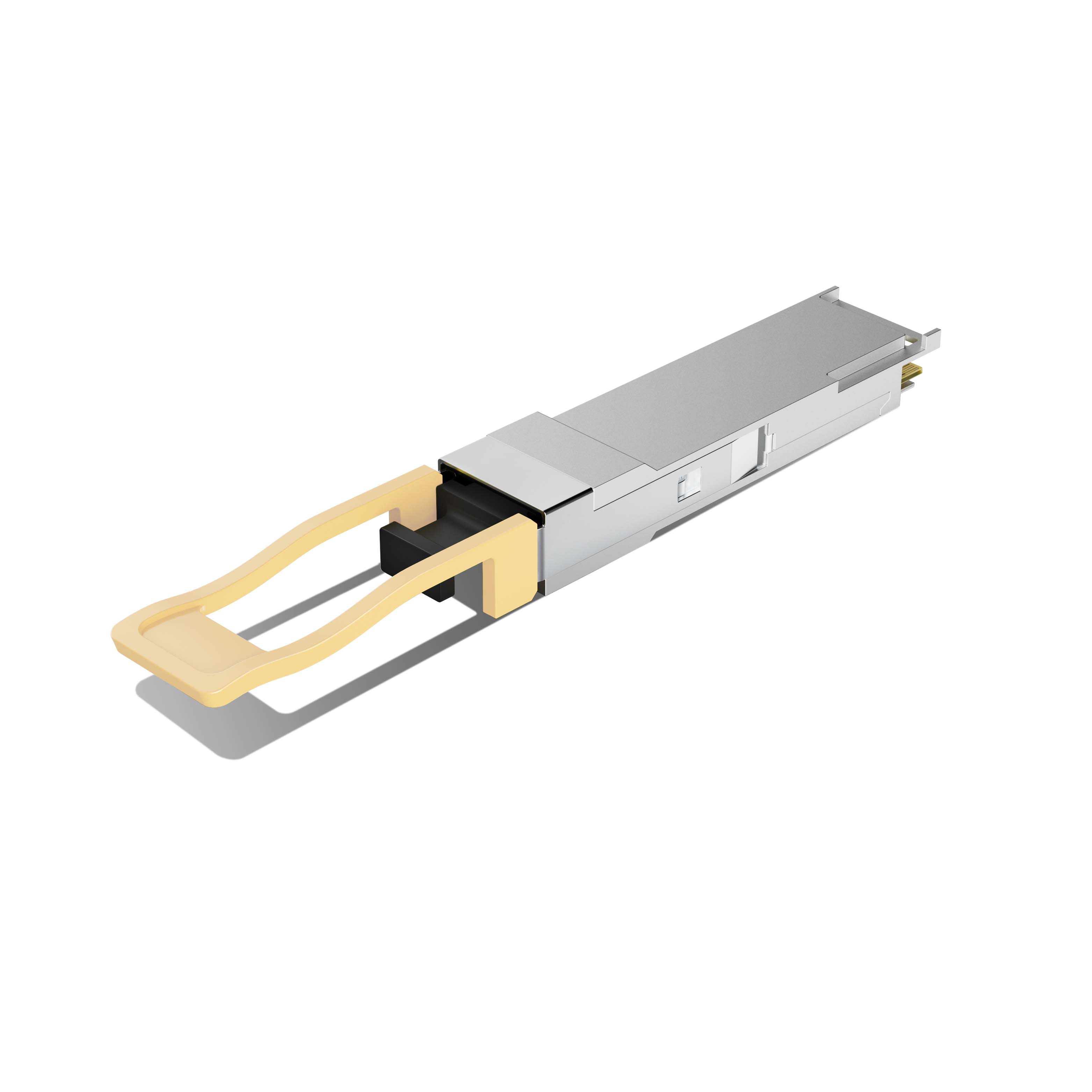

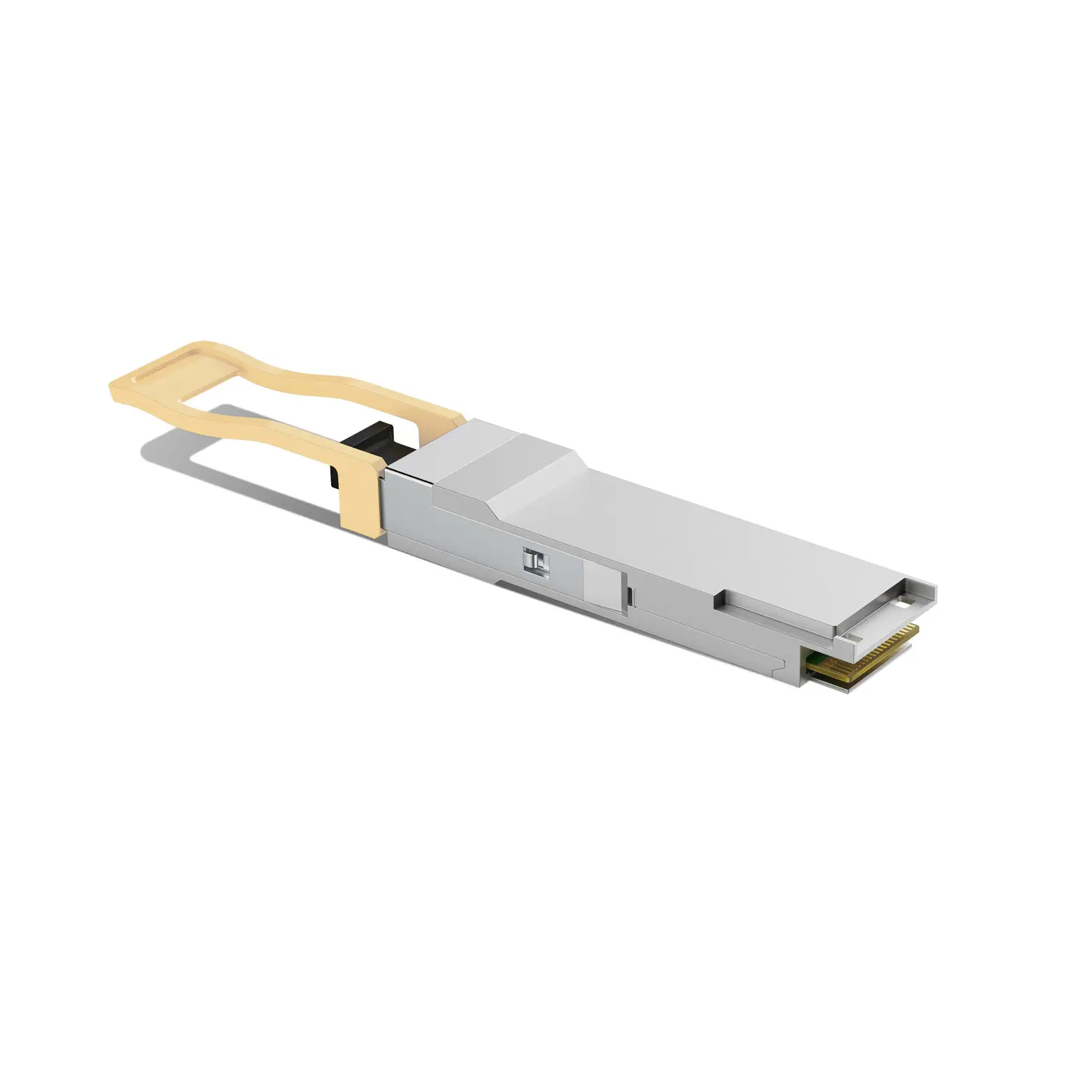

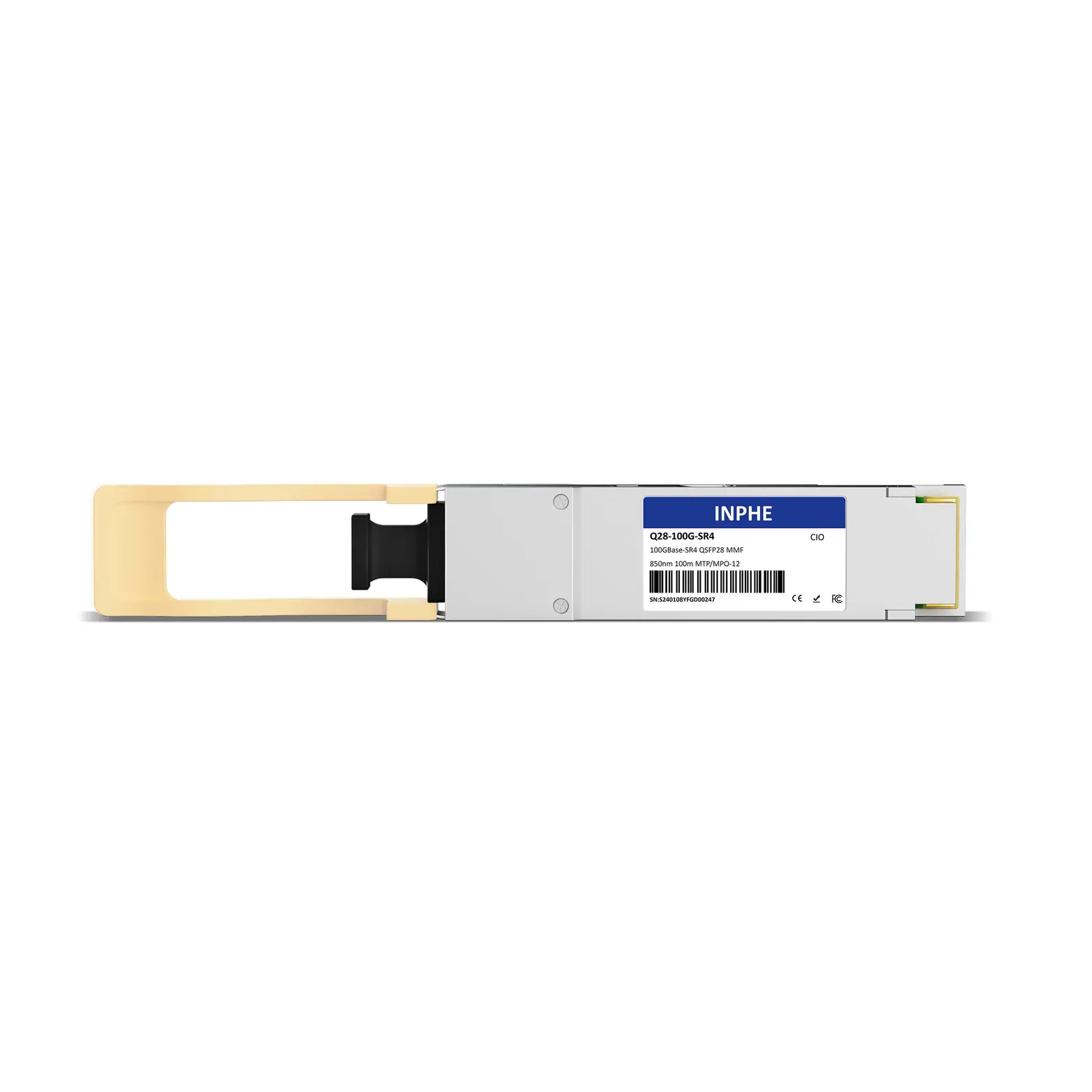

Cisco QSFP-100G-SR4-S Compatible QSFP28 100GBASE SR4 850nm 100m MMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x25G SR

Name: Cisco QSFP-100G-SR4-S Compatible QSFP28 100GBASE SR4 850nm 100m MMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x25G SR
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707000001028
Price: 49.99 USD
Availability: InStock

#707000001028

US$49.99

INPHE: QSFP-100G-SR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

QSFP-100G-SR4-S Customized

QTY:

Specifications

The Cisco QSFP-100G-SR4-S compatible QSFP28 100G-SR4 Optics is specifically designed for 100G Ethernet multimode links.

Featuring a VCSEL transmitter and a PIN receiver, and operating at a wavelength of 4x850nm, this Optics utilizes an MTP/MPO-12 multimode connector to deliver high-speed 100G transmission and exceptional reliability over link distances of up to 100m (OM4 MMF). It is an ideal choice for short-distance, high-speed transmission applications within data centers and enterprise networks.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 100G Point-to-Point Connections
2. 4x25G SR Breakout Connections

Vendor Name	INPHE	Part Number	QSFP-100G-SR4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	850nm	Max Distance	OM4 100m / OM3 70m
Connector	MTP/MPO 12	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-8.4 ~ +2.4dBm	Receiver Sensitivity	< -10.3dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
