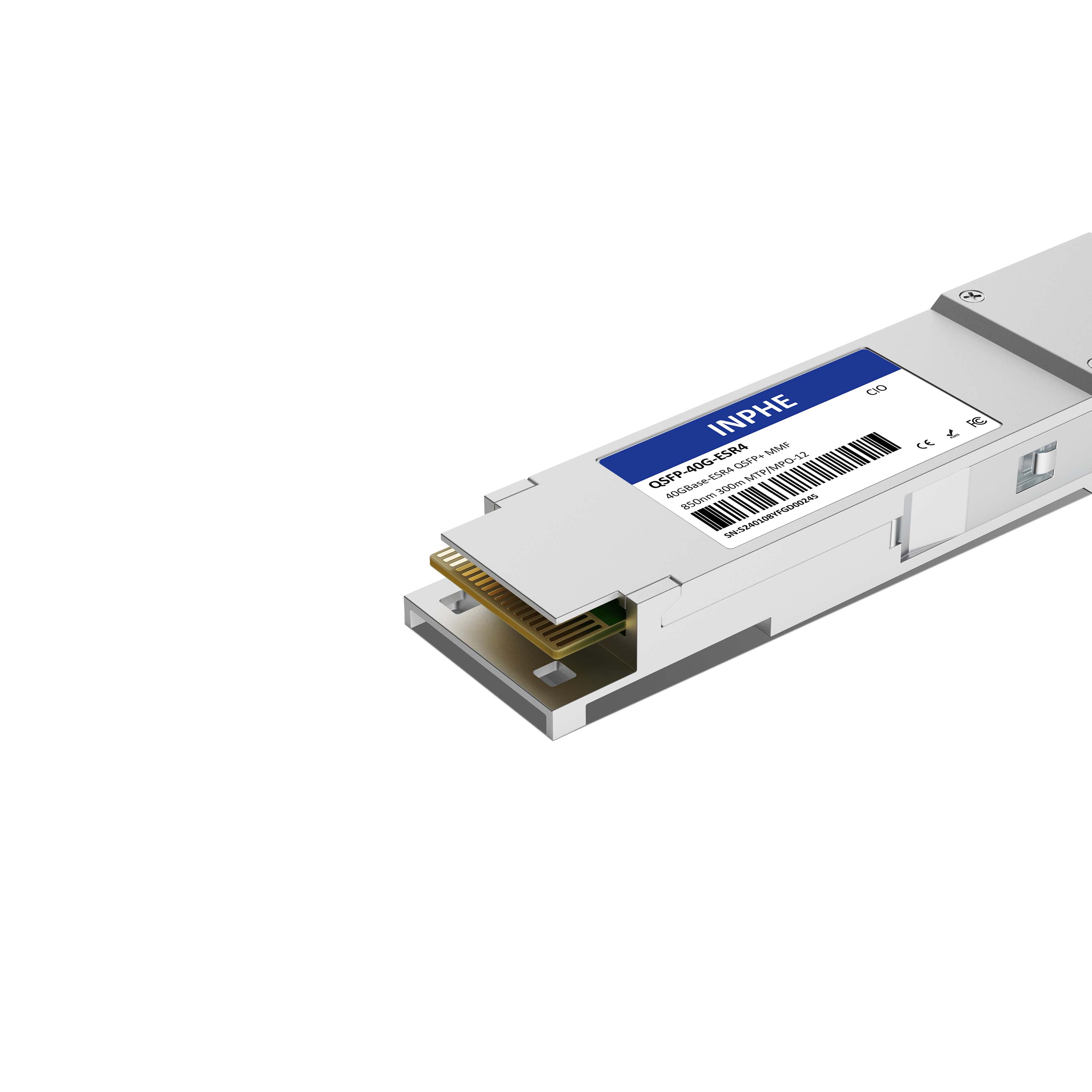

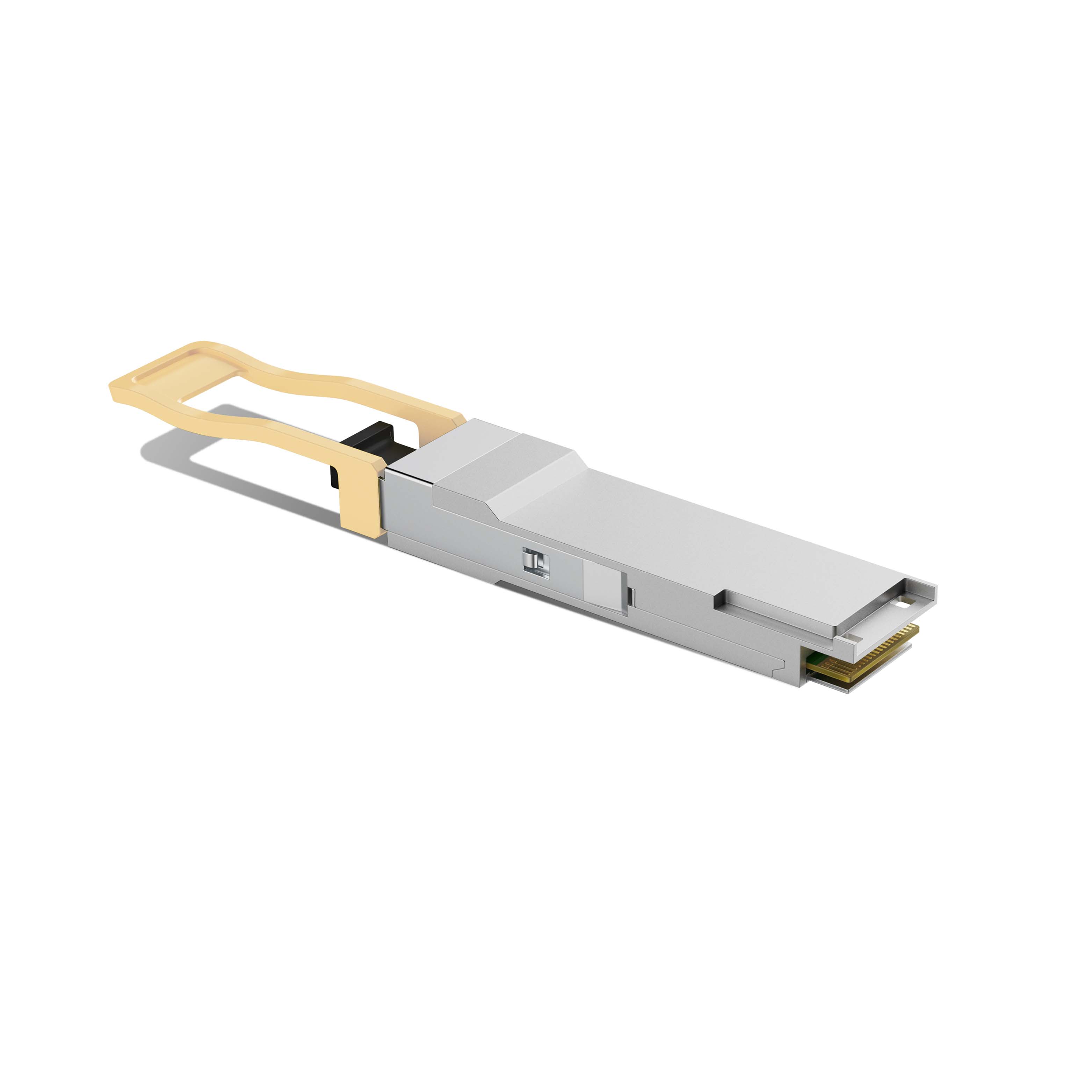

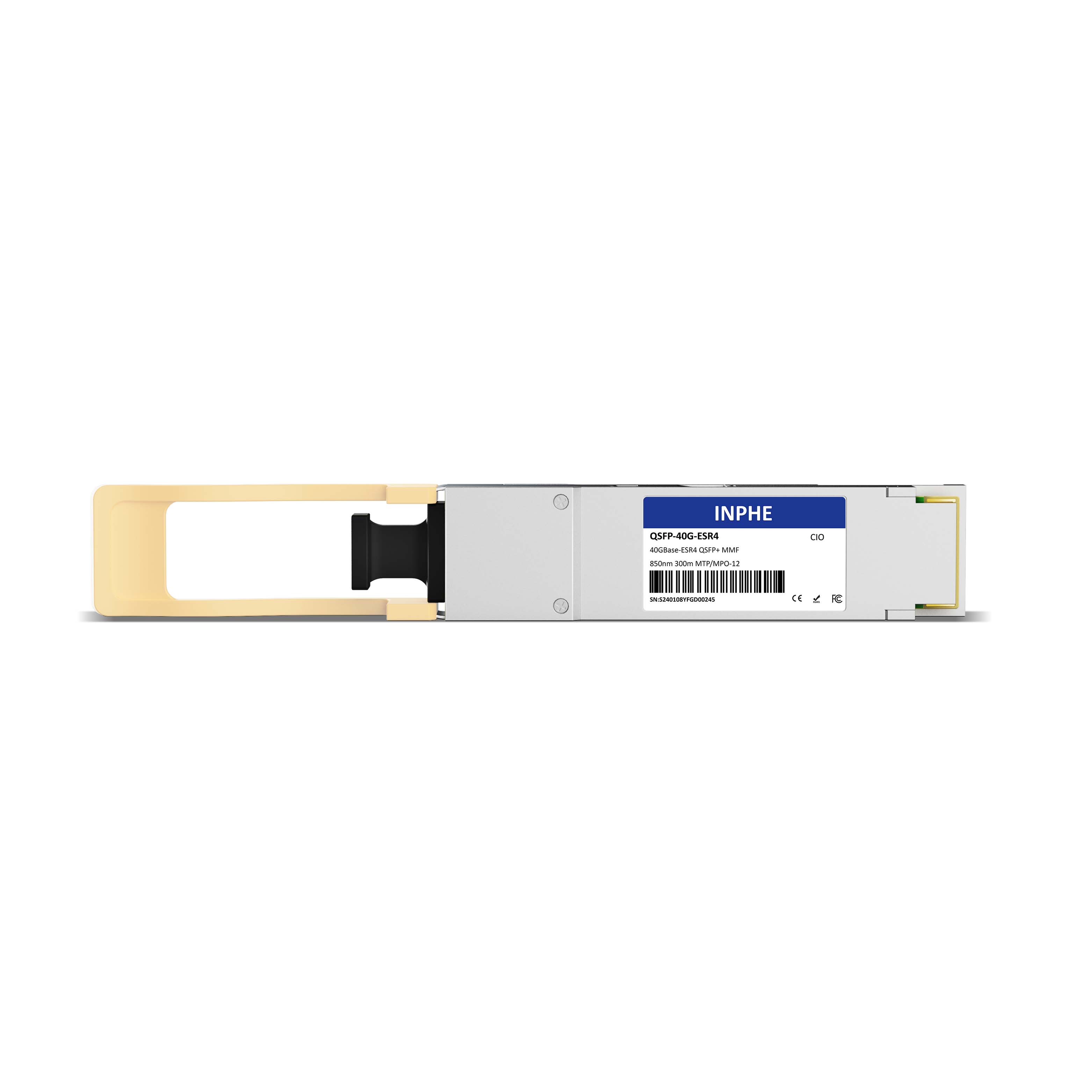

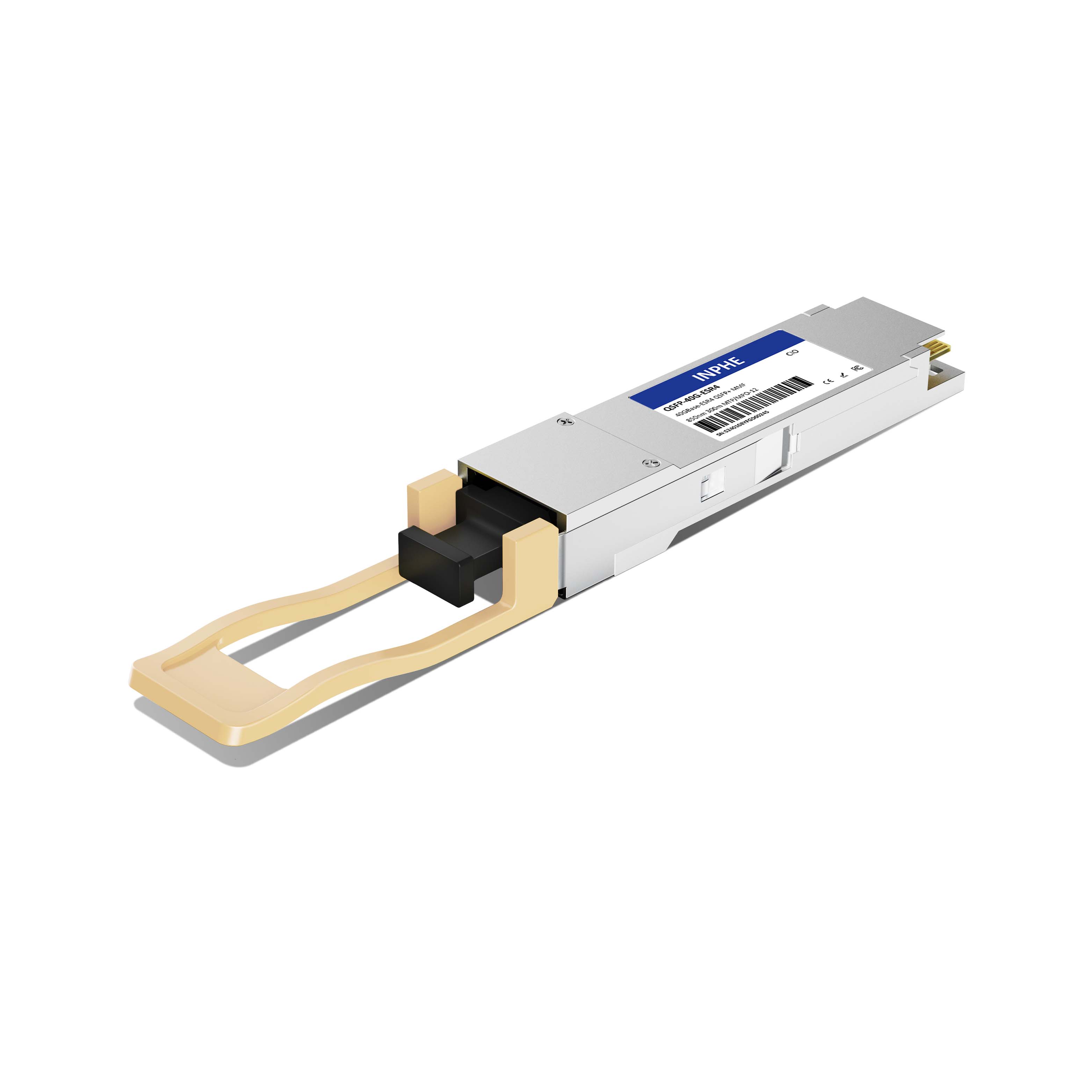

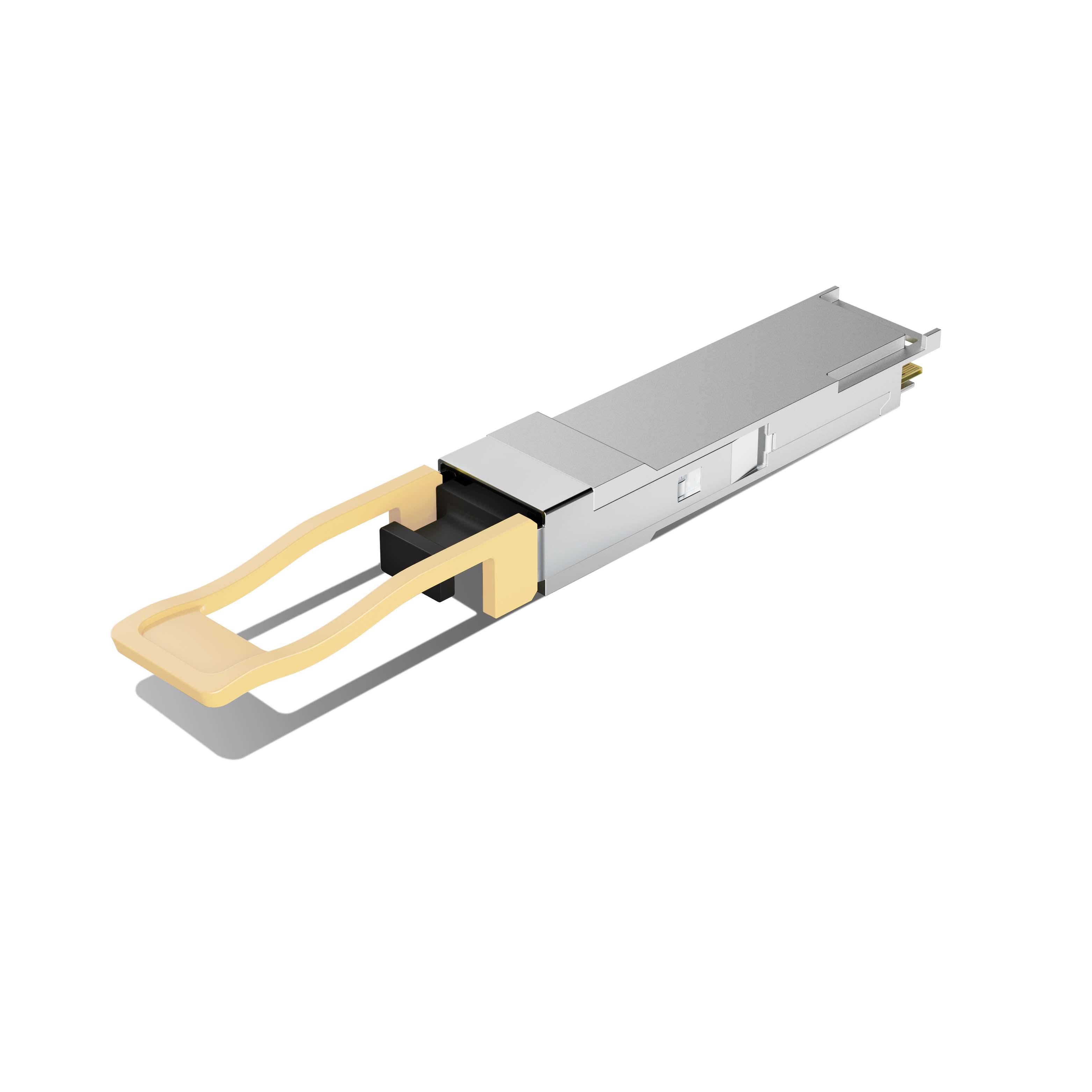

Palo Alto Networks PAN-QSFP-40GBASE-SR4 Compatible QSFP+ 40GBASE SR4 850nm 100m MMF MPO/MTP-12 DDM/DOM Optics Transceiver

Name: Palo Alto Networks PAN-QSFP-40GBASE-SR4 Compatible QSFP+ 40GBASE SR4 850nm 100m MMF MPO/MTP-12 DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 706000001090
Price: 27.99 USD
Availability: InStock

#706000001090

US$27.99

INPHE: PAN-QSFP-40GBASE-SR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

PAN-QSFP-40GBASE-SR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-SR4
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	850nm	Max Distance	OM4 100m
Connector	MTP/MPO 12	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-5.6 ~ +3.0dBm	Receiver Sensitivity	< -9.5dBm
Protocols	40G Ethernet, IEEE 802.3ba, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
