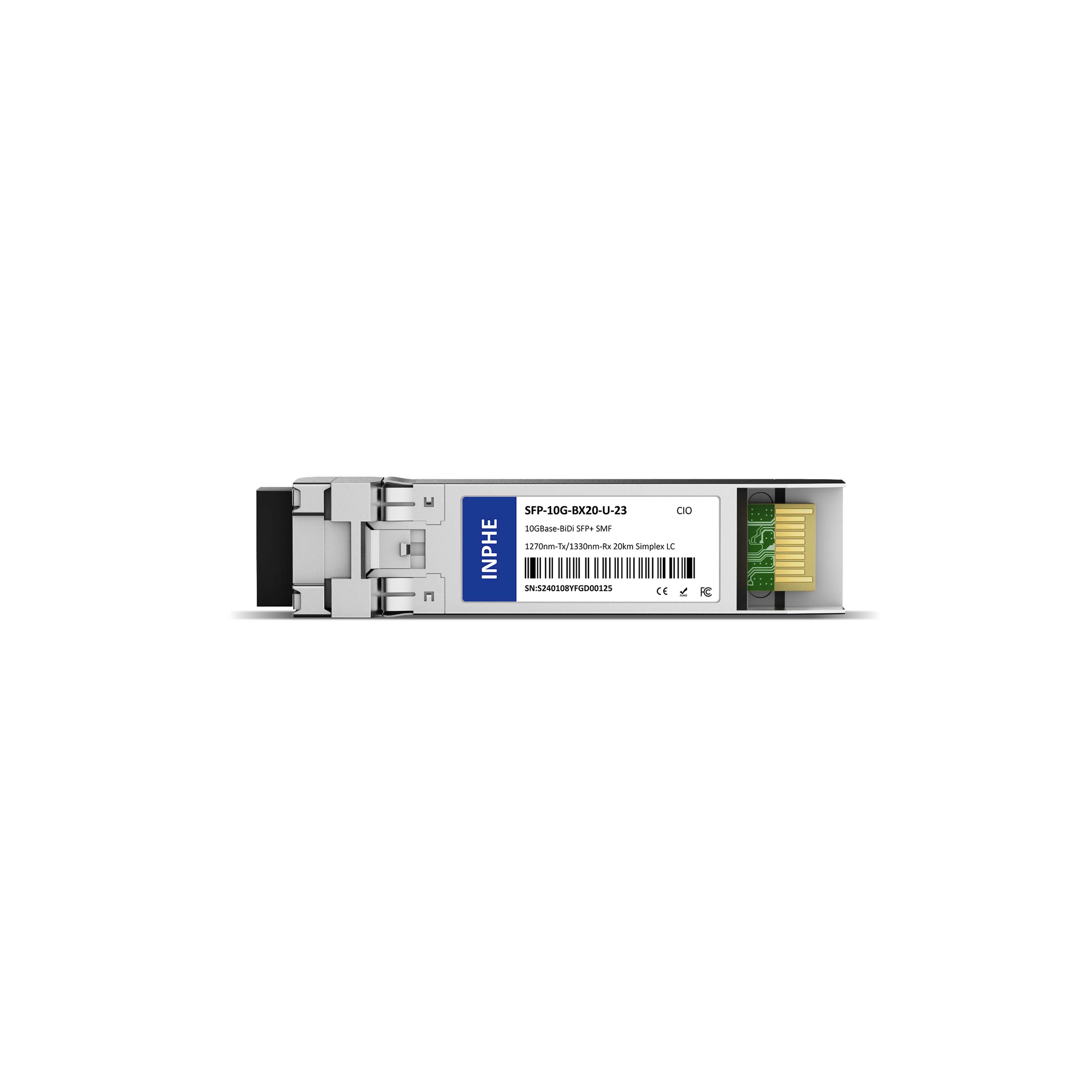

Fortinet FN-TRAN-SFP+LR Compatible SFP+ 10GBASE BiDi 1270nm-Tx/1330nm-Rx 20km SMF Simplex LC DDM/DOM Optics Transceiver

Name: Fortinet FN-TRAN-SFP+LR Compatible SFP+ 10GBASE BiDi 1270nm-Tx/1330nm-Rx 20km SMF Simplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 704001801046
Price: 12.99 USD
Availability: InStock

#704001801046

US$12.99

INPHE: FN-TRAN-SFP+LR

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Arista D-LINK Ciena Chelsio Check Point Calix Avaya HPE (Aruba) ADVA A10networks More +

Compatible Models:

FN-TRAN-SFP+LR Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	SFP-10G-BX20U23
Form Factor	SFP+	Max Data Rate	10.3Gbps
Wavelength	1270nm-Tx/1330nm-Rx	Max Distance	20km
Connector	Simplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-6.0 ~ +1.0dbm	Receiver Sensitivity	< -14.0dBm
Protocols	10G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
