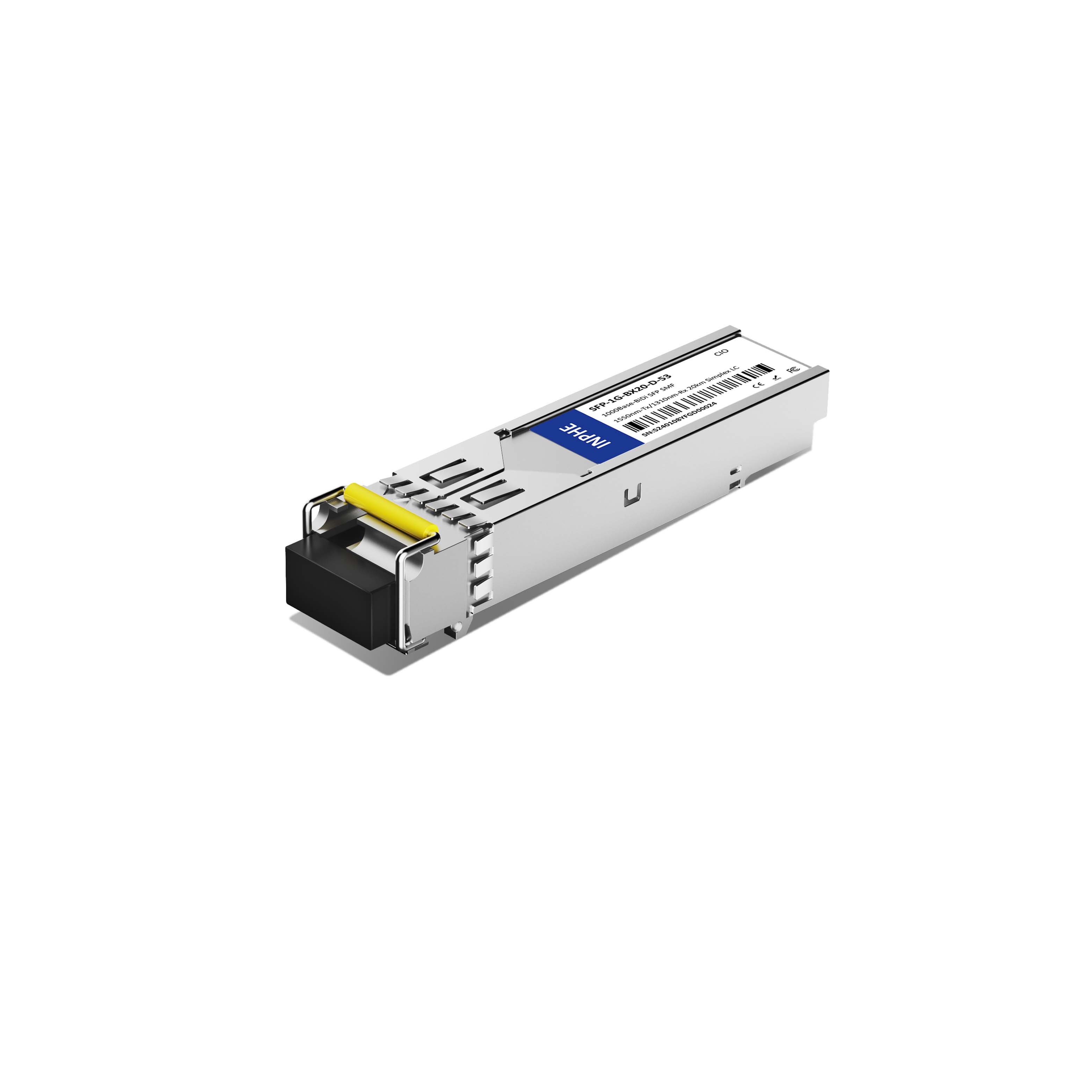

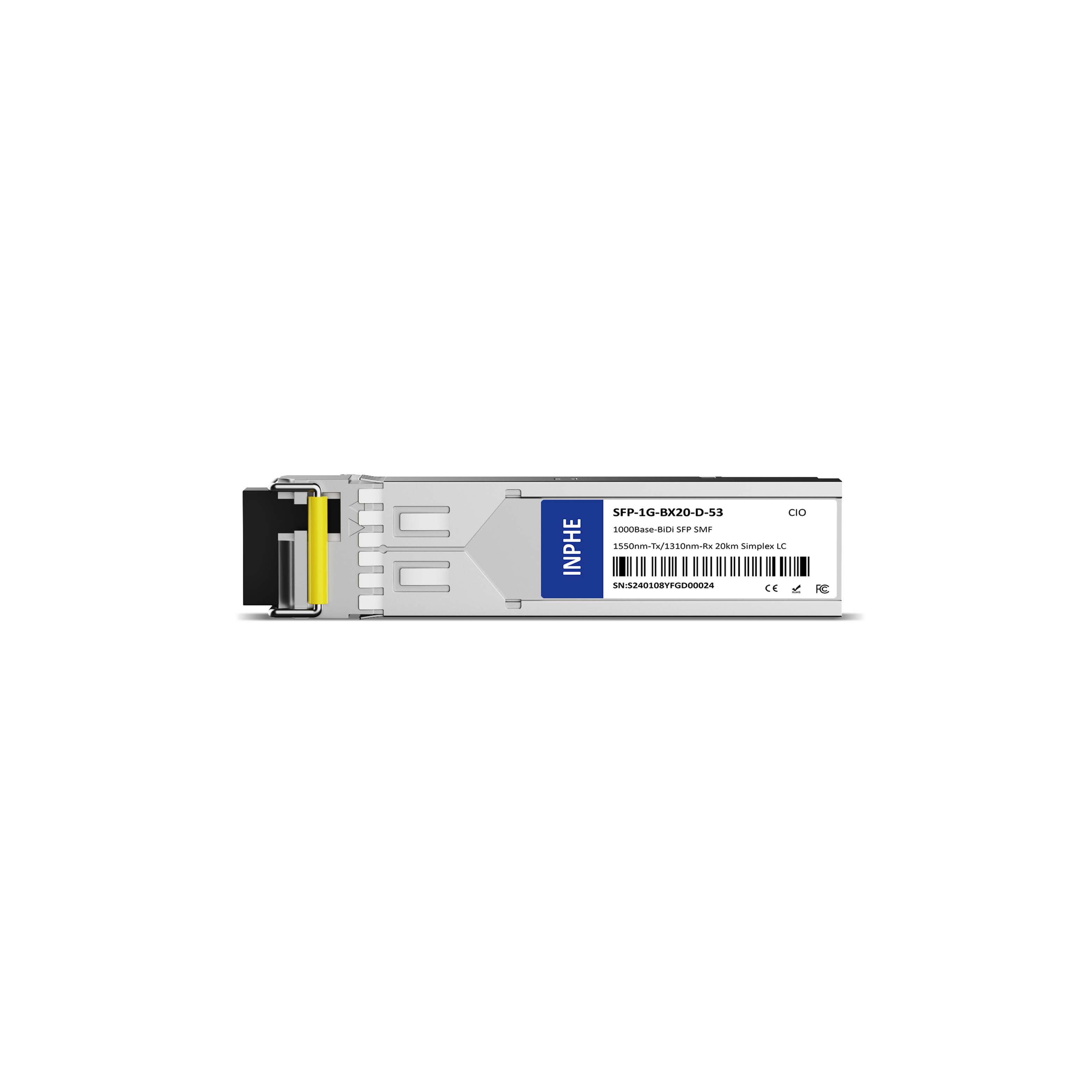

Transition Networks TN-SFP-LXB22 Compatible SFP 1.25GBASE BiDi 1550nm-Tx/1310nm-Rx 20km SMF Simplex LC DDM/DOM Optics Transceiver

Name: Transition Networks TN-SFP-LXB22 Compatible SFP 1.25GBASE BiDi 1550nm-Tx/1310nm-Rx 20km SMF Simplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 702002301118
Price: 6.99 USD
Availability: InStock

#702002301118

US$6.99

INPHE: TN-SFP-LXB22

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco ADVA ADTRAN Coriant ComNet Brocade Blackbox Bintec barox Aruba Networks Allied Telesis More +

Compatible Models:

TN-SFP-LXB22 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	SFP-1G-BX20D53
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	1550nm-Tx/1310nm-Rx	Max Distance	20km
Connector	Simplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-9.0 ~ -3.0dbm	Receiver Sensitivity	< -24.0dBm
Protocols	Gigabit? Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
