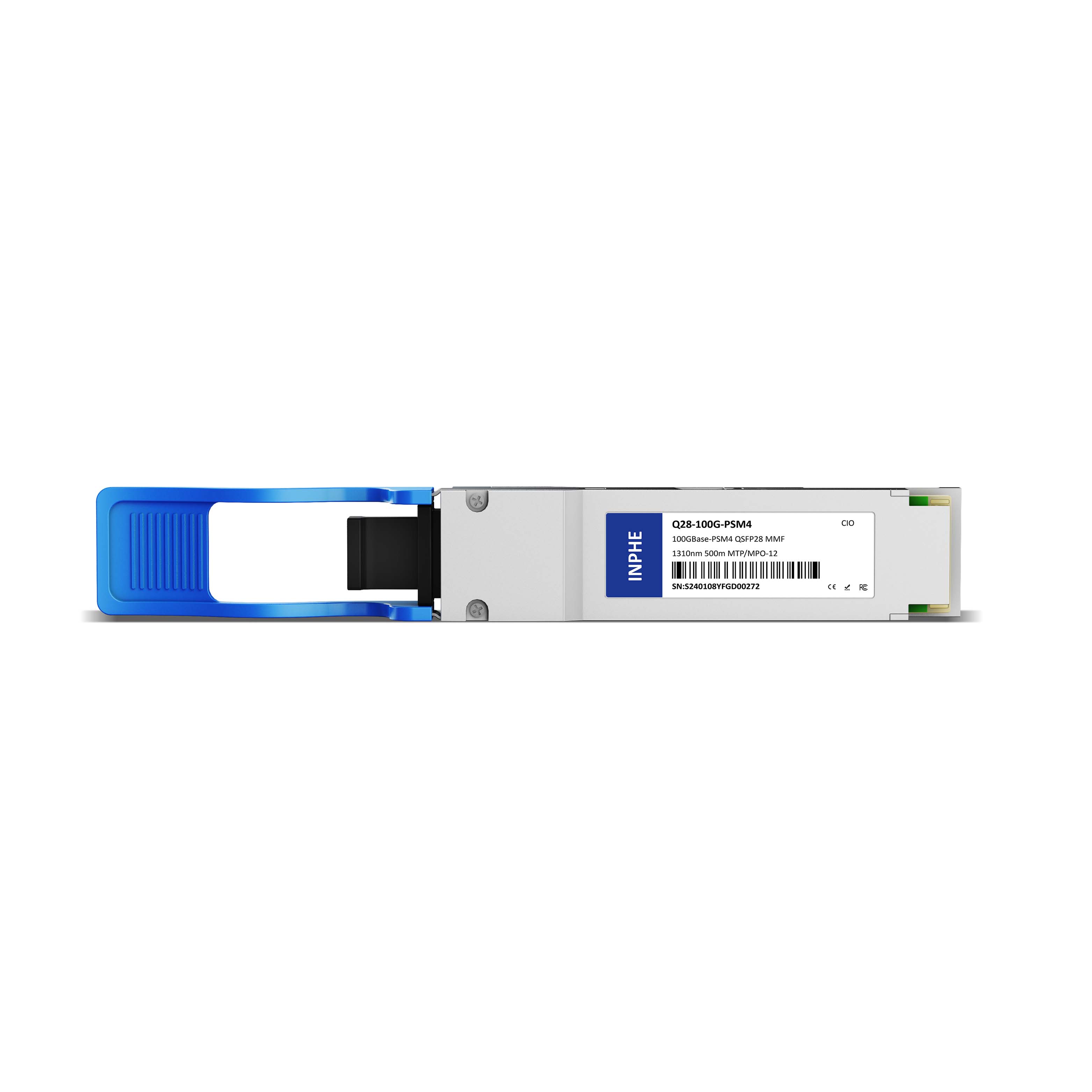

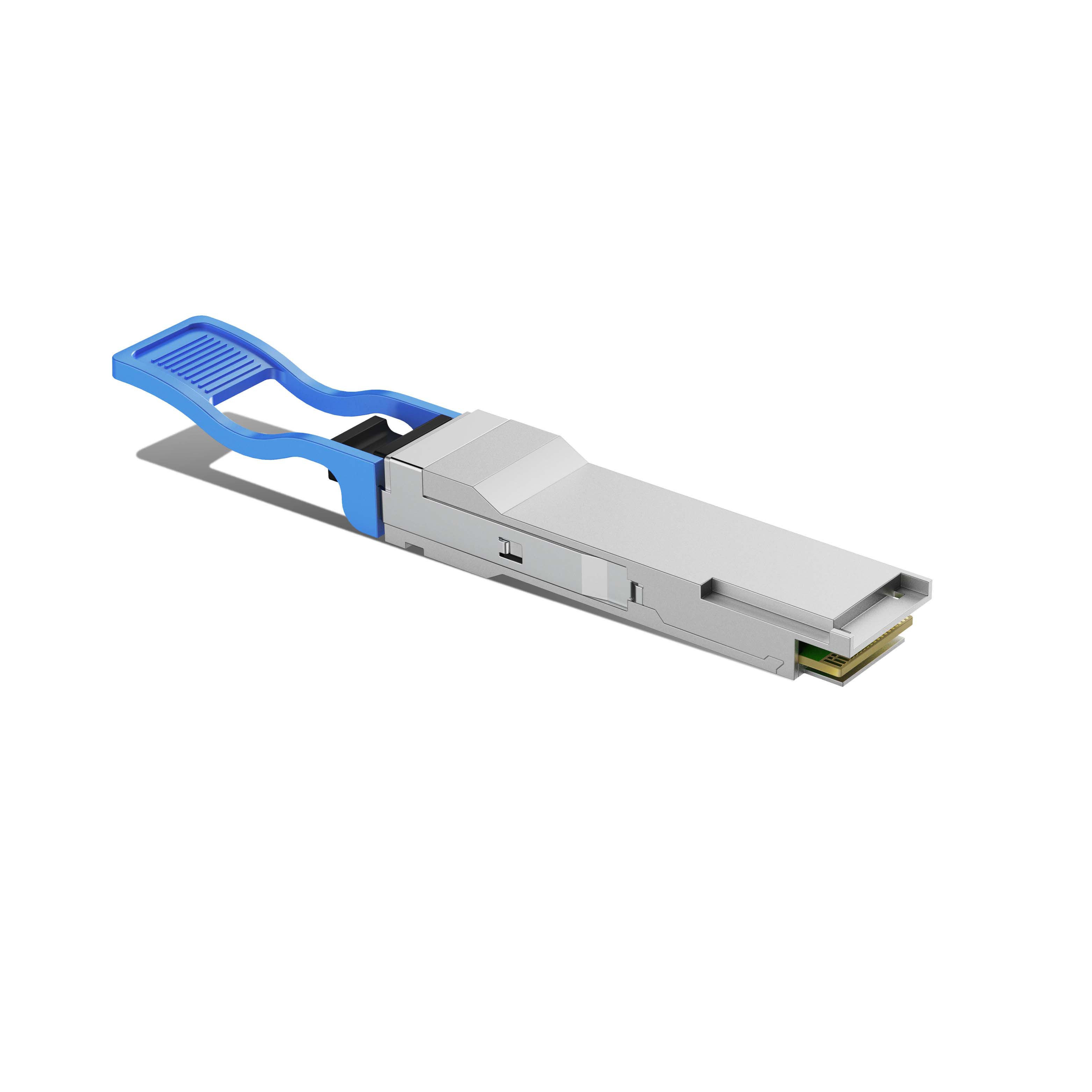

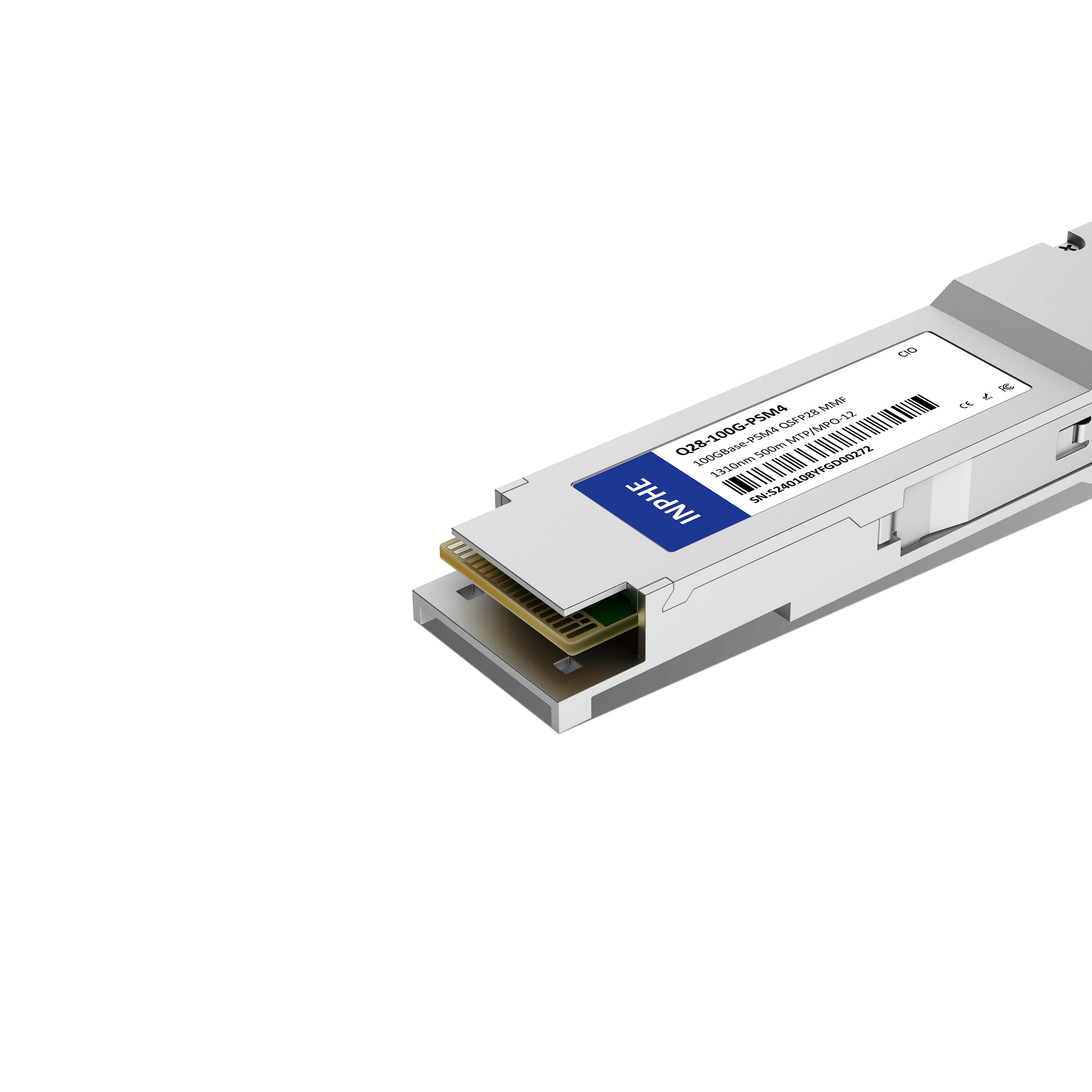

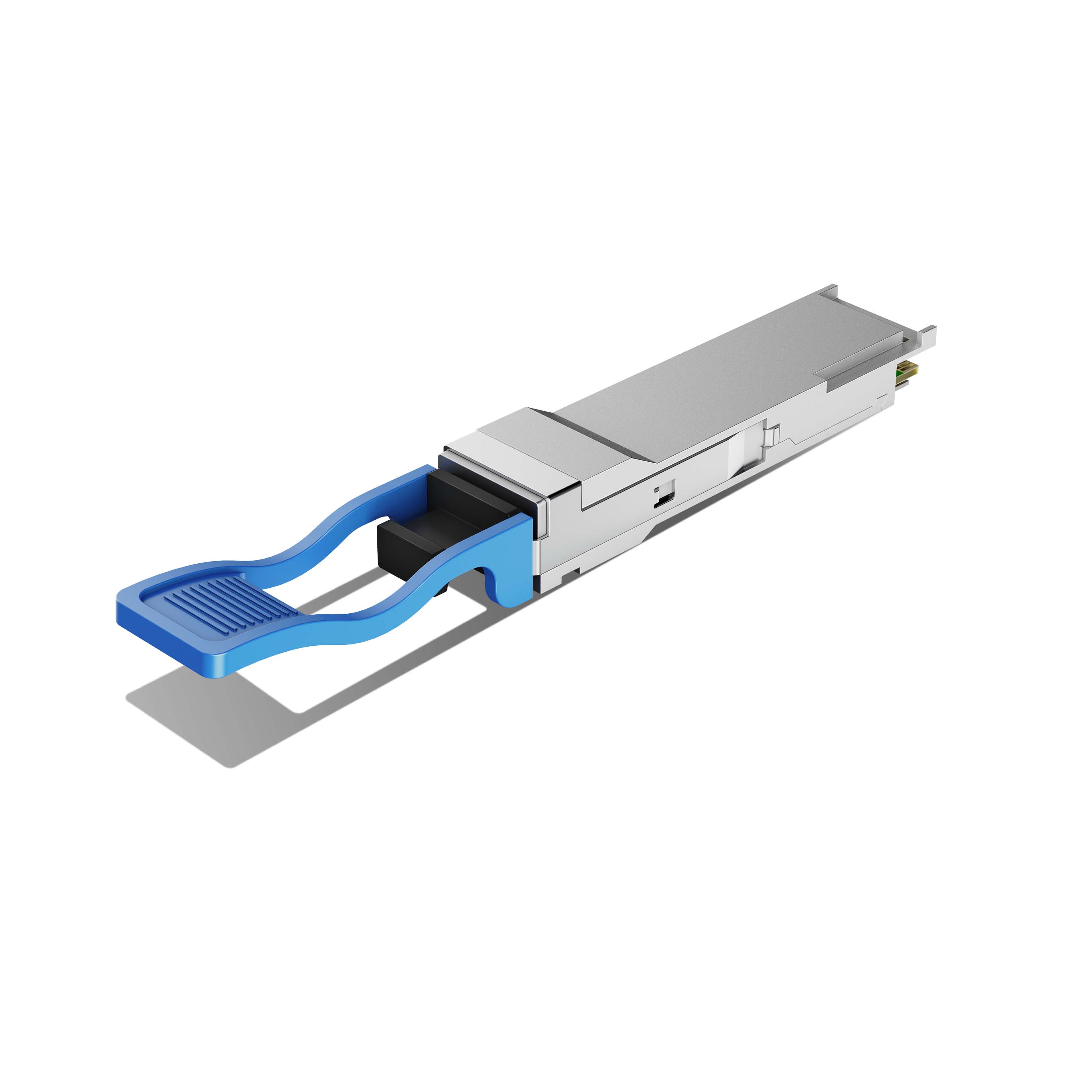

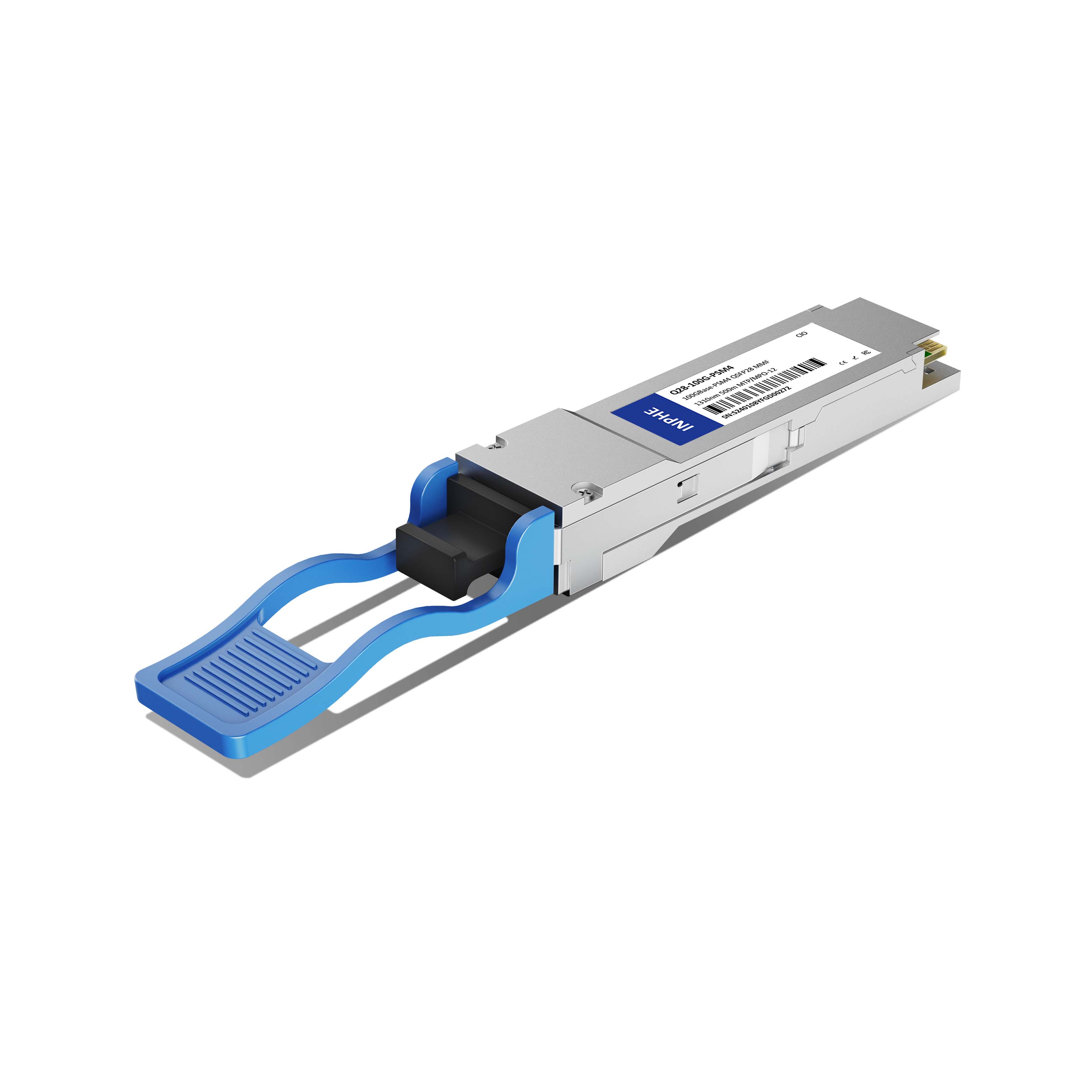

Juniper 740-061406 JNP-QSFP-100G-PSM4 Compatible QSFP28 100GBASE PSM4 1310nm 500m SMF MPO/MTP-12 DDM/DOM 4x25G LR Optics Transceiver

Name: Juniper 740-061406 JNP-QSFP-100G-PSM4 Compatible QSFP28 100GBASE PSM4 1310nm 500m SMF MPO/MTP-12 DDM/DOM 4x25G LR Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7070011263
Price: 109 USD
Availability: InStock

#7070011263

US$109.00

INPHE: QSFP-100G-PSM4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

JNP-QSFP-100G-PSM4

QSFP-100G-PSM4-T2 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-PSM4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	500m
Connector	MTP/MPO 12	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-9.4 ~ +2.0dBm	Receiver Sensitivity	< -9.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
