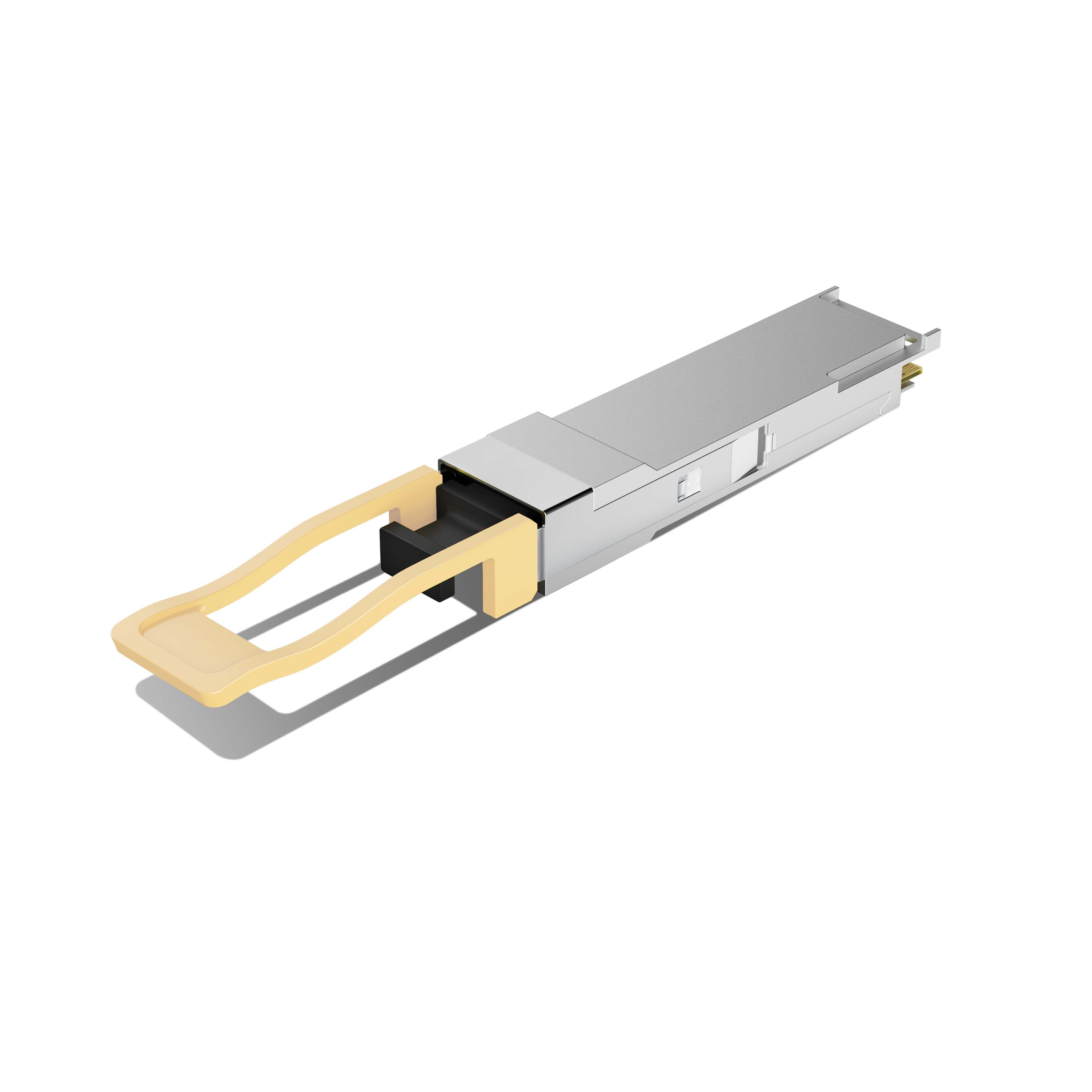

Juniper 740-061405 QSFP-100G-SR4-T2 Compatible QSFP28 100GBASE SR4 850nm 100m MMF MPO/MTP-12 DDM/DOM Optics Transceiver

Name: Juniper 740-061405 QSFP-100G-SR4-T2 Compatible QSFP28 100GBASE SR4 850nm 100m MMF MPO/MTP-12 DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7070000163
Price: 19.99 USD
Availability: InStock

#7070000163

US$19.99

INPHE: QSFP-100G-SR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

JNP-QSFP-100G-SR4

QSFP-100G-SR4-T2

QSFP-100G-SR4-C

QSFP-100GBASE-SR4

QSFP-100G-SR4-ET Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-SR4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	850nm	Max Distance	OM4 100m / OM3 70m
Connector	MTP/MPO 12	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-8.4 ~ +2.4dBm	Receiver Sensitivity	< -10.3dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
