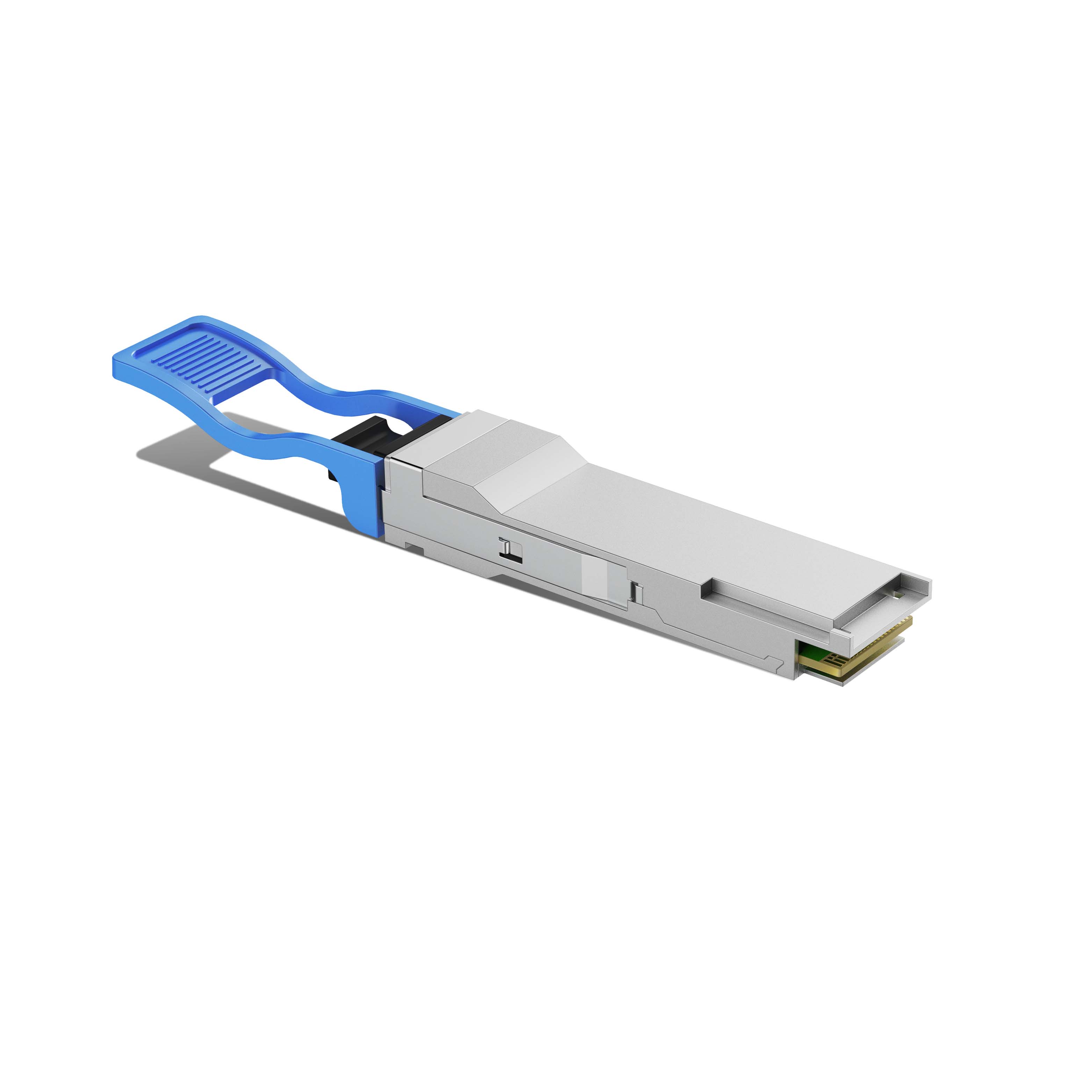

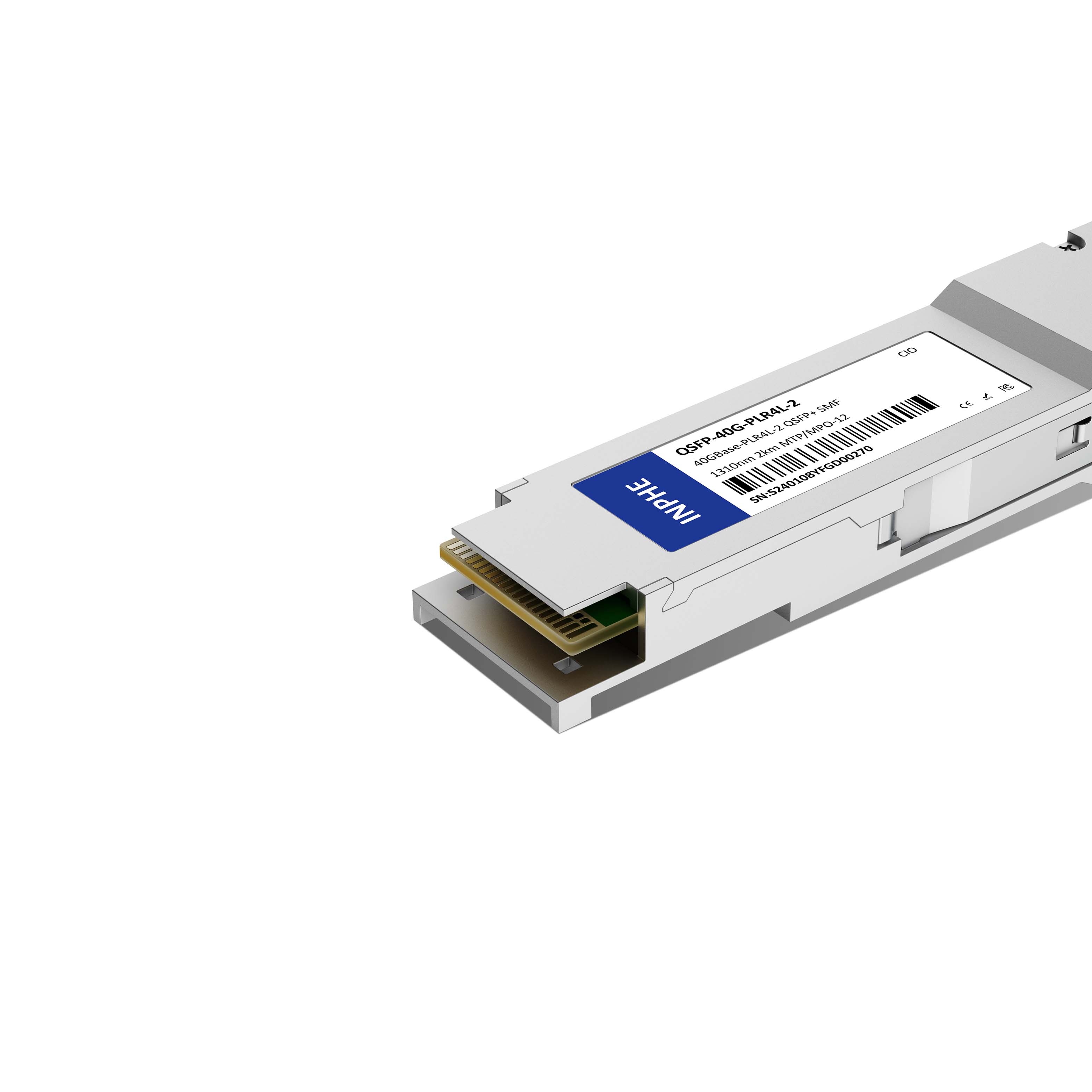

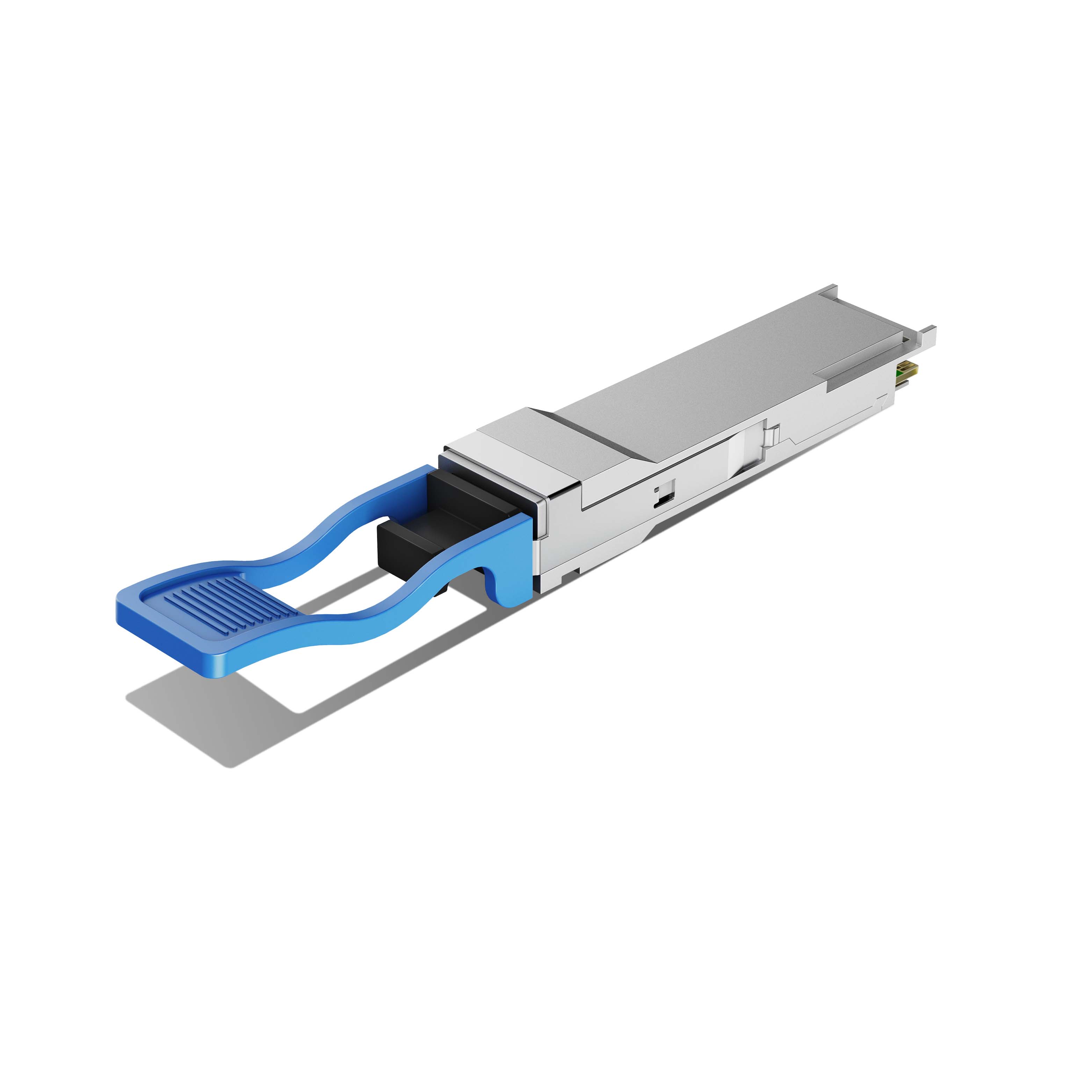

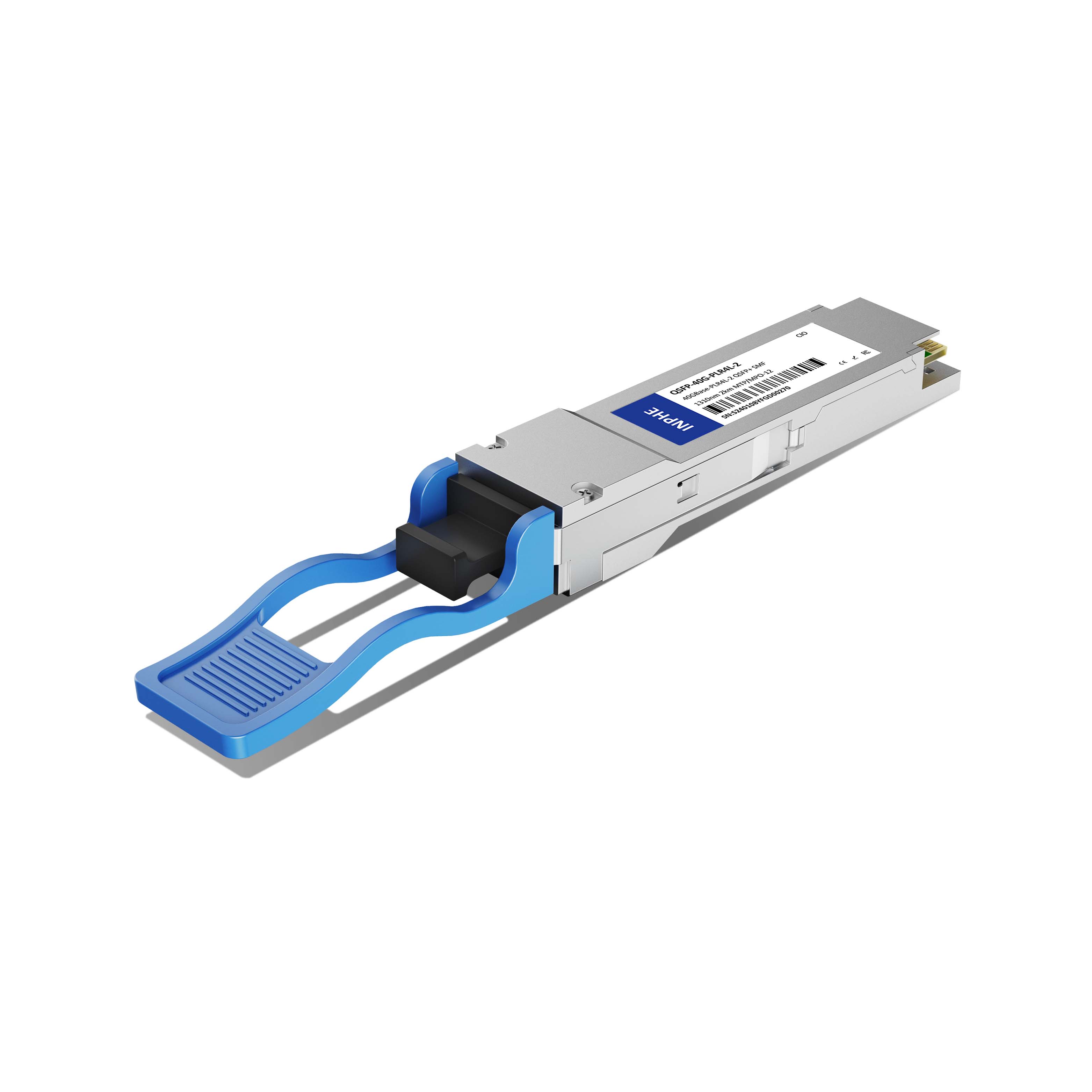

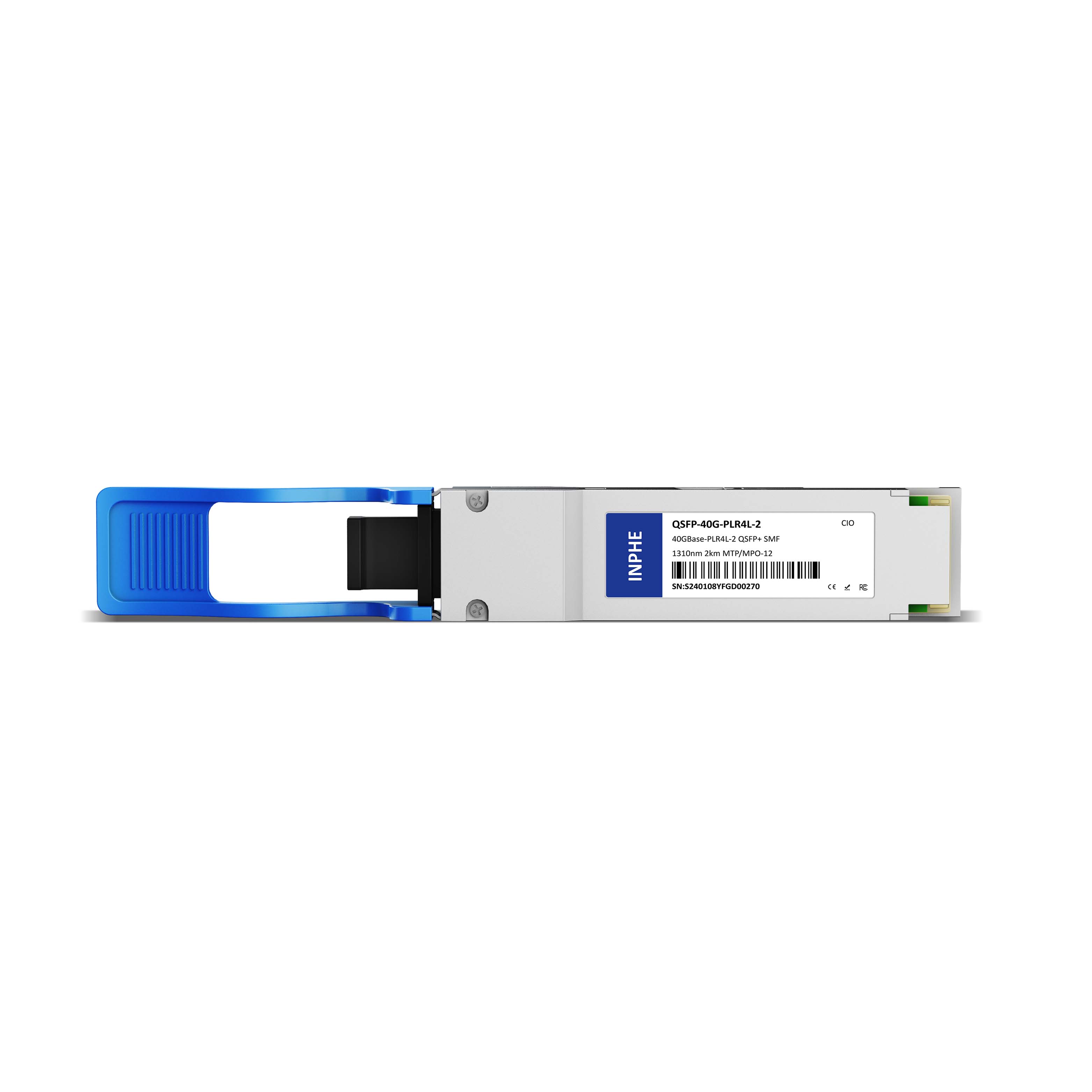

Juniper 740-056706 JNP-QSFP-4X10GE-IR Compatible QSFP+ 40GBASE PLR4L 1310nm 2km SMF MPO/MTP-12 DDM/DOM Optics Transceiver

Name: Juniper 740-056706 JNP-QSFP-4X10GE-IR Compatible QSFP+ 40GBASE PLR4L 1310nm 2km SMF MPO/MTP-12 DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7060006163
Price: 75.99 USD
Availability: InStock

#7060006163

US$75.99

INPHE: QSFP-40G-PLR4L

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

JNP-QSFP-4X10GE-IR Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-PLR4L
Form Factor	QSFP+	Max Data Rate	40Gbps (4x10G)
Wavelength	1310nm	Max Distance	2km
Connector	MTP/MPO	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-9.4 ~ -0.5dBm	Receiver Sensitivity	< -14.4dBm
Protocols	40G Ethernet, IEEE 802.3ba, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
