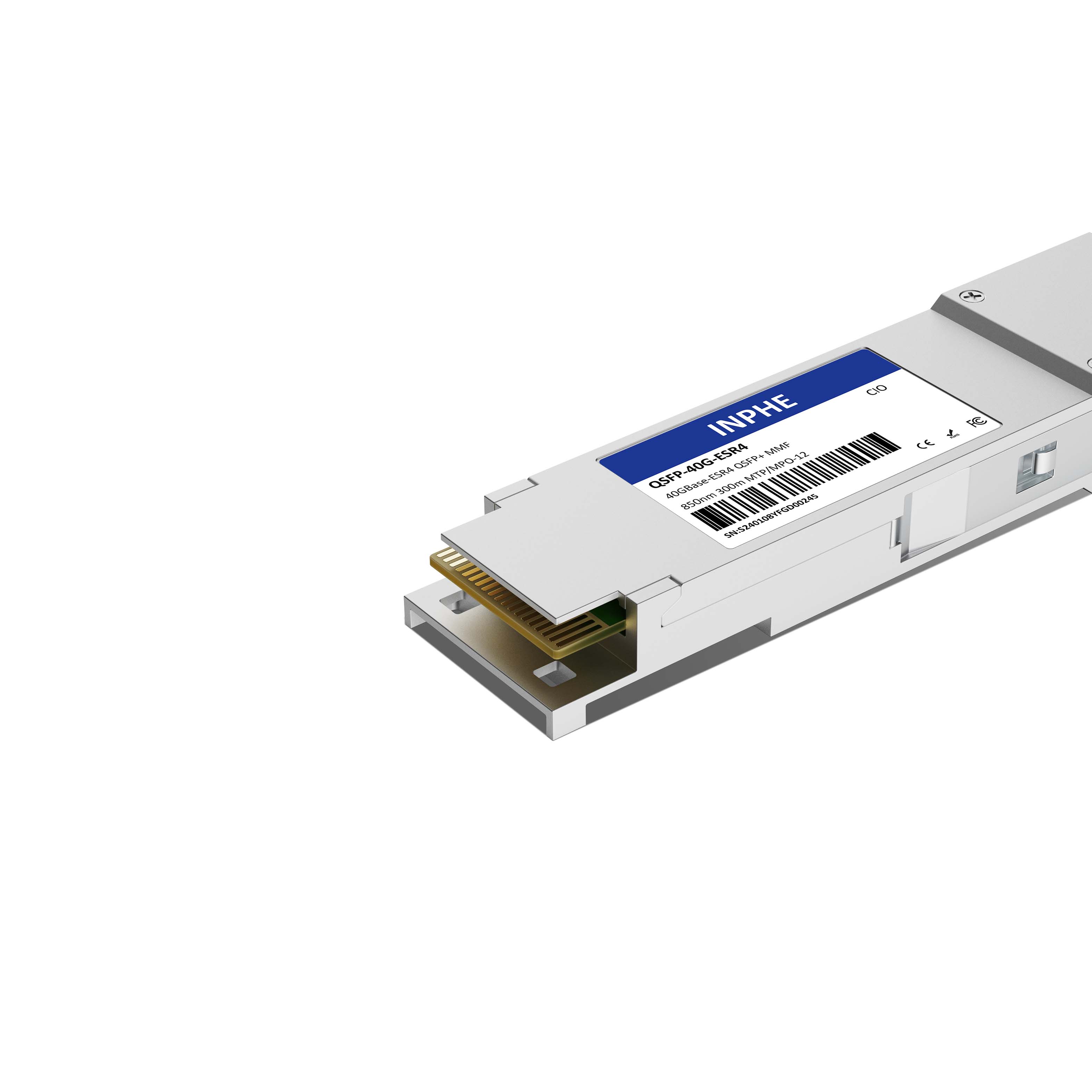

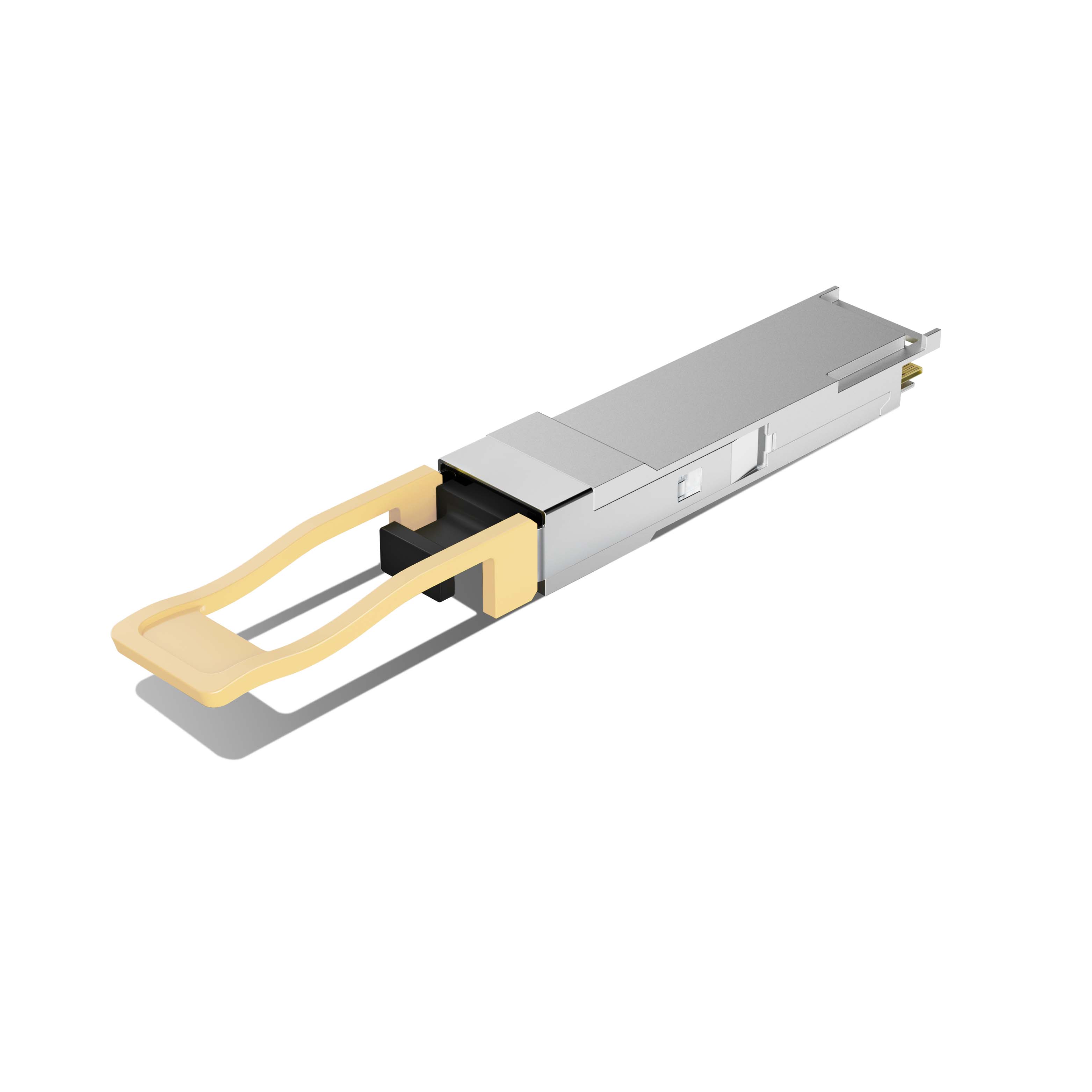

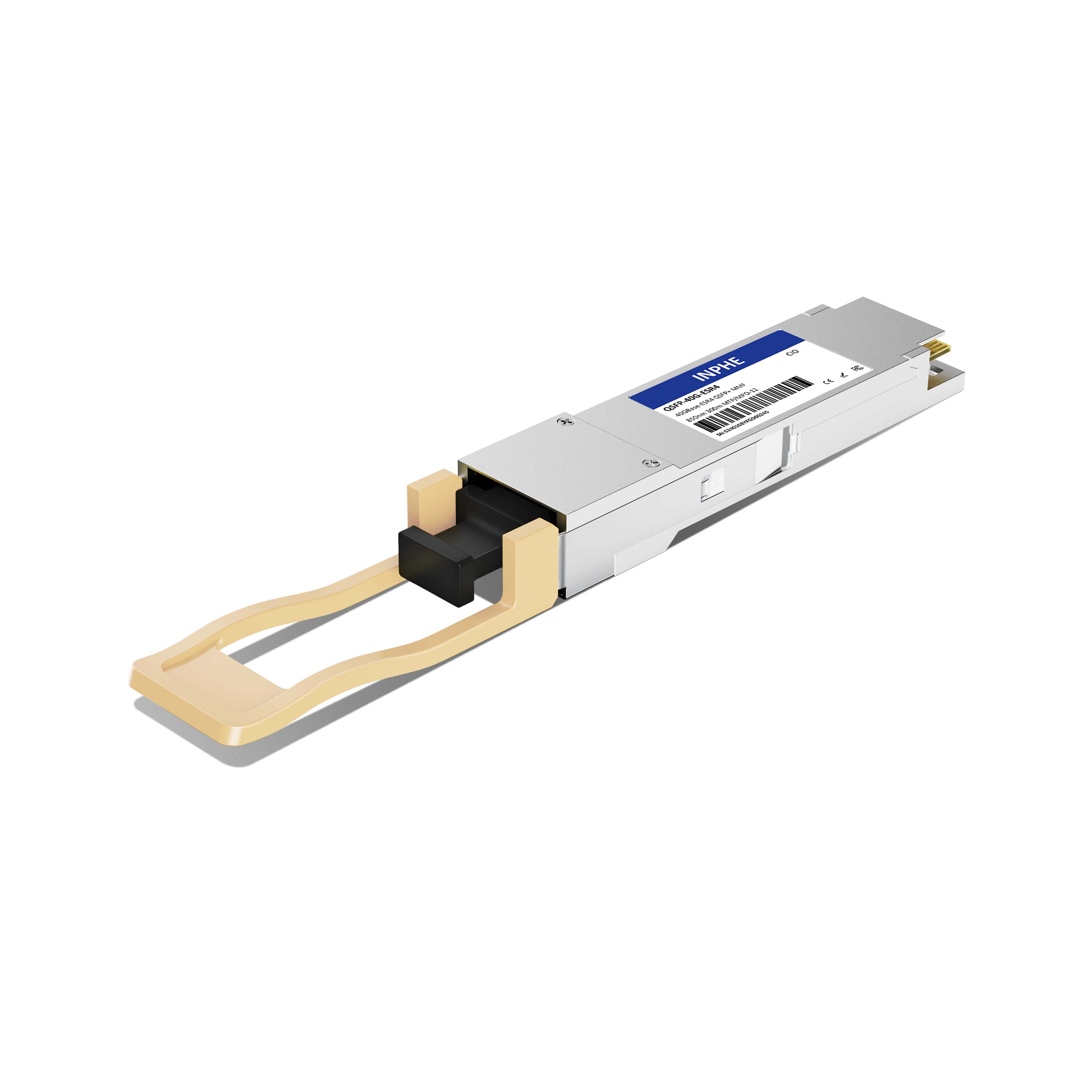

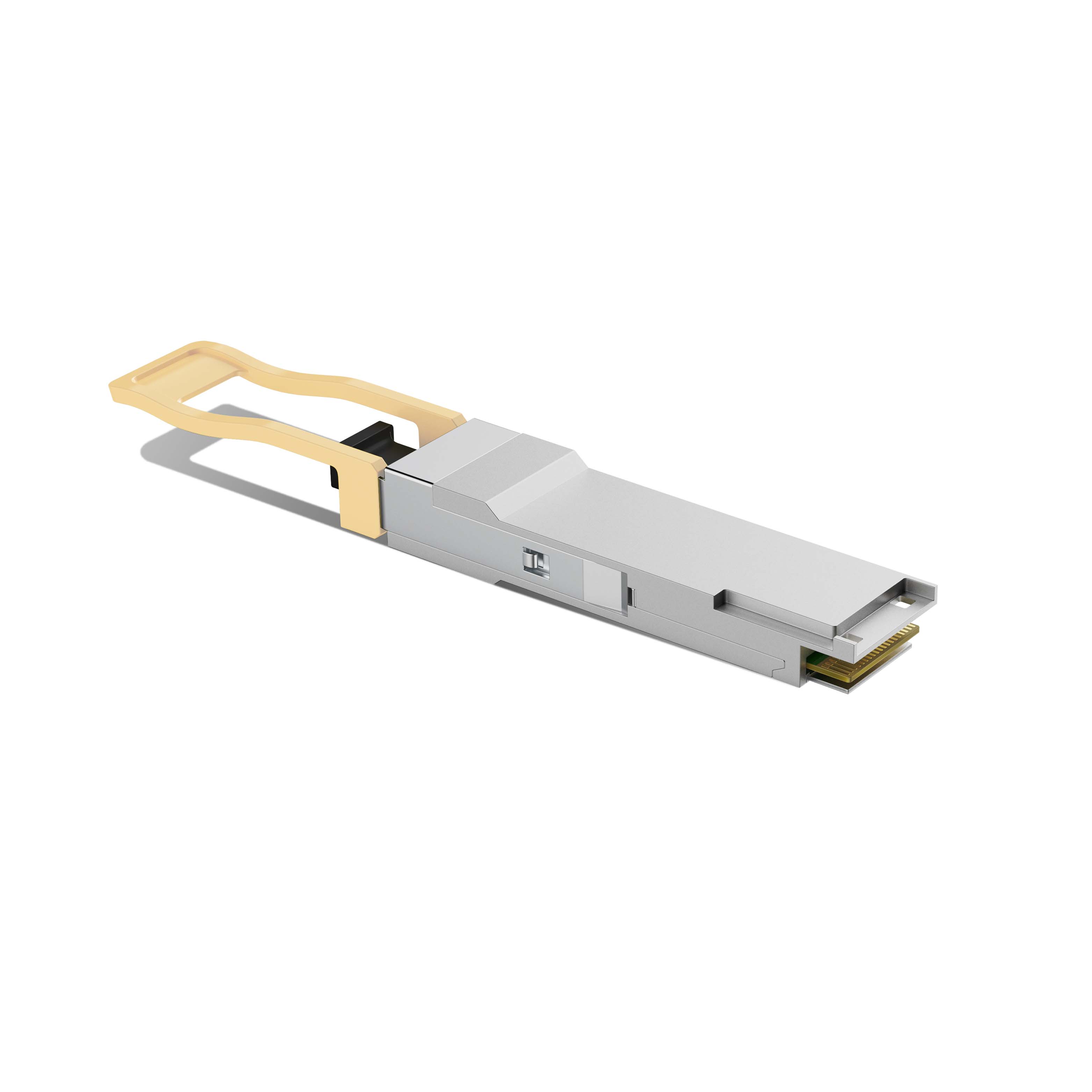

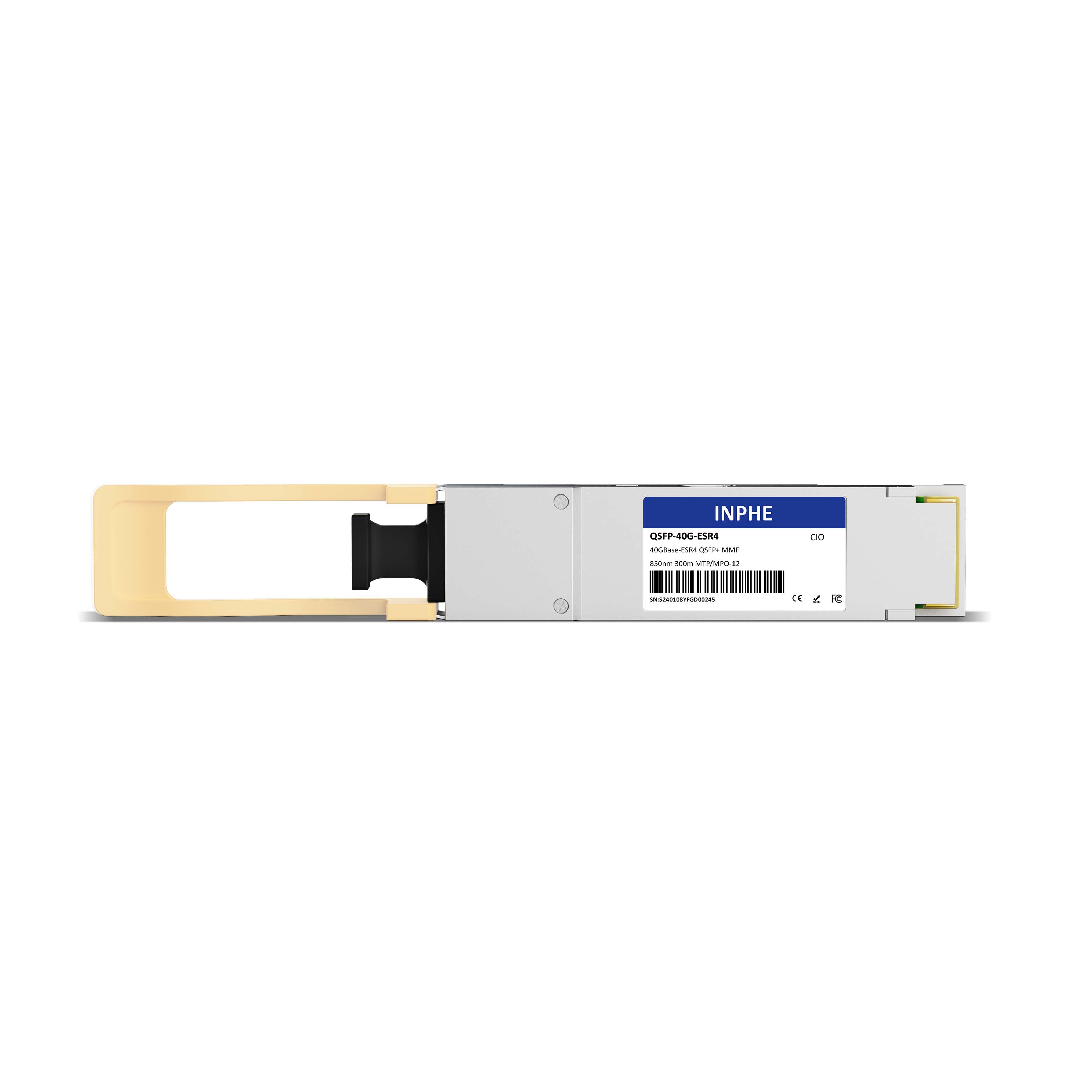

Juniper 740-045627 QFX-QSFP-40G-ESR4 Compatible QSFP+ 40GBASE SR4 850nm 300m MMF MPO/MTP-12 DDM/DOM Optics Transceiver

Name: Juniper 740-045627 QFX-QSFP-40G-ESR4 Compatible QSFP+ 40GBASE SR4 850nm 300m MMF MPO/MTP-12 DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7060000563
Price: 18.99 USD
Availability: InStock

#7060000563

US$18.99

INPHE: QSFP-40G-SR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

QSFPP-40GBASE-SR4

SRX-QSFP-40G-SR4

QSFPP-4X10GE-SR

QFX-QSFP-40G-SR4

QFX-QSFP-40G-ESR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-SR4
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	850nm	Max Distance	OM4 300m
Connector	MTP/MPO 12	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-5.6 ~ +3.0dBm	Receiver Sensitivity	< -9.5dBm
Protocols	40G Ethernet, IEEE 802.3ba, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
