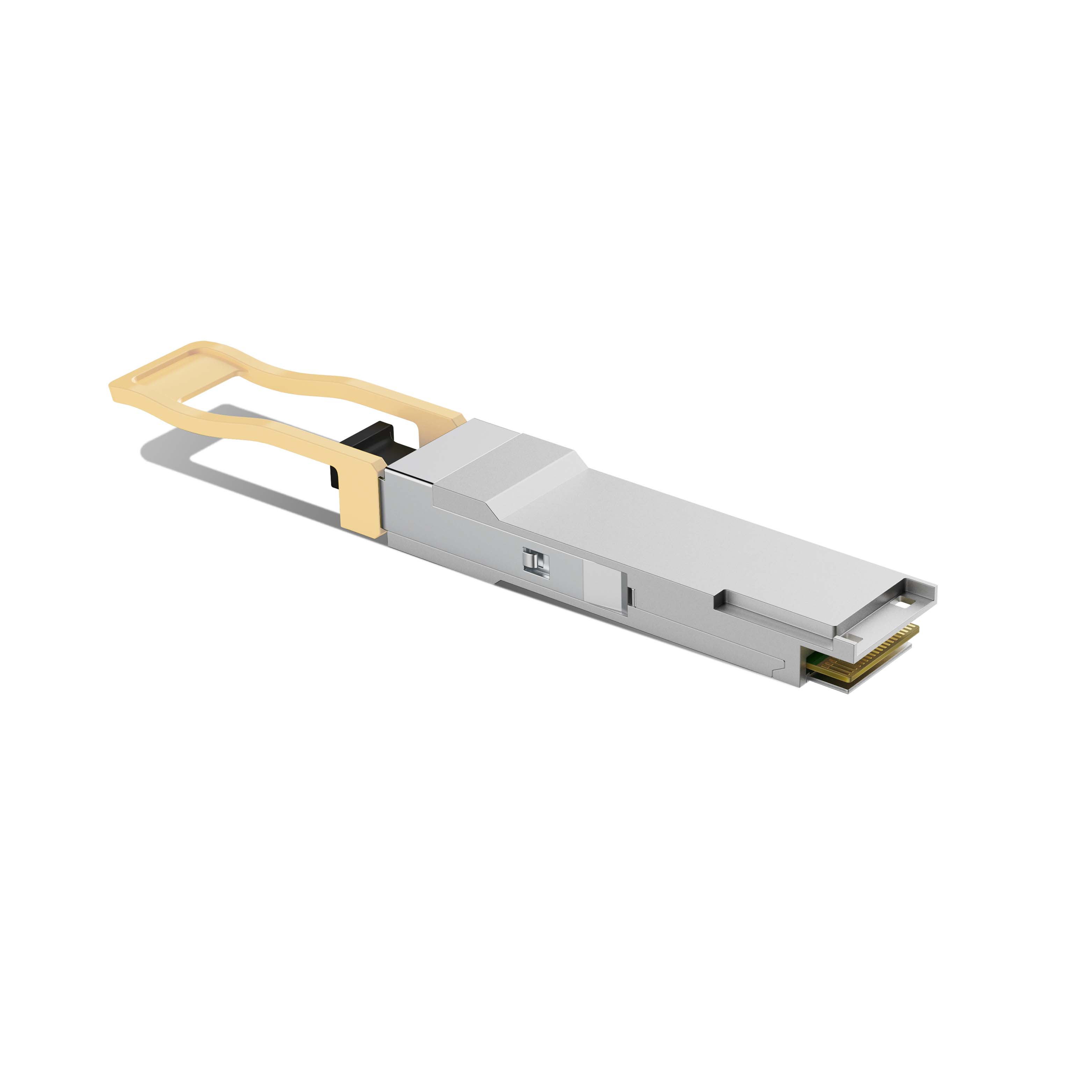

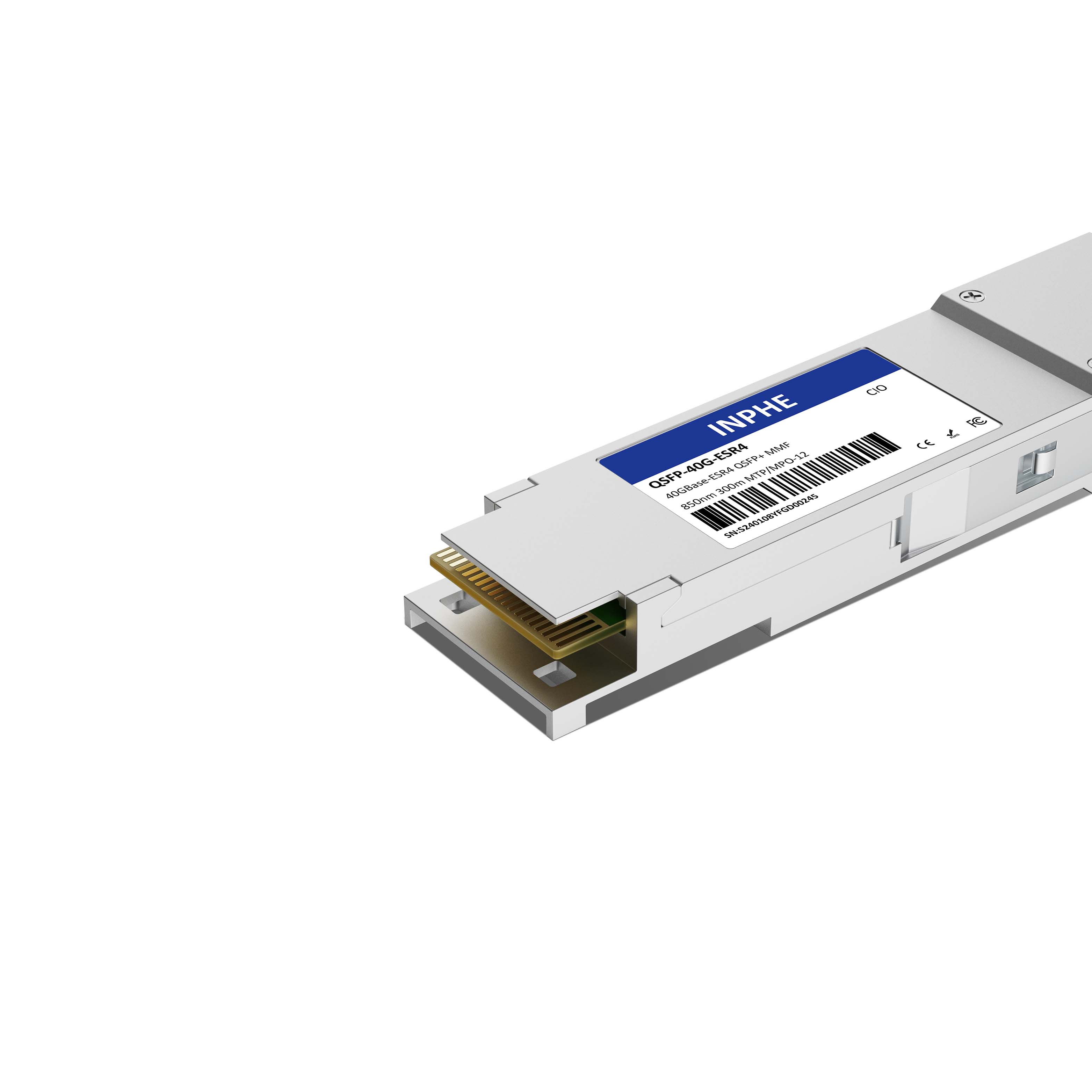

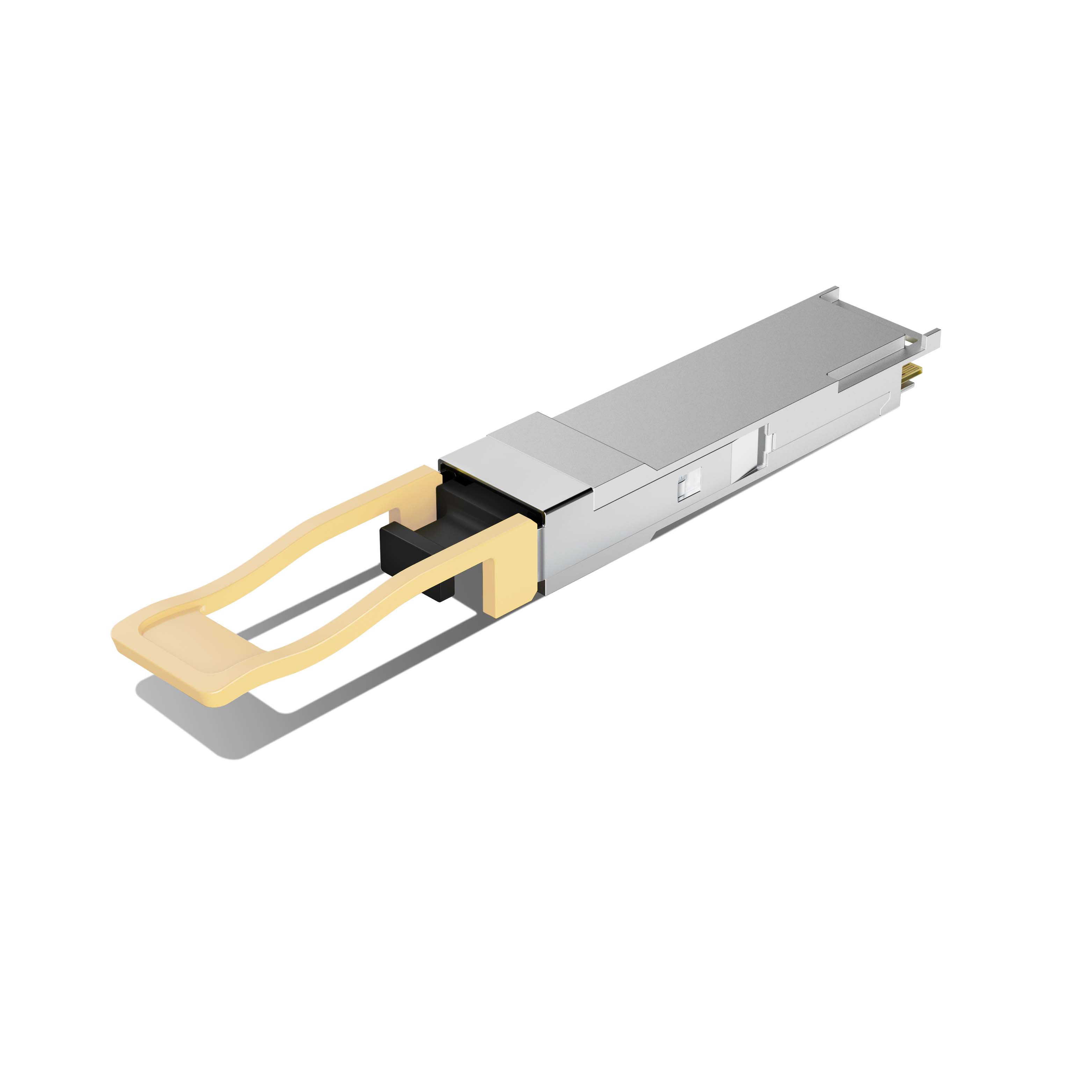

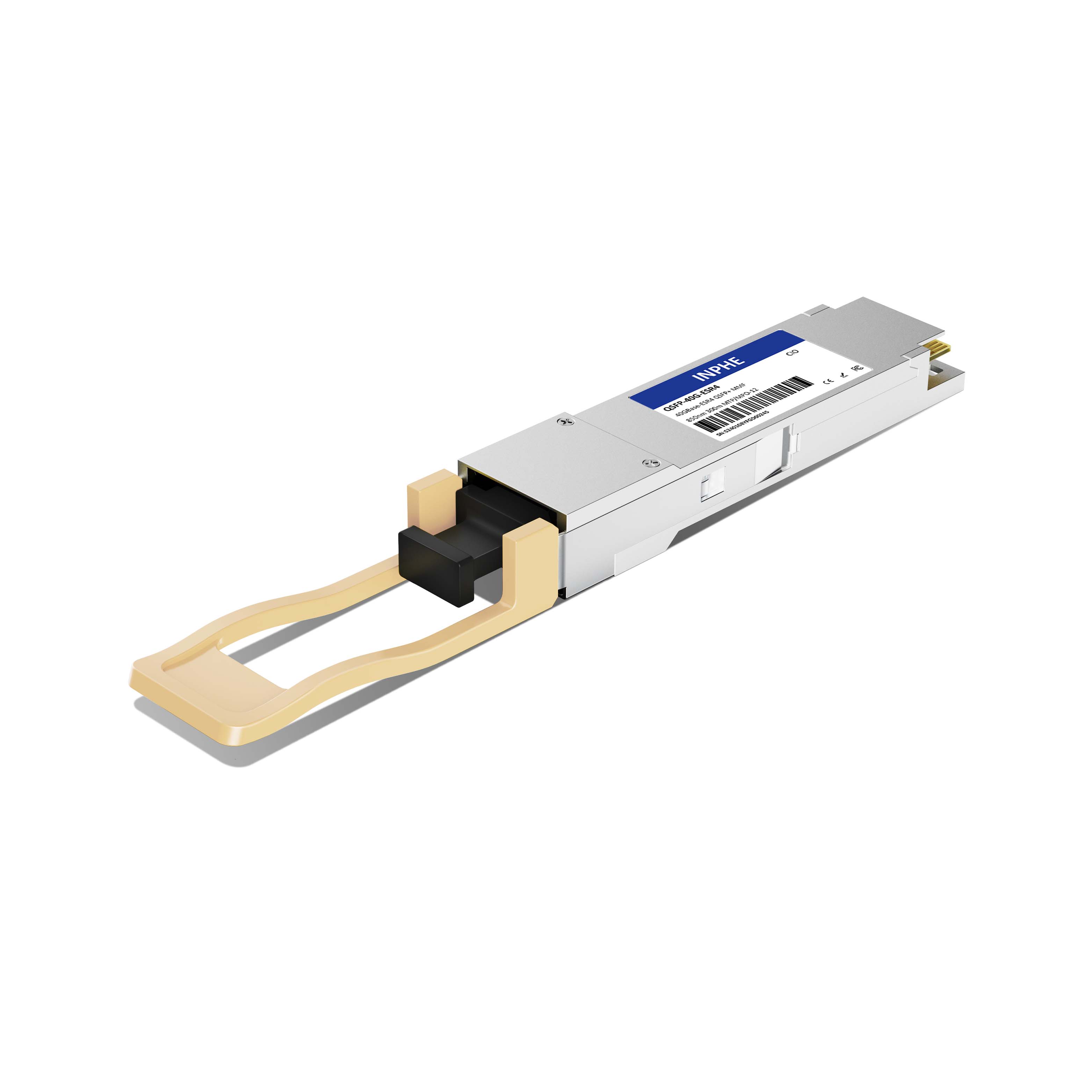

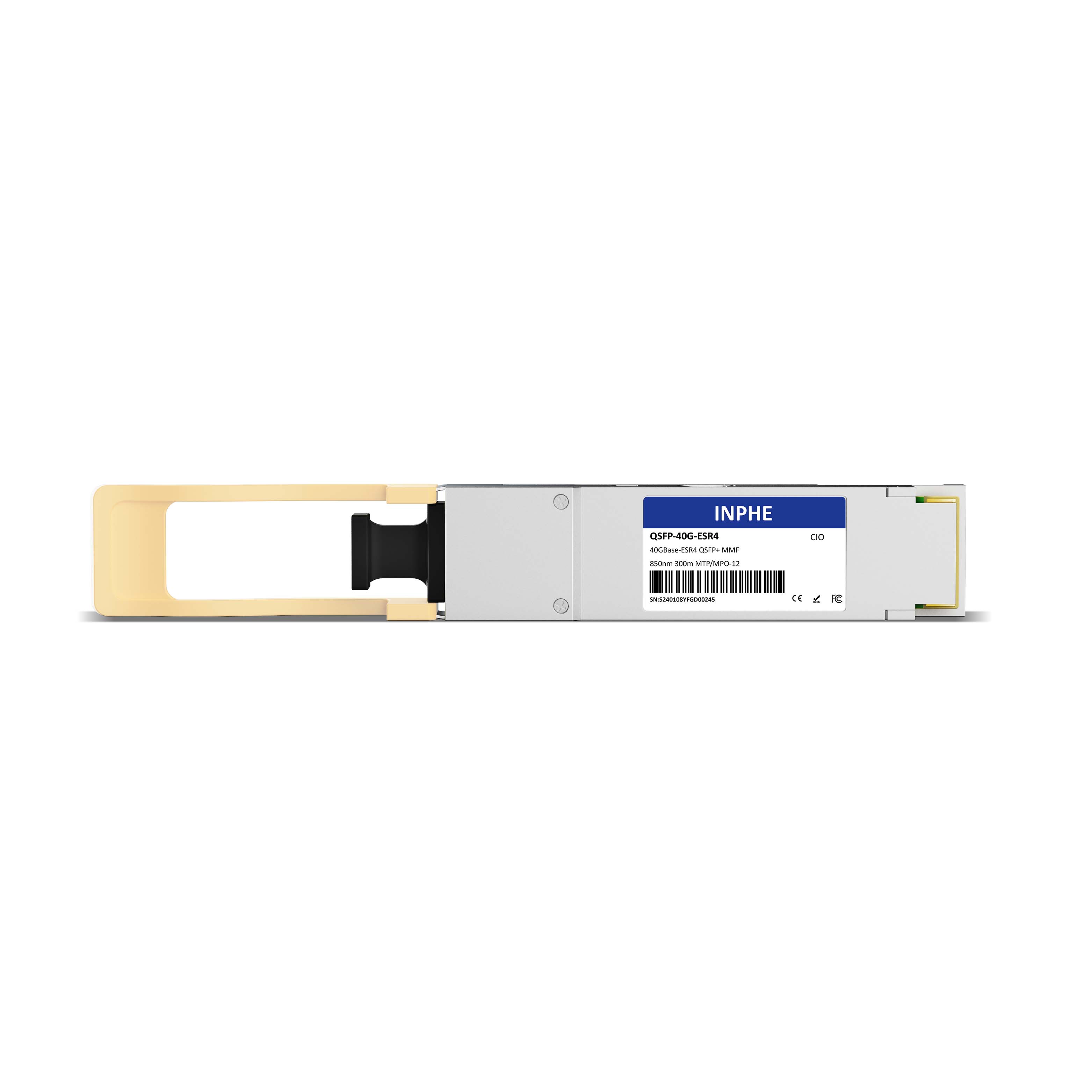

Cisco QSFP-40G-SR4 Compatible QSFP+ 40GBASE SR4 850nm 300m MMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x10G SR

Name: Cisco QSFP-40G-SR4 Compatible QSFP+ 40GBASE SR4 850nm 300m MMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x10G SR
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 7060000228
Price: 18.99 USD
Availability: InStock

#7060000228

US$18.99

INPHE: QSFP-40G-SR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

QSFP-40G-SR4-S

QSFP-40G-SR4

FET-40G Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-SR4
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	850nm	Max Distance	OM4 300m
Connector	MTP/MPO 12	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-5.6 ~ +3.0dBm	Receiver Sensitivity	< -9.5dBm
Protocols	40G Ethernet, IEEE 802.3ba, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
